DM74LS299N

Description
8-Input Universal Shift/Storage Register with
Categorylogic    logic
File Size59KB,6 Pages
ManufacturerFairchild
Websitehttp://www.fairchildsemi.com/
Download Datasheet Parametric Compare View All

DM74LS299N Online Shopping

Suppliers Part Number Price MOQ In stock
DM74LS299N - - View Buy Now

DM74LS299N Overview

8-Input Universal Shift/Storage Register with

DM74LS299N Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerFairchild
Parts packaging codeDIP
package instruction0.300 INCH, PLASTIC, MS-001, DIP-20
Contacts20
Reach Compliance Codeunknow
Is SamacsysN
Other featuresHOLD MODE; COMMON I/O PINS; GATED OUTPUT CONTROL
Counting directionBIDIRECTIONAL
seriesLS
JESD-30 codeR-PDIP-T20
JESD-609 codee0
length26.075 mm
Logic integrated circuit typePARALLEL IN PARALLEL OUT
Maximum Frequency@Nom-Su35000000 Hz
Number of digits8
Number of functions1
Number of terminals20
Maximum operating temperature70 °C
Minimum operating temperature
Output characteristics3-STATE
Output polarityTRUE
Package body materialPLASTIC/EPOXY
encapsulated codeDIP
Encapsulate equivalent codeDIP20,.3
Package shapeRECTANGULAR
Package formIN-LINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
power supply5 V
propagation delay (tpd)35 ns
Certification statusNot Qualified
Maximum seat height5.08 mm
Maximum supply voltage (Vsup)5.25 V
Minimum supply voltage (Vsup)4.75 V
Nominal supply voltage (Vsup)5 V
surface mountNO
technologyTTL
Temperature levelCOMMERCIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Trigger typePOSITIVE EDGE
width7.62 mm
minfmax35 MHz
Base Number Matches1
DM74LS299 8-Input Universal Shift/Storage Register with Common Parallel I/O Pins
October 1988
Revised March 2000
DM74LS299
8-Input Universal Shift/Storage Register with
Common Parallel I/O Pins
General Description
The DM74LS299 is an 8-bit universal shift/storage register
with 3-STATE outputs. Four modes of operation are possi-
ble: hold (store), shift left, shift right and load data. The par-
allel load inputs and flip-flop outputs are multiplexed to
reduce the total number of package pins. Separate outputs
are provided for flip-flops Q0 and Q7 to allow easy cascad-
ing. A separate active LOW Master Reset is used to reset
the register.
Features
s
Common I/O for reduced pin count
s
Four operation modes: shift left, shift right, load and
store
s
Separate shift right serial input and shift left serial input
for easy cascading
s
3-STATE outputs for bus oriented applications
Ordering Code:
Order Number
DM74LS299WM
DM74LS299N
Package Number

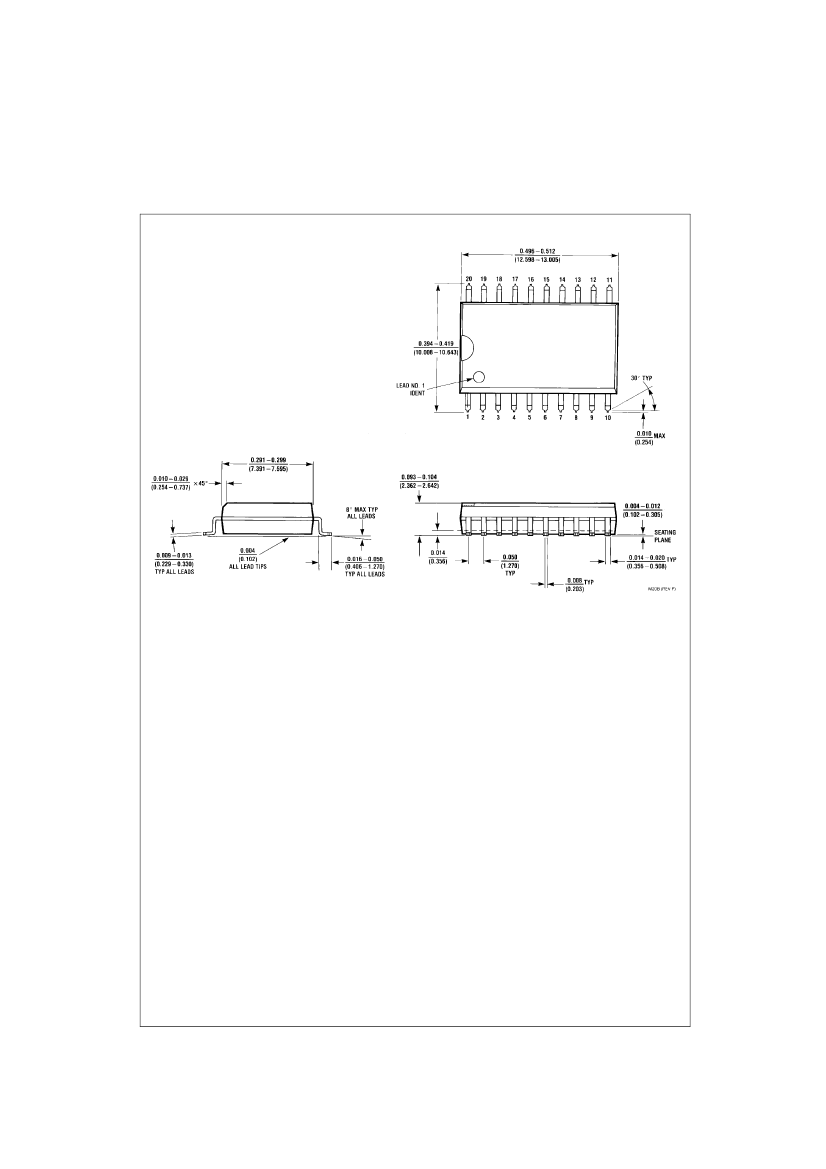

M20B
N20A
Package Description
20-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300 Wide
20-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide
Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code.
Logic Symbol
Connection Diagram
V
CC
=
Pin 20
GND
=
Pin 10
Pin Descriptions
Pin
Names
CP
D
S0
D
S7
S0, S1
MR
Description
Clock Pulse Input (Active Rising Edge)
Serial Data Input for Right Shift
Serial Data Input for Left Shift
Mode Select Inputs
Asynchronous Master Reset Input (Active LOW)
OE1, OE2 3-STATE Output Enable Inputs (Active LOW)
I/O0–I/O7 Parallel Data Inputs or 3-STATE Parallel Outputs
Q0–Q7
Serial Outputs
© 2000 Fairchild Semiconductor Corporation
DS009827
www.fairchildsemi.com

DM74LS299N Related Products

DM74LS299N DM74LS299WM DM74LS299
Description 8-Input Universal Shift/Storage Register with 8-Input Universal Shift/Storage Register with 8-Input Universal Shift/Storage Register with
Is it Rohs certified? incompatible incompatible -
Maker Fairchild Fairchild -
Parts packaging code DIP SOIC -
package instruction 0.300 INCH, PLASTIC, MS-001, DIP-20 SOP, SOP20,.4 -
Contacts 20 20 -
Reach Compliance Code unknow unknow -
Other features HOLD MODE; COMMON I/O PINS; GATED OUTPUT CONTROL HOLD MODE; COMMON I/O PINS; GATED OUTPUT CONTROL -
Counting direction BIDIRECTIONAL BIDIRECTIONAL -
series LS LS -
JESD-30 code R-PDIP-T20 R-PDSO-G20 -
JESD-609 code e0 e0 -
length 26.075 mm 12.8 mm -
Logic integrated circuit type PARALLEL IN PARALLEL OUT PARALLEL IN PARALLEL OUT -
Maximum Frequency@Nom-Su 35000000 Hz 35000000 Hz -
Number of digits 8 8 -
Number of functions 1 1 -
Number of terminals 20 20 -
Maximum operating temperature 70 °C 70 °C -
Output characteristics 3-STATE 3-STATE -
Output polarity TRUE TRUE -
Package body material PLASTIC/EPOXY PLASTIC/EPOXY -
encapsulated code DIP SOP -
Encapsulate equivalent code DIP20,.3 SOP20,.4 -
Package shape RECTANGULAR RECTANGULAR -
Package form IN-LINE SMALL OUTLINE -
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED -
power supply 5 V 5 V -
propagation delay (tpd) 35 ns 35 ns -
Certification status Not Qualified Not Qualified -
Maximum seat height 5.08 mm 2.65 mm -
Maximum supply voltage (Vsup) 5.25 V 5.25 V -
Minimum supply voltage (Vsup) 4.75 V 4.75 V -
Nominal supply voltage (Vsup) 5 V 5 V -
surface mount NO YES -
technology TTL TTL -
Temperature level COMMERCIAL COMMERCIAL -
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) -
Terminal form THROUGH-HOLE GULL WING -
Terminal pitch 2.54 mm 1.27 mm -
Terminal location DUAL DUAL -
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED -
Trigger type POSITIVE EDGE POSITIVE EDGE -
width 7.62 mm 7.5 mm -
minfmax 35 MHz 35 MHz -
