DM74LS38 Quad 2-Input NAND Buffer with Open-Collector Outputs

August 1986

Revised March 2000

DM74LS38

Quad 2-Input NAND Buffer with Open-Collector Outputs

General Description

This device contains four independent gates, each of which

performs the logic NAND function. The open-collector out-

puts require external pull-up resistors for proper logical

operation.

Pull-Up Resistor Equations

Where:

)

total maximum output high current

for all outputs tied to pull-up resistor

)

total maximum input high current for

all inputs tied to pull-up resistor

)

total maximum input low current for

all inputs tied to pull-up resistor

Ordering Code:

Order Number

DM74LS38M

DM74LS38SJ

DM74LS38N

Package Number

M14A

M14D

N14A

Package Description

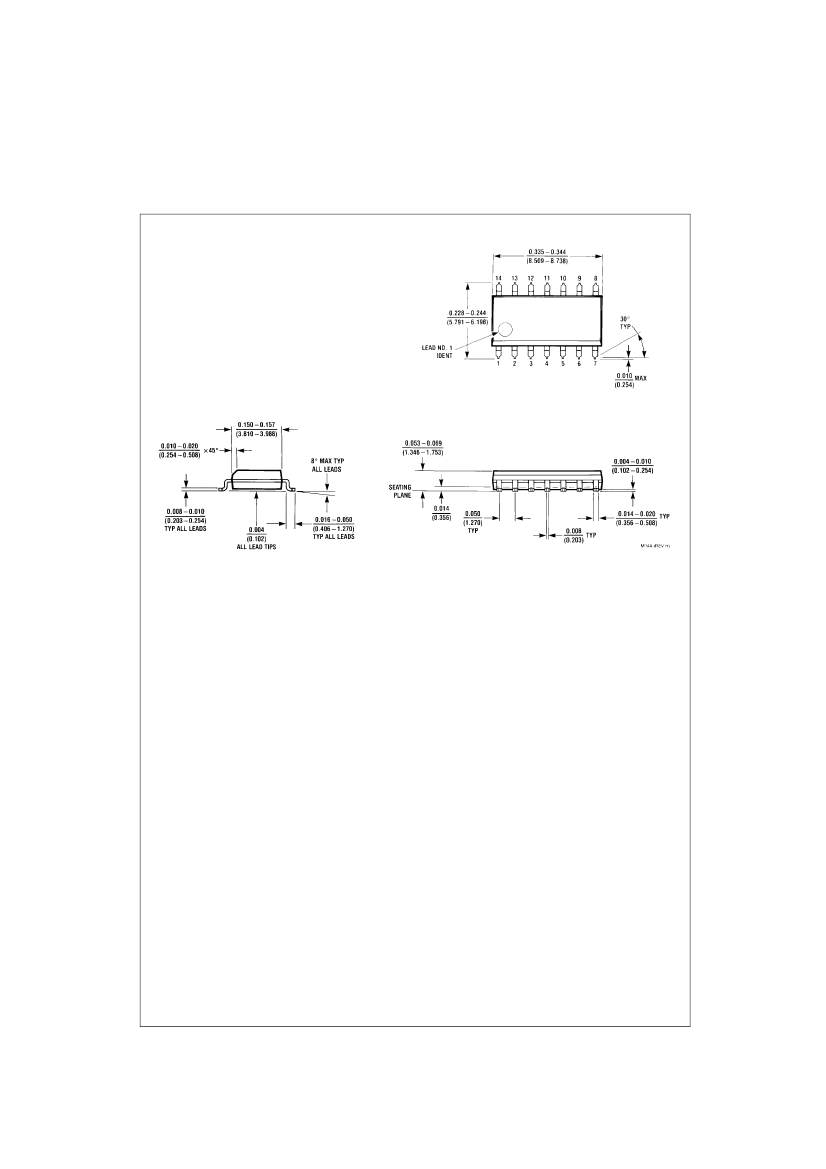

14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-120, 0.150 Narrow

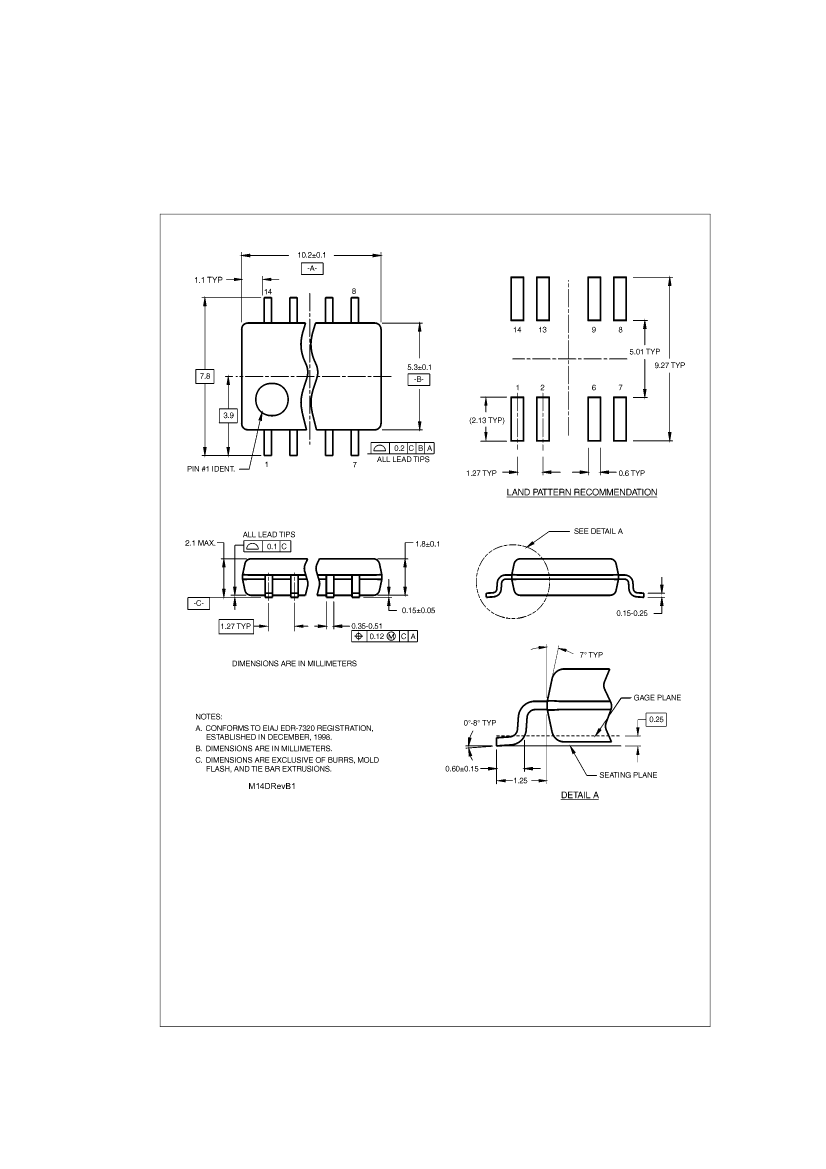

14-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide

14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide

Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code.

Connection Diagram

Function Table

Inputs

HIGH Logic Level

LOW Logic Level

Output

DS006363

www.fairchildsemi.com
