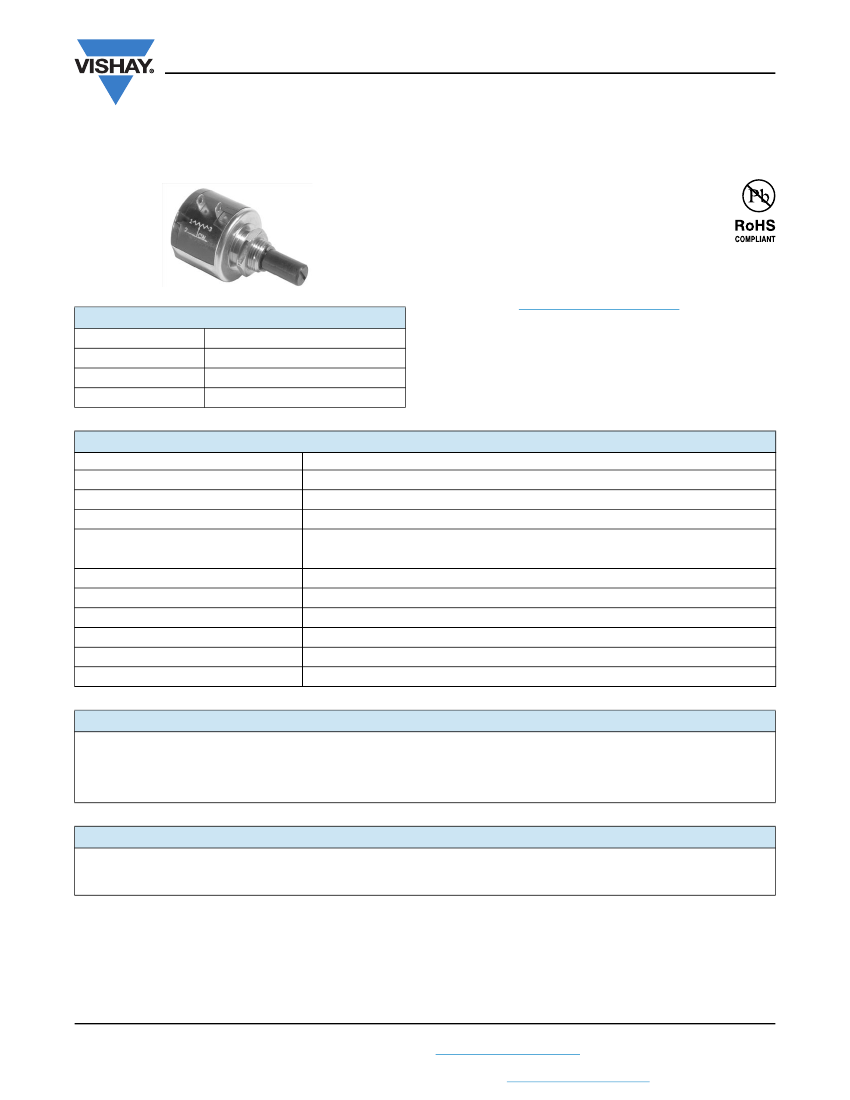

Model 536
www.vishay.com
Vishay Spectrol
(22.2 mm) Ten Turn Wirewound
Precision Potentiometer with a Plastic Shaft
FEATURES
• 10 standard resistance values
• Plastic shaft
• Rugged integrated construction
• 0.25 % linearity
• Material categorization: For definitions of compliance
please see
www.vishay.com/doc?99912
7
/
8
"
QUICK REFERENCE DATA
Sensor type
Output type
Market appliance
Dimensions
ROTATIONAL, multi turn wirewound
Output by turrets
Industrial
7
/ "
8
(22.2 mm)
ELECTRICAL SPECIFICATIONS
PARAMETER
Total resistance
Linearity (independent)
Noise
Electrical angle
Power rating
Insulation resistance
Dielectric strength
Absolute minimum resistance
Temperature coefficient
End voltage
Range 100
to 100 k, tolerance ± 5 %
± 0.25 %
100
ENR maximum
3600°
+ 10°
- 0°
2.0 W at 70 °C derated to zero at 125 °C
1000 M minimum, 500 V
DC
1000 V
RMS
, 60 Hz
Not to exceed 0.10 % of total resistance or 1
,
whichever is greater
20 ppm/°C (wire only)
0.25 % of total applied voltage maximum
ORDERING INFORMATION/DESCRIPTION
536
MODEL
B
MOUNTING
B:
Bushing
10K
OHMIC VALUE
BO10
PACKAGING
Box of 10 pieces
e4
LEAD FINISH
SAP PART NUMBERING GUIDELINES
536
MODEL
B
STYLE
103
OHMIC VALUE
B10
PACKAGING
Revision: 27-Jun-12
Document Number: 57066
1
For technical questions, contact:
sferprecisionpot@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Model 536
www.vishay.com
Vishay Spectrol

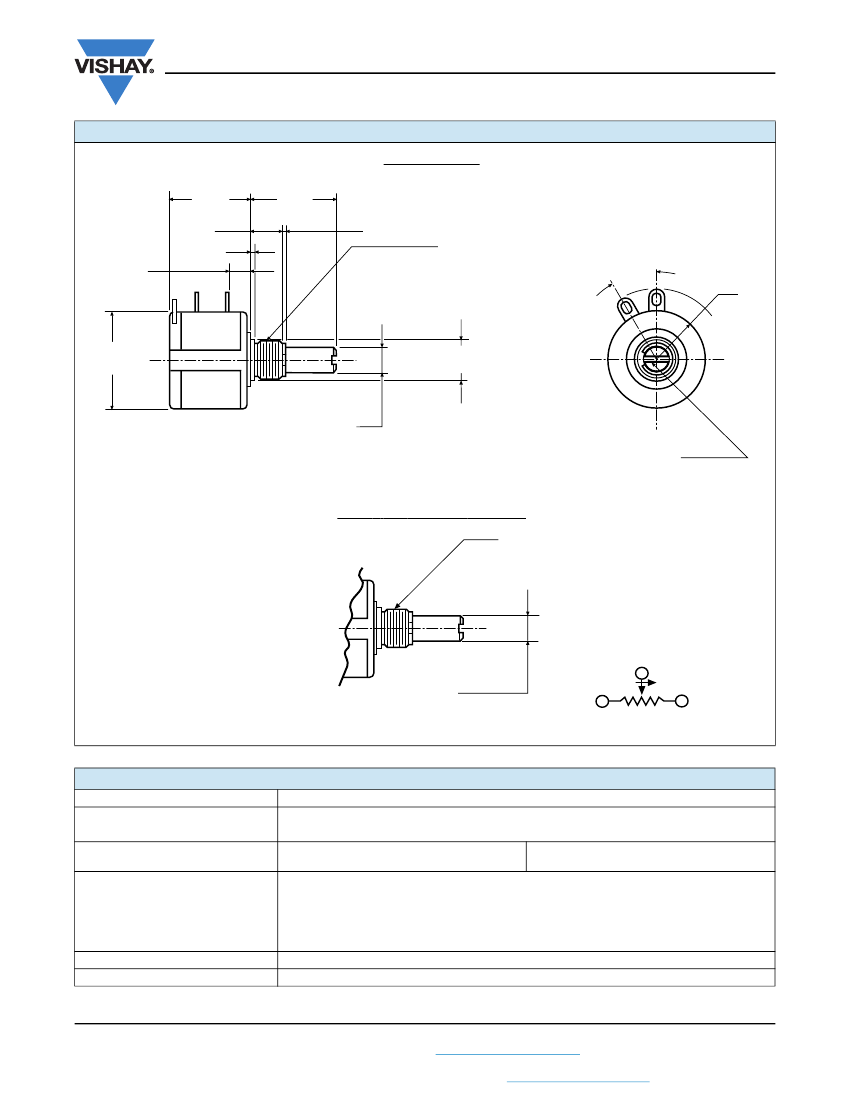

DIMENSIONS
in inches (millimeters)
BUSHING MOUNT
0.750
(19.05)
0.312
(7.92)
0.062
(1.57)
1
± 0.015
± 0.031
0.812
(20.62)
0.030 MAX. (0.76)
3
/
8
± 0.015
- 32 UNEF - 2A
30°
0.200 MIN.
(5.08)
2
3
0.625 R
MAX.
(15.88)
± 0.015
Ø 0.875
(22.22)
+ 0.0000
Ø 0.4062
- 0.0020
(10.32)
Ø 0.250 (6.35)
+ 0.000
- 0.002
SCREWDRIVER SLOT
0.032 WIDE x 0.032 ± 0.010
DEEP (0.81 x 0.81)
METRIC SHAFT/BUSHING THREAD
9 mm: 0.75 P
Ø 6.00
+ 0.00
- 0.05
2
CW
1
3
TOLERANCES: UNLESS OTHERWISE NOTED.
DECIMALS ± 0.005 ANGLES ± 2°
SCHEMATIC
MECHANICAL SPECIFICATIONS
PARAMETER
Rotation
Torque (maximums)
Mechanical runouts
Shaft (TIR)
Pilot dia. (TIR)
Lateral runout (TIR)
Shaft end play
Shaft radial play
Weight (maximum)
Stop strength
STARTING
0.5 oz. - in (36.00 g - cm)
0.005" (0.13 cm)
0.003" (0.08 cm)
0.005" (0.13 cm)
0.010" (0.25 cm)
0.005" (0.13 cm)
0.75 oz. (21.26 g)
75 oz. - in (static) (5.4 kg - cm)
3600°
+ 10°
- 0°
RUNNING
0.4 oz. - in (28.80 g - cm)
Revision: 27-Jun-12
Document Number: 57066
2
For technical questions, contact:
sferprecisionpot@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Model 536
www.vishay.com
Vishay Spectrol
RESISTANCE ELEMENT DATA
STANDARD
OHMS
RESISTANCE RESOLUTION
PER
VALUES
(%)
TURN
()
100
200
500
1K
2K
5K
10K
20K
50K
100K
0.060
0.037
0.031
0.025
0.021
0.016
0.017
0.015
0.009
0.007
0.0603
0.0746
0.1520
0.2459
0.4113
0.8206
1.7230
3.0160
4.6690
7.4560
MAXIMUM
CURRENT
AT 70 °C
AMBIENT
(mA)
141.0
100.0
63.2
44.7
31.6
20.0
14.1
10.0
6.32
4.47
MAXIMUM
VOLTAGE
ACROSS
COIL
(V)
14.1
20.0
31.6
44.7
63.2
100.0
141.0
200.0
316.0
447.0
MATERIAL SPECIFICATIONS
Front lid
Housing
Rear lid
Shaft
Terminals
Mounting hardware
Lockwasher internal tooth:
Panel nut:
Stainless steel and nickel
plated brass bushing
Thermoplastic nylon glass filled
Thermo-glass filled
Thermo-glass filled
Brass plated for solderability
Steel nickel plated
Brass, nickel plated
ENVIRONMENTAL SPECIFICATIONS
Vibration
Shock
Rotational life
Load life
Operating temperature range
15
g
thru 2000 Hz
50
g
1 million shaft revolutions
900 h
- 55 °C to + 125 °C
MARKING
Unit
identification
Units shall be marked with Vishay Spectrol
name and model no, resistance, resistance
tolerance, linearity, terminal identification and
date code
POWER RATING CHART
4
RATED POWER IN W
3
2
1
0
0
20
40
60
80
100
120
140
160
AMBIENT TEMPERATURE IN °C
Revision: 27-Jun-12
Document Number: 57066
3
For technical questions, contact:
sferprecisionpot@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
