H312-0120-043-Z datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> H312-0120-043-Z

Preview

H312-0120-043-Z: DescriptionBoard Connector, 8 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size239KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

H312-0120-043-Z Overview

Board Connector, 8 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Receptacle

H312-0120-043-Z Parametric

Parameter Name	Attribute value
Maker	SMP Technology Inc.
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT
body width	0.157 inch
subject depth	0.079 inch
body length	0.315 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	H312
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	10u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.093 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	8
Base Number Matches	1

Preview

Download Datasheet

View All

B

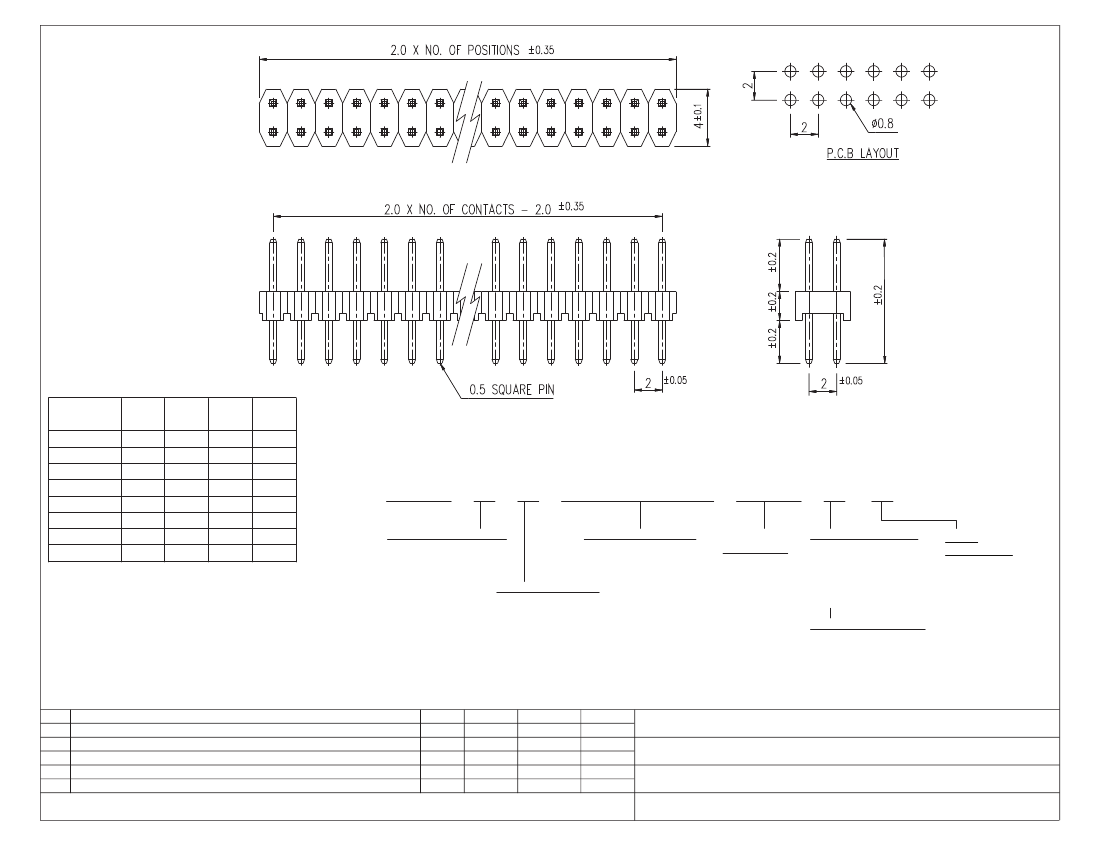

DIMENSION(mm)

DIMENSION

NUMBER

A

B

C

0120

8.35

4.00

2.35

0121

8.85

4.00

2.85

0122

10.70

5.85

2.85

0123

8.70

3.70

3.00

0124

7.85

4.00

2.35

0125

8.35

4.00

2.85

0126

10.20

5.85

2.85

0127

8.20

3.70

3.00

* OTHER DIMENSIONS AVAILABLE

D

2.00

1.50

HOW TO ORDER:

H

3

1

2

-

X

-

X

-

Z

RoHS

COMPLIANT

CONTACT MATERIAL:

1 - COPPER ALLOY

DIMENSION NUMBER:

SEE DIMENSION

NUMBER ABOVE

ELECTRICAL:

CONTACT RESISTANCE: 20mΩ Max.

INSULATOR RESISTANCE: 5000MΩ Min.

CURRENT RATING: 1.5A

DIELECTRIC WITHSTANDING VOLTAGE: 1000V AC FOR 1 MIN.

OPERATING TEMPERATURE: -40° C TO +105° C

NUMBER OF ROWS:

2 - DOUBLE ROW

NUMBER OF

CONTACTS:

01 thru 98

A0=100

C

D

PLATING OVERALL:

0 - FULL TIN

1 - FULL Au FLASH

3 - 10u" Au

4 - 15u" Au

5 - 30u" Au

MATERIAL:

SELECTIVE PLATING:

6 - Au FLASH CONTACT AREA/TIN TAIL

7 - 10u" Au CONTACT AREA/TIN TAIL

8 - 15u" Au CONTACT AREA/TIN TAIL

9 - 30u" Au CONTACT AREA/TIN TAIL

Drawn

A.M.

B.S.

Checked

S.M.

Approved

S.M.

Date

07/17/03

08/13/08

INSULATOR: GLASS FILLED POLYESTER, UL94V-0

Rev

0 Issued

A Revised for RoHS Compliance

SMP TECHNOLOGY, INC.

Pin Header, 2.00mm Pitch, Through Hole, Double Row, Straight

TOL. DEC.

.X +/- 0.35

.XX +/- 0.25

.XXX +/-

ANGLE +/-

5°

UNIT: mm

SERIES: H312

A

Pg: 1
