BZH16/A0420/00 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> BZH16/A0420/00

Preview

BZH16/A0420/00: DescriptionMains Power Connector, 4A, 250VAC, Female and Male, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size71KB，1 Pages; ManufacturerBULGIN; Websitehttp://www.bulgin.co.uk/; Environmental Compliance

Download Datasheet Parametric View All

BZH16/A0420/00 Overview

Mains Power Connector, 4A, 250VAC, Female and Male, Solder Terminal, ROHS COMPLIANT

BZH16/A0420/00 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	BULGIN
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	STANDARDS: IEC/EN; CSA; EN; UL; VDE
Connector type	MAINS POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE AND MALE
Contact material	NOT SPECIFIED
Coupling type	SNAP
DIN compliance	NO
IEC compliance	YES
MIL compliance	NO
Power Connector Ratings	4A, 250VAC
Manufacturer's serial number	BZH
Installation type	PANEL
Options	GENERAL PURPOSE
Termination type	SOLDER
Total number of contacts	6
Base Number Matches	1

Preview

Download Datasheet

View All

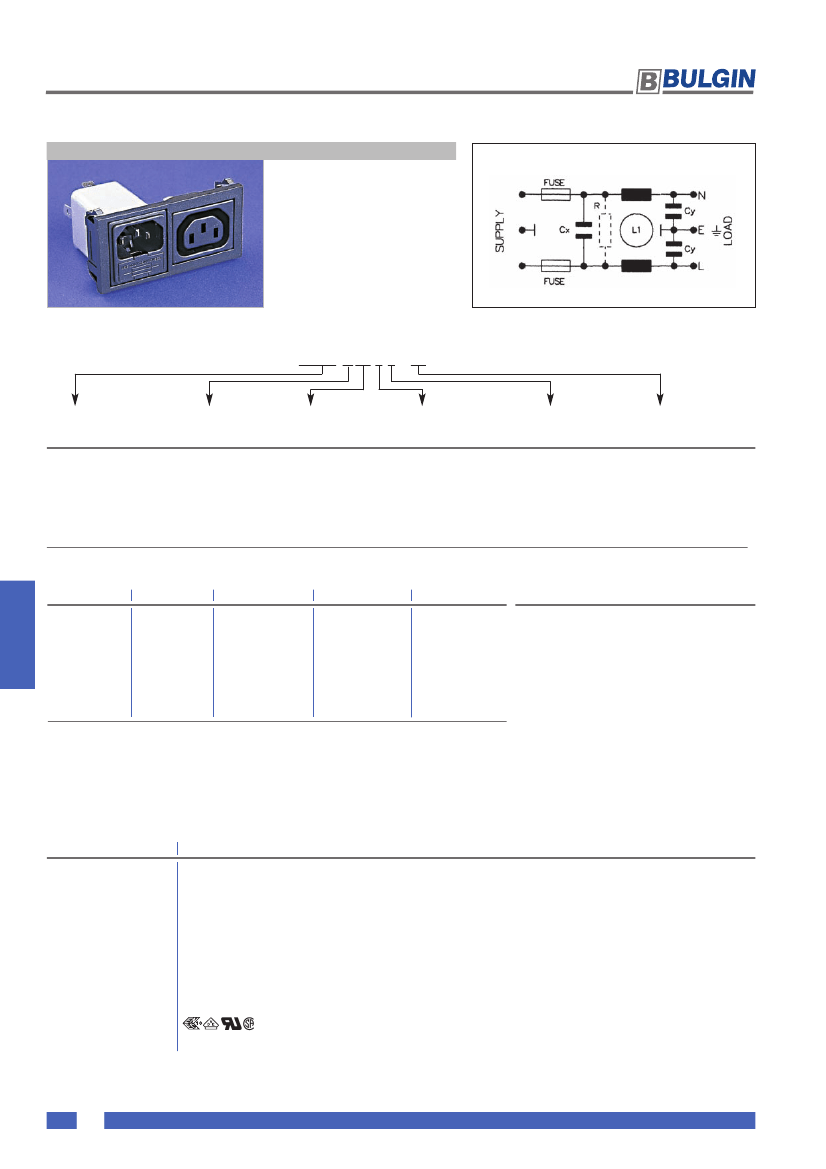

POLYSNAP

®

POWER INLET MODULES

C14 Inlet Twin Fuse - Standard Filter

EMI FILTER OPTIONS

For Polysnap modules BZV15,

BZV16, BZH13, BZH14,

BZH15, BZH16, BZH21,

BZH22, BVA15, BVA16,

BVB15, BVB16

PF0033 style twin fuse IEC

inlet

Using PS26/A filter

Standard Attenuation Filter

Bxxxx/A xx x x / xx

Polysnap Part No.

From Polysnap Selection

Filter Type

A = Standard

Rating

02 = 2A

04 = 4A

L/C Circuit

2 = Version 2

Additional

Components

0 = None

1 = Bleed (R) Resistor

Polysnap Part No.

From Polysnap Selection

IEC CONNECTORS

Rating

2 AMP

“

4 AMP

“

Version

1

2

3

1

2

3

L1

Cx

Cy

Part No. Example

BZH13/A0420/00 =

BZH style Polysnap module with PF0033 twin

fused (5 x 20mm) IEC power inlet, filter rated at

2 x 1.8mH

1 x 15nF

2 x 2.2nF

2 x 0.7mH

1 x 15nF

2 x 2.2nF

4 amps, L/C circuit version 2 (L1 = 2 x 0.7mH,

Cx = 1 x 15nF, Cy = 2 x 2.2nF), without bleed

resistor fitted, 6.3mm tabs and no additional

components.

Filter Specification

Max. Working Voltage:

Earth Leakage Current:

Temperature Range:

Max. Ambient Temp.:

(@ Full Load)

Test Voltage:

Approvals:

Attenuation Curves:

See PS26/A filter, page 142

250V a.c. 50-400Hz

<0.35mA (250V. 50Hz)

–25ºC to +85ºC

40ºC (derate linearly to 0A @ 85ºC)

2700V d.c. 2 secs. Lines to Earth

1100V d.c. 2 secs. Live to Neutral

128

www.elektron-bulgin.com
