BCX52LEADFREE

Description
Power Bipolar Transistor, 1A I(C), 60V V(BR)CEO, 1-Element, PNP, Silicon, Plastic/Epoxy, 3 Pin, PLASTIC PACKAGE-3
CategoryDiscrete semiconductor    The transistor
File Size87KB，2 Pages
ManufacturerCentral Semiconductor
Environmental Compliance
Download Datasheet Parametric Compare View All

BCX52LEADFREE Overview

Power Bipolar Transistor, 1A I(C), 60V V(BR)CEO, 1-Element, PNP, Silicon, Plastic/Epoxy, 3 Pin, PLASTIC PACKAGE-3

BCX52LEADFREE Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerCentral Semiconductor
package instructionPLASTIC PACKAGE-3
Contacts3
Reach Compliance Codecompliant
ECCN codeEAR99
Shell connectionCOLLECTOR
Maximum collector current (IC)1 A
Collector-emitter maximum voltage60 V
ConfigurationSINGLE
Minimum DC current gain (hFE)40
JESD-30 codeR-PSSO-F3
JESD-609 codee3
Humidity sensitivity level1
Number of components1
Number of terminals3
Maximum operating temperature150 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)260
Polarity/channel typePNP
Certification statusNot Qualified
surface mountYES
Terminal surfaceMATTE TIN (315)
Terminal formFLAT
Terminal locationSINGLE
Maximum time at peak reflow temperature10
transistor applicationsAMPLIFIER
Transistor component materialsSILICON
Nominal transition frequency (fT)50 MHz
Base Number Matches1

Preview

Download Datasheet
BCX51
BCX52
BCX53
SURFACE MOUNT
PNP SILICON TRANSISTOR
Central
TM
Semiconductor Corp.
DESCRIPTION:
The CENTRAL SEMICONDUCTOR BCX51,
BCX52, and BCX53 types are PNP Silicon
Transistors manufactured by the epitaxial planar
process, epoxy molded in a surface mount
package, designed for high current general
purpose amplifier applications.
MARKING CODE:
(SEE TABLE ON FOLLOWING PAGE)
SYMBOL
VCBO
VCEO
VEBO
IC
ICM
IB
IBM
PD
TJ, Tstg
Θ
JA
BCX51
45
45
BCX52
BCX53
60
100
60
80
5.0
1.0
1.5
100
200
1.3
-65 to +150
96
UNITS
V
V
V
A
A
mA
mA
W
°C
°C/W

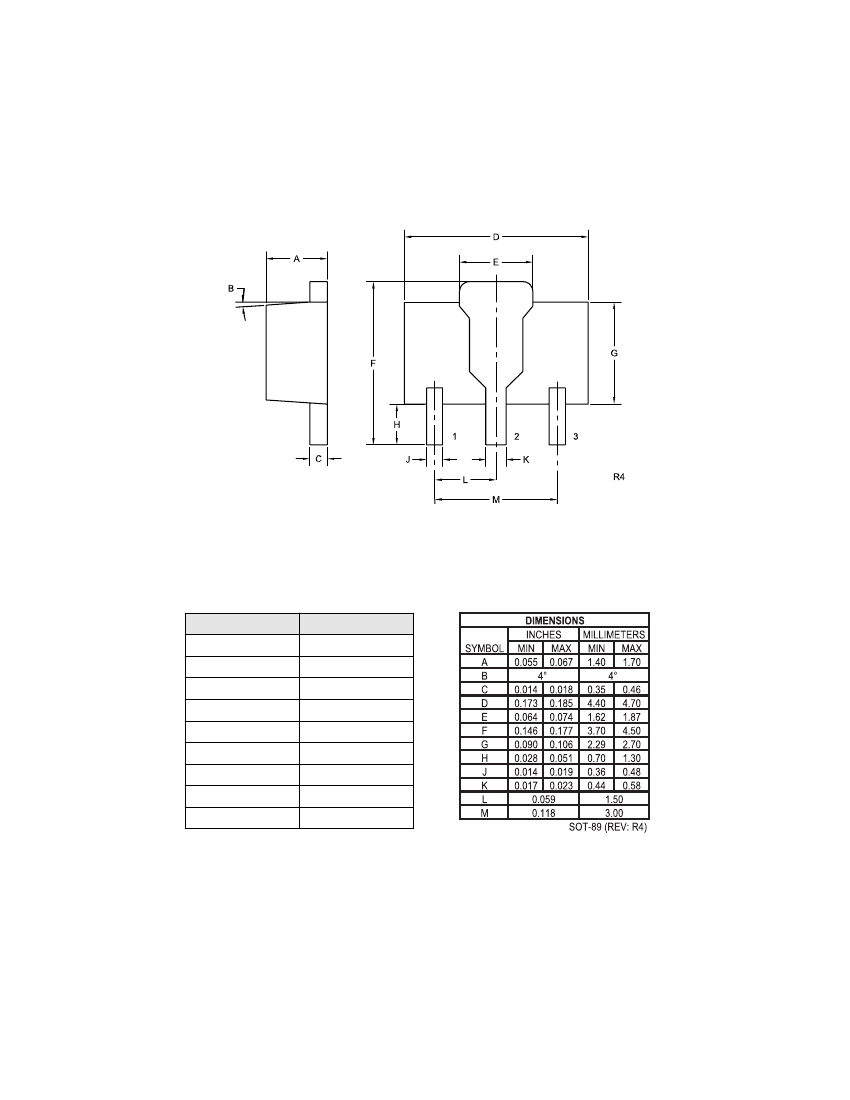

SOT-89 CASE
MAXIMUM RATINGS:
(TA=25°C)
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Continuous Collector Current
Peak Collector Current
Base Current
Peak Base Current
Power Dissipation
Operating and Storage Junction Temperature
Thermal Resistance
ELECTRICAL CHARACTERISTICS:
(TA=25°C unless otherwise noted)
SYMBOL
TEST CONDITIONS
MIN
ICBO
VCB=30V
ICBO
VCB=30V, TA=125°C
IEBO
VEB=5.0V
BVCBO
IC=100μA (BCX51)
45
BVCBO
IC=100μA (BCX52)
60
BVCBO
IC=100μA (BCX53)
100
BVCEO
IC=10mA (BCX51)
45
BVCEO
IC=10mA (BCX52)
60
BVCEO
IC=10mA (BCX53)
80
VCE(SAT)
IC=500mA, IB=50mA
VBE(ON)
VCE=2.0V, IC=500mA
hFE
VCE=2.0V, IC=5.0mA
40
hFE
VCE=2.0V, IC=150mA
63
hFE
VCE=2.0V, IC=150mA
(BCX51-10, BCX52-10, BCX53-10)
63
hFE
VCE=2.0V, IC=150mA
(BCX51-16, BCX52-16, BCX53-16)
100
hFE
VCE=2.0V, IC=500mA
25
fT
VCE=5.0V, IC=10mA, f=100MHz
TYP
MAX
100
10
100
0.5
1.0
250
160
250
50
UNITS
nA
μA
nA
V
V
V
V
V
V
V
V
MHz
R4 (3-April 2008)

BCX52LEADFREE Related Products

BCX52LEADFREE BCX51LEADFREE BCX51TR BCX52TR BCX53BK BCX53TR
Description Power Bipolar Transistor, 1A I(C), 60V V(BR)CEO, 1-Element, PNP, Silicon, Plastic/Epoxy, 3 Pin, PLASTIC PACKAGE-3 Power Bipolar Transistor, 1A I(C), 45V V(BR)CEO, 1-Element, PNP, Silicon, Plastic/Epoxy, 3 Pin, PLASTIC PACKAGE-3 Power Bipolar Transistor, 1A I(C), 45V V(BR)CEO, 1-Element, PNP, Silicon, Plastic/Epoxy, 3 Pin, PLASTIC PACKAGE-3 Power Bipolar Transistor, 1A I(C), 60V V(BR)CEO, 1-Element, PNP, Silicon, Plastic/Epoxy, 3 Pin, PLASTIC PACKAGE-3 Power Bipolar Transistor, 1A I(C), 80V V(BR)CEO, 1-Element, PNP, Silicon, Plastic/Epoxy, 3 Pin, PLASTIC PACKAGE-3 Power Bipolar Transistor, 1A I(C), 80V V(BR)CEO, 1-Element, PNP, Silicon, Plastic/Epoxy, 3 Pin, PLASTIC PACKAGE-3
Maker Central Semiconductor Central Semiconductor Central Semiconductor Central Semiconductor Central Semiconductor Central Semiconductor
package instruction PLASTIC PACKAGE-3 PLASTIC PACKAGE-3 PLASTIC PACKAGE-3 PLASTIC PACKAGE-3 PLASTIC PACKAGE-3 PLASTIC PACKAGE-3
Contacts 3 3 3 3 3 3
Reach Compliance Code compliant compliant compliant compliant unknown compliant
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
Shell connection COLLECTOR COLLECTOR COLLECTOR COLLECTOR COLLECTOR COLLECTOR
Maximum collector current (IC) 1 A 1 A 1 A 1 A 1 A 1 A
Collector-emitter maximum voltage 60 V 45 V 45 V 60 V 80 V 80 V
Configuration SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE
Minimum DC current gain (hFE) 40 40 40 40 40 40
JESD-30 code R-PSSO-F3 R-PSSO-F3 R-PSSO-F3 R-PSSO-F3 R-PSSO-F3 R-PSSO-F3
JESD-609 code e3 e3 e0 e0 e0 e0
Number of components 1 1 1 1 1 1
Number of terminals 3 3 3 3 3 3
Maximum operating temperature 150 °C 150 °C 150 °C 150 °C 150 °C 150 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE
Polarity/channel type PNP PNP PNP PNP PNP PNP
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
surface mount YES YES YES YES YES YES
Terminal surface MATTE TIN (315) Matte Tin (Sn) TIN LEAD TIN LEAD TIN LEAD TIN LEAD
Terminal form FLAT FLAT FLAT FLAT FLAT FLAT
Terminal location SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE
transistor applications AMPLIFIER AMPLIFIER AMPLIFIER AMPLIFIER AMPLIFIER AMPLIFIER
Transistor component materials SILICON SILICON SILICON SILICON SILICON SILICON
Nominal transition frequency (fT) 50 MHz 50 MHz 50 MHz 50 MHz 50 MHz 50 MHz
Maximum power dissipation(Abs) - - 1.2 W 1.2 W 1.2 W 1.2 W
