2589-30512: DescriptionBoard Connector, 5 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size107KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric Compare View All

2589-30512 Overview

Board Connector, 5 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle

2589-30512 Parametric

Parameter Name	Attribute value
Maker	Conexcon Group
Reach Compliance Code	unknown
Board mount options	LOCATING POSTS
body width	0.136 inch
subject depth	0.098 inch
body length	0.5 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
maximum insertion force	8.0064 N
Insulator color	BLACK
insulator material	NYLON
Manufacturer's serial number	2589
Plug contact pitch	0.1 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
PCB contact pattern	RECTANGULAR
Plating thickness	FLASH inch
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	5
Evacuation force-minimum value	.7784 N
Base Number Matches	1

Preview

Download Datasheet

View All

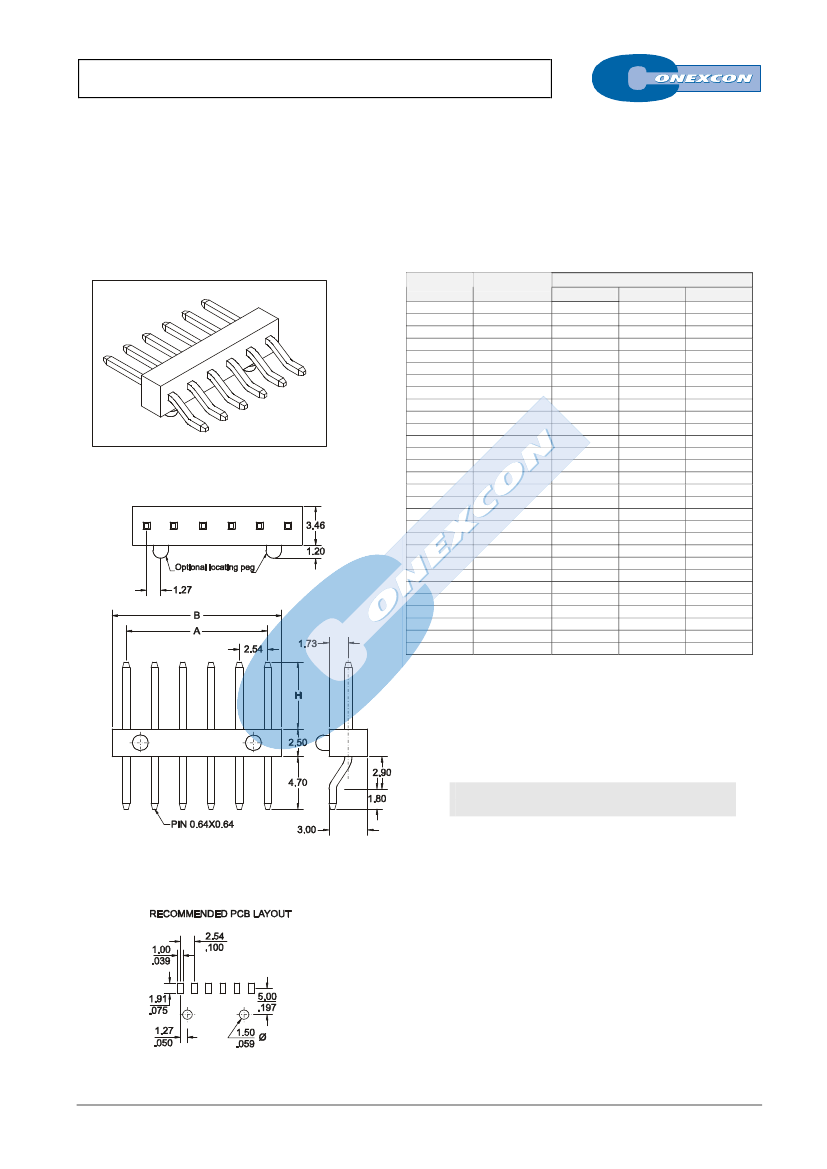

SINGLE ROW SMT HEADER

2589 SERIES.

2.54mm(0.100”). For PCB Solder

Features



Available in 2 through 20 circuits

Mates with 2.54mm(.100”) single row sockets

Insulator Material: Nylon 6-T UL 94V-0. Colour: Black

0.64mm(.025”) square pin in copper alloy



Different pin length and plating options are available

Without polarisation

Easy breakaway to desired circuit size

For other options consult the Sales Office

Ordering and Dimensional Information:

Dimensional Information:

Circuit Size

Part Number

2589-T02CP

2589-T03CP

2589-T04CP

2589-T05CP

2589-T06CP

2589-T07CP

2589-T08CP

2589-T09CP

2589-T10CP

2589-T11CP

2589-T12CP

2589-T13CP

2589-T14CP

2589-T15CP

2589-T16CP

2589-T17CP

2589-T18CP

2589-T19CP

2589-T20CP

2589-T21CP

2589-T22CP

2589-T23CP

2589-T24CP

2589-T25CP

2589-T26CP

2589-T27CP

2589-T28CP

2589-T29CP

2589-T30CP

Dimension

2,54(0,100)

5,08(0,200)

7,62(0,300)

10,16(0,400)

12,70(0,500)

15,24(0,600)

17,78(0,700)

20,32(0,800)

22,86(0,900)

25,40(1,000)

27,94(1,100)

30,48(1,200)

33,02(1,300)

35,56(1,400)

38,10(1,500)

40,64(1,600)

43,18(1,700)

45,72(1,800)

48,26(1,900)

50,80(2,000)

53,34(2,100)

55,88(2,200)

58,42(2,300)

60,96(2,400)

63,50(2,500)

66,04(2,600)

68,58(2,700)

71,12(2,800)

73,66(2,900)

5,08(0,200)

7,62(0,300)

10,16(0,400)

12,70(0,500)

15,24(0,600)

17,78(0,700)

20,32(0,800)

22,86(0,900)

25,40(1,000)

27,94(1,100)

30,48(1,200)

33,02(1,300)

35,56(1,400)

38,10(1,500)

40,64(1,600)

43,18(1,700)

45,72(1,800)

48,26(1,900)

50,80(2,000)

53,34(2,100)

55,88(2,200)

58,42(2,300)

60,96(2,400)

63,50(2,500)

66,04(2,600)

68,58(2,700)

71,12(2,800)

73,66(2,900)

76,20(3,000)

2,54(0,100)

5,08(0,200)

7,62(0,300)

10,16(0,400)

12,70(0,500)

15,24(0,600)

17,78(0,700)

20,32(0,800)

22,86(0,900)

25,40(1,000)

27,94(1,100)

30,48(1,200)

33,02(1,300)

35,56(1,400)

38,10(1,500)

40,64(1,600)

43,18(1,700)

45,72(1,800)

48,26(1,900)

50,80(2,000)

53,34(2,100)

55,88(2,200)

58,42(2,300)

60,96(2,400)

63,50(2,500)

66,04(2,600)

68,58(2,700)

71,12(2,800)

T = Contact Plating



T =

Tin plated

T =

Gold flash over 50µ" nickel

T =

15µ” gold over 50 µ” nickel

T =

30µ” gold over 50 µ” nickel

T =

13.

Selective gold flash over 50µ” nickel

Recommended Finish

T =

15.

15µ” selective gold over 50µ” nickel

T =

16.

30µ” selective gold over 50µ” nickel

C = Pin Length

C =

H = 6.00mm

C =

H = 10.00 mm.

C =

H = 4.00 mm.

P = Locating Peg

P =

Without Locating peg

P =

With Locating peg

E = Packing Options

E =

Tube + Plastic Pad

E =

Reel + Plastic Pad

FULL LINE CATALOGUE

D-XX

2589-30512 Related Products

	2589-30512	2589-50712	2589-30612	2589-50412	2589-30812	2589-50212	2589-30312
Description	Board Connector, 5 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle	Board Connector, 7 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle	Board Connector, 6 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle	Board Connector, 4 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle	Board Connector, 8 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle	Board Connector, 2 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle	Board Connector, 3 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle
Maker	Conexcon Group	Conexcon Group	Conexcon Group	Conexcon Group	Conexcon Group	Conexcon Group	Conexcon Group
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknow
Board mount options	LOCATING POSTS	LOCATING POSTS	LOCATING POSTS	LOCATING POSTS	LOCATING POSTS	LOCATING POSTS	LOCATING POSTS
body width	0.136 inch	0.136 inch	0.136 inch	0.136 inch	0.136 inch	0.136 inch	0.136 inch
subject depth	0.098 inch	0.098 inch	0.098 inch	0.098 inch	0.098 inch	0.098 inch	0.098 inch
body length	0.5 inch	0.7 inch	0.6 inch	0.4 inch	0.8 inch	0.2 inch	0.3 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
maximum insertion force	8.0064 N	8.0064 N	8.0064 N	8.0064 N	8.0064 N	8.0064 N	8.0064 N
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON
Manufacturer's serial number	2589	2589	2589	2589	2589	2589	2589
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	1	1	1	1	1	1	1
Number of rows loaded	1	1	1	1	1	1	1
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Plating thickness	FLASH inch	15u inch	FLASH inch	15u inch	FLASH inch	15u inch	FLASH inch
Guideline	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	5	7	6	4	8	2	3
Evacuation force-minimum value	.7784 N	.7784 N	.7784 N	.7784 N	.7784 N	.7784 N	.7784 N
Base Number Matches	1	1	1	1	1	1	-
