Part Number

Search

338038-3

Description
PHONE CONNECTOR,CABLE MNT,PLUG,8 CONTACTS,SKT,WIRE TERMINAL,WIRE TERMINAL
CategoryThe connector    The connector
File Size122KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric View All

338038-3 Overview

PHONE CONNECTOR,CABLE MNT,PLUG,8 CONTACTS,SKT,WIRE TERMINAL,WIRE TERMINAL

338038-3 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Reach Compliance Codecompliant
Other featuresCABLE INLET ASSY IN 180 DEGREE
body width1.457 inch
subject depth1.654 inch
body length0.85 inch
Body/casing typePLUG
Cable typeWIRE, SOLID
Connector typeTELECOM AND DATACOM CONNECTOR
Contact to complete cooperationAU ON NI
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
Contact styleTELCOM, MODULAR
insulator materialPOLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number338038
Installation methodSTRAIGHT
Installation typeCABLE
Number of ports1
Number of rows loaded1
Plating thickness50u inch
GuidelineUL
reliabilityCOMMERCIAL
Shell surfaceTIN
Shell materialP-CUSN
Termination typeWIRE
Total number of contacts8
Maximum wire diameter22 AWG
Minimum wire diameter26 AWG
Base Number Matches1
My Account
Tyco Electronics
(C hange)
Se a rch by Ke yword or Pa rt #
Products
Documentation
Resources
My Account
Customer Support
Home
>
Products
>
By Type
>
Modular Jacks & Plugs
>
Product Feature Selector
> Product Details

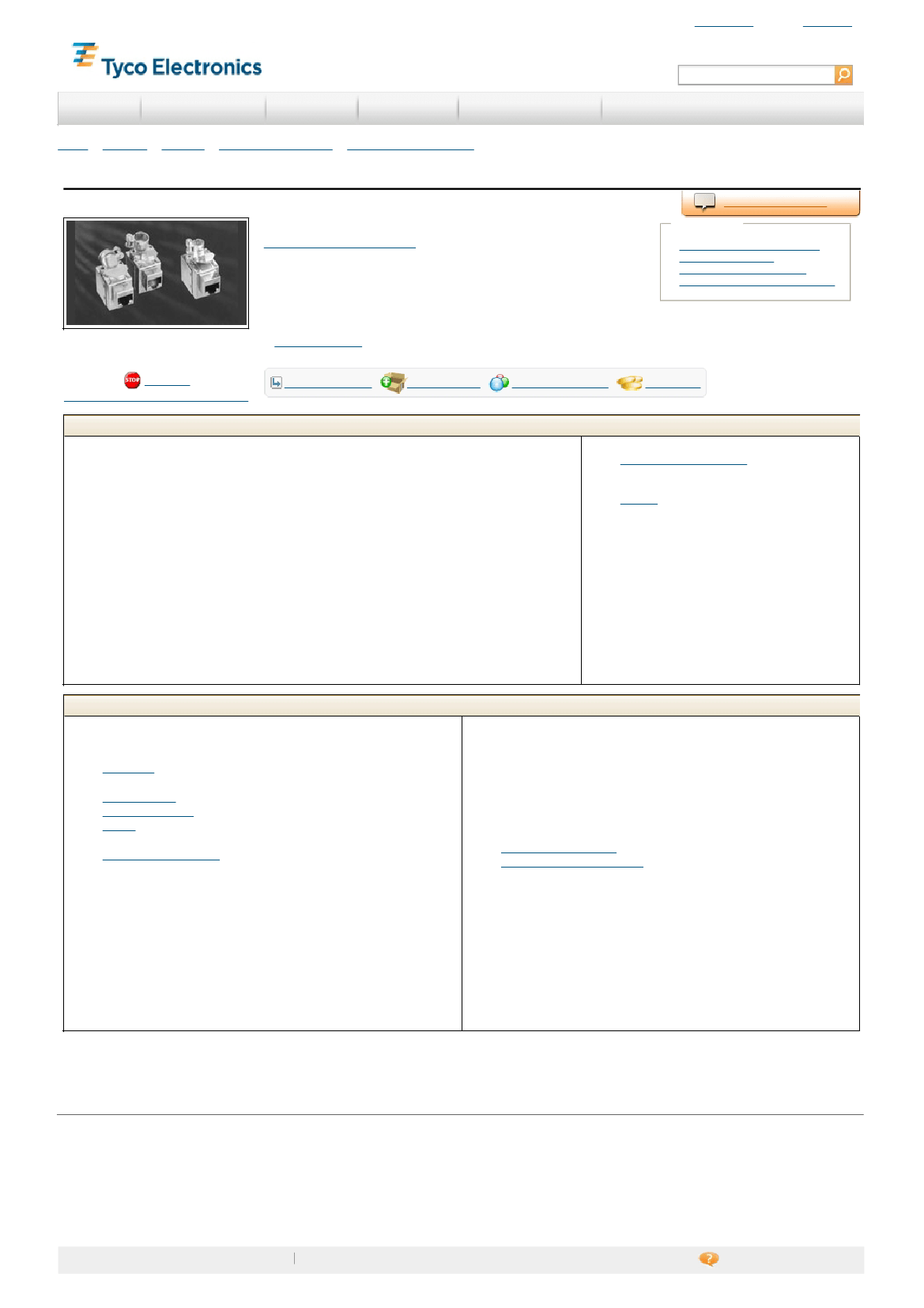

338038-3 Product Details
Live Product Chat
Cable Mounted Jacks
Not EU R oHS or ELV C om plia nt
Quick Links
C heck Pricing & Availability
Search for Tooling
Product Feature Selector
C ontact Us About This Product
338038-3
T E I nternal N umber: 3 3 8 0 3 8 - 3
Product Highlights:
l
C onnector - Modular
l
C onnector Type = Jack
l
Jack Type = 110C onnect
l
8 Positions
l
Wiring Pattern = T568A
View all Features
Obsolete
C ontact Product Information C enter
A dd to M y P art L is t
Reques t Sample
Find Similar P roduc ts
Buy P roduc t
Documentation & Additional Information
Product Drawings:
l
None Available
Catalog Pages/Data Sheets:
l
None Available
Product Specifications:
l
None Available
Application Specifications:
l
None Available
Instruction Sheets:
l
None Available
CAD Files:
l
None Available
Additional Information:
l
Product Line Information
Related Products:
l
Tooling
Product Features
(Please use the Product Drawing for all design activity)
Product Type Features:
l
Product Type = C onnector - Modular
l
C onnector Type = Jack
l
Jack Type
= 110C onnect
l
Number of Positions = 8
l
Wiring Pattern
= T568A
l
Termination Style
= 110 style punch-down
l
Keyed
= No
l
Shielded = Yes
l
Performance C ategory
= C at 5
l
Shield Material = Phosphor bronze
l
C omment = C able inlet assembly is mounted in a 180 degree
position
Termination Related Features:
l
Solder Tail C ontact Plating = Tin-Lead over Nickel
Body Related Features:
l
NETC ONNEC T Select System = No
l
C able Diameter (Max.) (mm [in]) = 6.50 [0.256]
l
Mount Type = Panel Mount
Contact Related Features:
l
C ontact Base Material = Phosphor Bronze
l
C ontact Plating, Mating Area, Material = Gold (50)
Housing Related Features:
l
Housing Material = PBT - GF
l
Housing Flammability Rating = UL 94V-0
Industry Standards:
l
RoHS/ELV C ompliance
= Not ELV/RoHS compliant
l
Lead Free Solder Processes
= Not relevant for lead free process
Packaging Related Features:
l
Packaging Method = Poly Bag
l
Packaging Quantity = 1
Other:
l
Brand = AMP
