BAR5004 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BAR5004

BAR5004: DescriptionRectifier Diode, 1 Phase, 1 Element, 50A, 400V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size134KB，1 Pages; ManufacturerDiotec Electronics Corp; Environmental Compliance

Download Datasheet Parametric Compare View All

BAR5004 Overview

Rectifier Diode, 1 Phase, 1 Element, 50A, 400V V(RRM), Silicon,

BAR5004 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	O-PEDB-N2
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	HIGH RELIABILITY
application	GENERAL PURPOSE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V
JESD-30 code	O-PEDB-N2
Maximum non-repetitive peak forward current	720 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	175 °C
Maximum output current	50 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	DISK BUTTON
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	400 V
surface mount	YES
Terminal form	NO LEAD
Terminal location	END
Base Number Matches	1

Preview

Download Datasheet

View All

DIOTEC ELECTRONICS CORP

18020 Hobart Blvd., Unit B

Gardena, CA 90248 U.S.A

Tel.: (310) 767-1052 Fax: (310) 767-7958

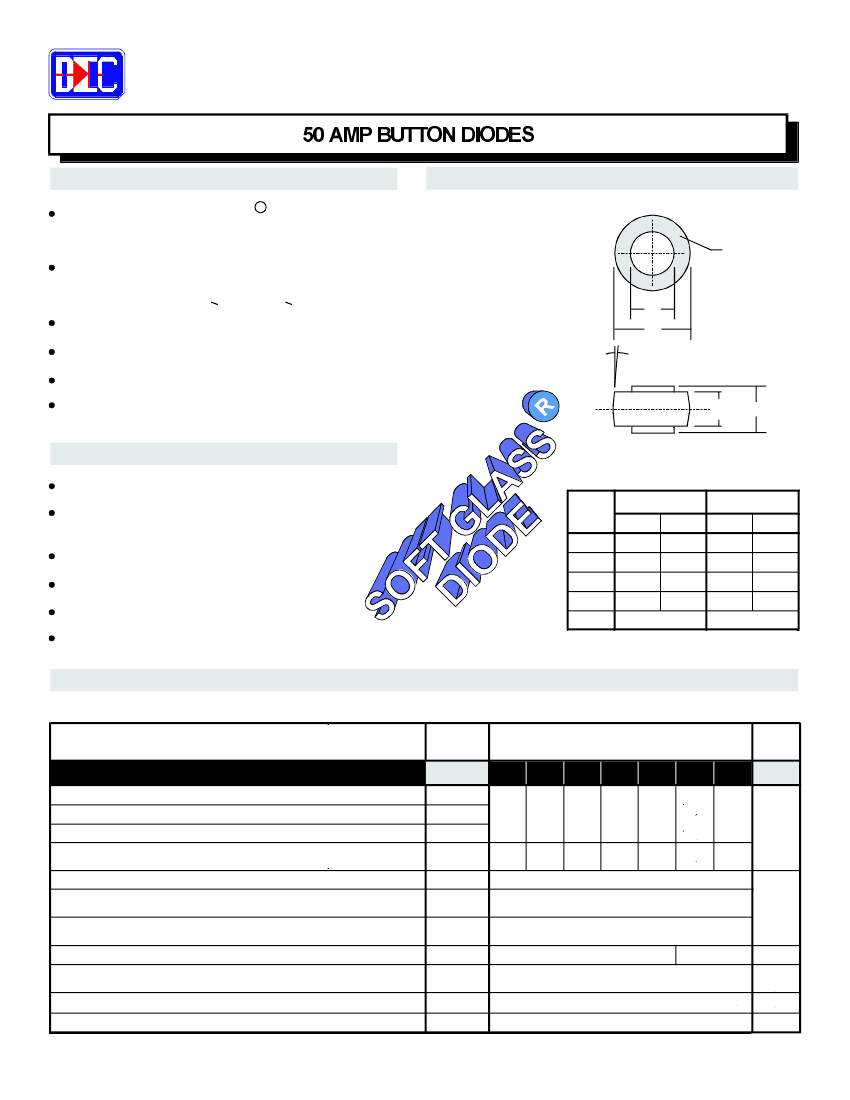

Data Sheet No. BUDI-5000-1A

FEATURES

MECHANICAL SPECIFICATION

PROPRIETARY

SOFT GLASS

JUNCTION

PASSIVATION FOR SUPERIOR RELIABILITY AND

PERFORMANCE

VOID FREE VACUUM DIE SOLDERING FOR MAXIMUM

MECHANICAL STRENGTH AND HEAT DISSIPATION

(Solder Voids: Typical < 2%, Max. < 10% of Die Area)

Compact molded design

High surge current, 720 A @ T

= 175 C

Low cost

Peak performance at elevated temperatures: 50 A

@ T

= 175 C

Die Size:

0.180" x 0.180"

Square

Color Ring

Denotes Cathode

MECHANICAL DATA

Case: Transfer molded plastic

Finish: All external surfaces are corrosion resistant

and the contact areas are readily solderable

Soldering Temperature: 250

C maximum

Mounting Position: Any

Polarity: Color band denotes cathode

Weight: 0.6 Ounces (1.8 Grams)

MILLIMETERS

DIM

MIN

9.78

6.05

5.54

4.19

MAX

10.29

6.20

6.60

4.45

INCHES

MIN

0.385

0.238

0.218

0.165

MAX

0.405

0.244

0.220

0.175

5° NOM

MAXIMUM RATINGS & ELECTRICAL CHARACTERISTICS

Ratings at 25 °C ambient temperature unless otherwise specified.

PARAMETER (TEST CONDITIONS)

Series Number

Maximum DC Blocking Voltage

Maximum RMS Voltage

Maximum Peak Recurrent Reverse Voltage

Non-repetitive Peak Reverse Voltage (Half wave, single phase,

60 Hz peak)

Average Forward Rectified Current @ T

=125

Peak Forward Surge Current (8.3mS single half sine wave

superimposed on rated load)

Repetitive Peak Reverse Surge Current (Half wave, single phase,

60 Hz applied to rated load)

Maximum Forward Voltage Drop at 50 Amp DC

Maximum Average DC Reverse Current

At Rated DC Blocking Voltage

Junction Operating and Storage Temperature Range

Notes: 1) Single Side Cooled

@ T

= 25 C

@ T

= 100

SYMBOL

BAR

5000

RRM

RWM

RSM

FSM

RSM

θJC

STG

120

240

100

200

BAR

5001

RATINGS

BAR

5002

BAR

5004

400

BAR

5006

600

BAR

5008

800

BAR

5010

1000

UNITS

VOLTS

480

720

120

720

960

1200

AMPS

1.1 (Typical 0.95)

0.8

-65 to +175

1.2

VOLTS

µA

°C/W

°C

BAR50

Maximum Thermal Resistance, Junction to Case (Note 1)

K11

BAR5004 Related Products

	BAR5004	BAR5006	BAR5010	BAR5002	BAR5000	BAR5008	BAR5001
Description	Rectifier Diode, 1 Phase, 1 Element, 50A, 400V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 50A, 600V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 50A, 1000V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 50A, 200V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 50A, 50V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 50A, 800V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 50A, 100V V(RRM), Silicon,
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	O-PEDB-N2	O-PEDB-N2	O-PEDB-N2	O-PEDB-N2	O-PEDB-N2	O-PEDB-N2	O-PEDB-N2
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V	1.1 V	1.2 V	1.1 V	1.1 V	1.2 V	1.1 V
JESD-30 code	O-PEDB-N2	O-PEDB-N2	O-PEDB-N2	O-PEDB-N2	O-PEDB-N2	O-PEDB-N2	O-PEDB-N2
Maximum non-repetitive peak forward current	720 A	720 A	720 A	720 A	720 A	720 A	720 A
Number of components	1	1	1	1	1	1	1
Phase	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C
Maximum output current	50 A	50 A	50 A	50 A	50 A	50 A	50 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	DISK BUTTON	DISK BUTTON	DISK BUTTON	DISK BUTTON	DISK BUTTON	DISK BUTTON	DISK BUTTON
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	400 V	600 V	1000 V	200 V	50 V	800 V	100 V
surface mount	YES	YES	YES	YES	YES	YES	YES
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal location	END	END	END	END	END	END	END
Maker	-	Diotec Electronics Corp	-	Diotec Electronics Corp	Diotec Electronics Corp	Diotec Electronics Corp	Diotec Electronics Corp
