39910-1--1510-008000 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 39910-1--1510-008000

39910-1--1510-008000: Description15 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, PFOA, PFOS, ROHS AND REACH COMPLIANT; CategoryThe connector The connector; File Size685KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

39910-1--1510-008000 Overview

15 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, PFOA, PFOS, ROHS AND REACH COMPLIANT

39910-1--1510-008000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	PFOA, PFOS, ROHS AND REACH COMPLIANT
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (150)
Contact completed and terminated	GOLD (10) OVER NICKEL (150)
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	399-10-115-10-008000
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	15
Base Number Matches	1

Preview

Download Datasheet

View All

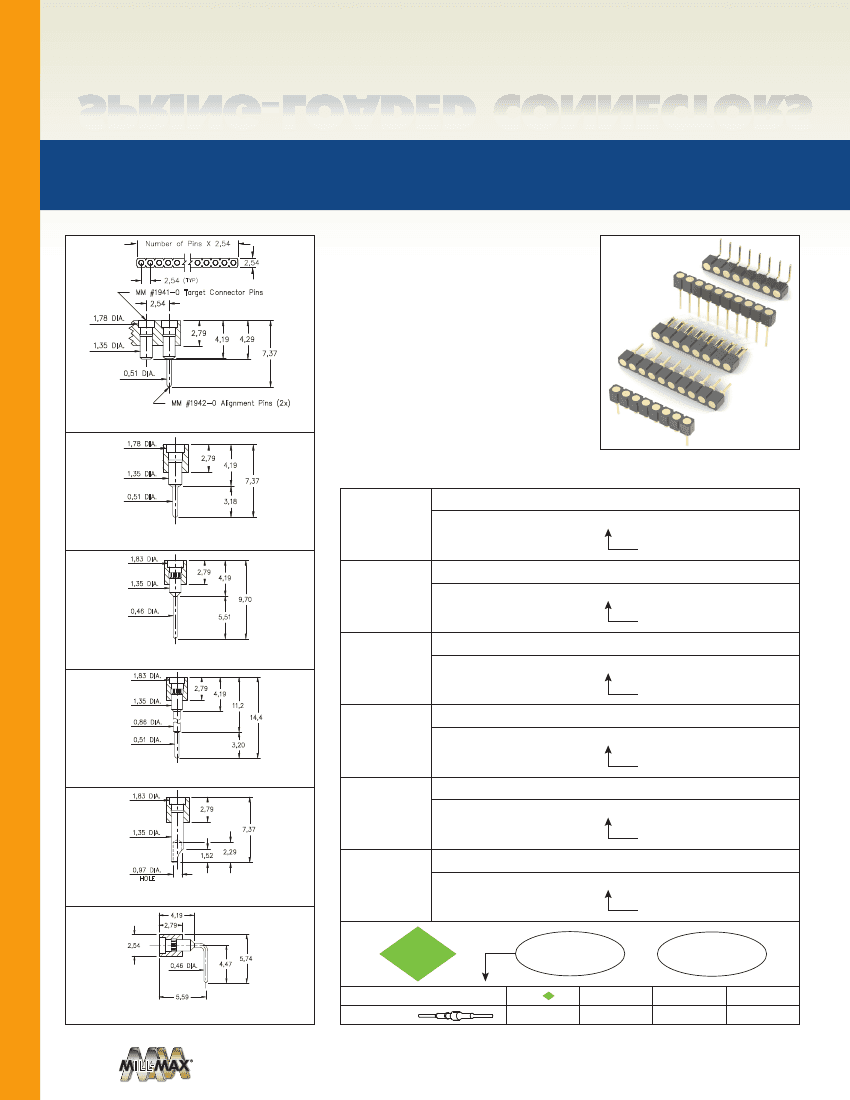

SPRING-LOADED

CONNECTORS

SERIES 319, 330, 399 • 2,54 GRID TARGET CONNECTORS

FOR SPRING-LOADED ASSEMBLIES • SINGLE ROW STRIPS

• Series 319, 330 and 399 Spring Target

Connectors, supplied in single row strips

• Spring Target Connectors present a large flat

surface for making contact with our standard

.042” dia. spring pin plungers. The target

connectors provide an excellent gold-plated

conductive path back to the board mounted

spring pin connector

• Target connectors use MM #1938, #1940,

#1941, #1942 and #3024 pins. See page 218

for details

• Insulators are high temperature thermoplastic

FIG. 1

ORDERING INFORMATION

Series 319...041

Surface Mount w/ Alignments Pins

319-10-1_ _-30-041000

Specify number of pins

03-64

FIG. 2

FIG. 1

Series 319...001

Standard Solder Tails

319-10-1_ _-00-001000

01-64

FIG. 2

FIG. 3

Series 319...002

Specify number of pins

Long Solder Tails

319-10-1_ _-00-002000

01-64

FIG. 3

Series 319...005

Specify number of pins

Elevated with Solder Tails

319-10-1_ _-00-005000

01-64

FIG. 4

PAGE 20 | SPRING-LOADED CONNECTORS

FIG. 4

Specify number of pins

Series 330...240

Solder Cups

330-10-1_ _-00-240000

01-64

FIG. 5

Series 399...008

Specify number of pins

Right Angle Solder Tails

399-10-1_ _-10-008000

01-64

For

Electrical, Mechanical

& Enviromental Data,

See page 264

FIG. 5

FIG. 6

RoHS - 2

Specify number of pins

XX=Plating Code

See Below

0,25μm Au

2011/65/EU

FIG. 6

SPECIFY PLATING CODE XX=

Pin Plating

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
