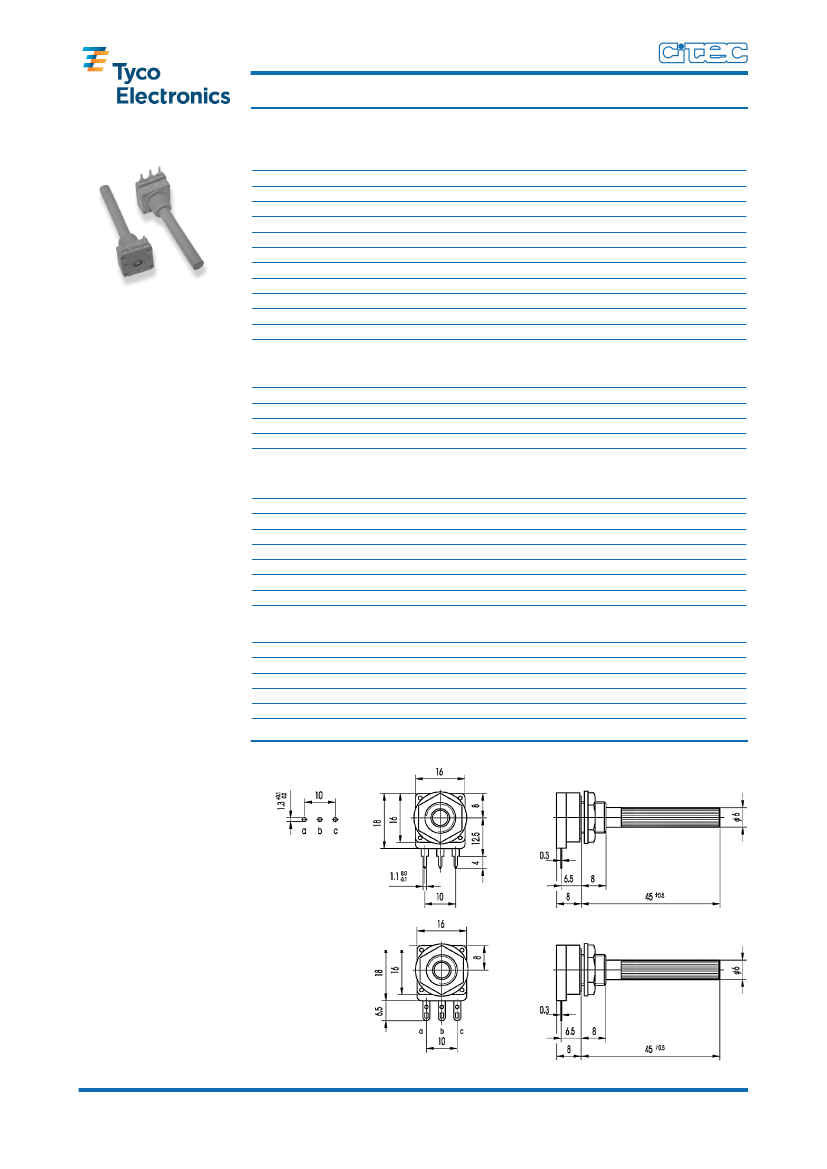

Spindle Operated Potentiometers (Carbon)
Type CP16 Series
Type CP16 Series
Characteristics -
Electrical
Resistance Range:
Resistance Values:
Resistance Tolerance:
Power Rating @ 40°C:
Limiting Element Voltage:
Electrical Rotation:
Terminal Resistance:
Noise (ENR):
Insulation Resistance:
Resolution:
Voltage Proof:
100R to 4M7 Linear, 2K2 to 2M2 Non-Linear
1, 2.2 & 4.7 in each decade
±20% (>1M ± 30%) - ±10% by selection
0.2 Watts Linear - 0.1 Watts Non-Linear
250 Volts dc (Linear), 125 Volts dc (Non Linear)
260° ± 20°
5 ohms, maximum ≤0.1% (2 ohms, minimum)
≤3% (3 ohms minimum)
4G ohms, minimum
Essentially Infinite
1KV ac peak
Specify
the
type
CP16
for
applications where high insulation
resistance and voltage proof are
key requirements.
The materials
used in the all-plastic body and
spindle construction make it an
ideal component for domestic
appliances and control systems
where
safety
is
of
prime
importance. This popular low cost
potentiometer is suitable for indus-
trial and professional applications.
Characteristics -
Mechanical
End Torque:
Operating Torque:
Mechanical Adjustment:
Maximum Torque to Nut:
400 mNm maximum
5 to 25 mNm maximum
300° ± 5°
800 mNm
Characteristics -
Environmental
Electrical Life:
Mechanical Life:
Operating Temperature:
Temperature Coefficient:
Thermal Cycling:
Damp Heat:
Vibration:
ΔR± 5% (1000 hours 0.2 Watts @ 40°C)
25,000 operations
-25°C to +70°C
± 300ppm/°C (Rn <100K ohms)
ΔR± 2.5% (16 hours 85°C, 2 hours @ -25°C)
ΔR± 5% (500 hours @ 40°C +95% RH)
ΔR± 2% (2 hours @ 20g - 10Hz ~50 Hz)
Key Features
■
■
■
■
■
■
■
High Reliability
Small Versatile Size
All Plastic Body
Plastic or Metal shaft
styles
Switch Types Available
Multiple Sections
Available
Flatted, Serrated Shaft
Available
Switch Specifications
Nominal Current:
Contact Resistance:
Operating Torque:
Operating Angle:
Test Voltage:
1A, 250 VAC
10 milli ohms
10 to 30mNm
30° ± 5°
500 V

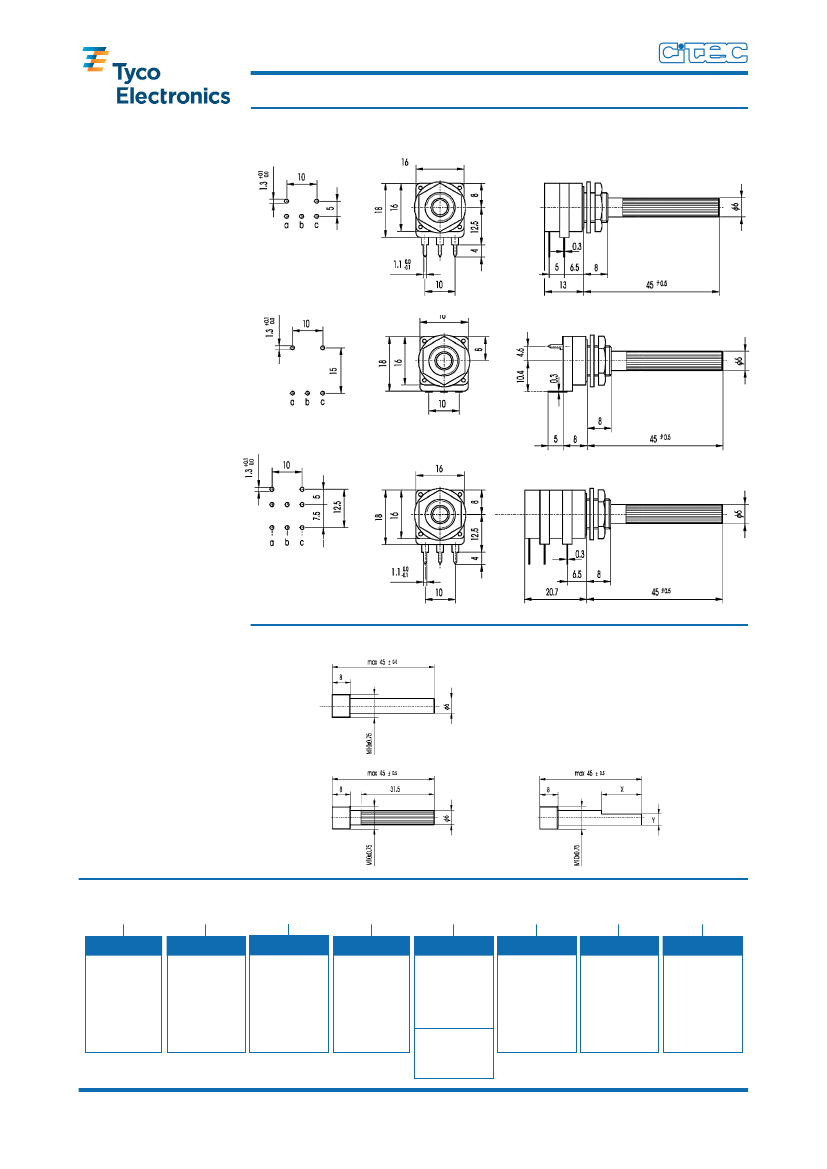

Dimensions
CP16SH10IP06*
CP16SH10CP06*
Literature No. 1773199
Issued: 02-08
Dimensions are shown for
reference purposes only.
Dimensions are in
millimetres unless
otherwise specified.
Specifications subject to
change.
tycoelectronics.com
passives.tycoelectronics.com
