SBL4R007F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> SBL4R007F

SBL4R007F: DescriptionFixed Resistor, Metal Foil, 4W, 0.007ohm, 1% +/-Tol, 950ppm/Cel, Through Hole Mount; CategoryPassive components The resistor; File Size435KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

SBL4R007F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SBL4R007F	-	-	View	Buy Now

SBL4R007F Overview

Fixed Resistor, Metal Foil, 4W, 0.007ohm, 1% +/-Tol, 950ppm/Cel, Through Hole Mount

SBL4R007F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	8000895862
package instruction	AXIAL LEADED
Reach Compliance Code	compliant
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2019-01-20 15:42:36
YTEOL	6.25
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	BULK, BOX
physical size	18mm x 6.4mm x 6.4mm
Rated power dissipation(P)	4 W
resistance	0.007 Ω
Resistor type	FIXED RESISTOR
surface mount	NO
technology	METAL FOIL
Temperature Coefficient	950 ppm/°C
Terminal shape	WIRE
Tolerance	1%

Preview

Download Datasheet

View All

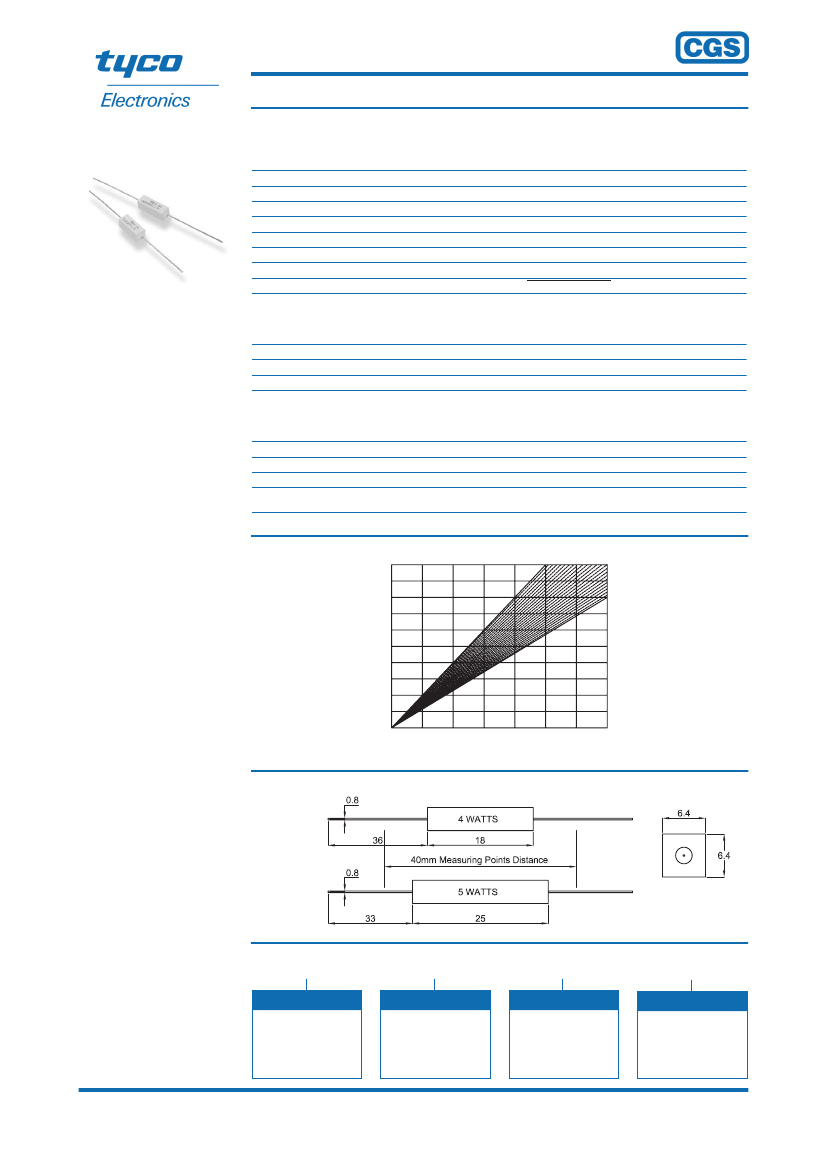

Low Ohmic - Current Sense Resistors

Type SBL Series

Characteristics -

Electrical

Resistance Values (4 Watt):

Resistance Values (5 Watt):

Resistance Tolerance:

Rated Dissipation (4 Watt):

Rated Dissipation (5 Watt):

Dielectric Strength:

Insulation Resistance:

Maximum Continuous Working Voltage:

The SBL Series is a low ohmic

non-inductive resistor with a low

temperature coefficient in a fully

insulated ceramic housing. It is

ideal for applications in power supply

regulation,

motor

control

current

monitoring, feedback control loops,

overload sensors and radio frequency

applications. The solid metal element

has welded copper terminals and is

encapsulated in a ceramic housing,

filled with compressed silica sand.

R005, R01, R015, R018, R022, R033, R047, R051

R01, R015, R018, R022, R033, R047, R051

± 5%

4 Watts at 70°C

5 Watts at 70°C

2000 Volts

< 10000 Mohms

√Power

x Resistance AC RMS

Characteristics -

Mechanical

Climatic Category:

Temperature Range:

Derating:

-55 / 250 / 56

-55°C to +250°C

Linear from 70°C to 250°C

Characteristics -

Environmental

Resistance to Solder Heat:

Terminal Strength:

Solderability:

Marking:

260°C (

∆R

± 0.2% typical)

3lb pull test

Meets MIL Std 202

Black ink on ceramic body - Manufacturer,

Resistance Value and Tolerance

Key Features

4 Watts & 5 Watts Versions

Solid Metal Element

Non-Inductive

Low Temperature Coefficient

High Reliability

Custom Design

(Subject to Volume)

4 Watt Device Available

in Distribution

Temperature Rise

150

Temperature Rise

(K)

200

100

120

(%)

Power Rating

Dimensions

How to Order

SBL

Common Part

Power Dissipation

4 - 4 Watts

SBL - Standard

5 - 5 Watts

R051

Resistance Value

R005, R01, R015, R018,

R022, R033, R047, R051

(5 Watt Version only

R01 - R051)

Tolerance

J ±5%

F ±1%

Literature No. 1773279

Issued: 04-05

Dimensions are shown for

reference purposes only.

Dimensions are in millimetres

unless otherwise specified.

Specifications subject to

change.

www.tycoelectronics.com

passives.tycoelectronics.com

SBL4R007F Related Products

	SBL4R007F	SBL4R022F	SBL4R015F	SBL4R005F	SBL4R051F	SBL4R004F	SBL4R015J	SBL4R005J	SBL4R018J	SBL5R015J
Description	Fixed Resistor, Metal Foil, 4W, 0.007ohm, 1% +/-Tol, 950ppm/Cel, Through Hole Mount	SBL4 R022 1%	SBL4 R015 1%	SBL4 R005 1%	SBL4 R051 1%	Fixed Resistor, Metal Foil, 4W, 0.004ohm, 1% +/-Tol, 950ppm/Cel, Through Hole Mount	SBL4 R015 5%	SBL4 R005 5%	SBL4 R018 5%	SBL5 R015 5%
Resistor type	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	Low resistance resistor	Low resistance resistor	FIXED RESISTOR	FIXED RESISTOR	Low resistance resistor	Low resistance resistor	FIXED RESISTOR
Tolerance	1%	1%	1%	1%	1%	1%	5%	5%	5%	5%
Is it Rohs certified?	conform to	conform to	conform to	-	-	conform to	conform to	-	-	conform to
package instruction	AXIAL LEADED	AXIAL LEADED, ROHS COMPLIANT	AXIAL LEADED, ROHS COMPLIANT	-	-	AXIAL LEADED	AXIAL LEADED, ROHS COMPLIANT	-	-	AXIAL LEADED, ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant	-	-	compliant	compliant	-	-	compliant
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	-	-	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	-	-	THROUGH HOLE MOUNT
Number of terminals	2	2	2	-	-	2	2	-	-	2
Maximum operating temperature	155 °C	155 °C	155 °C	-	-	155 °C	155 °C	-	-	250 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-	-	-55 °C	-55 °C	-	-	-55 °C
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	-	-	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	-	-	RECTANGULAR PACKAGE
method of packing	BULK, BOX	BULK	BULK	-	-	BULK, BOX	BULK	-	-	BULK
Rated power dissipation(P)	4 W	4 W	4 W	-	-	4 W	4 W	-	-	5 W
resistance	0.007 Ω	0.022 Ω	0.015 Ω	-	-	0.004 Ω	0.015 Ω	-	-	0.015 Ω
surface mount	NO	NO	NO	-	-	NO	NO	-	-	NO
technology	METAL FOIL	METAL FOIL	METAL FOIL	-	-	METAL FOIL	METAL FOIL	-	-	METAL FOIL
Temperature Coefficient	950 ppm/°C	350 ppm/°C	280 ppm/°C	-	-	950 ppm/°C	280 ppm/°C	-	-	230 ppm/°C
Terminal shape	WIRE	WIRE	WIRE	-	-	WIRE	WIRE	-	-	WIRE
