Features
B
4 7 4
9 5 0
1
n
Bifilar or sector windings
n
Toroid core, self-shielding, low radiation
n
Wide EMI suppression frequency range
n
AEC-Q200 compliant
n
RoHS compliant* and Halogen free**

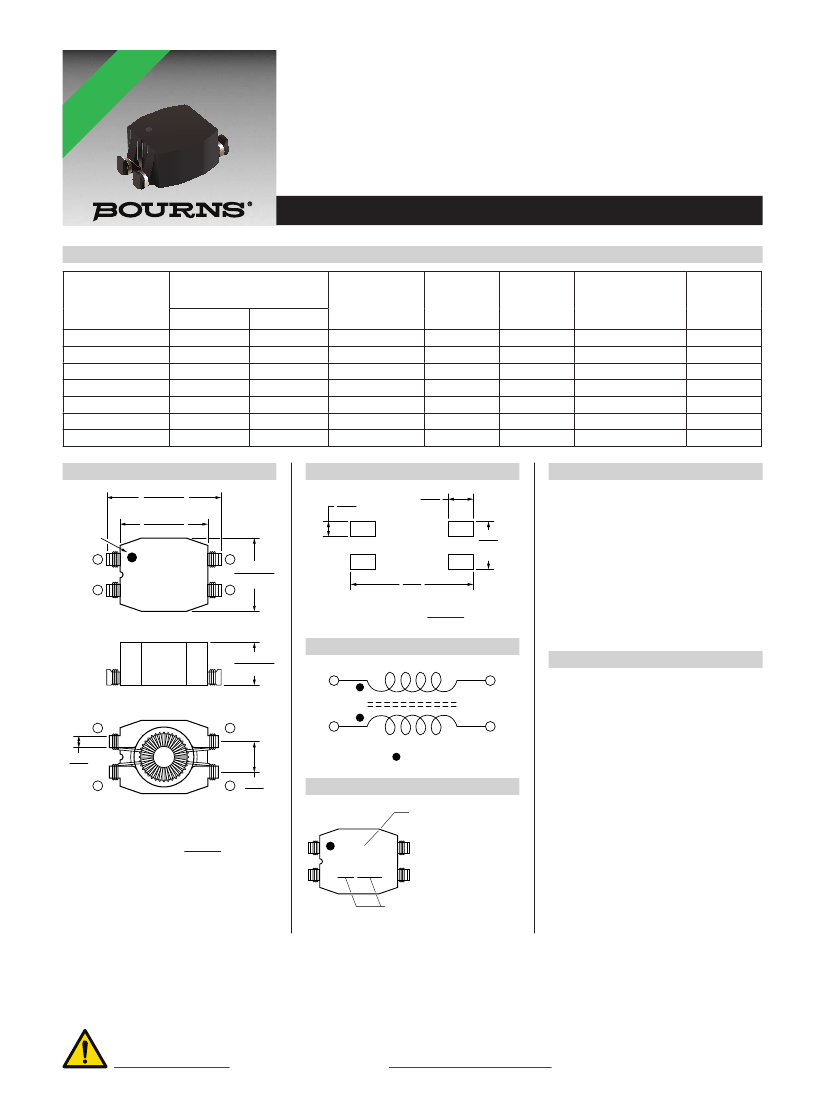

DR334A Series – Line Filter
Electrical Specifications @ 25 °C
L (µH), N1 & N2
@ 100 kHz, 0.1 Vrms
L (µH)
11
25
51
100
470
1000
4700
Tol.
±50 %
±50 %
±50 %
±50 %
±50 %
±50 %
±50 %
Leakage 1-4
(µH) @ 100 kHz,
0.1 Vrms (Typ.)
(2-3 Short)
0.05 µH
1.50 µH
2.00 µH
0.85 µH
0.28 µH
0.29 µH
0.30 µH
Bourns
Part No.
DR334A-113BE
DR334A-253AE
DR334A-513AE
DR334A-104AE
DR334A-474BE
DR334A-105BE
DR334A-475BE
DCR (Ω)
Max.
0.12
0.20
0.30
0.10
0.28
0.40
0.70
Irms (A)
Typ.
0.5 A
0.5 A
0.5 A
0.5 A
0.5 A
0.5 A
0.2 A
Z(Ω) Min. @ MHz
300 @ 20-300
700 @ 20-150
1500 @ 20-100
700 @ 3-20
2000 @ 2-15
2800 @ 1-10
6000 @ 0.5-3
Winding
Bifilar
Sector
Sector
Sector
Bifilar
Bifilar
Bifilar
Product Dimensions
9.00 ± 0.3
(.354 ± .012)
TERMINAL 1
INDICATOR
6.00 ± 0.2
(.236 ± .008)
Recommended Layout
1.20
REF.
(.047)
2.00
(.079)
REF.
3.70
(.146)
REF.
5.80 ± 0.2
(.228 ± .008)
General Specifications
Rated Voltage ................80 Vdc / 42 Vac
Hi-Pot (1 sec.)....... 250 Vac/60 Hz, 3 mA
Operating Temperature
................................-40 °C to +135 °C
(Temperature rise included)
Storage Temperature
................................-40 °C to +135 °C
Temperature Rise
.....................30 °C max. at rated Irms
Moisture Sensitivity Level .....................1
ESD Classification (HBM)................. N/A
Materials
4
1
4
2
3
9.50
(.374)
REF.
DIMENSIONS:
MM
(INCHES)
3.60 ± 0.2
(.142 ± .008)
Schematic
N1
1
2
3
2
N2
= POLARITY
3
Core ...................................Ferrite, toroid
Wire ............................Enameled copper
Terminal ..............................................Sn
Packaging ..... 1500 pcs. per 13-inch reel
1.00
(.039)
TYP.
1
4
2.50
(.098)
TYP.
Typical Part Marking
INDUCTANCE
CODE
DIMENSIONS:
MM
(INCHES)
513A
YYWW
DATE CODE:
YY = LAST TWO DIGITS OF YEAR
WW = WEEK NUMBER
