LCD Module Specification
Final Revision
Checked by
Design Engineering Div.
*******
Prepared by
Type No.
Production Div.
ＤＭＦ－５０７７３ＮＢ－ＦＷ
Table of Contents
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
General Specifications .............................................................................2
Electrical Specifications...........................................................................3
Optical Specifications ..............................................................................7
I/O Terminal.............................................................................................9
Test..........................................................................................................11
Appearance Standards............................................................................12
Code System of Production Lot ..........................................................15
Type Number..........................................................................................15
Applying Precautions .............................................................................15
Precautions Relating Product Handling................................................16
Warranty..................................................................................................17
Revision History
Rev.
Date
Page
Comment
DMF-50773NB-FW
(AG) No.99-0083
OPTREX
OPTREX CORPORATION
Page 1/17
1. General Specif ications
Operating Temp.
Storage Temp.
Dot Pixels
Dot Size
Dot Pitch
Viewing Area
Outline Dimensions
：
min. 0℃
½
max. 50℃
：
min. -20℃
½
max. 60℃
：
240 (W)
×
128 (H) dots
：
0.47 (W)
×
0.47 (H) mm
：
0.50 (W)
×
0.50 (H) mm
：
126.0 (W)
×
70.0 (H) mm
：
170.0 (W)
×
105.0* (H)
×
14.0 max. (D) mm
* Without CFL Cable
：
250g max.
：
NTD-15524
( STN / Blue-mode / Transmissive )
：
6:00
：
T6963C-0101 (Produced by TOSHIBA)
：
8-bit parallel data transfer
：
Cold Cathode Fluorescent Lamp (CFL)
×
1
：
Dimensional Outline
UE-36773
Weight
LCD Type
Viewing Angle
Control LSI
Data Transfer
Backlight
Drawings
DMF-50773NB-FW
(AG) No.99-0083
OPTREX
OPTREX CORPORATION
Page 2/17

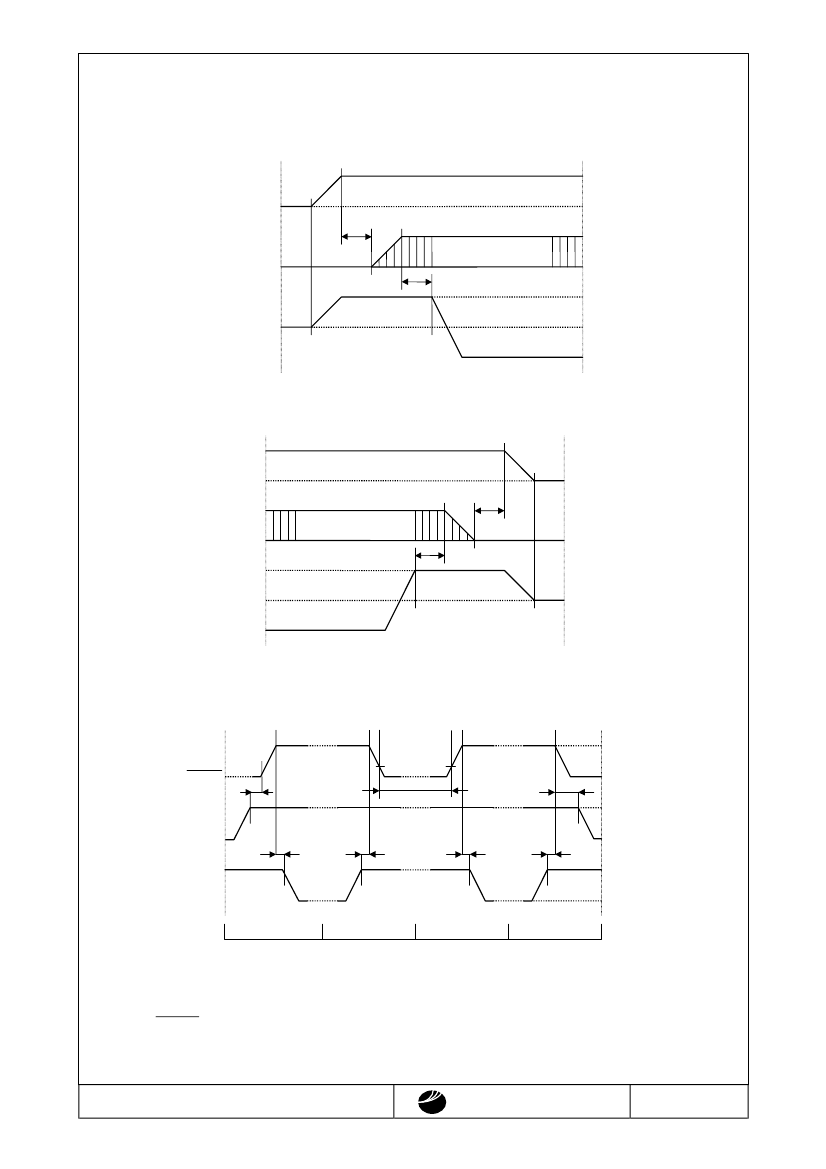

2.4.Power Supply ON/OFF Sequence
2.4.1.ON Sequence
SIGNAL
LEVEL
VDD
VDD
0≦t
GND
VDD
GND
VDD
SIGNAL
(Without RESET Signal)
0≦t
VEE
GND
VEE
2.4.2.OFF Sequence
LEVEL
VDD
GND
VDD
GND
VDD
GND
VEE
VEE
0≦t
SIGNAL
VDD
0≦t
SIGNAL
(Without RESET Signal)
2.4.3.Reset Sequence
SIGNAL
LEVEL
H Level
RESET
L Level
VDD
VDD
VEE
GND
VDD
VEE
Power On
Reset
Reset Cancellation
Power Off
T>250μ
s
T≧0
T≧10 ms
T≧50ms
T≧0
T≧50ms
T≧0
Please maintain the above sequence when turning on and off the power supply of the module.
If V
EE
is supplied to the module while internal alternate signal for LCD driving (M) is unstable or
RESET is active, DC component will be supplied to the LCD panel. This may cause damage to
the LCD module.
DMF-50773NB-FW
(AG) No.99-0083
OPTREX
OPTREX CORPORATION
Page 5/17
