Economy Trimmers
Type 416 Series
Key Features
I
I
I
I
I
I
I
I
I
Stable High Resolution
Cermet Element
Space-Saving Device
0.2 Watt Rating at 70°C
Wide Value Range
Available Taped for
Auto Insertion
Dust and Splash Proof
Top or Side Adjustment
Auto Adjust Head Available
Widely Available via
Distribution

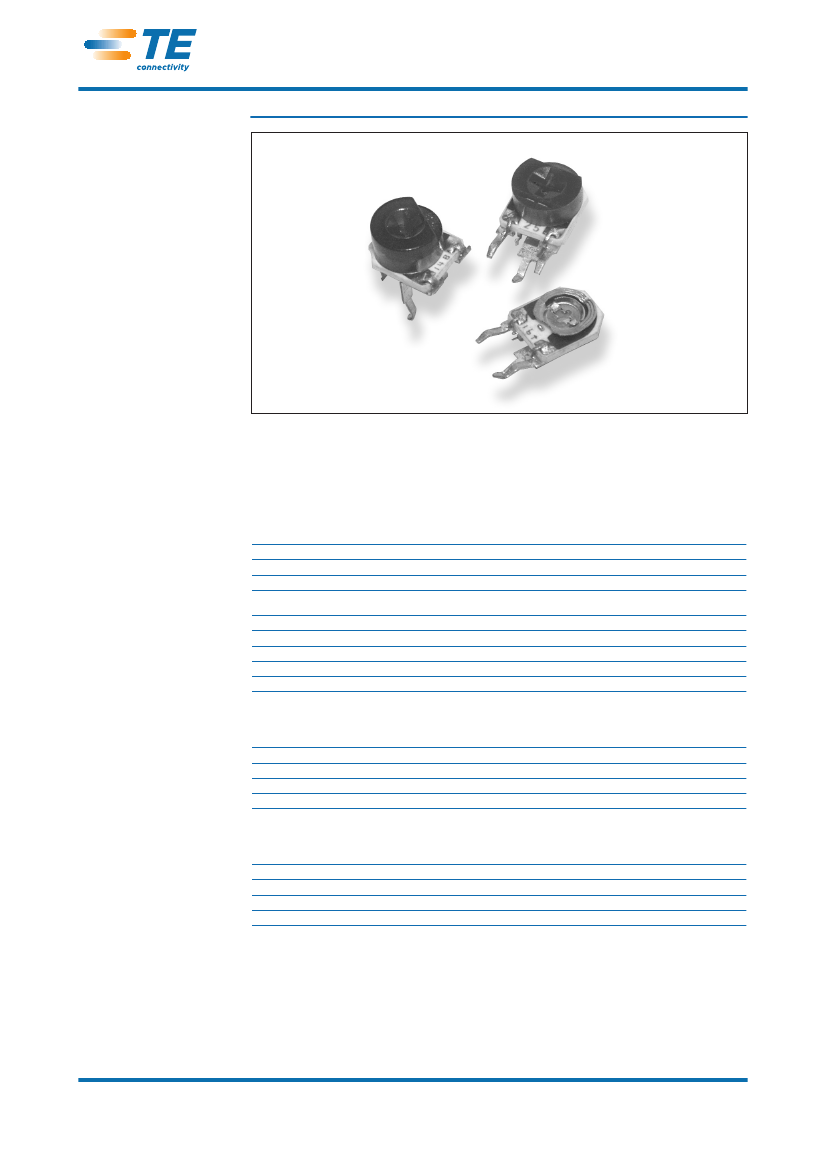

This tiny 6mm square cermet trimmer is offered with alternative adjustment covers for screwdriver
and automatic setting and can be supplied in bulk or taped in ammo pack. The 416 can be
adjusted from the top or side and is an inexpensive solution to high reliability potentiometer
requirements. This series is used to replace some of the larger, expensive, sealed types in
high volume circuits.
Characteristics - Electrical
Resistance Range:
Resistance Values:
Resistance Tolerance:
End Resistance:
Wiper Current:
Power Rating:
Limiting Element Voltage:
Rotational Noise (CRV):
Temperature Coefficient:
100R to 1M
1, 2, 5 in each decade
± 25%, (±20% by selection)
1% Nominal or 10 ohms maximum,
whichever is greater.
50mA
0.2W at 70°C Derating to zero at 100°C
100V DC or AC RMS maximum
3% maximum
±250ppm/°C
Characteristics - Mechanical
End Stop:
Starting Torque:
Mechanical Adjustment:
Operational Life:
50 mNm minimum
30 mNm maximum
240° nominal
100 turns
Characteristics - Environmental
Temperature Range:
Load Life at 70°C:
Sealing:
Climatic Category:
- 25°C to + 100°C
ΔR < 5% after 1000 hours
Dust Proof
25/100/21
1773119 CIS BI 11/2011
Dimensions are in millimeters
and inches unless otherwise
specified. Values in brackets
are standard equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
For email, phone or live chat, go to:
te.com/help
Economy Trimmers
Type 416 Series

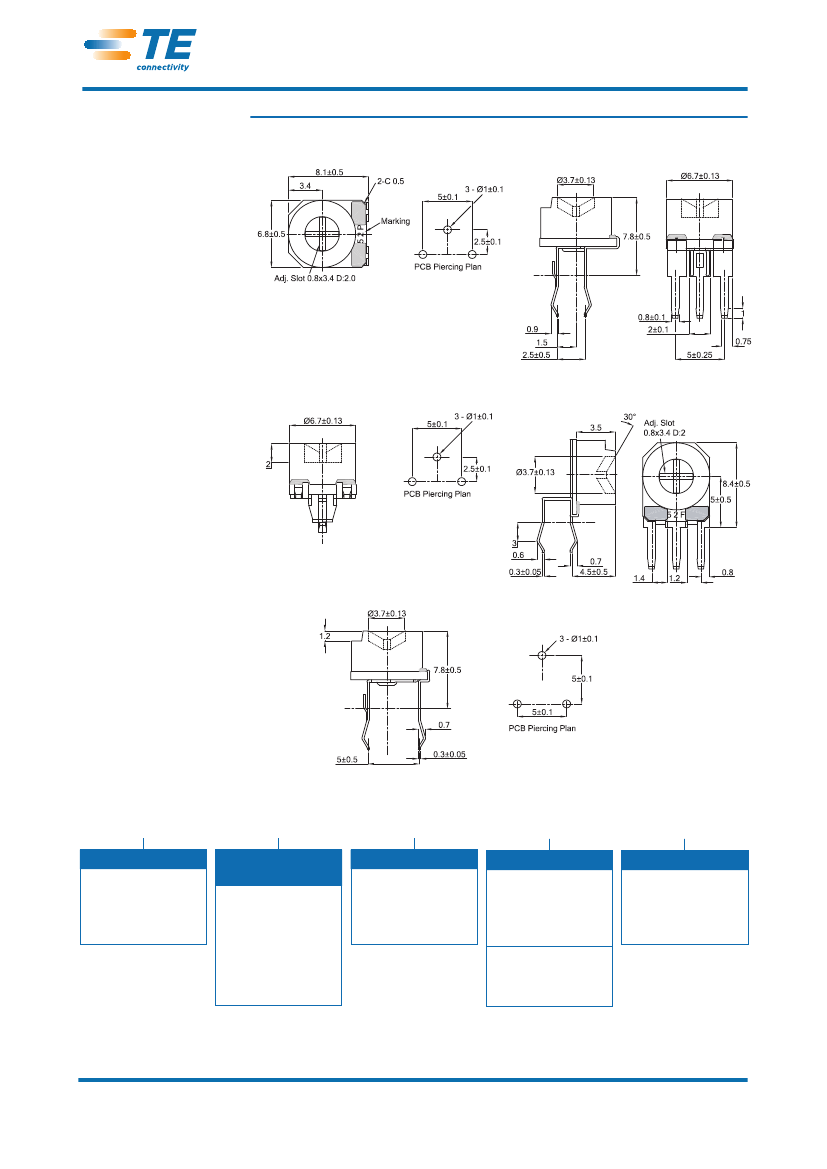

Dimensions
416P
416X
416M
How to Order
416
Common Part
416 -
6mm Low Cost Trimmer
P
Adjustment Style /
Configuration
P - Top Adjust
2.5mm x 5.0mm
M - Top Adjust
5.0mm x 5.0mm
X - Side Adjust
2.5mm x 5.0mm
A
Adjustment Head
A - Cross Slot
R - Auto Adjust
X - Skeleton
104
Resistance Value
The first two digits are
significant figures of
resistance value and the
third denotes the number
of zeros following.
e.g. 100R:
1K0:
10K:
100K:
101
102
103
104
M
Tolerance
P - 25%
(M - 20%
by selection only)
Please state top or side adjustments on all orders
TE Connectivity, TE connectivity (logo) and TE (logo) are trademarks.
Other logos, product and Company names mentioned herein may be trademarks of their respective owners.
While TE has made every reasonable effort to ensure the accuracy of the information in this datasheet, TE does not guarantee that it is error-free, nor does TE make any other
representation, warranty or guarantee that the information is accurate, correct, reliable or current. TE reserves the right to make any adjustments to the information contained herein
at any time without notice. TE expressly disclaims all implied warranties regarding the information contained herein, including, but not limited to, any implied warranties of merchantabili-
ty or fitness for a particular purpose. The dimensions in this datasheet are for reference purposes only and are subject to change without notice. Specifications are subject to change
without notice. Consult TE for the latest dimensions and design specifications.
