316136-3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 316136-3

316136-3: Description50 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT; CategoryThe connector The connector; File Size636KB，15 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

316136-3 Overview

50 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT

316136-3 Parametric

Parameter Name	Attribute value
Objectid	1422902083
Reach Compliance Code	unknown
Connector type	BOARD STACKING CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	316136
Plug information	316135-3
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Terminal pitch	0.6 mm
Termination type	SURFACE MOUNT
Total number of contacts	50
UL Flammability Code	94V-0

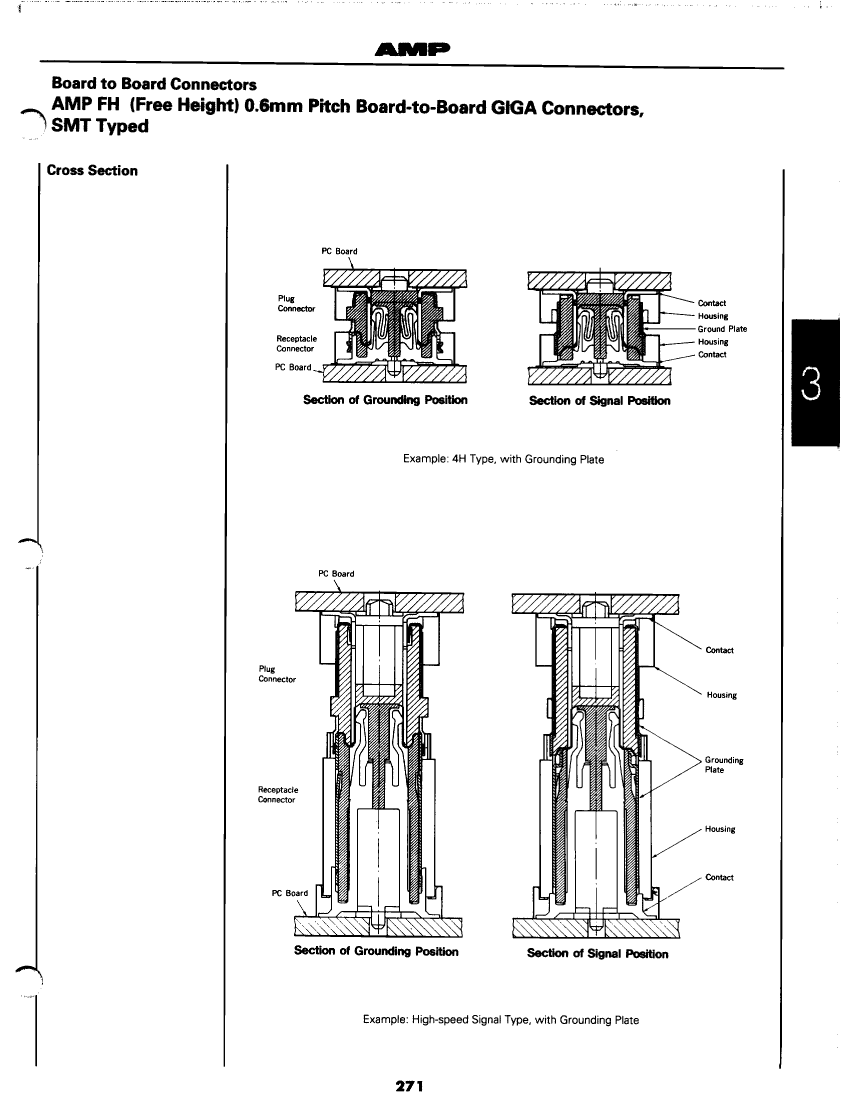

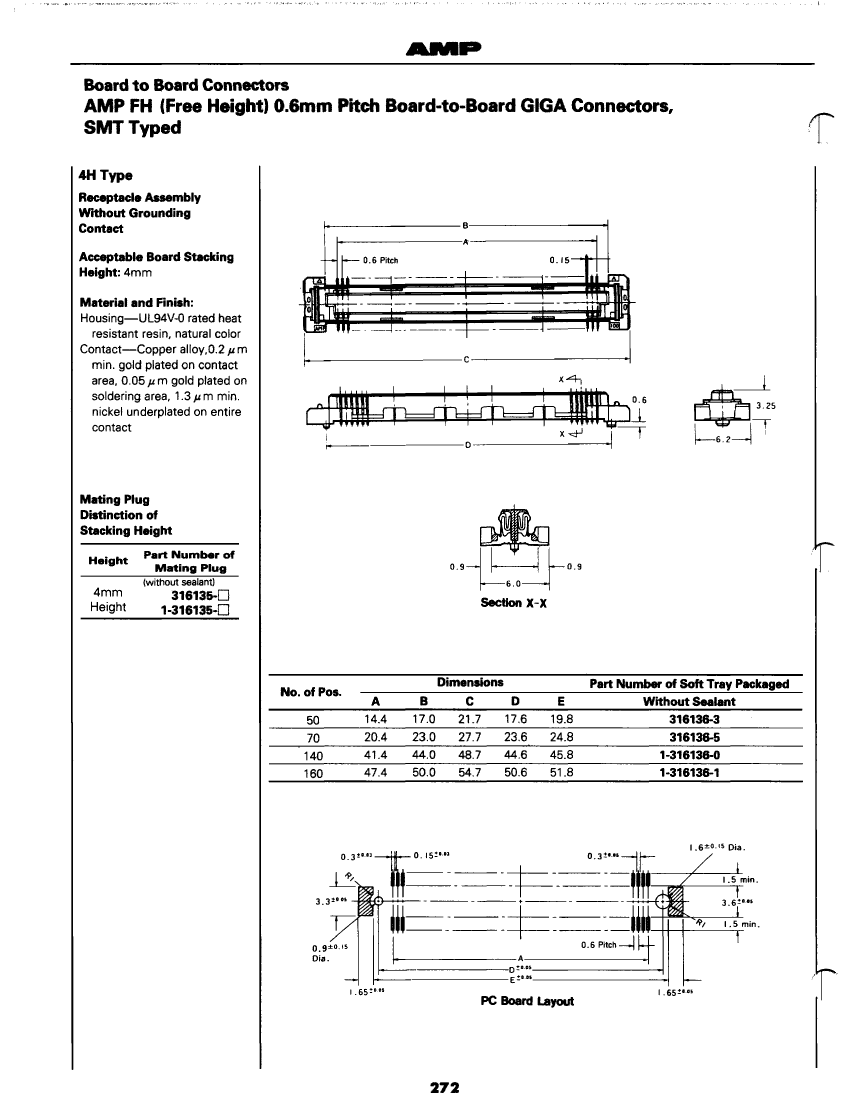

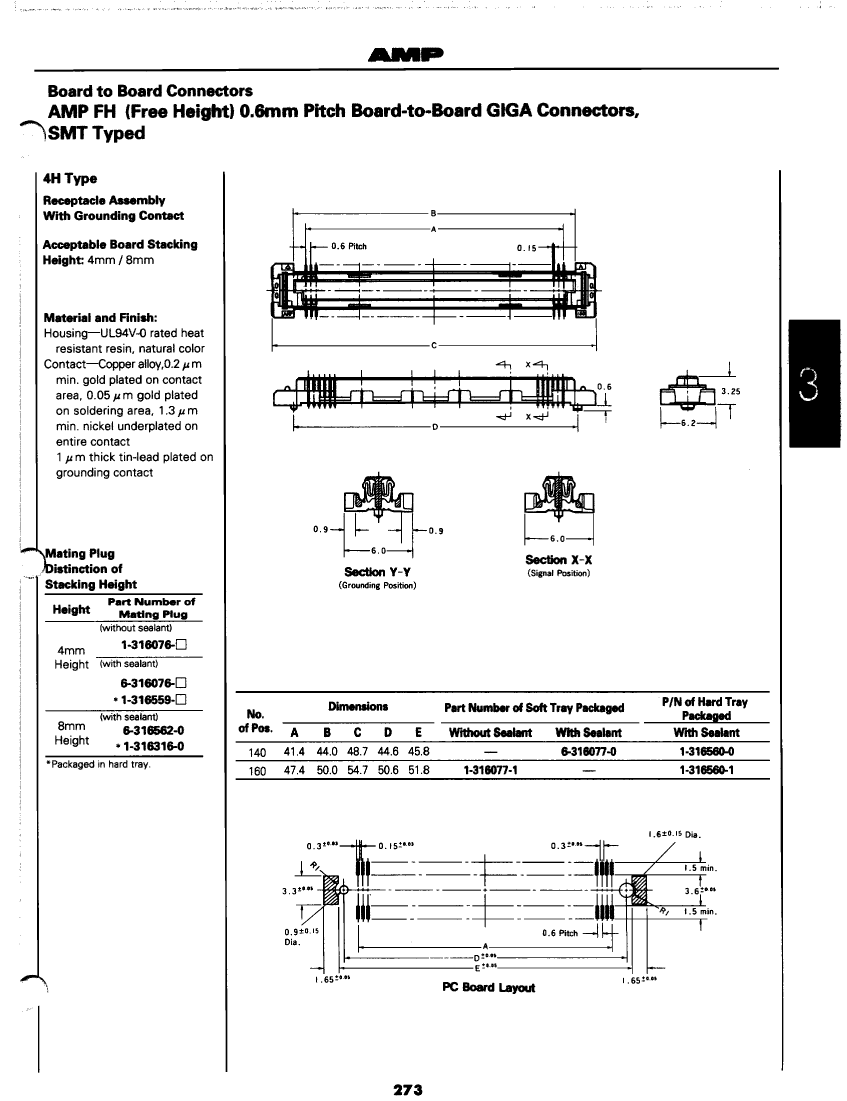

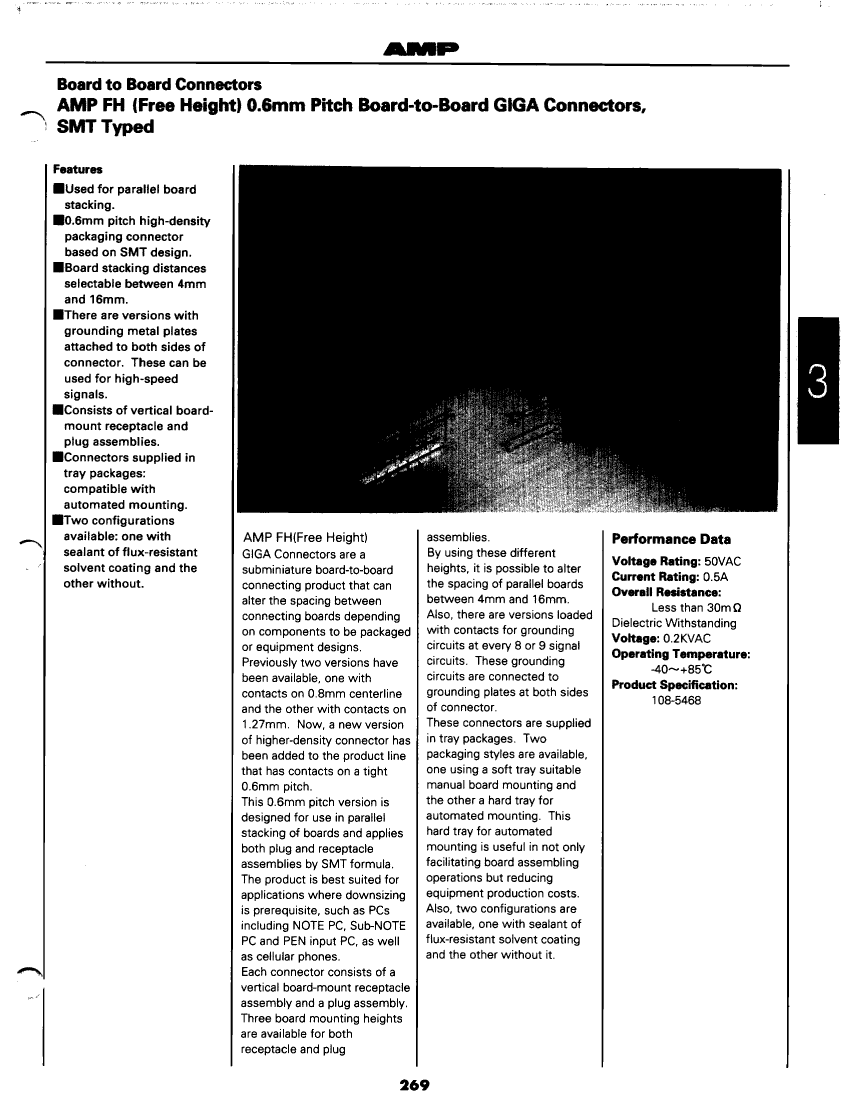

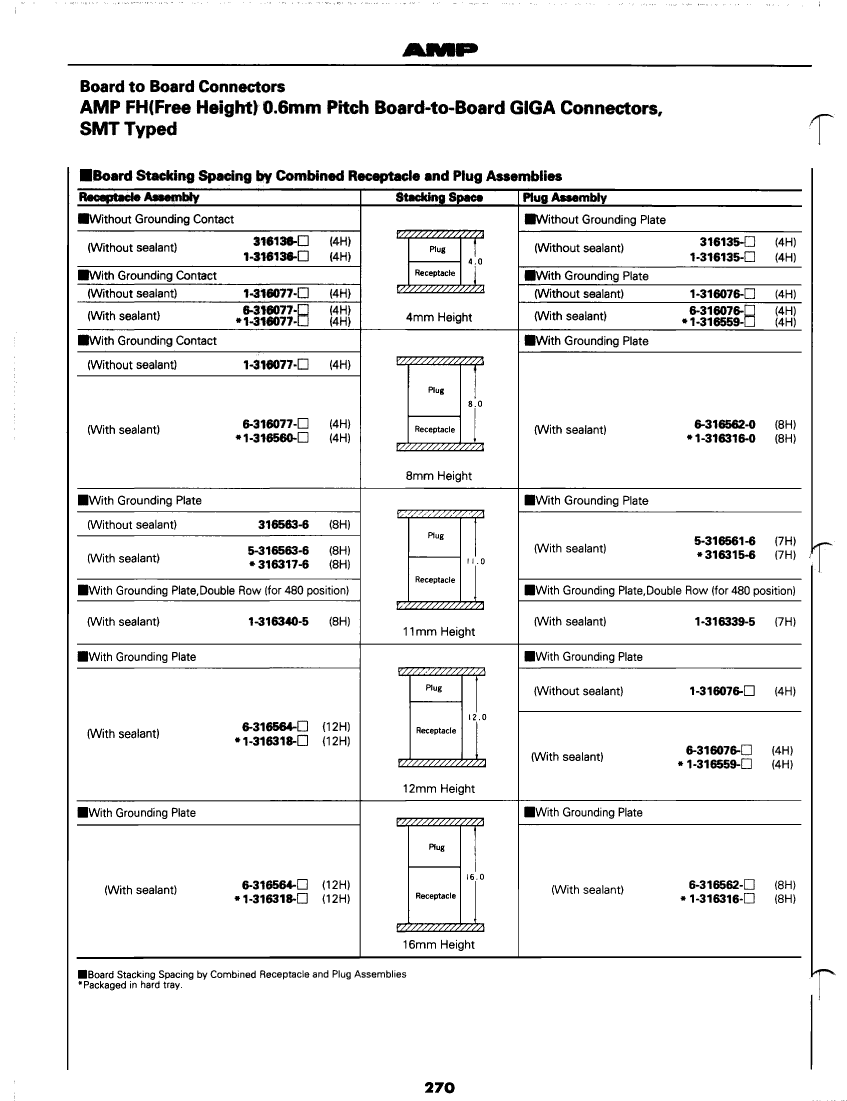

Preview

Download Datasheet

View All

316136-3 Related Products

	316136-3	1-316136-0	1-316136-1	1-316340-5	1-316339-5	316136-5	316316-0
Description	50 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT	CONNECTOR, 140 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT	CONNECTOR, 160 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT	432 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT	CONNECTOR, 432 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT	CONNECTOR, 70 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT	CONNECTOR, 140 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT
Reach Compliance Code	unknown	unknow	unknow	unknown	unknown	unknown	unknown
Connector type	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	MALE	FEMALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	316136	316136	316136	316340	316339	316136	316316
Plug information	316135-3	1-316135-0	1-316135-1	1-316339-5	1-316340-5	316135-5	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	4	4	2	2
Terminal pitch	0.6 mm	0.6 mm	0.6 mm	0.6 mm	0.6 mm	0.6 mm	0.6 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	50	140	160	432	432	70	140
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Objectid	1422902083	-	-	1422902033	1422902038	1422902087	-
