4400-093: DescriptionFeed Through Capacitor, 1 Function(s), 50V, 10A,; CategoryAnalog mixed-signal IC filter; File Size28KB，1 Pages; ManufacturerCTS

Download Datasheet Parametric Compare View All

4400-093 Overview

Feed Through Capacitor, 1 Function(s), 50V, 10A,

4400-093 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	C-TYPE CIRCUIT; WITH SILVER PLATED INTERNAL TOOTH LOCK WASHER
capacitance	10000 µF
filter type	FEED THROUGH CAPACITOR
Maximum insertion loss	60 dB
Minimum insulation resistance	10000 MΩ
JESD-609 code	e4
Number of functions	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Rated current	10 A
Rated voltage	50 V
Terminal surface	Silver (Ag)
Base Number Matches	1

Preview

Download Datasheet

View All

7741 North Business Park Drive

Tucson, Arizona 85743

Ph: 520-744-0400 Fax: 520-744-6155

Web site: www.tusonix.com E-mail: sales@tusonix.com

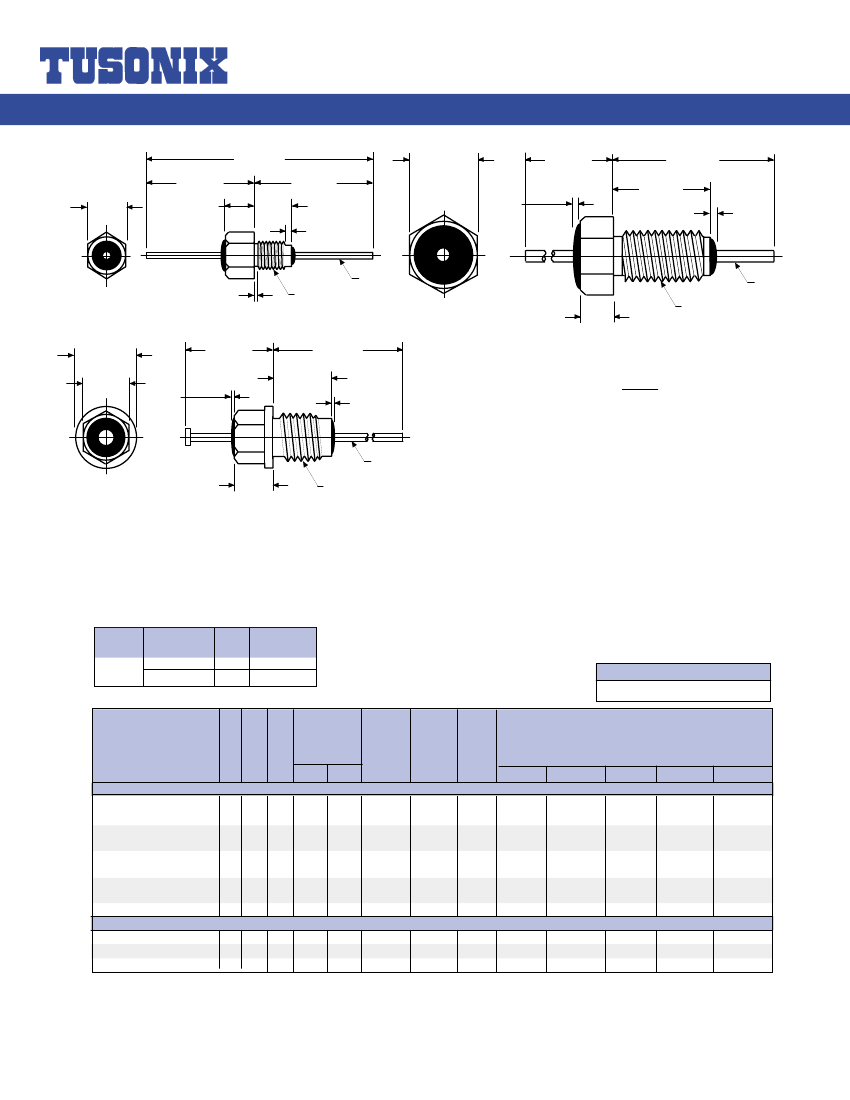

Metric Bushing Filters

.9 0 5 ± .0 7 9

[2 3 .0 0 ± 2 .0 0 ]

.1 5 7 ± .0 0 8

[4 .0 0 ± 0 .2 0 ]

.4 3 3 ± .0 3 9

[1 1 .0 ± 1 .0 0 ]

.1 1 8 ± .0 0 6

[3 .0 0 ± 0 .1 5 ]

.4 7 2 ± .0 3 9

[1 2 .0 ± 1 .0 0 ]

.1 5 7 ± .0 2 0

[4 .0 0 ± 0 .5 0 ]

.0 3 0 M A X .

[0 .7 6 M A X .]

.0 9 8 M A X .

[2 .4 8 M A X .]

.2 7 6 ± .0 2 0

[7 .0 1 ± 0 .5 1 ]

.4 5 3 ± .0 3 9

[7 .0 1 ± 0 .5 1 ]

.6 4 9 ± .0 3 9

[1 6 .4 8 ± 1 .0 0 ]

.3 9 4 ± .0 0 8

[1 0 .0 1 ± 0 .2 0 ]

.1 0 0 M A X .

[2 .5 4 M A X .]

S T Y L E 1

.2 5 0 ± .0 1 5

[6 .3 5 ± 0 .3 8 ]

.1 8 7 ± .0 1 5

[4 .7 5 ± 0 .3 8 ]

.0 3 8 M A X .

[0 .9 7 M A X .]

M 3 X 0 .5 - 6 g

.0 3 1 ± .0 0 2

[ 0 .7 9 ± 0 .0 5 ]

# 1 6 A W G .

(.0 5 1 ) [1 .2 9 ]

S T Y L E 3

.1 3 8 ± .0 2 0

[3 .5 1 ± 0 .5 1 ]

M 5 X 0 .8 - 6 g

.3 4 3 ± .0 3 1

[8 .7 1 ± 0 .7 9 ]

.9 2 1 ± .0 3 1

[2 3 .3 9 ± 0 .7 9 ]

.2 4 0 ± .0 1 5

[6 .1 0 ± 0 .3 8 ]

.0 6 0 M A X .

[1 .5 2 M A X .]

.0 6 0 M A X .

[1 .5 2 M A X .]

inches

[mm]

# 2 0 A W G .

(.0 3 2 ) [0 .8 1 ]

S T Y L E 2

.1 5 7 ± .0 1 5

[4 .0 0 ± 0 .3 8 ]

M 5 X 0 .8 - 6 g

Series Temperature WVdc

Number

Range

500

Z5, Y5, X5

2499

250

MAX. CAP.

Nominal

(pF)

5000

Notes:

••

Typical Insertion Loss

Please see Temperature Characteristics and EIA Codes on page 25.

Capacitance

(pF)

Capacitance

Tolerance

Current

(A)

Style

Circuit

Notes

TUSONIX

Part

Number

M3 Thread

4400-093

4400-098

4400-099

4400-094

4400-095

4400-683

4400-076

4400-096

4400-097

M5 Thread

4209-053

4209-003

2499-523-Y5R0-102P

Drawings not to scale.

Working

Voltage

(dc)

85°C 125°C

150

300

150

350

500

100

200

100

200

250

Minimum No-Load Insertion Loss

(dB) at 25°C per MIL-Std-220

1MHz

10MHz

100MHz

1GHz

10GHz

••

10,000 +80-20%

GMV

27,000

50,000

GMV

4700

GMV

1000

MAX

GMV

100

470

GMV

2700

5500

1500

1000

GMV

+100-0%

Please note:

All bushing style filters include hex nut and lock washer unless otherwise specified.

4400-093 Related Products

	4400-093	4400-098	4400-099	4400-095	4209-003	4209-053
Description	Feed Through Capacitor, 1 Function(s), 50V, 10A,	Feed Through Capacitor, 1 Function(s), 50V, 10A,	Feed Through Capacitor, 1 Function(s), 50V, 10A,	Feed Through Capacitor, 1 Function(s), 200V, 10A,	Data Line Filter, 1 Function(s), 200V, 10A,	Data Line Filter, 1 Function(s), 100V, 10A,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	C-TYPE CIRCUIT; WITH SILVER PLATED INTERNAL TOOTH LOCK WASHER	C-TYPE CIRCUIT; WITH SILVER PLATED INTERNAL TOOTH LOCK WASHER	C TYPE CIRCUIT; WITH SILVER PLATED INTERNAL TOOTH LOCK WASHER	C-TYPE CIRCUIT; WITH SILVER PLATED INTERNAL TOOTH LOCK WASHER	PI-TYPE CIRCUIT; WITH SILVER PLATED HEX NUT AND INTERNAL TOOTH LOCK WASHER	PI-TYPE CIRCUIT; SILVER PLATED HEX NUT AND INTERNAL TOOTH LOCK WASHER
capacitance	10000 µF	27000 µF	50000 µF	1000 µF	1500 µF	5500 µF
filter type	FEED THROUGH CAPACITOR	FEED THROUGH CAPACITOR	FEED THROUGH CAPACITOR	FEED THROUGH CAPACITOR	DATA LINE FILTER	DATA LINE FILTER
Maximum insertion loss	60 dB	65 dB	70 dB	45 dB	70 dB	70 dB
JESD-609 code	e4	e4	e4	e4	e0	e0
Number of functions	1	1	1	1	1	1
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Rated current	10 A	10 A	10 A	10 A	10 A	10 A
Rated voltage	50 V	50 V	50 V	200 V	200 V	100 V
Terminal surface	Silver (Ag)	Silver (Ag)	Silver (Ag)	Silver (Ag)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Base Number Matches	1	1	1	1	1	1
Minimum insulation resistance	10000 MΩ	40000 MΩ	20000 MΩ	10000 MΩ	-	10000 MΩ
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-	-
