DN8695 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> DN8695

DN8695: Description9-circuit Darlington Driver Array (High Breakdown Voltage : 50V, Large Drive Current : 1.5A); CategoryAnalog mixed-signal IC Drivers and interfaces; File Size26KB，2 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html

Download Datasheet Parametric View All

DN8695 Overview

9-circuit Darlington Driver Array (High Breakdown Voltage : 50V, Large Drive Current : 1.5A)

DN8695 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	ZIP
package instruction	ZIP, ZIP23H,.09,.6TB
Contacts	23
Reach Compliance Code	unknow
ECCN code	EAR99
Interface integrated circuit type	BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 code	R-PZFM-T23
JESD-609 code	e0
Number of functions	9
Number of terminals	23
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
Output current flow direction	SINK
Maximum output current	1 A
Nominal output peak current	1.5 A
Package body material	PLASTIC/EPOXY
encapsulated code	ZIP
Encapsulate equivalent code	ZIP23H,.09,.6TB
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum supply voltage	6 V
Minimum supply voltage	4 V
Nominal supply voltage	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL EXTENDED
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	1.27 mm
Terminal location	ZIG-ZAG
Maximum time at peak reflow temperature	NOT SPECIFIED
Disconnect time	5 µs
connection time	5 µs
Base Number Matches	1

Preview

Download Datasheet

View All

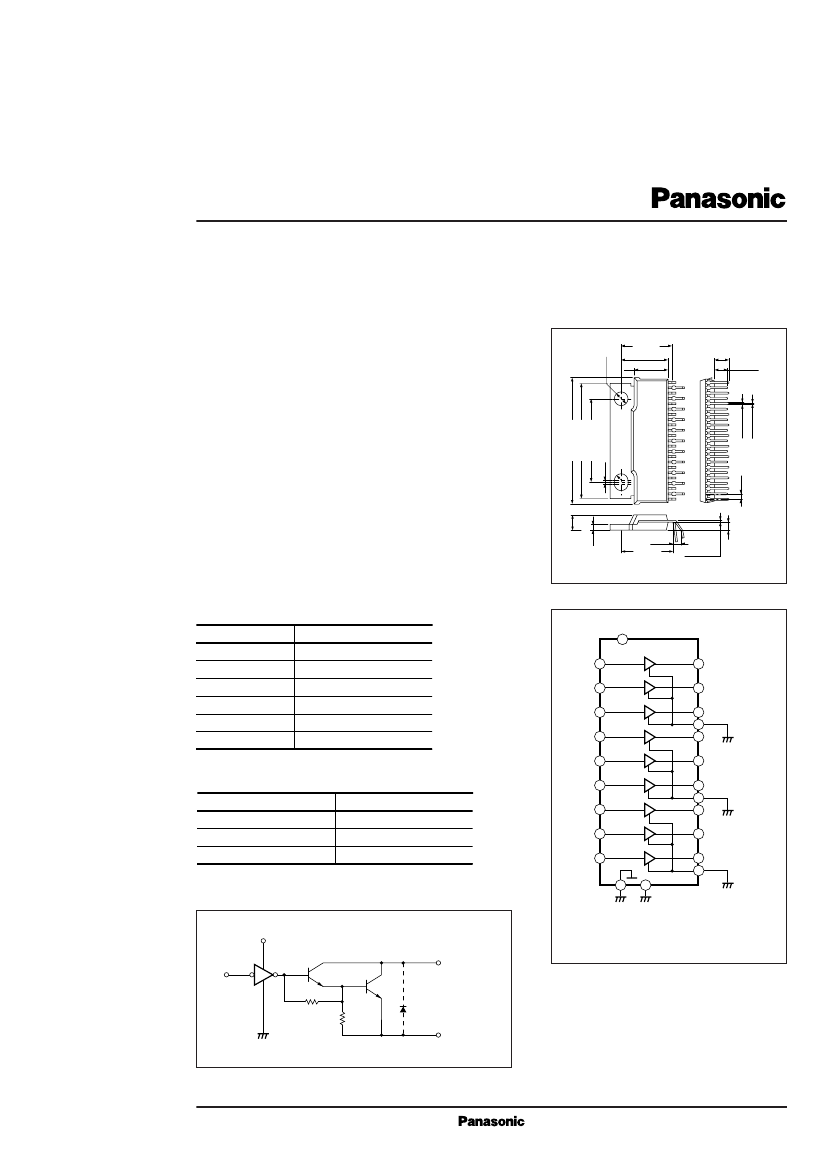

DN8695

9-circuit Darlington Driver Array (High Breakdown Voltage : 50V,

Large Drive Current : 1.5A)

Unit : mm

Overview

ø3.6

The DN8695 is a 9-circuit non-inverting type driver array com-

posed of TTL circuit and 1.5A NPN Darlington transistors.

(12.33)

11.3±0.25

8.2±0.3

4.5min

3.7min

•

9 circuits

•

High breakdown voltage : V

CE(SUS)

=50V (min)

•

Large output current : I

=1.5A (max)

•

Low active input

•

TTL compatible input

29.96±0.3

28.0±0.3

20.0±0.2

0.6

R18

1.2±0.15

Applications

•

Driving of the printer motors, etc.

•

Driving of the LEDs, lamps, and various relays

(2.2)

(12.33)

+ 0.1

0.25

– 0.05

23-pin ZIP Plastic Package with Fin (HZIP023-P-0138)

Block diagram

Pin Descriptions

Symbol

to Q

to I

GND

Fin

Pin name

Output pin

Fin

P-GND

to P-GND

Driver ground pin

Input pin

Ground pin

Power pin

Fin

P-GND

Function Table

Input (I

)

OPEN

Output (Q

)

Schematic Circuit (1 Circuit)

P-GND

GND

Note) GND, Fin, P-GND 1, 2, and 3 are

connected inside the IC, but be sure

to connect them outside for use.

1.8±0.25

3.5±0.3

1.27

0.6±0.1

0.3±0.1
