5962F9671701VRC datasheet, PDF

Datasheet> All Categories > logic> logic> 5962F9671701VRC

5962F9671701VRC: DescriptionACT SERIES, 4-BIT DRIVER, INVERTED OUTPUT, CDIP20, CERAMIC, DIP-20; Categorylogic logic; File Size47KB，3 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

5962F9671701VRC Overview

ACT SERIES, 4-BIT DRIVER, INVERTED OUTPUT, CDIP20, CERAMIC, DIP-20

5962F9671701VRC Parametric

Parameter Name	Attribute value
Parts packaging code	DIP
package instruction	DIP, DIP20,.3
Contacts	20
Reach Compliance Code	compliant
Control type	ENABLE LOW
series	ACT
JESD-30 code	R-CDIP-T20
JESD-609 code	e4
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.012 A
Number of digits	4
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Prop。Delay @ Nom-Sup	13 ns
propagation delay (tpd)	13 ns
Certification status	Not Qualified
Filter level	MIL-PRF-38535 Class V
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
total dose	300k Rad(Si) V
width	7.62 mm
Base Number Matches	1

Preview

Download Datasheet

View All

ACTS240MS

January 1996

High Reliability, Radiation Hardened

Octal Buffer/Line Driver, Three-State

Pinouts

20 PIN CERAMIC DUAL-IN-LINE

MIL-STD-1835 DESIGNATOR CDIP2-T20,

LEAD FINISH C

TOP VIEW

AEN

20 VCC

19 BEN

18 AO1

17 BI4

16 AO2

15 BI3

14 AO3

13 BI2

12 AO4

11 BI1

Features

• Devices QML Qualiﬁed in Accordance with MIL-PRF-38535

• Detailed Electrical and Screening Requirements are Contained in

SMD# 5962-96717 and Intersil’s QM Plan

• 1.25 Micron Radiation Hardened SOS CMOS

• Total Dose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . >300K RAD (Si)

• Single Event Upset (SEU) Immunity: <1 x 10

-10

Errors/Bit/Day

(Typ)

• SEU LET Threshold . . . . . . . . . . . . . . . . . . . . . . . >100 MEV-cm

/mg

• Dose Rate Upset . . . . . . . . . . . . . . . . >10

RAD (Si)/s, 20ns Pulse

• Dose Rate Survivability . . . . . . . . . . . >10

• Latch-Up Free Under Any Conditions

• Military Temperature Range . . . . . . . . . . . . . . . . . . -55

C to +125

• Signiﬁcant Power Reduction Compared to ALSTTL Logic

• DC Operating Voltage Range . . . . . . . . . . . . . . . . . . . . 4.5V to 5.5V

• Input Logic Levels

- VIL = 0.8V Max

- VIH = VCC/2 Min

• Input Current

≤

1µA at VOL, VOH

• Fast Propagation Delay . . . . . . . . . . . . . . . 17.5ns (Max), 12ns (Typ)

AI1

BO4

AI2

BO3

AI3

BO2

AI4

BO1

RAD (Si)/s, 20ns Pulse

GND 10

20 PIN CERAMIC FLATPACK

MIL-STD-1835 DESIGNATOR CDFP4-F20,

LEAD FINISH C

TOP VIEW

AEN

AI1

BO4

AI2

BO3

AI3

BO2

AI4

BO1

GND

VCC

BEN

AO1

BI4

AO2

BI3

AO3

BI2

AO4

BI1

Description

The Intersil ACTS240MS is a Radiation Hardened High Reliability, High-

Speed CMOS/SOS having two active low enable inputs.

The ACTS240MS utilizes advanced CMOS/SOS technology to achieve

high-speed operation. This device is a member of a radiation hardened,

high-speed, CMOS/SOS Logic Family.

The ACTS240MS is supplied in a 20 lead Ceramic Flatpack (K sufﬁx) or

a Dual-In-Line Ceramic Package (D sufﬁx).

Ordering Information

PART NUMBER

5962F9671701VRC

5962F9671701VXC

ACTS240D/Sample

ACTS240K/Sample

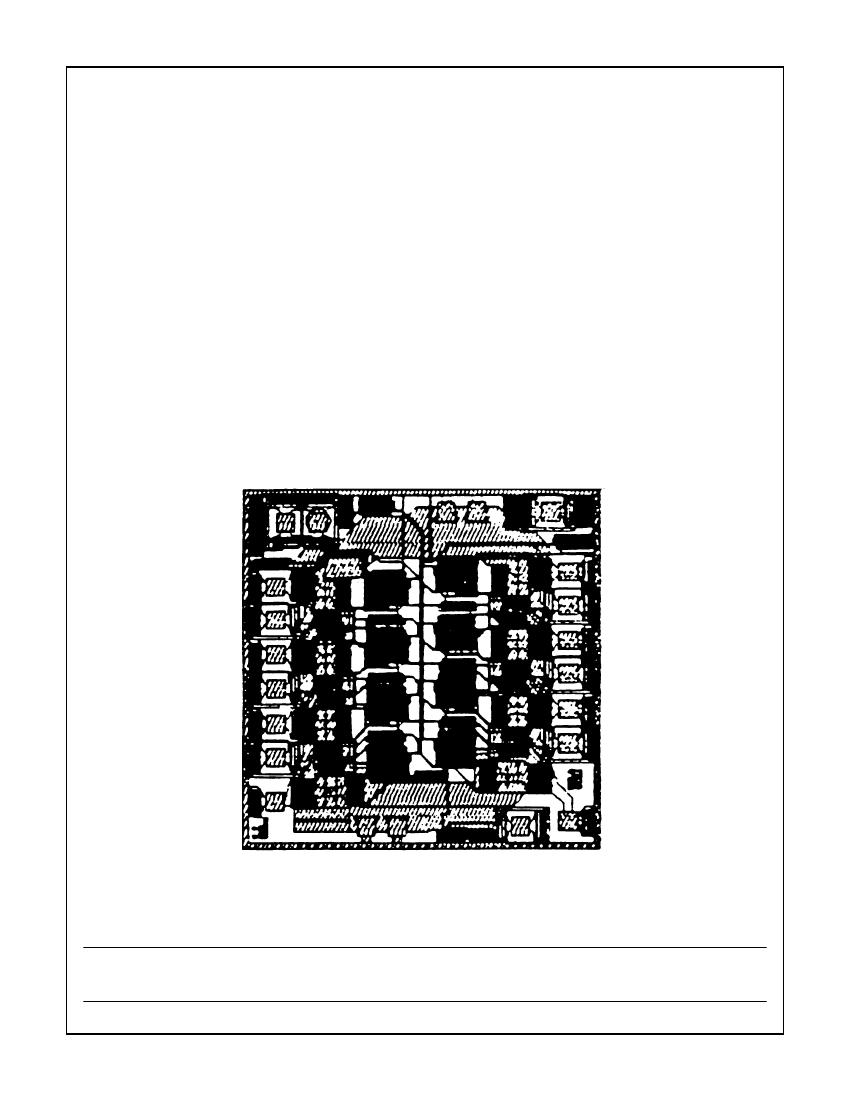

ACTS240HMSR

TEMPERATURE RANGE

-55

C to +125

-55

C to +125

SCREENING LEVEL

MIL-PRF-38535 Class V

Sample

Die

PACKAGE

20 Lead SBDIP

20 Lead Ceramic Flatpack

20 Lead SBDIP

20 Lead Ceramic Flatpack

Die

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

http://www.intersil.com or 407-727-9207

Intersil Corporation 1999

Spec Number

File Number

518783

3186.1

5962F9671701VRC Related Products

	5962F9671701VRC	ACTS240HMSR	5962F9671701VXC
Description	ACT SERIES, 4-BIT DRIVER, INVERTED OUTPUT, CDIP20, CERAMIC, DIP-20	ACT SERIES, DUAL 4-BIT DRIVER, INVERTED OUTPUT, UUC20, DIE-20	ACT SERIES, 4-BIT DRIVER, INVERTED OUTPUT, CDFP20, CERAMIC, FP-20
Parts packaging code	DIP	DIE	DFP
package instruction	DIP, DIP20,.3	DIE,	DFP, FL20,.3
Contacts	20	20	20
Reach Compliance Code	compliant	unknown	compliant
series	ACT	ACT	ACT
JESD-30 code	R-CDIP-T20	R-XUUC-N20	R-CDFP-F20
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	4	4	4
Number of functions	1	2	1
Number of ports	2	2	2
Number of terminals	20	20	20
Output characteristics	3-STATE	3-STATE	3-STATE
Output polarity	INVERTED	INVERTED	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIE	DFP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	UNCASED CHIP	FLATPACK
propagation delay (tpd)	13 ns	17.5 ns	13 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Filter level	MIL-PRF-38535 Class V	MIL-PRF-38535 Class V	MIL-PRF-38535 Class V
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	NO	YES	YES
technology	CMOS	CMOS	CMOS
Terminal form	THROUGH-HOLE	NO LEAD	FLAT
Terminal location	DUAL	UPPER	DUAL
total dose	300k Rad(Si) V	300k Rad(Si) V	300k Rad(Si) V
Control type	ENABLE LOW	-	ENABLE LOW
JESD-609 code	e4	-	e4
Load capacitance (CL)	50 pF	-	50 pF
MaximumI(ol)	0.012 A	-	0.012 A
Maximum operating temperature	125 °C	-	125 °C
Minimum operating temperature	-55 °C	-	-55 °C
Encapsulate equivalent code	DIP20,.3	-	FL20,.3
power supply	5 V	-	5 V
Prop。Delay @ Nom-Sup	13 ns	-	13 ns
Maximum seat height	5.08 mm	-	2.92 mm
Temperature level	MILITARY	-	MILITARY
Terminal surface	GOLD	-	GOLD
Terminal pitch	2.54 mm	-	1.27 mm
width	7.62 mm	-	6.92 mm
Maker	-	Renesas Electronics Corporation	Renesas Electronics Corporation
