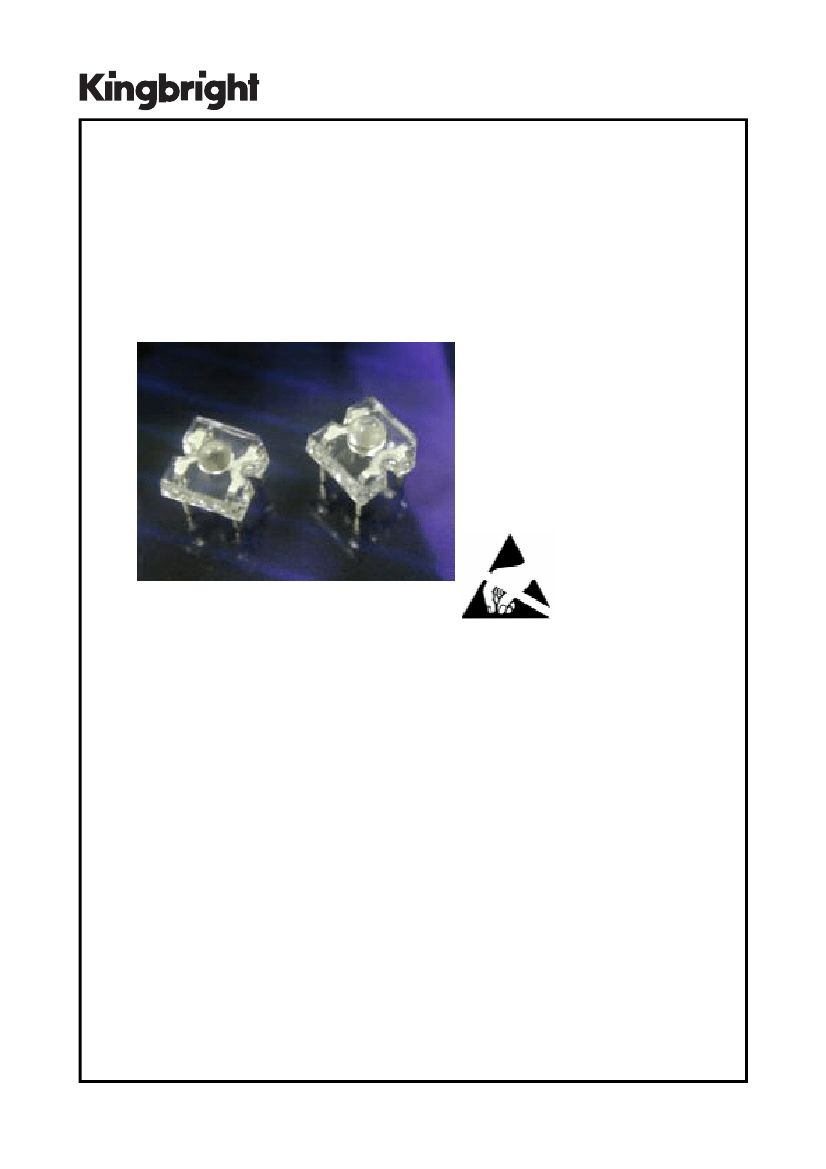

SUPER FLUX LED LAMP
P/N: L-7677C2PBC-H
Technical Data
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
DISCHARGE
SENSITIVE
DEVICES
Benefits:
*Outstanding
Material Efficiency.
Features:
*High
Luminance output.
*Design
for High Current Operation.
*Uniform
Color.
*Low Power Consumption.
*Low
Thermal Resistance.
*Low
Profile.
*Packaged
in tubes for use with
automatic insertion equipment.
*RoHS
Compliant.
Typical Applications:
*Automotive
Exterior Lighting.
*Electronic
Signs and Signals.
*Specialty
Lighting.
*Electricity
savings.
*Maintenance
savings.
*Reliable
and Rugged.
SPEC NO: DSAE6686
APPROVED: J. Lu
REV NO: V.5
CHECKED: Allen Liu
DATE:NOV/14/2005
DRAWN:Y.L.LI
PAGE: 1 OF 4

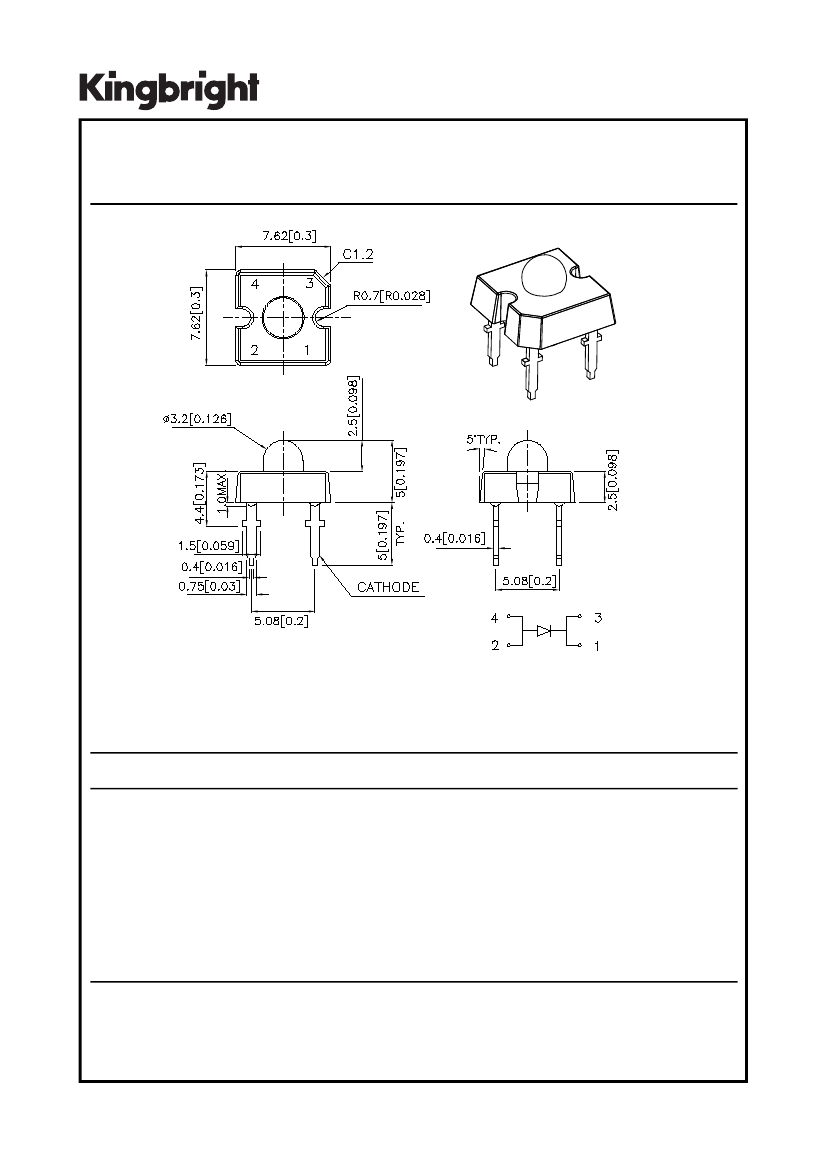

Outline Drawings
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.25(0.01")
unless otherwise noted.
3. Lead spacing is measured where the leads emerge from the package.
4. Specifications are subject to change without notice.
Absolute Maximum Ratings at TA=25°C
PARAMETER
DC Forward Current
Power dissipation
Reverse Voltage
Operating Temperature
Storage Temperature
Lead Solder Temperature
[1]
PB-H
50
235
5
-40 To +85
-55 To +85
260°C For 5 Seconds
UNITS
mA
mW
V
°C
°C
1.1.5mm[0.06inch]below seating plane.
SPEC NO: DSAE6686
APPROVED: J. Lu
REV NO: V.5
CHECKED: Allen Liu
DATE:NOV/14/2005
DRAWN:Y.L.LI
PAGE: 2 OF 4
Selection Guide
Iv(cd)
@50mA
Min.
L-7677C2PBC-H
InGaN BLUE
3.3
Typ.
30°
6.0
[1]
Part No.
LED COLOR
Viewing Angle
[2]
2 1/2
Typ.
Notes:
1.Luminous intensity is measured with an integrating sphere after the device has stabilized.
2. 1/2 is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
Optical Characteristics at TA=25°C
I
F
=50mA R
j-a
=200°C/W
DEVICE
TYPE
PEAK
WAVELENGTH
λ
PEAK (nm)
TYP.
DOMINANT
[1]
WAVELENGTH
λ
DOM (nm)
TYP.
SPECTRAL LINE
WAVELENGTH
∆λ1/2(nm)
∆λ
TYP.
PB-H
467
470
30
NOTE:
1.The dominant wavelength is derived from the CIE Chromaticity Diagram and represents the perceived color of the device.
Electrical Characteristics at TA=25°C
FORWARD VOLTAGE
V
F
(
VOLTS)
DEVICE
TYPE
MIN.
@
I
F
=50mA
TYP.
MAX.
REVERSE CURRENT
I
R
(uA)
@
V
R
=5V
MAX.
CAPACITANCE
C (pF)
@
V
F
=0V F=1MHZ
TYP.
THERMAL
RESISTANCE
R j-pin
°C/W
TYP.
PB-H
3.8
4.4
4.7
10
110
130
SPEC NO: DSAE6686
APPROVED: J. Lu
REV NO: V.5
CHECKED: Allen Liu
DATE:NOV/14/2005
DRAWN:Y.L.LI
PAGE: 3 OF 4

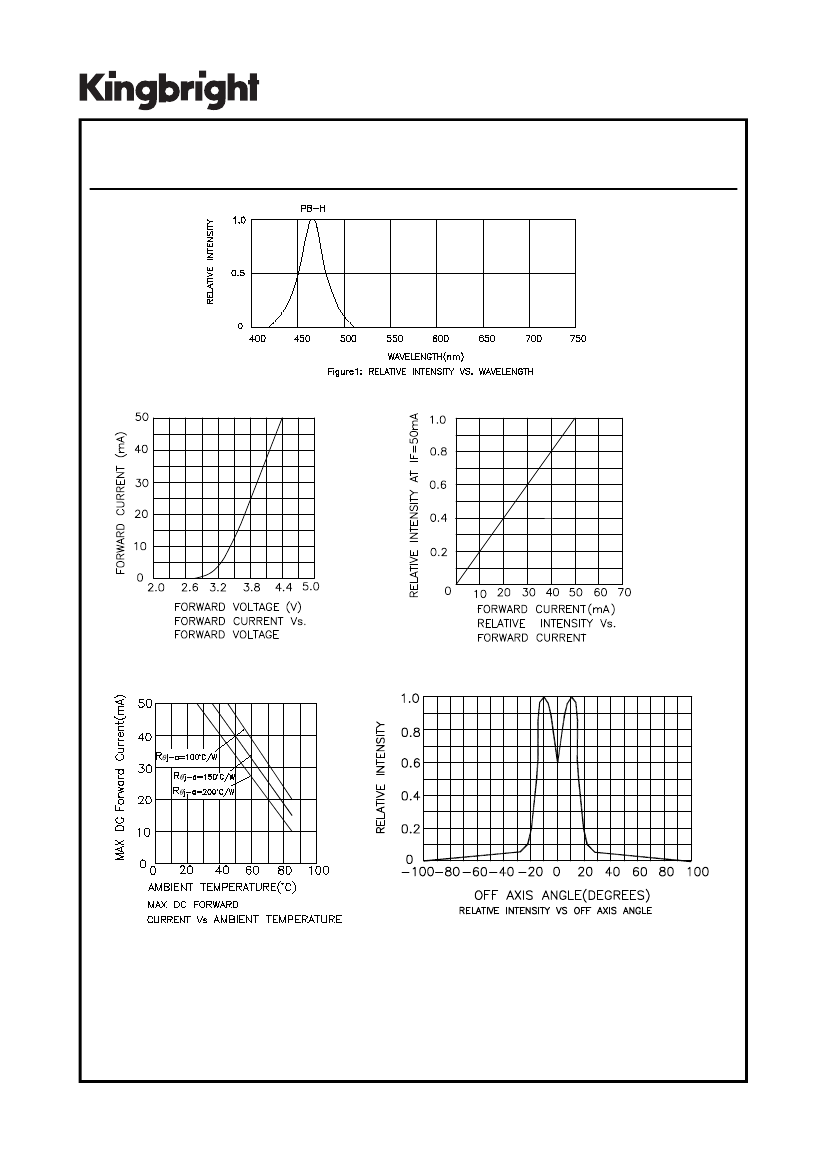

Figures
Remarks:
If special sorting is required (e.g. binning based on forward voltage, Luminous intensity/ luminous flux, or wavelength),
the typical accuracy of the sorting process is as follows:
1. Wavelength: +/-1nm
2. Luminous intensity/ luminous flux: +/-15%
3. Forward Voltage: +/-0.1V
Note: Accuracy may depend on the sorting parameters.
SPEC NO: DSAE6686
APPROVED: J. Lu
REV NO: V.5
CHECKED: Allen Liu
DATE:NOV/14/2005
DRAWN:Y.L.LI
PAGE: 4 OF 4
