221-94233-3008 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 221-94233-3008

221-94233-3008: DescriptionBoard Euro Connector, 48 Contact(s), 3 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Gray Insulator, Receptacle; CategoryThe connector The connector; File Size167KB，2 Pages; ManufacturerThomas & Betts Corporation; Websitehttp://www.tnb.com/

Download Datasheet Parametric Compare View All

221-94233-3008 Overview

Board Euro Connector, 48 Contact(s), 3 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Gray Insulator, Receptacle

221-94233-3008 Parametric

Parameter Name	Attribute value
Maker	Thomas & Betts Corporation
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STANDARD: DIN 41612
body width	0.484 inch
subject depth	0.941 inch
body length	3.7 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact arrangement	S42C6
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN LEAD OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
Contact resistance	20 mΩ
Contact style	HYBRID
DIN compliance	YES
Dielectric withstand voltage	500VDC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED THERMOPLASTIC
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	22
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES
Installation method	RIGHT ANGLE
Installation type	BOARD
Loaded row name	A,B,C
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	ENDS
Rated current (signal)	2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.114 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	48
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

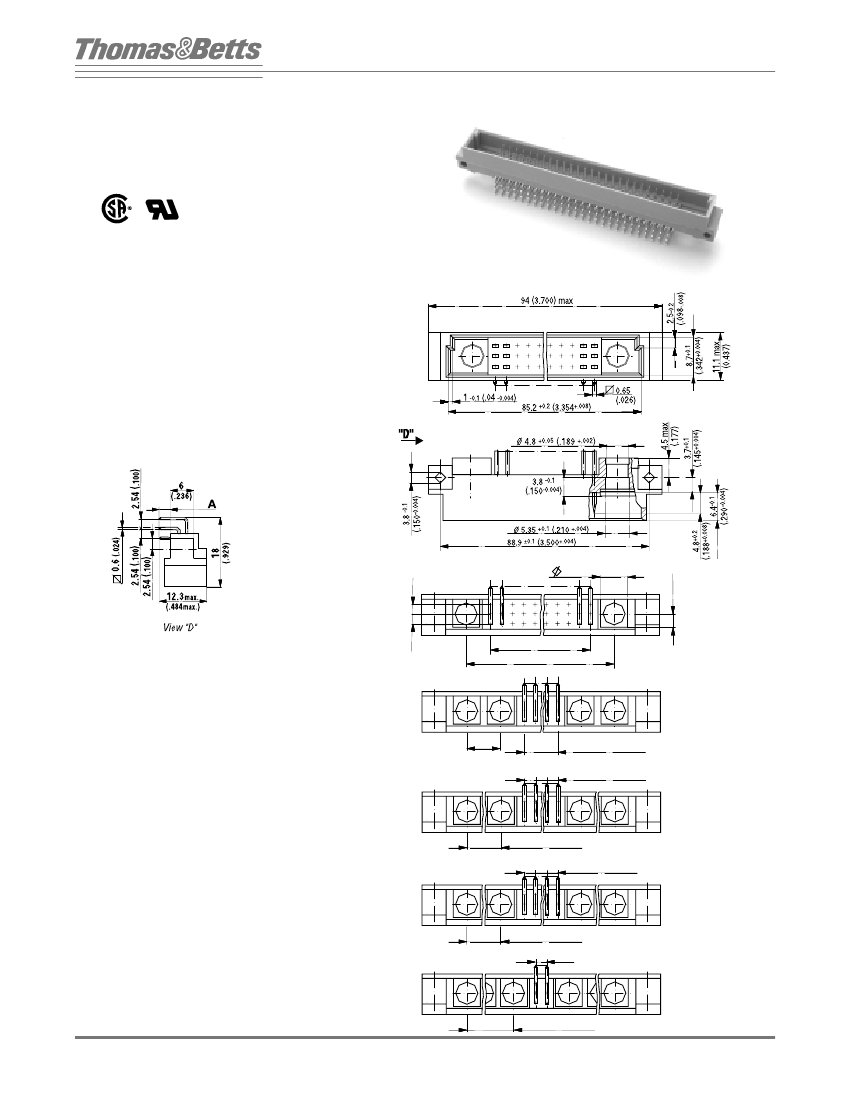

Two–Piece Connectors

Hybrid Power DIN

TYPE M

MALE PCB CONNECTOR

SERIES 22

LR92984

E60980

HYSICAL

ROPERTIES

NSULATION

ATERIAL

Glass filled thermoplastic

rated UL 94V-0

OLOR

Gray

ONTACTS

Copper alloy, nickel plate overall,

gold finish in contact zone. Tin/lead on solder

tails, tin/lead or gold on posts.

LECTRICAL

ROPERTIES

URRENT

ATING

2 Amps per pin

NSULATION

ESISTANCE

>1 x 10

0hms

IELECTRIC

TRENGTH

> 500 VDC at sea level

NVIRONMENTAL

ROPERTIES

EMPERATURE

ATING

-55˚C TO 125°C

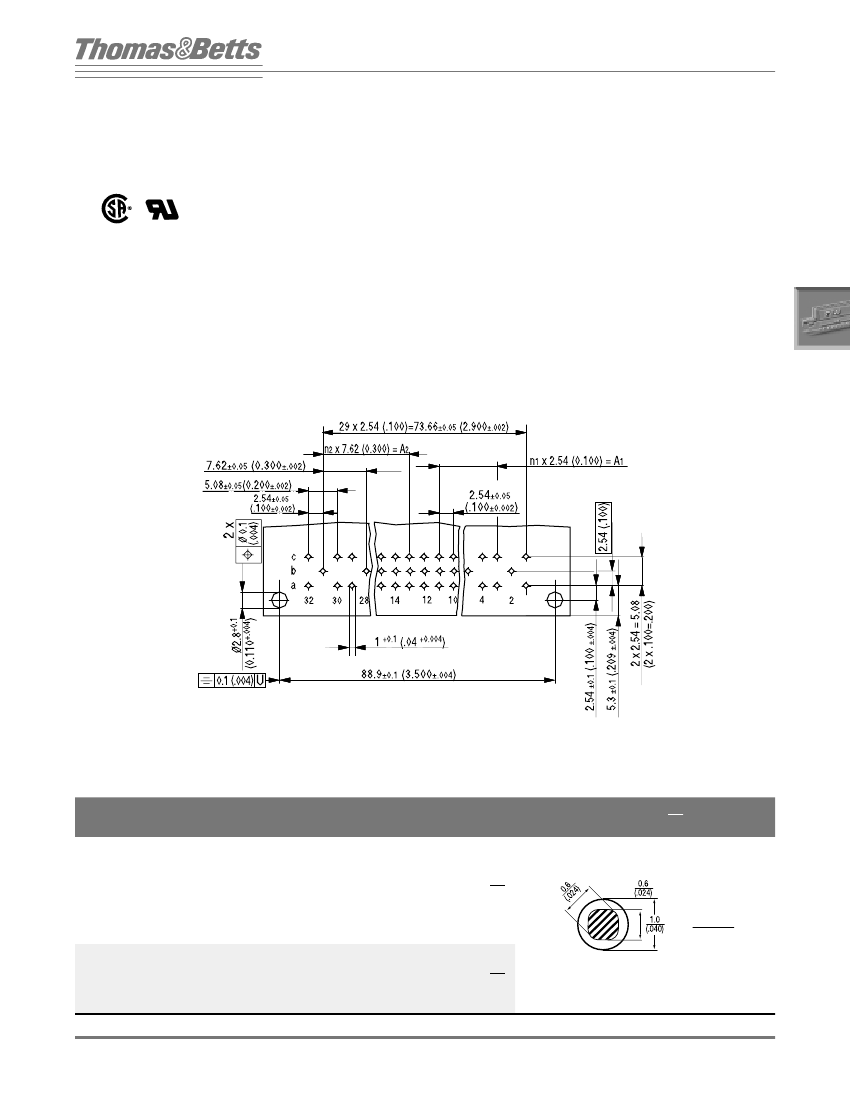

6.1(.240)

2.54(.100)

a b c

78 + 2

2.54(.100)

25 x 2.54(.100) = 63.5(2.5)

3.05(.120)

29 x 2.54(.100) = 73.66(2.9)

a b c

Extended length contacts available.

Consult factory for details

60 + 4

ONTACTS

AND

OUNTING

42 + 6

7.62

(.300)

19 x 2.54(.100) = 48.26(1.90)

13 x 2.54(.100) = 33.02(1.30)

OAX

ONTACTS

a b c

See pages 278-279

IGH

URRENT

ONTACTS

See page 280

2 x 7.62(.300) = 15.24(.600)

7 x 2.54(.100) = 17.78(.700)

a b c

24 + 8

3 x 7.62(.300) = 22.86(.900)

2.54(.100)

a b c

6 + 10

4 x 7.62(.300) = 30.48(1.200)

Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312

Dimensions shown are for reference only. Dimensions are in millimeters (inches).

274

221-94233-3008 Related Products

	221-94233-3008	221-92443-3008	221-97813-3008	1332A0031000	221-90653-3008
Description	Board Euro Connector, 48 Contact(s), 3 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Gray Insulator, Receptacle	Board Euro Connector, 32 Contact(s), 3 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Gray Insulator, Receptacle	Board Euro Connector, 80 Contact(s), 3 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Gray Insulator, Receptacle	Fieldbus, 20 Pr #18 Str TC, PO Ins, IS/OS, PVC Jkt, CMG	Board Euro Connector, 16 Contact(s), 3 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Gray Insulator, Receptacle
Maker	Thomas & Betts Corporation	-	Thomas & Betts Corporation	-	Thomas & Betts Corporation
Reach Compliance Code	unknown	unknow	unknown	-	unknown
ECCN code	EAR99	EAR99	EAR99	-	EAR99
Other features	STANDARD: DIN 41612	STANDARD: DIN 41612	STANDARD: DIN 41612	-	STANDARD: DIN 41612
body width	0.484 inch	0.484 inch	0.484 inch	-	0.484 inch
subject depth	0.941 inch	0.941 inch	0.941 inch	-	0.941 inch
body length	3.7 inch	3.7 inch	3.7 inch	-	3.7 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	-	RECEPTACLE
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	-	BOARD EURO CONNECTOR
Contact arrangement	S42C6	S24C8	S78C2	-	S6C10
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	-	AU ON NI
Contact completed and terminated	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	-	TIN LEAD OVER NICKEL
Contact point gender	MALE	MALE	MALE	-	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	-	COPPER ALLOY
Contact resistance	20 mΩ	20 mΩ	20 mΩ	-	20 mΩ
Contact style	HYBRID	HYBRID	HYBRID	-	HYBRID
DIN compliance	YES	YES	YES	-	YES
Dielectric withstand voltage	500VDC V	500VDC V	500VDC V	-	500VDC V
Filter function	NO	NO	NO	-	NO
IEC compliance	NO	NO	NO	-	NO
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	-	1000000000 Ω
Insulator color	GRAY	GRAY	GRAY	-	GRAY
insulator material	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	-	GLASS FILLED THERMOPLASTIC
JESD-609 code	e0	e0	e0	-	e0
MIL compliance	NO	NO	NO	-	NO
Manufacturer's serial number	22	22	22	-	22
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	-	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	-	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	-	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES	YES	YES	-	YES
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	-	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	-	BOARD
Loaded row name	A,B,C	A,B,C	A,B,C	-	A,B,C
PCB row number	3	3	3	-	3
Number of rows loaded	3	3	3	-	3
Maximum operating temperature	125 °C	125 °C	125 °C	-	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR
PCB contact row spacing	2.54 mm	2.54 mm	2.54 mm	-	2.54 mm
polarization key	ENDS	ENDS	ENDS	-	ENDS
Rated current (signal)	2 A	2 A	2 A	-	2 A
Guideline	UL, CSA	UL, CSA	UL, CSA	-	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	COMMERCIAL
Terminal length	0.114 inch	0.114 inch	0.114 inch	-	0.146 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	-	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	-	SOLDER
Total number of contacts	48	32	80	-	16
UL Flammability Code	94V-0	94V-0	94V-0	-	94V-0
Base Number Matches	1	1	1	-	-
