IRFI9530G-024 datasheet, PDF - EEWORLD Datasheet

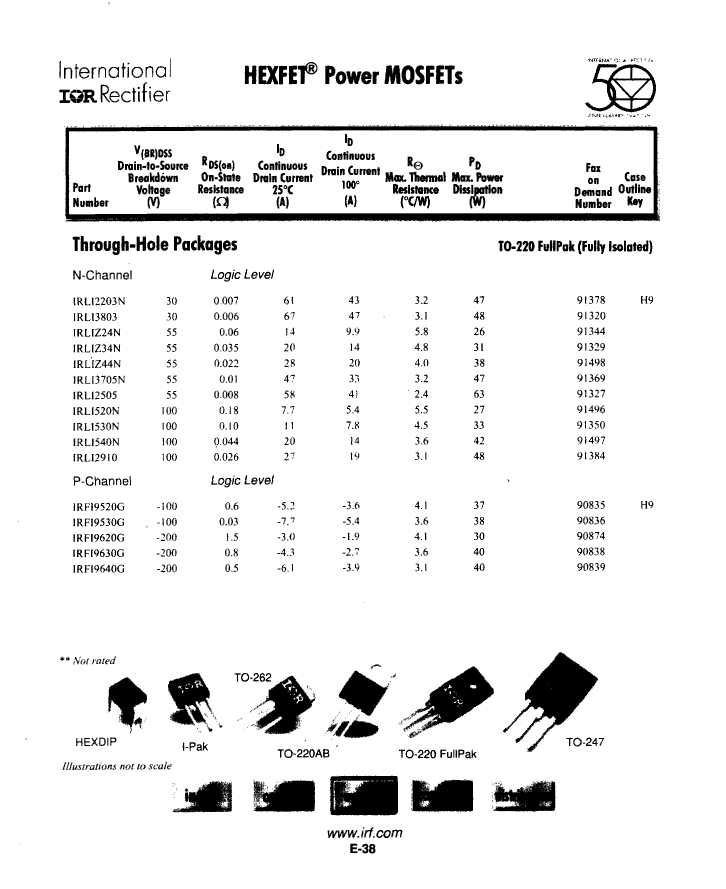

IRFI9530G-024: DescriptionPower Field-Effect Transistor, 7.7A I(D), 100V, 0.3ohm, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, TO-220, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size30KB，1 Pages; ManufacturerInternational Rectifier （ Infineon ）; Websitehttp://www.irf.com/

Download Datasheet Parametric View All

IRFI9530G-024 Overview

Power Field-Effect Transistor, 7.7A I(D), 100V, 0.3ohm, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, TO-220, 3 PIN

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	International Rectifier （ Infineon ）
Parts packaging code	TO-220AB
package instruction	FLANGE MOUNT, R-PSFM-T3
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Minimum drain-source breakdown voltage	100 V
Maximum drain current (ID)	7.7 A
Maximum drain-source on-resistance	0.3 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	P-CHANNEL
Maximum power consumption environment	38 W
Certification status	Not Qualified
surface mount	NO
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON
Base Number Matches	1
