DATA SHEET
GENERAL PURPOSE CHIP RESISTORS
RC_L series
±0.1%, ±0.5%, ±1%, ±5%
Sizes 0075/0100/0201/0402/0603/0805/
1206/1210/1218/2010/2512
RoHS compliant & Halogen free
Product specification – May 15, 2020 V.11
Product specification
2
10
Chip Resistor Surface Mount
RC_L
SERIES
0075 to 2512
SCOPE
This specification describes RC
series chip resistors with lead
free terminations made by thick
film process.
APPLICATIONS
All general purpose application
ORDERING INFORMATION - GLOBAL PART NUMBER
Global part numbers are identified by the series, size, tolerance, packing
type, temperature coefficient, taping reel and resistance value.
GLOBAL PART NUMBER
RC XXXX X X X XX XXXX L
(1)
(2) (3) (4)
(5)
(6)
(7)
(1) SIZE
0075/0100/0201/0402/0603/0805/1206/1210/1218/2010/2512
FEATURES
Halogen Free Epoxy
RoHS compliant
Products with lead free
terminations meet RoHS
requirements
Pb-glass contained in
electrodes, resistors element
and glass are exempted by
RoHS
Reducing environmentally
hazardous wastes
High component and equipment
reliability
Saving of PCB space
None forbidden-materials used in
products/production
(2) TOLERANCE
B = ± 0.1%
D = ± 0.5%
F = ± 1.0%
J = ± 5.0% (for jumper ordering, use code of J)
(3) PACKAGING TYPE
R = Paper taping reel
K = Embossed taping reel
S = ESD safe reel (0075/0100 only)
(4) TEMPERATURE COEFFICIENT OF RESISTANCE
－
= Based on spec.
(5) TAPING REEL & POWER
07= 7 inch dia. Reel
10=10 inch dia. Reel
13=13 inch dia. Reel
7W = 7 inch dia. Reel & 2 x standard power
7N = 7 inch dia. Reel, ESD safe reel (0075/0100 only)
3W = 13 inch dia. Reel & 2 x standard power
(6) RESISTANCE VALUE
There are 2~4 digits indicated the resistance value.
Letter R/K/M is decimal point
Example:
97R6 = 97.6Ω
9K76 = 9760Ω
1M = 1,000,000Ω
(7) DEFAULT CODE
Letter L is the system default code for ordering only.
(Note)
ORDERING EXAMPLE
The ordering code for a RC0402 0.0625W chip resistor value 100KΩwith
±5%
tolerance, supplied in 7-inch tape reel of 10,000 units per reel is:
RC0402JR-07100KL.
NOTE
1. All our RSMD products meet RoHS compliant and Halogen Free. "LFP" of the internal 2D
reel label mentions "Lead Free Process".
2. On customized label, "LFP" or specific symbol can be printed.
www.yageo.com
Jul. 7, 2020 V.11
Product specification
3
10
Chip Resistor Surface Mount
RC_L
SERIES
0075 to 2512
MARKING
RC0075 / RC0100 / RC0201 / RC0402
No Marking
ynsc007
Fig. 1
RC0603
0
YNSC037
1%, 0.5%,E24 exception values 10/11/13/15/20/75 of E24 series
10
0
= 24
Fig. 2
240 = 24 ×
88
YNSC038
1%, 0.5%, E96 refer to EIA-96 marking method, including values
10/11/13/15/20/75 of E24 series
Fig. 3
88A = 806 × 10
0
= 806
Ω
03
YNSC001
5%, E24 series : 3 digits
First two digits for significant figure and 3rd digit for number of zeros
Fig. 4
Value = 10 KΩ
RC0805 / RC1206 / RC1210 / RC2010 / RC2512
00
YNSC004
1%, 0.5%, E24/E96 series : 4 digits
First three digits for significant figure and 4th digit for number of zeros
Fig. 5
Value = 10 KΩ
03
YNSC001
5%, E24 series : 3 digits
First two digits for significant figure and 3rd digit for number of zeros
Fig. 6
Value = 10 KΩ
RC1218
E-24 series: 3 digits, ± 5%
First two digits for significant figure and 3rd digit for number of zeros
YNSC099
Fig. 7
Value = 10 KΩ
00
YNSC103
Both E-24 and E-96 series: 4 digits, ± 1% & ± 0.5%
First three digits for significant figure and 4th digit for number of zeros
Fig. 8
Value = 10 KΩ
For further marking information, please see special data sheet "Chip resistors marking".
www.yageo.com
Jul. 7, 2020 V.11
Product specification
4
10
Chip Resistor Surface Mount
RC_L
SERIES
0075 to 2512

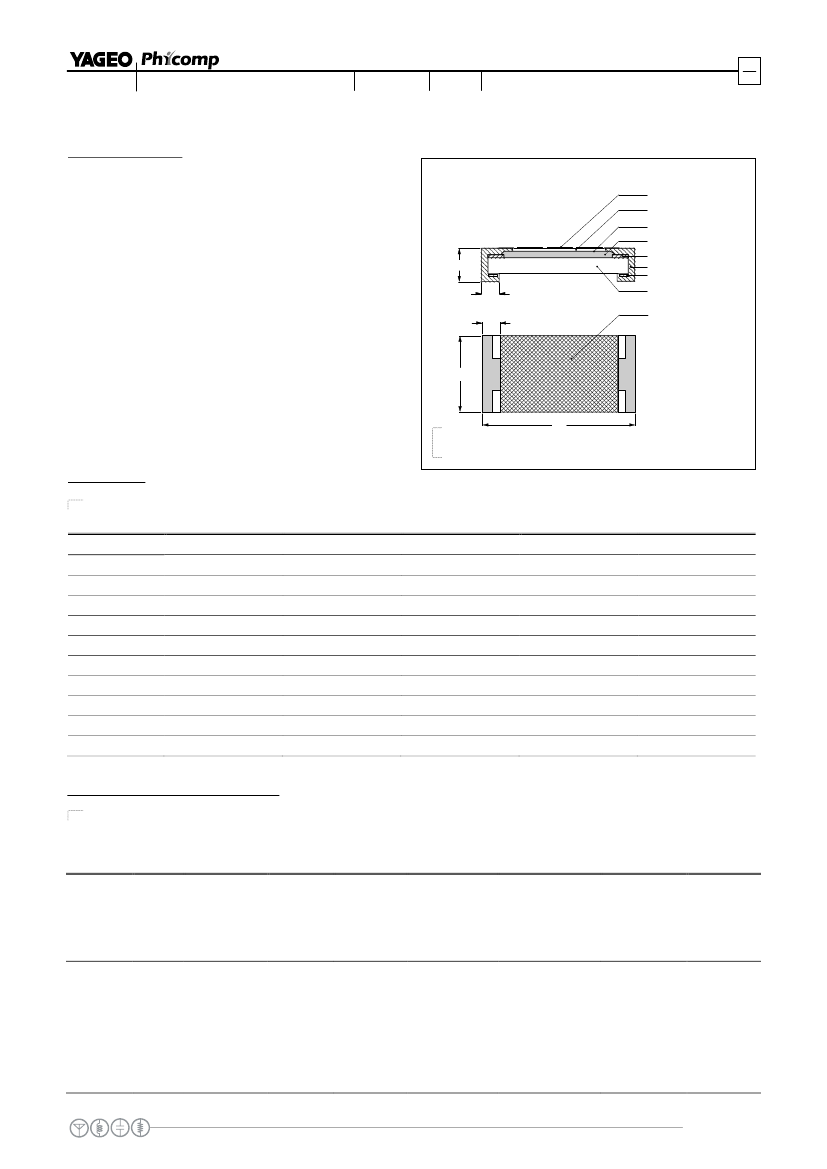

CONSTRUCTION
The resistor is constructed on top of a high-grade
ceramic body. Internal metal electrodes are added
on each end to make the contacts to the thick
film resistive element. The composition of the
resistive element is a noble metal imbedded into a
glass and covered by a second glass to prevent
environmental influences. The resistor is laser
trimmed to the rated resistance value. The
resistor is covered with a protective epoxy
coat, finally the two external terminations (matte
tin on Ni-barrier) are added, as shown in Fig.9.
Outlines
For dimensions, please refer to Table 1
marking layer
overcoat
primary glass layer
resistive layer
(Jumper chip is a conductor)
inner electrode
termination(Ni/matte tin)
inner electrode
I2
ceramic substrate
H
overcoat
I
1
W
YNSC086
L
9
Fig. 9
Chip resistor outlines
DIMENSION
Table 1
TYPE
RC0075
RC0100
RC0201
RC0402
RC0603
RC0805
RC1206
RC1210
RC1218
RC2010
RC2512
L (mm)
0.30±0.01
0.40±0.02
0.60±0.03
1.00±0.05
1.60±0.10
2.00±0.10
3.10±0.10
3.10±0.10
3.10±0.10
5.00±0.10
6.35±0.10
W (mm)
0.15±0.01
0.20±0.02
0.30±0.03
0.50±0.05
0.80±0.10
1.25±0.10
1.60±0.10
2.60±0.15
4.60±0.10
2.50±0.15
3.10±0.15
H (mm)
0.13±0.01
0.13±0.02
0.23±0.03
0.35±0.05
0.45±0.10
0.50±0.10
0.55±0.10
0.55±0.10
0.55±0.10
0.55±0.10
0.55±0.10
I
1
(mm)
0.08±0.03
0.10±0.03
0.10±0.05
0.20±0.10
0.25±0.15
0.35±0.20
0.45±0.20
0.45±0.15
0.45±0.20
0.60±0.20
0.60±0.20
I
2
(mm)
0.08±0.03
0.10±0.03
0.15±0.05
0.25±0.10
0.25±0.15
0.35±0.20
0.40±0.20
0.50±0.20
0.40±0.20
0.50±0.20
0.50±0.20
ELECTRICAL CHARACTERISTICS
Table 2
CHARAC-
TERISTICS
POWER
OPERATING
TEMPERATURE
RANGE
MAXIMUM
WORKING
VOLTAGE
MAXIMUM
DIELECTRIC
OVERLOAD WITHSTANDING
VOLTAGE
VOLTAGE
RESISTANCE
RANGE
5% (E24)
TEMPERATURE
COEFFICIENT
10Ω≦R<100Ω
JUMPER
CRITERIA
Rated Current
0.5A
Maximum
Current
1.0A
Rated Current
0.5A
Maximum
Current
1.0A
RC0075
-55℃ to 125℃
1/50 W
Fig. 4 Chip resistor outlines
10V
25V
25V
10Ω≦R≦1MΩ -200~+600ppm℃
1% (E24/E96)
100Ω≦R≦1MΩ
10Ω≦R≦1MΩ
±200ppm℃
Jumper<50mΩ
5% (E24)
1Ω≦R≦22MΩ
1% (E24/E96)
1Ω≦R<10Ω
-200~+600ppm℃
10Ω≤ R < 100Ω:
±300ppm/°C
100Ω≤ R
≤
10MΩ:
±200ppm/°C
RC0100
1/32 W
-55℃ to 125℃
15V
30V
30V
1Ω≦R≦10MΩ
0.5% (E24/E96)
33Ω≦R≦470KΩ
Jumper<50mΩ 10MΩ< R
≤
22MΩ:
±250ppm/°C
www.yageo.com
Jul. 7, 2020 V.11
Product specification
5
10
Chip Resistor Surface Mount
RC_L
SERIES
0075 to 2512
Table 2
CHARAC-
TERISTICS
POWER
OPERATING
TEMPERATURE
RANGE
MAXIMUM
WORKING
VOLTAGE
MAXIMUM
DIELECTRIC
OVERLOAD WITHSTANDING
VOLTAGE
VOLTAGE
RESISTANCE
RANGE
5% (E24)
1Ω≦R≦10MΩ
1% (E24/E96)
TEMPERATURE
COEFFICIENT
1Ω≦R≦10Ω
-100~+350ppm℃
10Ω<R≦10MΩ
±200ppm℃
JUMPER
CRITERIA
Rated Current
0.5A
Maximum
Current
1.0A
RC0201
1/20 W
-55℃ to 125℃
25V
50V
50V
1Ω≦R≦10MΩ
0.5% (E24/E96)
1Ω≦R≦1MΩ
0.1% (E24/E96)
10Ω≦R≦1MΩ
Jumper<50mΩ
5% (E24)
1Ω≦R≦22MΩ
1% (E24/E96)
1Ω≦R≦10Ω
±200ppm℃
10Ω<R≦10MΩ
±100ppm℃
10MΩ<R≦22MΩ
±200ppm℃
1/16 W
-55℃ to 155℃
50V
100V
100V
1Ω≦R≦10MΩ
0.5% (E24/E96)
1Ω≦R≦1MΩ
0.1% (E24/E96)
10Ω≦R≦1MΩ
Jumper<50mΩ
5% (E24)
1Ω≦R≦1MΩ
1% (E24/E96)
1Ω≦R≦1MΩ
5% (E24)
1Ω≦R≦22MΩ
1% (E24/E96)
Rated Current
1.0A
Maximum
Current
2.0A
RC0402
1/8W
-55℃ to 155℃
50V
100V
100V
1Ω≦R≦1MΩ
±200ppm℃
1Ω≦R≦10Ω
±200ppm℃
10Ω<R≦10MΩ
±100ppm℃
10MΩ<R≦22MΩ
±200ppm℃
Rated Current
1.0A
Maximum
Current
2.0A
1/10 W
-55℃ to 155℃
75V
150V
150V
1Ω≦R≦10MΩ
0.5% (E24/E96)
1Ω≦R≦1MΩ
0.1% (E24/E96)
10Ω≦R≦1MΩ
Jumper<50mΩ
5% (E24)
RC0603
1Ω≦R≦1MΩ
±200ppm℃
1/5 W
-55℃ to 155℃
75V
150V
150V
1Ω≦R≦1MΩ
1% (E24/E96)
1Ω≦R≦1MΩ
5% (E24)
1Ω≦R≦100MΩ
1% (E24/E96)
1Ω≦R≦10MΩ
0.5% (E24/E96)
1Ω≦R≦10Ω
±200ppm℃
10Ω<R≦10MΩ
±100ppm℃
10MΩ<R≦22MΩ
±200ppm℃
Rated Current
2.0A
Maximum
Current
5.0A
1/8 W
-55℃ to 155℃
150V
300V
300V
1Ω≦R≦1MΩ
0.1% (E24/E96)
RC0805
10Ω≦R≦1MΩ 24MΩ<R≦100MΩ
10%, 20% (E24)
±300ppm℃
24MΩ≦R≦100MΩ
Jumper<50mΩ
5% (E24)
1/4 W
-55℃ to 155℃
150V
300V
300V
1Ω≦R≦1MΩ
±200ppm℃
1Ω≦R≦1MΩ
1% (E24/E96)
1Ω≦R≦1MΩ
www.yageo.com
Jul. 7, 2020 V.11
