248005502100867 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 248005502100867

Preview

248005502100867: DescriptionBoard Connector, 2 Contact(s), 1 Row(s), Female, Right Angle, 0.05 inch Pitch, Surface Mount Terminal, Latch, Plug; CategoryThe connector The connector; File Size168KB，2 Pages; ManufacturerKyocera

Download Datasheet Parametric Compare View All

248005502100867 Overview

Board Connector, 2 Contact(s), 1 Row(s), Female, Right Angle, 0.05 inch Pitch, Surface Mount Terminal, Latch, Plug

248005502100867 Parametric

Parameter Name	Attribute value
Maker	Kyocera
Reach Compliance Code	unknown
Board mount options	SOLDER HOLDING FLANGE
body width	0.075 inch
subject depth	0.128 inch
body length	0.19 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	700VAC V
Manufacturer's serial number	8005
Plug contact pitch	0.05 inch
Installation option 1	LATCH
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	80 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
Plating thickness	15u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	2
Base Number Matches	1

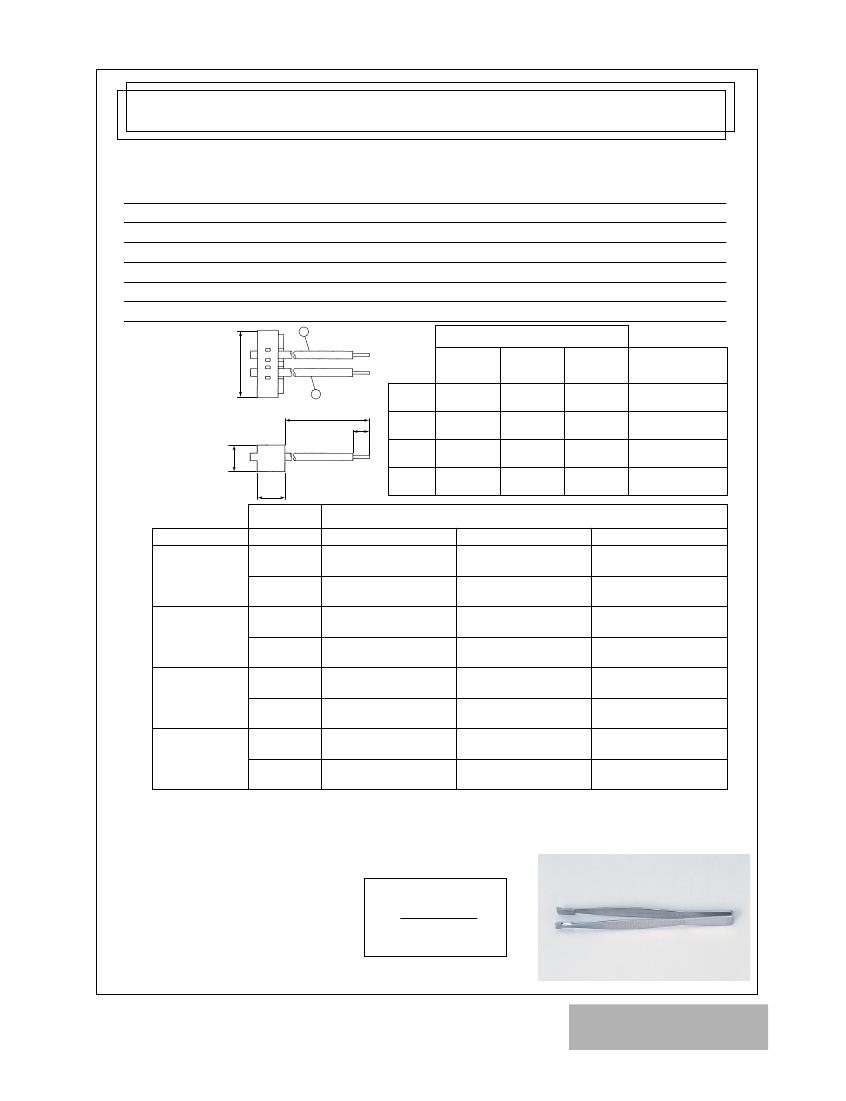

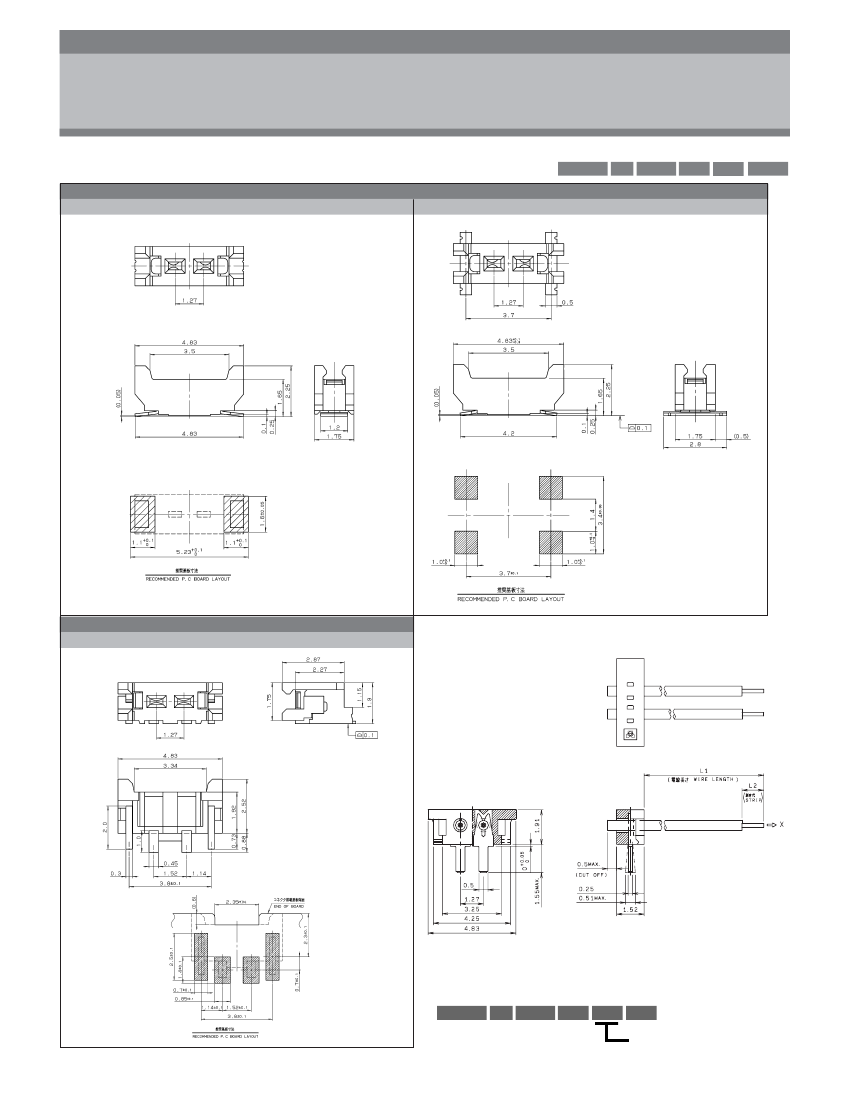

Preview

Download Datasheet

View All

1.27mm Pitch

SERIES

8005

●RECEPTACLE

STD

1.27mmピッチマイクロコネクタ

1.27mm-pitch Micro Connector

梱包数量：ST. TYPE 6000個/リール，RA. TYPE 3000個/リール

PACKING QUANTITY：ST. TYPE 6000ea/reel，RA. TYPE 3000ea/reel

注文コード/Ordering

Code

Part No.

24 8005 YYY XXX 867

＋

XXX = 101

YYY = 002

ST. TYPE

XXX = 100 SHORT TAIL

RA. TYPE

STD

YYY = 502

XXX = 100

●PLUG

IDC HEADER

注文コード/Ordering

Code

Part No.

97 8005 002 X

XXX X

867

電線仕様 Wire type

248005502100867 Related Products

	248005502100867	978005002100867+	248005002100867+	978005002100867	978005002101867	248005002101867+	248005502100867+
Description	Board Connector, 2 Contact(s), 1 Row(s), Female, Right Angle, 0.05 inch Pitch, Surface Mount Terminal, Latch, Plug	Board Connector, 2 Contact(s), 1 Row(s), Female, 0.05 inch Pitch, IDC Terminal, Locking, Plug	CONNECTOR, 2 CONTACT(S), FEMALE, STRAIGHT TELECOM AND DATACOM CONNECTOR, SURFACE MOUNT, RECEPTACLE, ROHS COMPLIANT	CONNECTOR, 2 CONTACT(S), MALE, TELECOM AND DATACOM CONNECTOR, IDC, PLUG	CONNECTOR, 2 CONTACT(S), MALE, TELECOM AND DATACOM CONNECTOR, IDC, PLUG	CONNECTOR, 2 CONTACT(S), FEMALE, STRAIGHT TELECOM AND DATACOM CONNECTOR, SURFACE MOUNT, RECEPTACLE, ROHS COMPLIANT	CONNECTOR, 2 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SURFACE MOUNT, RECEPTACLE, ROHS COMPLIANT
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Body/casing type	PLUG	PLUG	RECEPTACLE	PLUG	PLUG	RECEPTACLE	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	AU	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	AU ON NI
Contact point gender	FEMALE	FEMALE	FEMALE	MALE	MALE	FEMALE	FEMALE
Installation type	BOARD	CABLE	BOARD	CABLE	CABLE	BOARD	BOARD
Termination type	SURFACE MOUNT	IDC	SURFACE MOUNT	IDC	IDC	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	2	2	2	2	2	2	2
Base Number Matches	1	1	1	1	1	1	1
Contact material	COPPER ALLOY	COPPER ALLOY	NOT SPECIFIED	-	-	-	COPPER ALLOY
Manufacturer's serial number	8005	8005	-	8005	8005	8005	8005
Installation method	RIGHT ANGLE	-	STRAIGHT	-	-	STRAIGHT	RIGHT ANGLE
ECCN code	-	-	EAR99	EAR99	EAR99	EAR99	-
DIN compliance	-	-	NO	NO	NO	NO	-
empty shell	-	-	NO	NO	NO	NO	-
Filter function	-	-	NO	NO	NO	NO	-
IEC compliance	-	-	NO	NO	NO	NO	-
MIL compliance	-	-	NO	NO	NO	NO	-
Plug information	-	-	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	-
Mixed contacts	-	-	NO	NO	NO	NO	-
Options	-	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-
