8004LS-1081

Description
Telecom and Datacom Connector, 10 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle
CategoryThe connector    The connector
File Size24KB,1 Pages
ManufacturerSouth Sea Terminal Co., Ltd.
Download Datasheet Parametric View All

8004LS-1081 Overview

Telecom and Datacom Connector, 10 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle

8004LS-1081 Parametric

Parameter NameAttribute value
MakerSouth Sea Terminal Co., Ltd.
Reach Compliance Codeunknown
Board mount optionsSPLIT BOARD LOCK
body width0.641 inch
subject depth0.652 inch
body length0.601 inch
Body/casing typeRECEPTACLE
Connector typeTELECOM AND DATACOM CONNECTOR
Contact to complete cooperationAU ON NI
Contact point genderMALE
Contact styleTELCOM, MODULAR
insulator materialGLASS FILLED POLYESTER
Manufacturer's serial number8004
Installation option 1LOCKING
Installation option 2FLANGELESS
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of ports1
PCB contact patternSTAGGERED
Plating thickness6u inch
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.108 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts10
Base Number Matches1

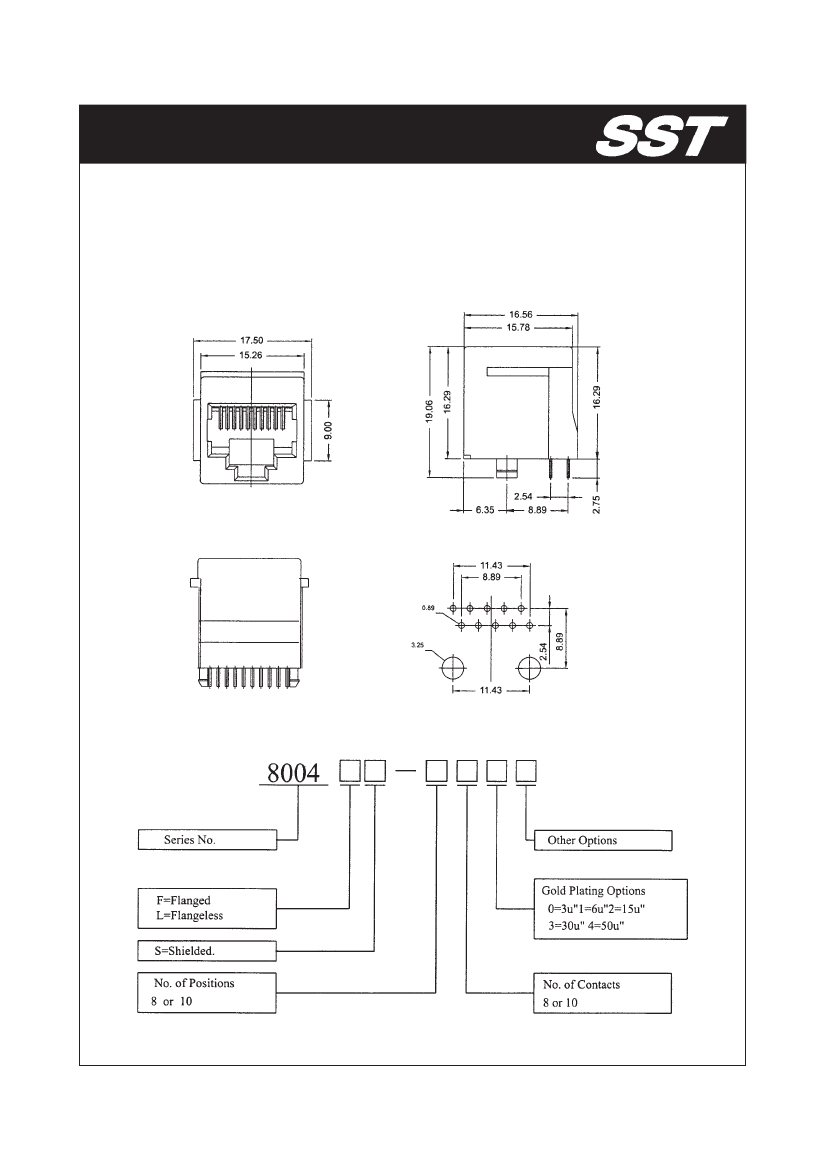

8004 SERIES MODULAR JACK
Side Entry type
HOUSING : GLASS FILLED POLYESTER UL 94V-0
CONTACT : 0.35X0.46 MM THICKNESS ALLOY. GOLD PLATED OVER NICKET IN CONTACT AREA
GOLD PLATED : SELECTIVE GOLD PLATED.
166
