3.5x2.8mm SURFACE MOUNT LED LAMP
Part Number: KA-3528ZGCT-G
Green
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
DISCHARGE
SENSITIVE
DEVICES
Features
Single color.
Suitable for all SMT assembly and solder process.
Available on tape and reel.
Ideal for backlighting.
Package : 1500pcs / reel.
Moisture sensitivity level : level 4.
RoHS compliant.
Description
The Green source color devices are made with InGaN Light
Emitting Diode.
Static electricity and surge damage the LEDS.
It is recommended to use a wrist band or anti-electrostatic
glove when handling the LEDs.
All devices, equipment and machinery must be electrically
grounded.

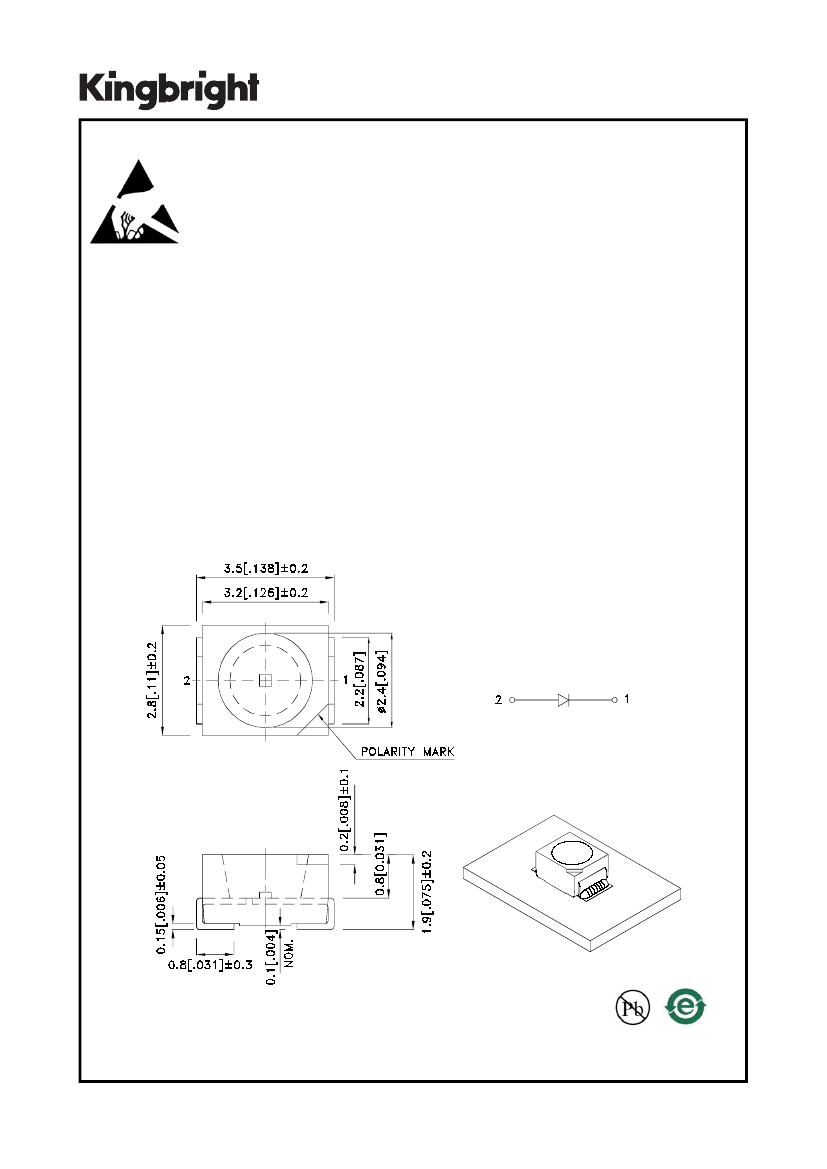

Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.25(0.01") unless otherwise noted.
3. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.
4.The device has a single mounting surface. The device must be mounted according to the specifications.
SPEC NO: DSAJ8436
APPROVED: WYNEC
REV NO: V.2
CHECKED: Allen Liu
DATE: JAN/03/2010
DRAWN: F.F.Zhou
PAGE: 1 OF 5
ERP: 1201005407
Selection Guide
Part No.
Dice
Lens Type
Iv (mcd) [2]
@ 20mA
Min.
KA-3528ZGCT-G
Green (InGaN)
WATER CLEAR
650
Typ.
1000
Viewing
Angle [1]
2θ1/2
120
°
Notes:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 of the optical peak value.
2. Luminous intensity/ luminous Flux: +/-15%.
Electrical / Optical Characteristics at TA=25°C
Symbol
λpeak
λD
[1]
Δλ1/2
C
V
F
[2]
I
R
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
Device
Green
Green
Green
Green
Green
Green
Typ.
520
525
35
100
3.2
4
10
Max.
Units
nm
nm
nm
pF
V
uA
Test Conditions
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
=5V
Notes:
1.Wavelength: +/-1nm.
2. Forward Voltage: +/-0.1V.
Absolute Maximum Ratings at TA=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating Temperature
Storage Temperature
Note:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
Green
120
30
100
5
-40°C To +85°C
-40°C To +85°C
Units
mW
mA
mA
V
SPEC NO: DSAJ8436
APPROVED: WYNEC
REV NO: V.2
CHECKED: Allen Liu
DATE: JAN/03/2010
DRAWN: F.F.Zhou
PAGE: 2 OF 5
ERP: 1201005407

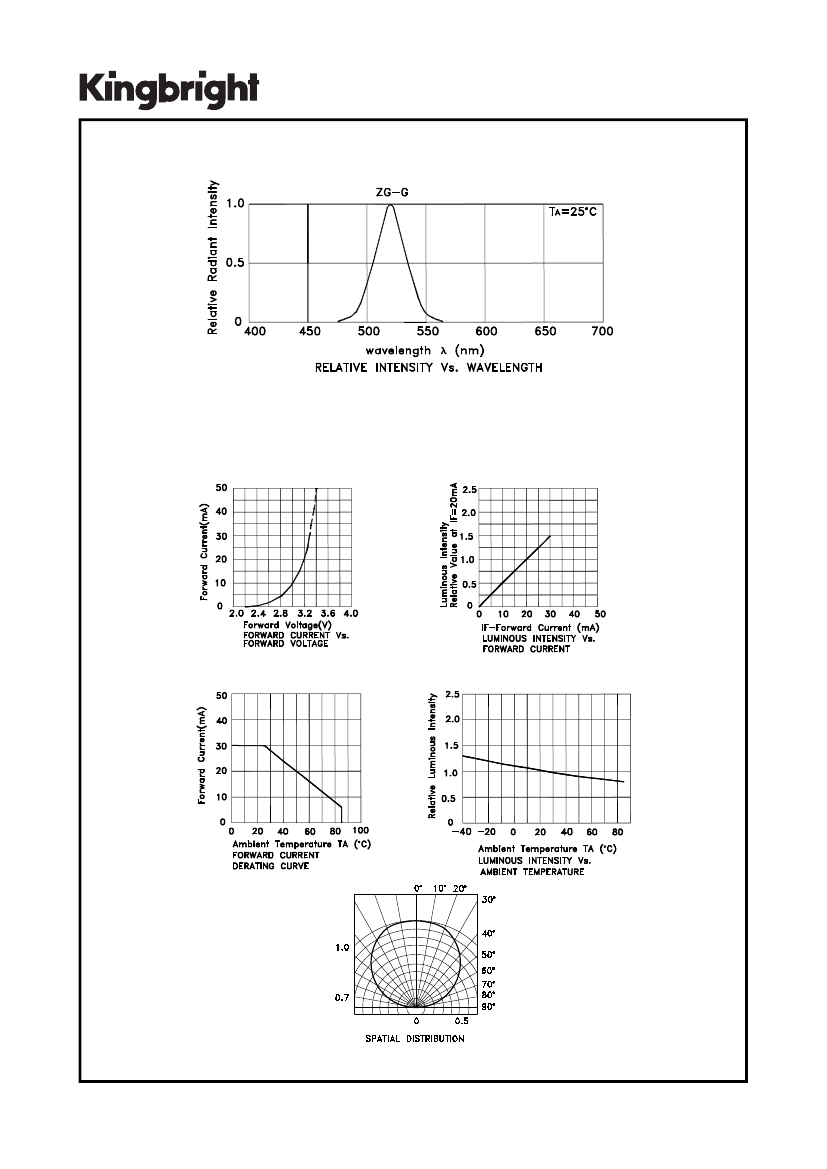

KA-3528ZGCT-G

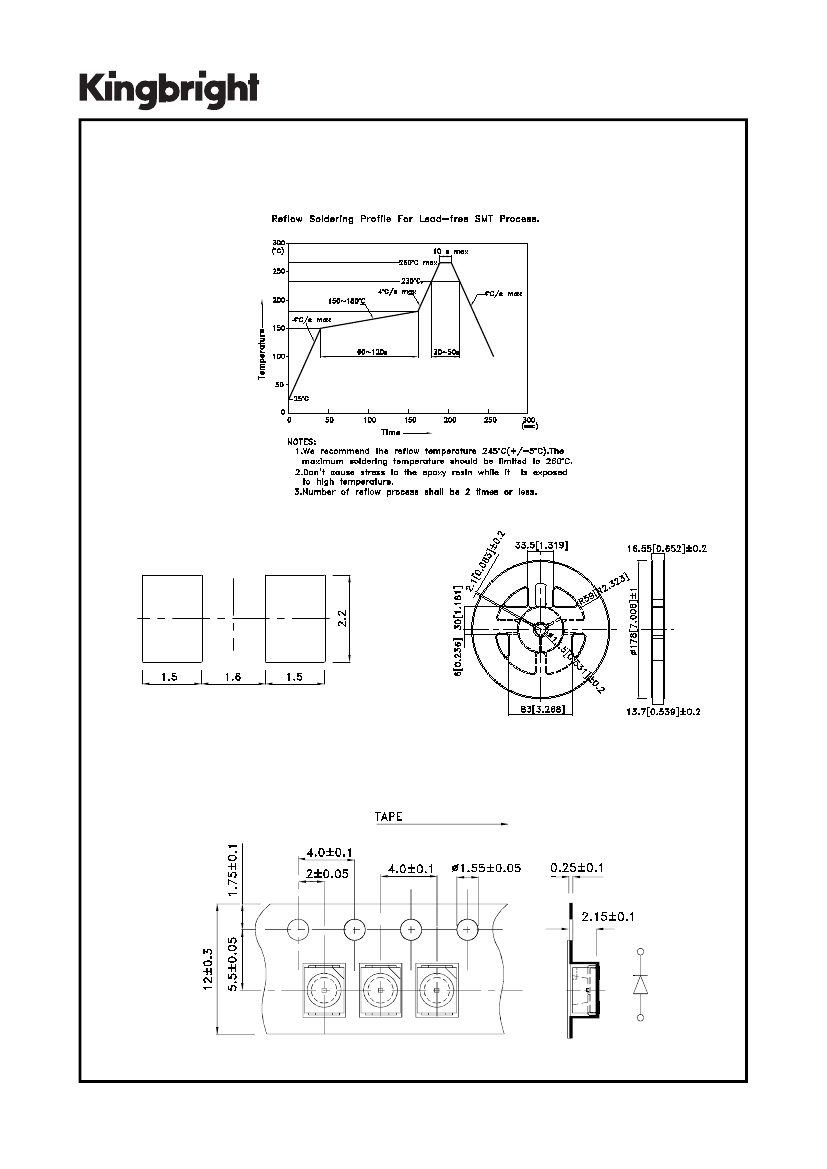

Reflow soldering is recommended and the soldering profile is shown below.
Other soldering methods are not recommended as they might cause damage to the product.
Recommended Soldering Pattern
(Units : mm; Tolerance: ± 0.1)

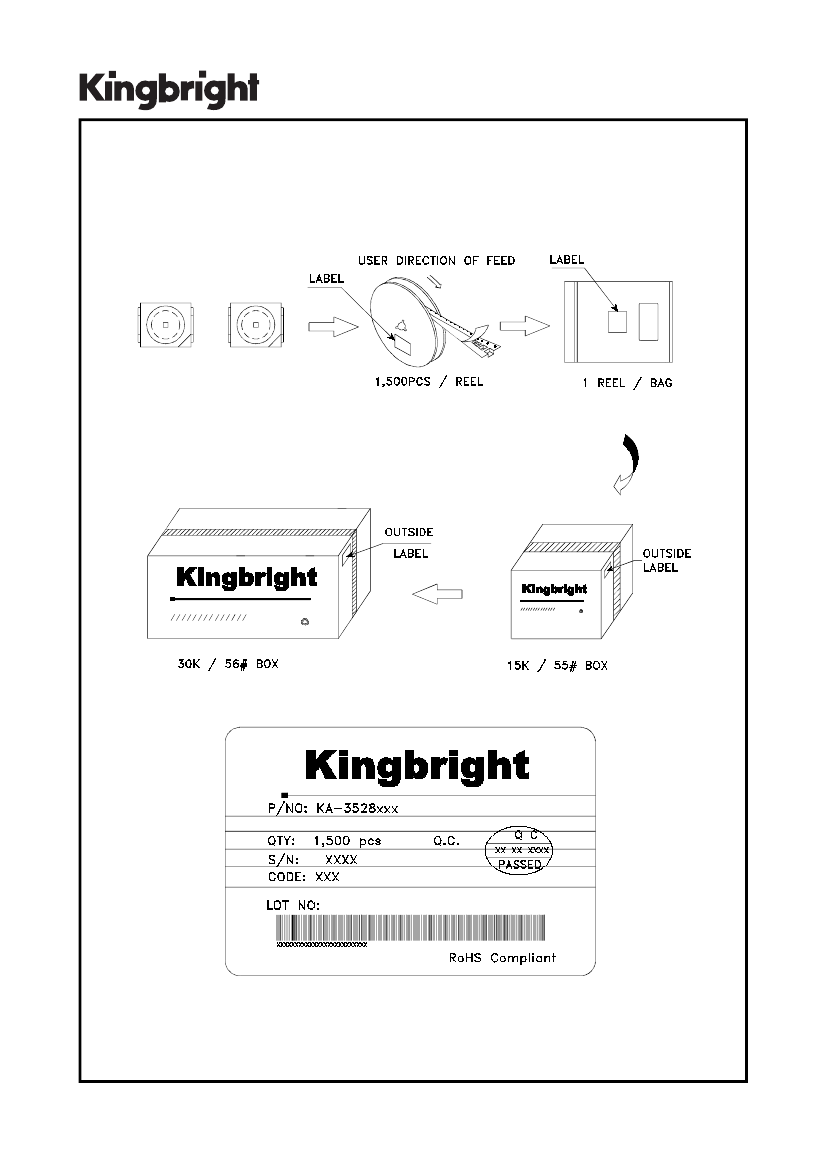

Reel Dimension
Tape Dimensions
(Units : mm)
SPEC NO: DSAJ8436
APPROVED: WYNEC
REV NO: V.2
CHECKED: Allen Liu
DATE: JAN/03/2010
DRAWN: F.F.Zhou
PAGE: 4 OF 5
ERP: 1201005407
