RK924L1005F: DescriptionFixed Resistor, Metal Glaze/thick Film, 0.5W, 10000000ohm, 1000V, 1% +/-Tol, 300ppm/Cel, Through Hole Mount, 5010, SIP; CategoryPassive components The resistor; File Size94KB，2 Pages; ManufacturerKOA Speer; Websitehttp://www.koaspeer.com/

Download Datasheet Parametric View All

RK924L1005F Overview

Fixed Resistor, Metal Glaze/thick Film, 0.5W, 10000000ohm, 1000V, 1% +/-Tol, 300ppm/Cel, Through Hole Mount, 5010, SIP

RK924L1005F Parametric

Parameter Name	Attribute value
Maker	KOA Speer
package instruction	SIP
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	FLAME PROOF
structure	Flame Retardant
Lead length	3 mm
lead spacing	10.2 mm
Manufacturer's serial number	RK92
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	5.08 mm
Package length	12.7 mm
Package shape	RECTANGULAR PACKAGE
Package form	Radial
Package width	2.5 mm
Rated power dissipation(P)	0.5 W
Rated temperature	25 °C
resistance	10000000 Ω
Resistor type	FIXED RESISTOR
series	RK92(4L,F TOL)
size code	5010
surface mount	NO
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	300 ppm/°C
Terminal shape	WIRE
Tolerance	1%
Operating Voltage	1000 V
Base Number Matches	1

Preview

Download Datasheet

View All

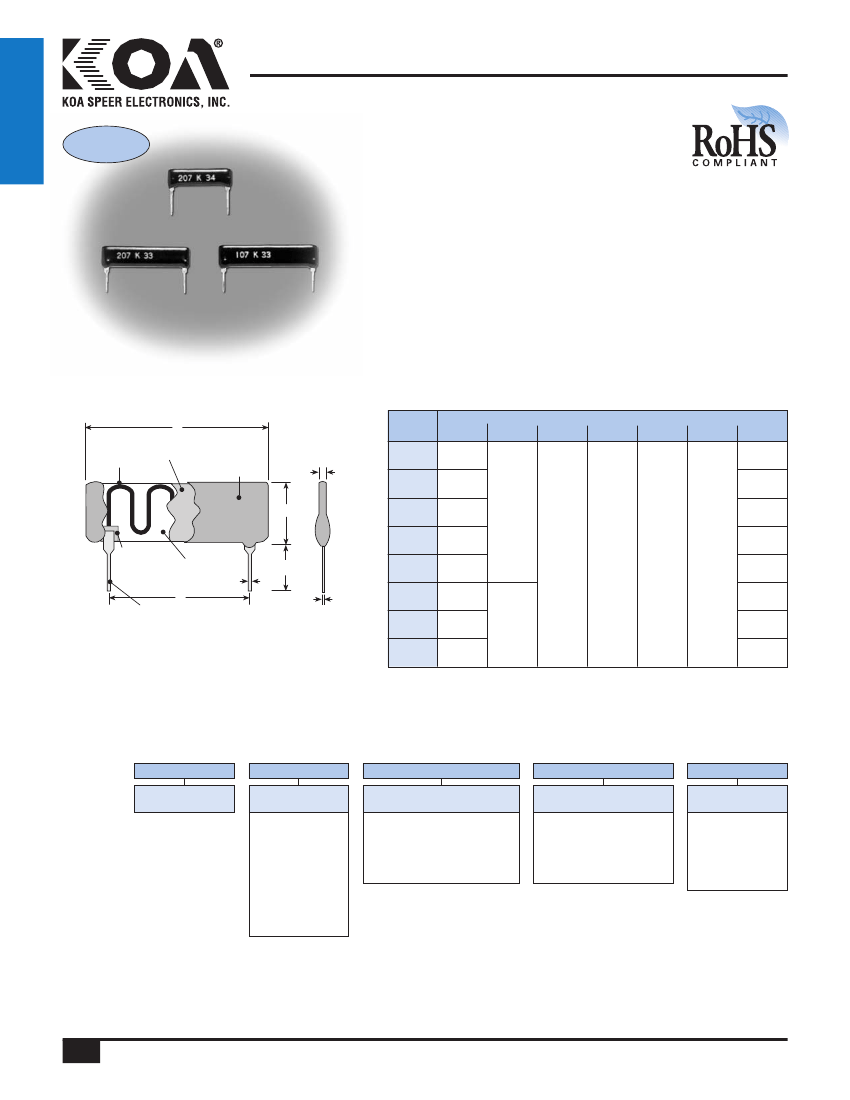

RK92

resistors

thick film resistors for high voltage

NEW

features

•

High resistance resistors for high voltage circuits

•

Thin SIP shape

•

The flame retardant coats corresponding to UL94V-0

are used

•

Thick film resistors (RuO

2

) ensure high stabilities

in life and change in aging

•

Marking: Black body color

•

Products with lead-free terminations meet RoHS

requirements. Pb located in glass material,

electrode and resistor element is exempt per Annex 1,

exemption 5 of EU directive 2005/95/EC

dimensions and construction

L

Inner Insulation

Resistive Coating Outer

Film

Coating Resin

Type

9C

L (Max.) H (Max.)

1.02

(26.0)

.925

(23.5)

.823

(20.9)

.622

(15.8)

.425

(10.8)

.602

(15.3)

.500

(12.7)

.701

(17.8)

.200

(5.08)

.256

(6.5)

.020±.004 .118±

.020

.012

(0.5±0.1) (3.0

+0.5

)

-0.3

.098

(2.5)

Dimensions

inches

(mm)

a

b

c (Max.)

d

P

.902±.008

(22.9±0.2)

.799±.008

(20.3±0.2)

.701±.008

(17.8±0.2)

.5±.008

.010±.004

(12.7±0.2)

(0.25±0.1)

.3±.008

(7.62±0.2)

.5±.008

(12.7±0.2)

.402±.008

(10.2±0.2)

.598±.008

(15.2±0.2)

c

8C

H

7C

5C

Inner

Electrode Ceramic

Substrate

a

P

Terminal

b

d

3C

5L

4L

6L

N

E

ordering information

New Part #

RK92

Type

5L

Style

9C

8C

7C

5C

3C

5L

4L

6L

D

Termination

Surface Material

D: SnAgCu

(Other termination material

styles may be available,

please contact factory

for options)

107

Nominal

Resistance

±2% ~ ±10%:

2 significant figures

+ 1 multiplier

±1%: 3 significant figures

+ 1 multiplier

J

Resistance

Tolerance

F: ±1%

G: ±2%

J: ±5%

K: ±10%

M: ±20%

W

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.

2/19/07

116

KOA Speer Electronics, Inc.

• Bolivar Drive • P Box 547 • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com
