54F574/BRA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54F574/BRA

54F574/BRA: DescriptionIC F/FAST SERIES, 8-BIT DRIVER, TRUE OUTPUT, CDIP20, CERAMIC, DIP-20, Bus Driver/Transceiver; Categorylogic logic; File Size185KB，8 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

54F574/BRA Overview

IC F/FAST SERIES, 8-BIT DRIVER, TRUE OUTPUT, CDIP20, CERAMIC, DIP-20, Bus Driver/Transceiver

54F574/BRA Parametric

Parameter Name	Attribute value
Parts packaging code	DIP
package instruction	DIP,
Contacts	20
Reach Compliance Code	unknown
Other features	BROADSIDE VERSION OF 374
series	F/FAST
JESD-30 code	R-GDIP-T20
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum supply current (ICC)	70 mA
propagation delay (tpd)	9.5 ns
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1

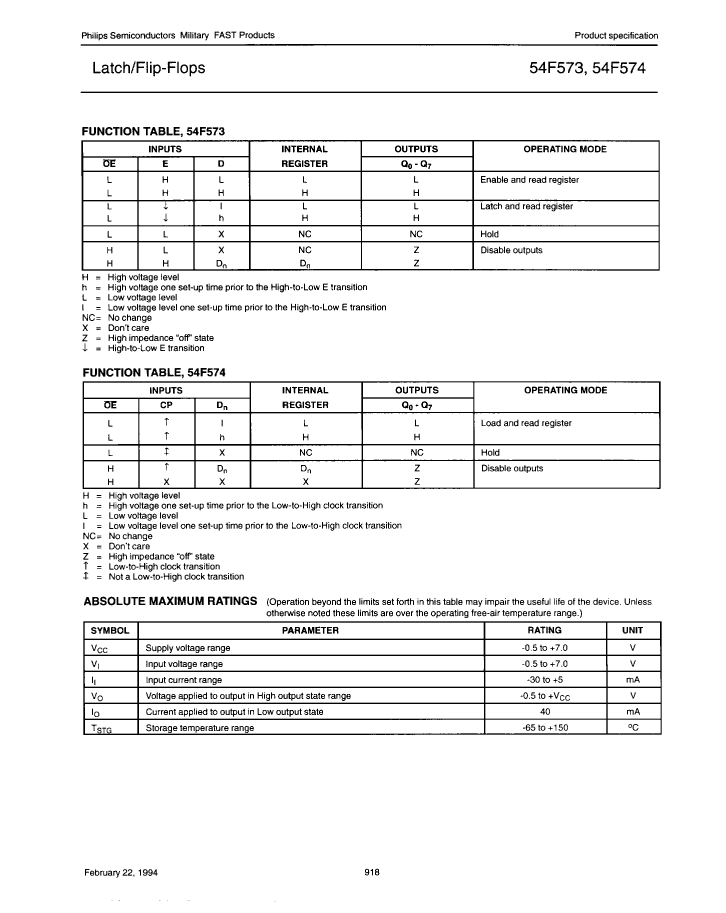

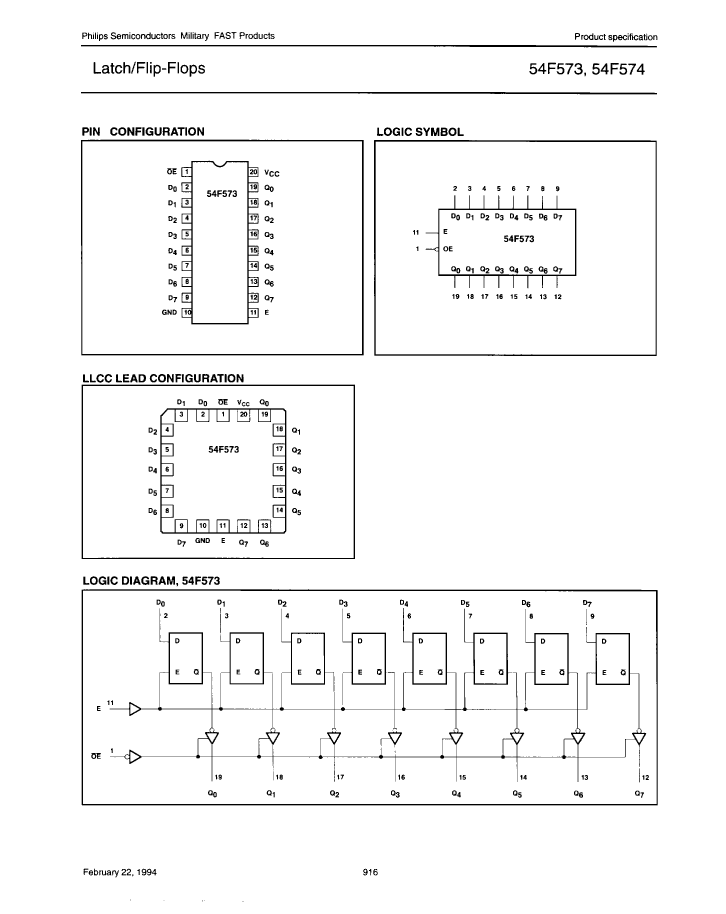

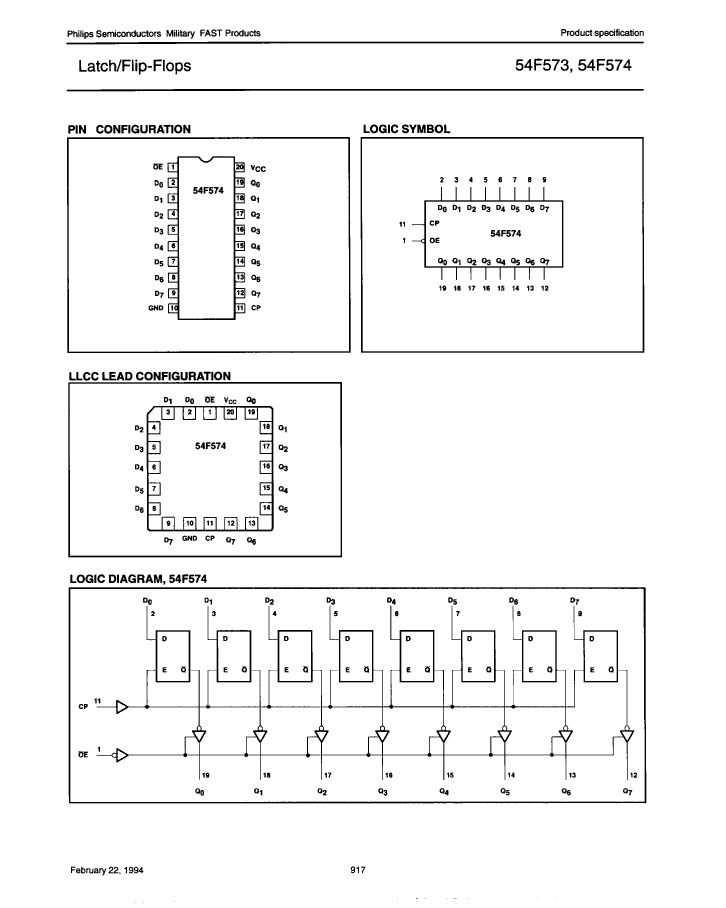

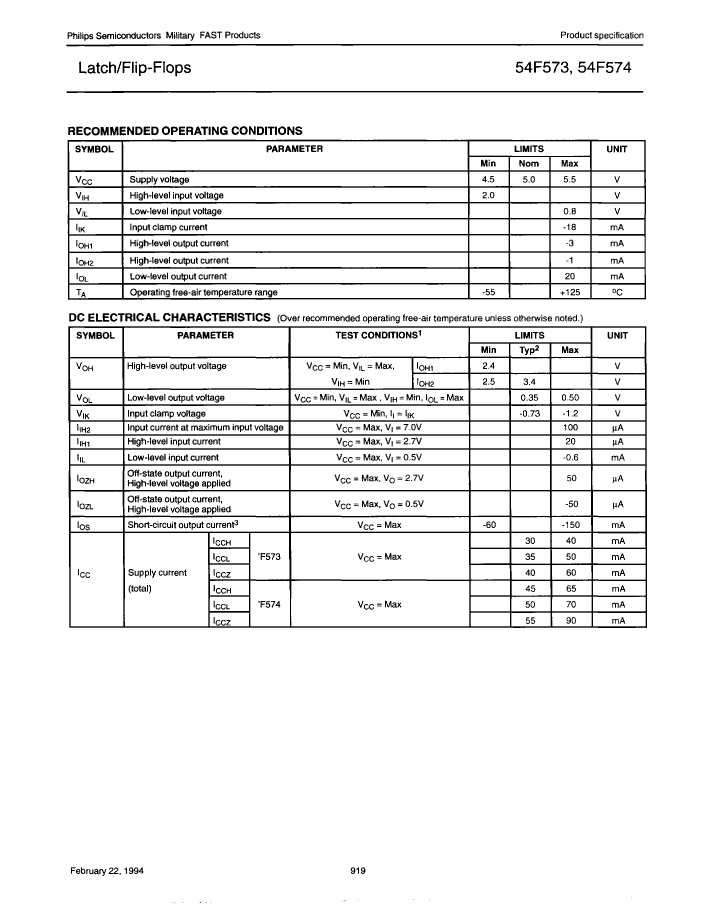

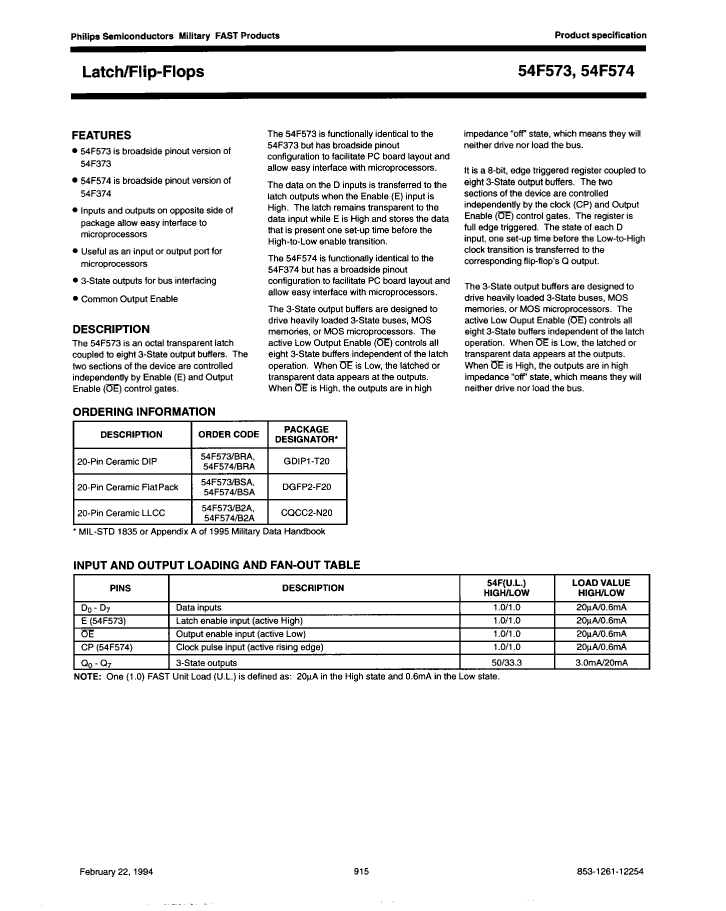

Preview

Download Datasheet

View All

54F574/BRA Related Products

	54F574/BRA	605-XR169-FB1290W	54F573/B2A	DBP-M999LF-01-2183-DB	54F574/BSA	54F573/BSA
Description	IC F/FAST SERIES, 8-BIT DRIVER, TRUE OUTPUT, CDIP20, CERAMIC, DIP-20, Bus Driver/Transceiver	Fixed Resistor, Wire Wound, 7.5W, 0.169ohm, 160V, 1% +/-Tol, 90ppm/Cel, 6033,	IC F/FAST SERIES, 8-BIT DRIVER, TRUE OUTPUT, CQCC20, CERAMIC, LLCC-20, Bus Driver/Transceiver	Array/Network Resistor, Isolated, Tantalum Nitride/nickel Chrome, 0.2W, 218000ohm, 100V, 0.5% +/-Tol, -100,100ppm/Cel, 8726,	IC F/FAST SERIES, 8-BIT DRIVER, TRUE OUTPUT, CDFP20, CERAMIC, FP-20, Bus Driver/Transceiver	IC F/FAST SERIES, 8-BIT DRIVER, TRUE OUTPUT, CDFP20, CERAMIC, FP-20, Bus Driver/Transceiver
Reach Compliance Code	unknown	compliant	unknown	compliant	unknown	unknown
Number of terminals	20	2	20	16	20	20
Maximum operating temperature	125 °C	250 °C	125 °C	150 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package form	IN-LINE	Axial	CHIP CARRIER	DIP	FLATPACK	FLATPACK
technology	TTL	WIRE WOUND	TTL	TANTALUM NITRIDE/NICKEL CHROME	TTL	TTL
Parts packaging code	DIP	-	QLCC	-	DFP	DFP
package instruction	DIP,	-	QCCN,	-	DFP,	CERAMIC, FP-20
Contacts	20	-	20	-	20	20
Other features	BROADSIDE VERSION OF 374	-	BROADSIDE VERSION OF 373	-	BROADSIDE VERSION OF 374	BROADSIDE VERSION OF 373
series	F/FAST	605(F TOL, OPT TC)	F/FAST	-	F/FAST	F/FAST
JESD-30 code	R-GDIP-T20	-	S-CQCC-N20	-	R-CDFP-F20	R-CDFP-F20
Load capacitance (CL)	50 pF	-	50 pF	-	50 pF	50 pF
Logic integrated circuit type	BUS DRIVER	-	BUS DRIVER	-	BUS DRIVER	BUS DRIVER
Number of digits	8	-	8	-	8	8
Number of functions	1	-	1	-	1	1
Number of ports	2	-	2	-	2	2
Output characteristics	3-STATE	-	3-STATE	-	3-STATE	3-STATE
Output polarity	TRUE	-	TRUE	-	TRUE	TRUE
Package body material	CERAMIC, GLASS-SEALED	-	CERAMIC, METAL-SEALED COFIRED	-	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	-	QCCN	-	DFP	DFP
Package shape	RECTANGULAR	-	SQUARE	RECTANGULAR PACKAGE	RECTANGULAR	RECTANGULAR
Maximum supply current (ICC)	70 mA	-	50 mA	-	70 mA	50 mA
propagation delay (tpd)	9.5 ns	-	8 ns	-	9.5 ns	8 ns
Certification status	Not Qualified	-	Not Qualified	-	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	-	1.905 mm	-	2.54 mm	2.54 mm
Maximum supply voltage (Vsup)	5.5 V	-	5.5 V	-	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	-	4.5 V	-	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	-	5 V	-	5 V	5 V
surface mount	NO	-	YES	-	YES	YES
Temperature level	MILITARY	-	MILITARY	-	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	-	NO LEAD	-	FLAT	FLAT
Terminal pitch	2.54 mm	-	1.27 mm	-	1.27 mm	1.27 mm
Terminal location	DUAL	-	QUAD	-	DUAL	DUAL
width	7.62 mm	-	8.89 mm	-	6.9215 mm	6.9215 mm
