AT426RAT13NGSH

Description
General Purpose Inductor, 0.013uH, 2%, 1 Element, Air-Core, SMD, 1616,
CategoryPassive components    inductor
File Size236KB,2 Pages
ManufacturerCOILCRAFT
Websitehttp://www.coilcraft.com/
Download Datasheet Parametric View All

AT426RAT13NGSH Overview

General Purpose Inductor, 0.013uH, 2%, 1 Element, Air-Core, SMD, 1616,

AT426RAT13NGSH Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
package instruction1616
Reach Compliance Codecompliant
ECCN codeEAR99
uppercase and lowercase codes1616
structureFlat Top
core materialAIR
DC Resistance0.0039 Ω
Nominal inductance(L)0.013 µH
Inductor ApplicationsRF INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
JESD-609 codee0
Number of functions1
Number of terminals2
Maximum operating temperature155 °C
Minimum operating temperature-55 °C
Package height2.01 mm
Package length3.94 mm
Package formSMT
Package width4.19 mm
method of packingTR, Plastic, 7 Inch
Minimum quality factor (at nominal inductance)100
Maximum rated current4 A
self resonant frequency3 MHz
Shape/Size DescriptionRECTANGULAR PACKAGE
shieldNO
surface mountYES
Terminal surfaceTin/Lead (Sn63Pb37)
Terminal locationDUAL ENDED
Terminal shapeFLAT
Test frequency250 MHz
Tolerance2%
Base Number Matches1

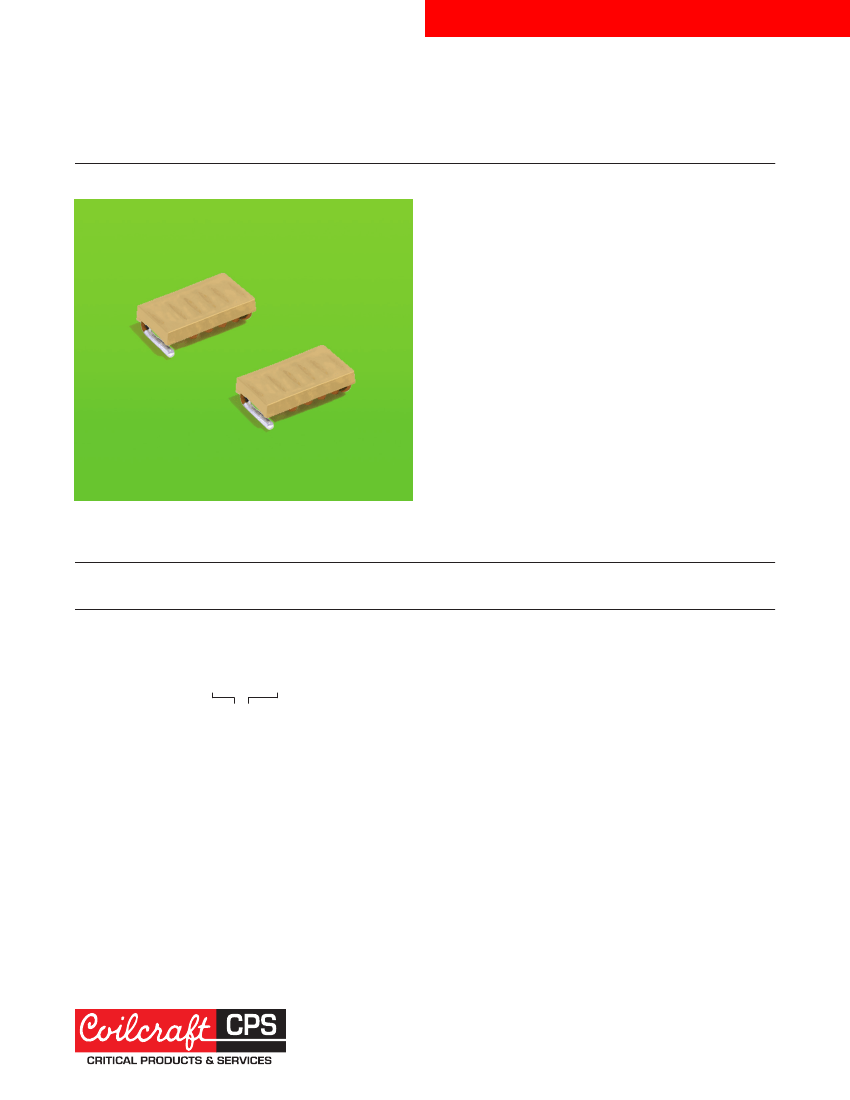

AIR CORE INDUCTORS
200°C Air Core Inductors
Only 2 mm tall
High Q over a wide range of frequencies
AT426RAT
AT446RAT
Low DCR and excellent current handling capability
Special materials allow operation in ambient temperatures
as low as –60°C and up to 200°C.
Passes NASA low outgassing specifications
Tin-lead (Sn-Pb) terminations ensure the best possible
board adhesion
Part number
1
Turns
3
4
5
7
8
9
10
Inductance
2
(nH)
5.5
9.0
13.0
16.0
18.0
23.0
27.0
Percent
tolerance
5,2
5,2
5,2
5,2
5,2
5,2
5,2
Q
min
3
115
120
100
110
110
110
110
SRF min
4
(GHz)
5.0
4.0
3.0
3.0
2.9
2.6
2.3
DCR max
5
(mOhm)
2.6
3.4
3.9
5.2
6.0
6.8
7.9
Imax
(A)
4.0
4.0
4.0
4.0
4.0
4.0
4.0
Wt
(mg)
52
65
78
110
118
133
147
AT426RAT5N5_SZ
AT426RAT9N0_SZ
AT426RAT13N_SZ
AT446RAT16N_SZ
AT446RAT18N_SZ
AT446RAT23N_SZ
AT446RAT27N_SZ
1. When ordering, specify
tolerance
and
testing
codes:
AT446RAT27NGSZ
Tolerance: G
= 2%
J
= 5%
Testing: Z
= COTS
H
= Group A screening per Coilcraft CP-SA-10001
N
= Group A screening per Coilcraft CP-SA-10003
2. Inductance measured at 250 MHz on an Agilent/HP 4286A or equiva-
lent with a Coilcraft SMD-A test fixture and correlation.
3. Q measured at 250 MHz on an Agilent/HP 4291A or equivalent with a
16193A test fixture or equivalent.
4. SRF measured on an Agilent/HP 8753ES or equivalent with a Coilcraft
CCF1268 test fixture.
5. DCR measured on a Keithley 580 Micro-Ohmmeter or equivalent.
6. Electrical specifications at 25°C.

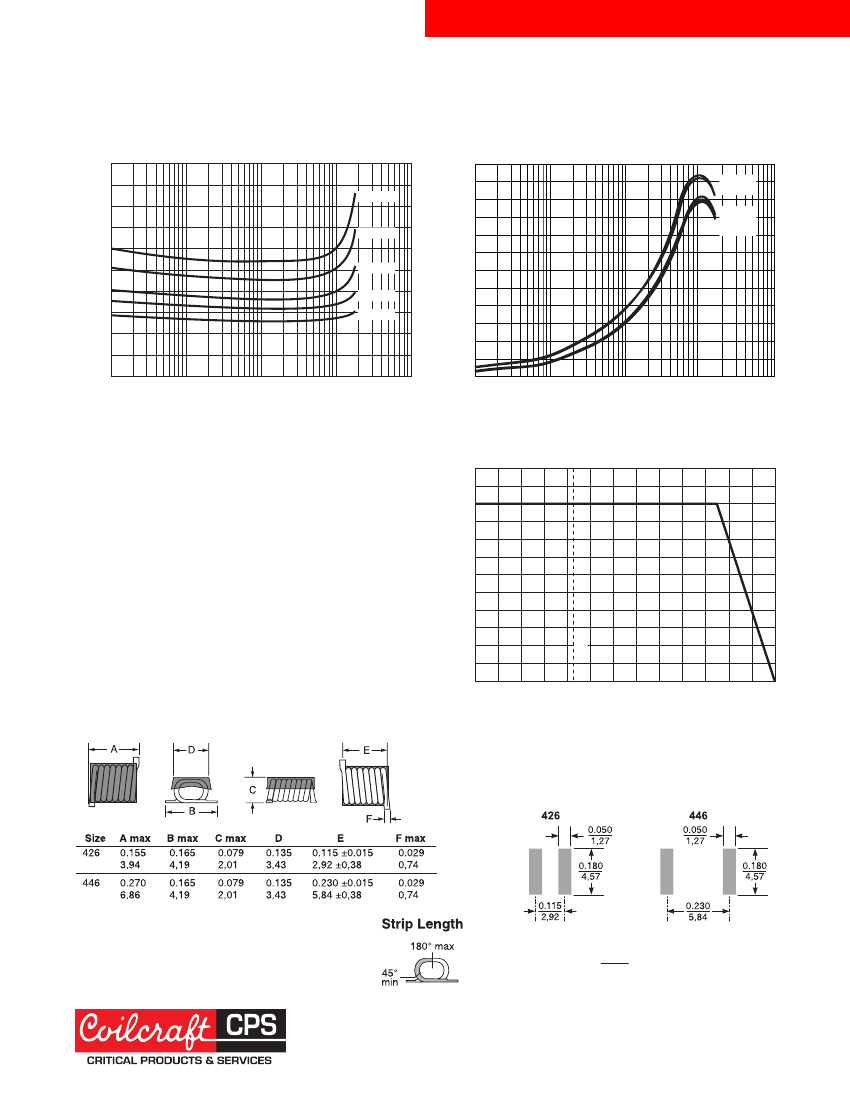

Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
Terminations
Tin-lead (63/37) over copper
Ambient temperature
–60°C to +155°C with
Imax
current, +155°C
to +200°C with derated current
Storage temperature
Component: –60°C to +200°C.
Packaging: –55°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Temperature Coefficient of Inductance (TCL)
+5 to +70 ppm/°C
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Enhanced crush-resistant packaging
1000 per 7″reel
Plastic tape: 2 mm wide, 0.23 mm thick, 8 mm pocket spacing,
2.2 mm pocket depth
®
Document AT404-1 Revised 06/13/13
1102 Silver Lake Road
Cary, IL 60013
Phone 800-981-0363
Fax 847-639-1508
Email cps@coilcraft.com
www.coilcraft-cps.com
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specifications subject to change without notice.
Please check our web site for latest information.
© Coilcraft, Inc. 2013
