.100" X .100" [2.54 X 2.54] CENTERLINE
BHR SERIES
INTRODUCTION:
Adam Tech BHR Series .100" Box Headers are a dual row shrouded
header for use with dual row IDC female socket connectors. Our
low profile, space saving design has a center slot for the socket’s
polarization bump. Adam Tech’s Box Headers are available in
Straight PCB Mount, Right Angle PCB Mount and SMT Mounting.
Plating options include choice of Gold, Tin or Selective Gold. SMT
versions are manufactured with a Hi-Temp insulator. Additional
options include latches and custom pin lengths.
FEATURES:
Superior low profile design
Slot for IDC socket Polarization bump
Straight PCB, Right Angle PCB and SMT versions
Gold, Tin or Selective Gold plating
Options include Elevated types and integral latches
Hi-Temp insulator available
MATING SOCkETS:
Adam Tech .100" X .100" dual row IDC sockets
SPECIFICATIONS:
Material:
Insulator: PBT, glass reinforeced, rated UL94V-0
Optional Hi-Temp insulator: Nylon 6T, rated UL94V-0
Insulator Color: Black (Gray optional)
Contacts: Brass
Plating:
U = Gold over nickel underplate
SG = Gold over nickel underplate on
contact area, tin over copper underplate on tails.
T = Tin over copper underplate overall
Electrical:
Operating voltage: 250V AC max.
Current rating: 1 Amp max
Contact resistance: 20 mΩ max. initial
Insulation resistance: 5000 MΩ min.
Dielectric withstanding voltage: 1000V AC for 1 minute
Mechanical:
Mating durability: 500 cycles min.
Temperature Rating:
Operating temperature: -40°C to +105°C
PACkAGING:
Anti-ESD plastic trays
SAFETy AGENCy APPROVALS:
UL Recognized & CSA Certified, File no. E224053
OPTIONS:
Add designator(s) to end of part number
LL
= Box header with long plastic latches
SL
= Box header with short plastic latches
ML
= Box header with long metal latches
MS
= Box header with long metal latches
30
= 30
µin
gold plating in contact area
Gy
= Gray color insulator
HT
= Hi-Temp insulator for Hi-Temp soldering processes
up to 260°C
(Add this option for thru-hole products only.
All SMT products are manufactured with Hi-Temp insulators)
.100" BOx HEADERS
ORDERING INFORMATION
BHR
SERIES
INDICATOR
BHR
= .100"
Box Header
50
V
MOUNTING
ORIENTATION
V
= Straight
Mount
H
= Right Angle
Mount
U
A
PIN LENGTH
A
= Standard
solder tail
B
= Special length,
customer
specified
SMT
= Surface
Mount
NO. OF
POSITIONS
08, 10, 14, 16,
20, 24, 26, 30,
34, 40, 44, 50,
60, 64
CONTACT PLATING
U
= Gold Plated
T
= Tin Plated
SG
= Gold Plating in contact
area, tin plated tails
www.adam-tech.com
319
.100" X .100" [2.54 X 2.54] CENTERLINE
BHR SERIES
A
B
C

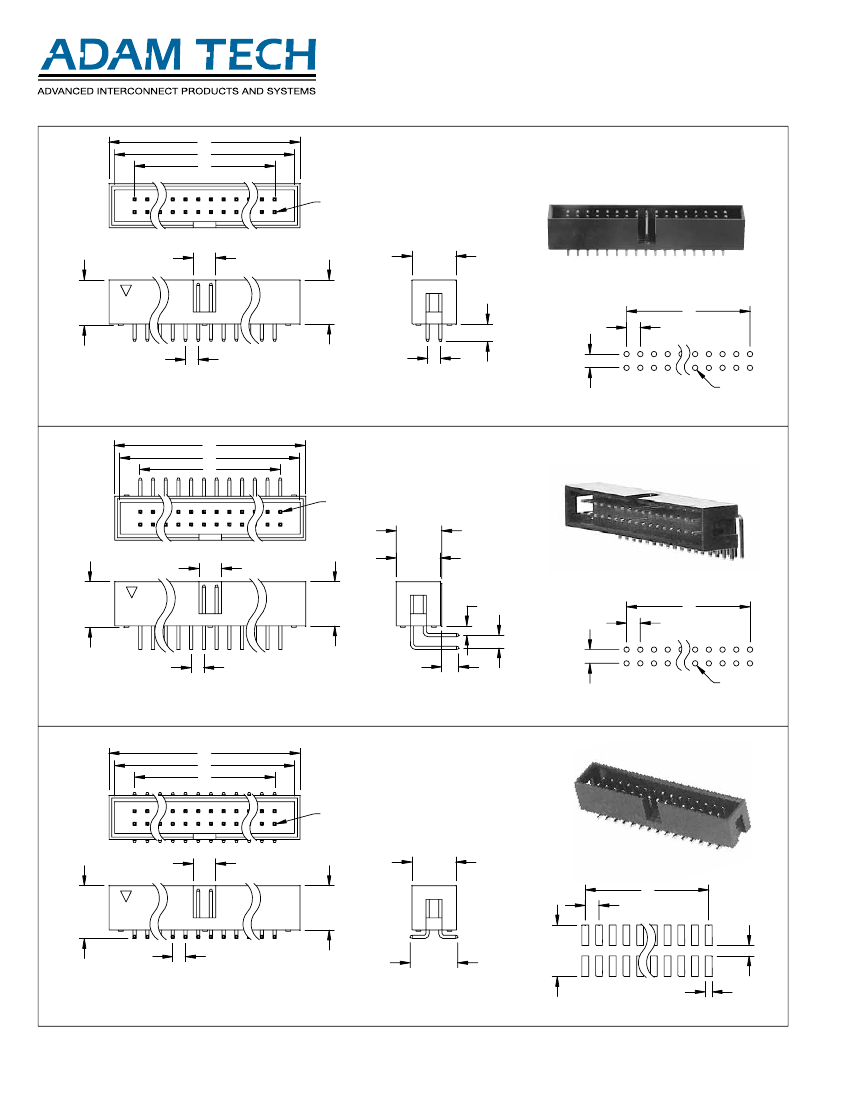

.100" BOx HEADERS
BHR
STRAIGHT PCB MOUNT
.025 [0.64] SQ.
.177 [4.50]
.346
[8.80]
BHR-34-VUA
.358
[9.10]
.346
[8.80]
.130 [3.30]
.100 [2.54]
A = .100 [2.54] X No. of Positions /2 + .300 [7.62]
B = .100 [2.54] X No. of Positions /2 + .200 [5.08]
C = .100 [2.54] X No. of Spaces
.100 [2.54]
.100 [2.54]
ø.040 [1.02]
C
.100 [2.54]
Recommended PCB Layout
A
B
C
.025 [0.64] SQ.
.356
[9.05]
.346
[8.80]
BHR
RIGHT ANGLE PCB MOUNT
.177 [4.50]
.358
[9.10]
.346
[8.80]
BHR-34-HUA
.072 [1.84]
.100
[2.54]
C
.100 [2.54]
.100 [2.54]
.100 [2.54]
A = .100 [2.54] X No. of Positions /2 + .300 [7.62]
B = .100 [2.54] X No. of Positions /2 + .200 [5.08]
C = .100 [2.54] X No. of Spaces
.134 [3.40]
ø.040 [1.02]
Recommended PCB Layout
A
B
C
BHR
SURFACE MOUNT
.025 [0.64] SQ.
.177 [4.50]
.346
[8.80]
BHR-30-VSG-SMT
C
.413
[10.50]
.346
[8.80]
.413
[10.50]
.100 [2.54]
.100 [2.54]
A = .100 [2.54] X No. of Positions /2 + .300 [7.62]
B = .100 [2.54] X No. of Positions /2 + .200 [5.08]
C = .100 [2.54] X No. of Spaces
.374
[9.50]
.060 [1.50]
.039 [1.00]
Recommended PCB Layout
320
www.adam-tech.com

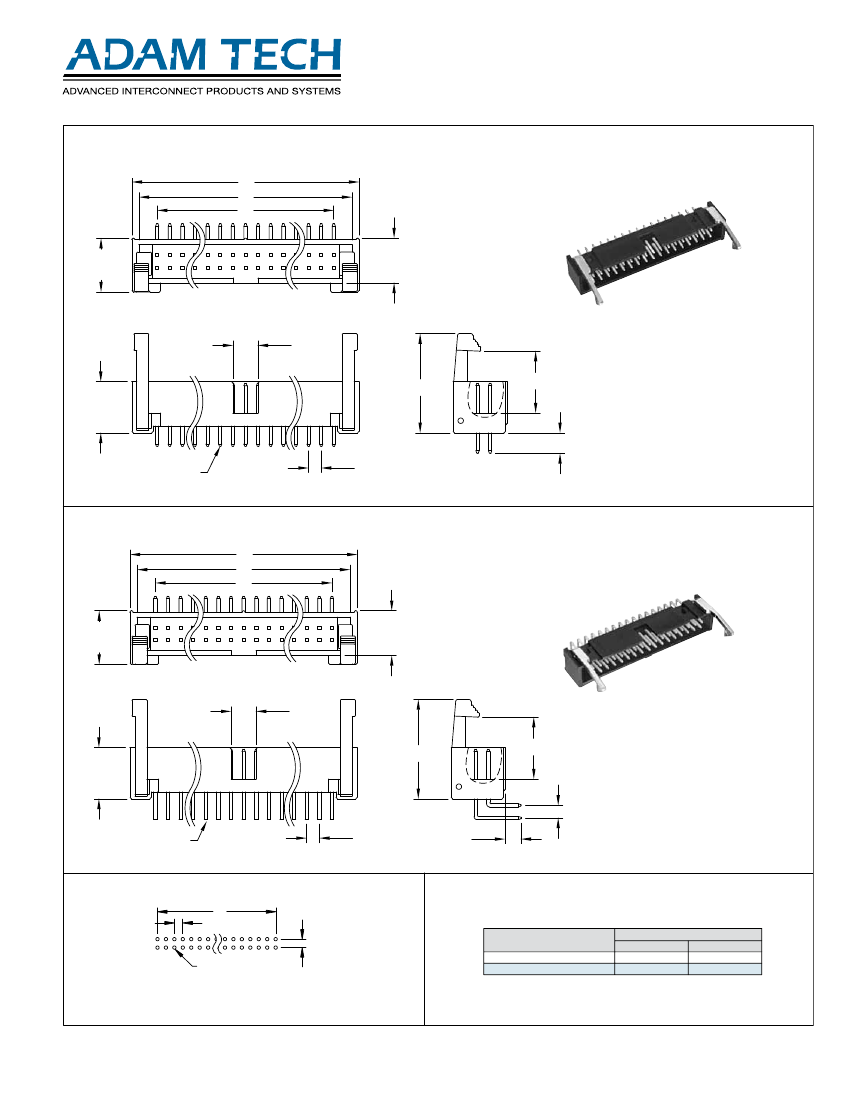

.100" BOx HEADER W/LATCHES
BHR SERIES
A
B
C
A
.429
[10.90]
.429
.429
[10.90]
[10.90]
.197
[5.00]
.197 [5.00]
.405
[10.30]
.405
[10.30]
.405
[10.30]
.025 [0.64] SQ.
.025 [0.64] SQ.
.025 [0.64] SQ.
.100 [2.54]
.100
[2.54]
.100
[2.54]
.197
[5.00]
Y
A
B
B
C
C
.354
[9.00]
.354
[9.00]
.354
[9.00]
.100" X .100" [2.54 X 2.54] CENTERLINE
BHR
STRAIGHT MOUNT BOx HEADER
WITH LATCHES
BHR-34-VUA-ML
X
X
X
Y
Y
.126 [3.20]
.126 [3.20]
.126 [3.20]
A = .100 [2.54] X No. of Positions /2 + .301 [7.66]
B = .100 [2.54] X No. of Positions /2 + .189 [4.80]
C = .100 [2.54] X No. of Positions /2 -1
BHR
A
B
A
C
B
A
C
B
C
.429
[10.90]
.354
[9.00]
RIGHT ANGLE MOUNT BOx HEADER
WITH LATCHES
.429
[10.90]
.429
[10.90]
.354
[9.00]
.354
[9.00]
.197 [5.00]
.197
[5.00]
.197
[5.00]
BHR-34-HUA-ML
.405
[10.30]
.405
[10.30]
.405
[10.30]
X
Y
X
Y
X
.025 [0.64] SQ.
.100 [2.54]
.025 [0.64] SQ.
.100
[2.54]
.100
[2.54]
.126
[3.20]
.100
Y
[2.54]
.100 [2.54]
.126
[3.20]
.126
[3.20]
A = .100 [2.54] X No. of Positions /2 + .301 [7.66]
B = .100 [2.54] X No. of Positions /2 + .189 [4.80]
.100 [2.54]
C = .100 [2.54] X No. of Positions /2 -1
.025 [0.64] SQ.
C
.100 [2.54]
.100
[2.54]
ø.040 [1.02]
LATCH TYPE
LONG LATCH (-LL)
SHORT LATCH (-SL)
DIMENSIONS
X
Y
1.035 [26.30]
.575 [14.60]
.901 [22.90]
.417 [10.60]
Recommended PCB Layout
www.adam-tech.com
321
