DD1217AS-H-470M=P3 datasheet, PDF

Datasheet> All Categories > Passive components> inductor> DD1217AS-H-470M=P3

DD1217AS-H-470M=P3: DescriptionGeneral Purpose Inductor,; CategoryPassive components inductor; File Size207KB，1 Pages; ManufacturerTOKO, INC.; Websitehttps://www.murata.com/

Download Datasheet Parametric View All

DD1217AS-H-470M=P3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DD1217AS-H-470M=P3	-	-	View	Buy Now

DD1217AS-H-470M=P3 Overview

General Purpose Inductor,

DD1217AS-H-470M=P3 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Inductor type	GENERAL PURPOSE INDUCTOR
Base Number Matches	1

Preview

Download Datasheet

View All

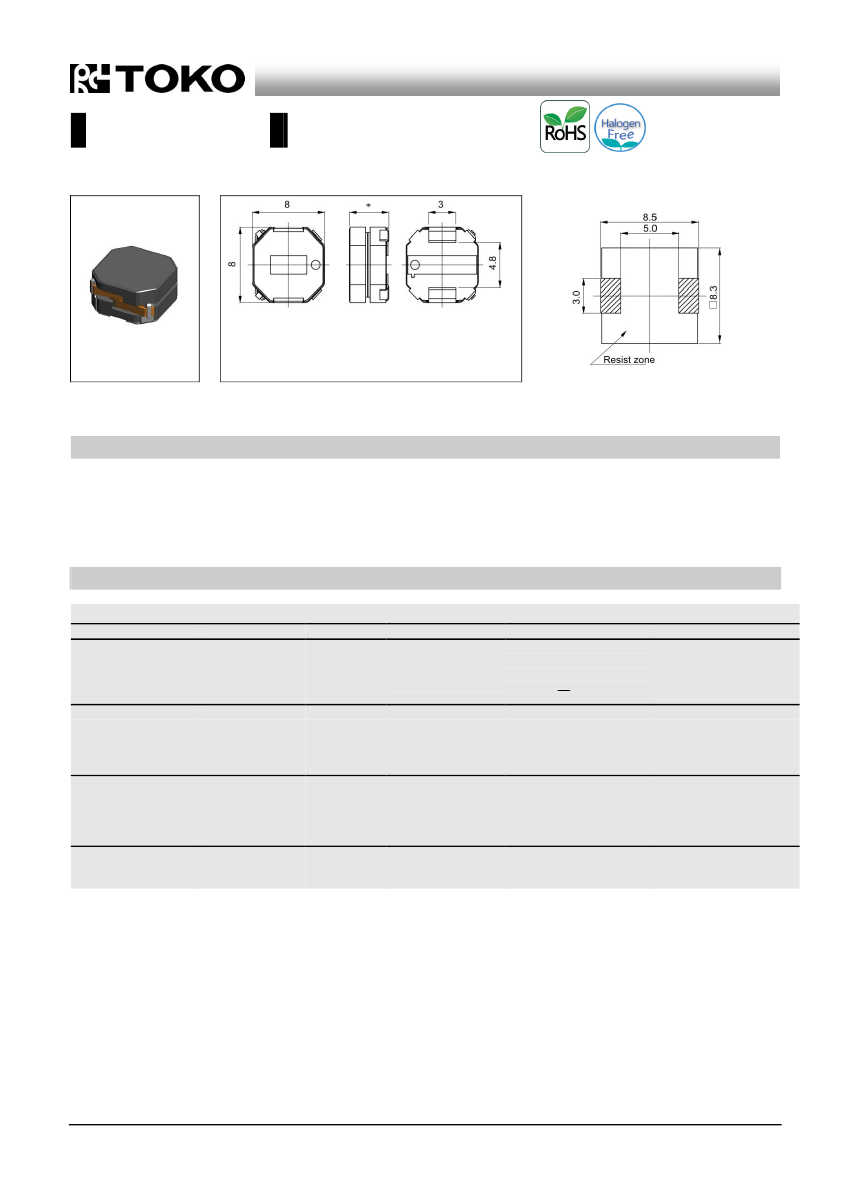

Ferrite Inductors

フェライトインダクタ

DEM8045C

Inductance Range:

1.5~47H

Recommended patterns

推奨パターン図

(Unit: mm)

* :

4.5mm Max.

FEATURES



特長



AEC-Q200準拠

8.3



8.3mm角Max.

高さ4.5mm

Max.

閉磁路構造½½直流抵抗

大電流対応

AEC-Q200 Compliant.

8.3 8.3mm Max. square, 4.5mm Max. height.

Magnetically shielded construction and low DC resistance.

Suitable for large currents.

STANDARD PART NUMBERS

インダクタンス

(1)

Inductance

(H)

1.5

2.2

3.3

4.7

5.6

6.8

8.2

(1)

標準品一覧

TYPE DEM8045C (Quantity/reel; 1000 PCS)

品番

Part

Number

DD1217AS-H-1R5N=P3

DD1217AS-H-2R2N=P3

DD1217AS-H-3R3N=P3

DD1217AS-H-4R7N=P3

DD1217AS-H-5R6N=P3

DD1217AS-H-6R8N=P3

DD1217AS-H-8R2M=P3

DD1217AS-H-100M=P3

DD1217AS-H-150M=P3

DD1217AS-H-180M=P3

DD1217AS-H-220M=P3

DD1217AS-H-330M=P3

DD1217AS-H-470M=P3

許容差

Tolerance

(%)

±30

±20

直流抵抗

(2)

Resistance

(2)

(m) Max. (Typ.)

7.6 (6.5)

9.9 (8.3)

14.4 (12)

18.0 (15)

22.8 (19)

27.6 (23)

33.6 (28)

39.6 (33)

52.8 (44)

76.8 (64)

93.6 (78)

132.0 (110)

204.0 (170)

直流重畳許容電流

(3)

Inductance

Decrease Current

(3)

(A) Max. (Typ.)

L

=30%

11.2 (15.0)

9.3 (12.4)

7.7 (10.3)

6.7 (9.0)

6.1 (8.1)

5.2 (7.0)

4.8 (6.4)

4.3 (5.7)

3.3 (4.4)

3.2 (4.3)

2.9 (3.9)

2.3 (3.1)

2.1 (2.8)

温度上昇許容電流

(3)

Temperature

Rise Current

(3)

T=40C

(A) Max. (Typ.)

9.4 (11.0)

8.7 (10.0)

6.8 (8.0)

6.3 (7.4)

5.4 (6.4)

4.8 (5.6)

4.5 (5.3)

3.9 (4.6)

3.5 (4.1)

2.9 (3.4)

2.4 (2.8)

2.2 (2.6)

1.8 (2.1)

(1) Inductance is measured with a LCR meter 4284A (Agilent

Technologies) or equivalent.

Test frequency at 100kHz

(2) DC resistance is measured with 34420A (Agilent Technologies) or

3541(HIOKI). (Reference ambient temperature 25°C)

(3) Maximum allowable DC current is that which causes a 30%

inductance reduction from the initial value, or coil temperature to

rise by 40°C, whichever is smaller. (Reference ambient

temperature 20°C)

(1)

インダクタンスはLCRメータ4284A（Agilent

Technologies）

または同等品により測定する。

測定周波数は100kHz。

(2)

直流抵抗は測定器34420A（Agilent

Technologies）または3541

（HIOKI）と同等品により測定する。（周囲温度25°C）

(3)

最大許容電流は、直流重畳電流を流した時インダクタンスの値が

初期値より30％減少する直流電流値、または直流電流により、

コイルの温度が40°C上昇の½れか小さい値。（周囲温度20°Cを

基準とする。）
