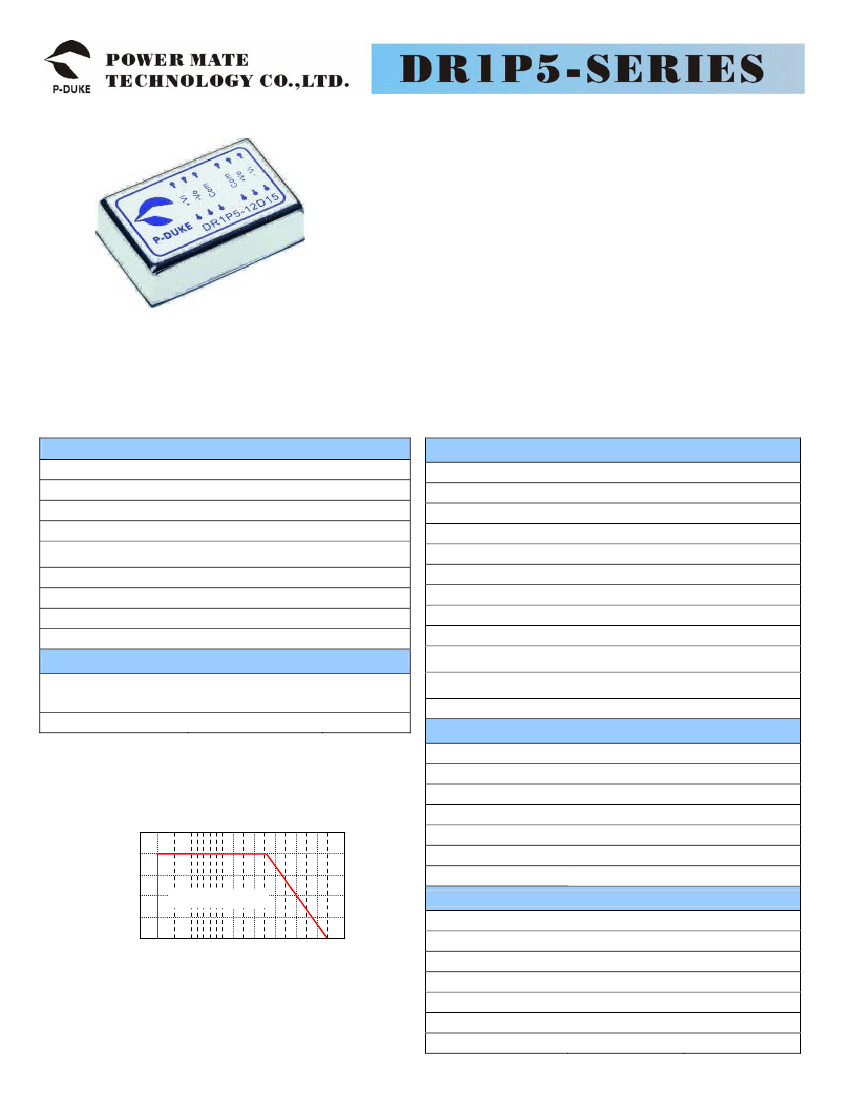

1.5 WATTS REGULATED OUTPUT POWER
•
LOW OUTPUT RIPPLE & NOISE
•
PI TYPE INPUT FILTER
•
500VDC ISOLATION VOLTAGE
•
HIGH EFFICIENCY UP TO 55%
•
STANDARD 24 PIN DIP PACKAGE & SMD TYPE PACKAGE
•
FIVE-SIDED EMI SHIELD
The DR1P5 series offer 1.5 watts of output power from a package in an IC compatible 24
pin DIP configuration without derating to 71ºC ambient temperature and pin to pin
compatible to MKC03 series. DR1P5 series have input voltage of 4.5-5.5, 10.8-13.2 and
21.6-26.4VDC. DR1P5 features 500VDC of isolation voltage. A safety designed meet to
EN60950-1 and UL60950-1. All models are particularly suited to telecommunications,
industrial, mobile telecom and test equipment applications.
T E C H N I C A L S P E C I F I C AT I O N
OUTPUT SPECIFICATIONS
Output power
Voltage accuracy
Minimum load
Line regulation
Load regulation
Cross regulation
Ripple and noise
Temperature coefficient
Short circuit protection
LL to HL at Full Load
25% to 100% FL
D05 output
others
Full load and nominal Vin
All specifications are typical at nominal input, full load and 25ºC otherwise noted
GENERAL SPECIFICATIONS
1.5 Watts max
± 4%
0%
± 0.3%
± 1.5%
± 0.5%
± 5%
50mVp-p
±0.02%
/ ºC, max
Short term
Efficiency
Isolation voltage
Isolation resistance
Isolation capacitance
Switching frequency
Design meet safety standard
Case material
Base material
Potting material
Dimensions
9
See table
500VDC, min
10 ohms, min
30pF, max
20KHz, min
IEC60950-1, UL60950-1,EN60950-1
Nickel-coated copper
Non-conductive black plastic
Epoxy (UL94-V0)
1.25 X 0.80 X 0.40 Inch
(31.8 X 20.3 X 10.2 mm)
16g (0.55oz)
18g (0.62oz)
5.531 x 10 hrs
6
Asymmetrical load 25% / 100% FL
20MHz bandwidth
INPUT SPECIFICATIONS
Input voltage range
5V nominal input
12V nominal input
24V nominal input
4.5 – 5.5VDC
10.8 – 13.2VDC
21.6 – 26.4VDC
Pi type
Weight
MTBF (Note 1)
DIP
SMD
Input filter
ENVIRONMENTAL SPECIFICATIONS
Operating temperature range
Maximum case temperature
Storage temperature range
-25ºC ~ +71ºC
+100ºC
-55ºC ~ +105ºC
Nature convection
20ºC/watt
MIL-STD-810D
10~55Hz, 10G, 30minutes along X,Y and Z
5% to 95% RH
OUTPUT POWER (%)
DR1P5-24S05 Derating Curve
100
75
50
25
0
-40 -25 -10 0
50
60
70
80
90 100
Thermal impedance
Thermal shock
Vibration
Relative humidity
Nature convection
EMC CHARACTERISTICS
Conducted emissions
Radiated emissions
ESD
Radiated immunity
Fast transient
Surge
Conducted immunity
EN55022
EN55022
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
EN61000-4-6
Class A
Class A
Perf. Criteria B
Perf. Criteria A
Perf. Criteria B
Perf. Criteria B
Perf. Criteria A
AMBIENT TEMPERATURE (ºC)
VER:03
Model
Number
DR1P5-05S05
DR1P5-05S12
DR1P5-05S15
DR1P5-05D05
DR1P5-05D12
DR1P5-05D15
DR1P5-12S05
DR1P5-12S12
DR1P5-12S15
DR1P5-12D05
DR1P5-12D12
DR1P5-12D15
DR1P5-24S05
DR1P5-24S12
DR1P5-24S15
DR1P5-24D05
DR1P5-24D12
DR1P5-24D15
2
/
2
Input
Range
4.5 – 5.5 VDC
4.5 – 5.5 VDC
4.5 – 5.5 VDC
4.5 – 5.5 VDC
4.5 – 5.5 VDC
4.5 – 5.5 VDC
10.8 – 13.2 VDC
10.8 – 13.2 VDC
10.8 – 13.2 VDC
10.8 – 13.2 VDC
10.8 – 13.2 VDC
10.8 – 13.2 VDC
21.6 – 26.4 VDC
21.6 – 26.4 VDC
21.6 – 26.4 VDC
21.6 – 26.4 VDC
21.6 – 26.4 VDC
21.6 – 26.4 VDC
Output
Voltage
5 VDC
12 VDC
15 VDC
± 5 VDC
± 12 VDC
± 15 VDC
5 VDC
12 VDC
15 VDC
± 5 VDC
± 12 VDC
± 15 VDC
5 VDC
12 VDC
15 VDC
± 5 VDC
± 12 VDC
± 15 VDC
Output
Current
300mA
125mA
100mA
200mA/-100mA
± 60mA
± 50mA
300mA
125mA
100mA
200mA/-100mA
± 60mA
± 50mA
300mA
125mA
100mA
200mA/-100mA
± 60mA
± 50mA
Input
Current
(2)
600mA
625mA
588mA
682mA
613mA
600mA
245mA
260mA
245mA
278mA
255mA
250mA
125mA
130mA
123mA
142mA
128mA
125mA
Eff
(3)
(%)
54
52
55
48
51
54
55
52
55
49
51
54
54
52
55
48
51
54
Capacitor
Load max
(4)
470uF
330uF
330uF
330uF
110uF
110uF
470uF
330uF
330uF
330uF
110uF
110uF
470uF
330uF
330uF
330uF
110uF
110uF
Note
1.
2.
3.
4.
BELLCORE TR-NWT-000332. Case 1: 50% Stress, Temperature at 40ºC. (Ground fixed and controlled environment)
Maximum value at nominal input voltage and full load of standard type.
Typical value at nominal input voltage and full load.
Suffix-SMD
Test by minimum Vin and constant resistive load.

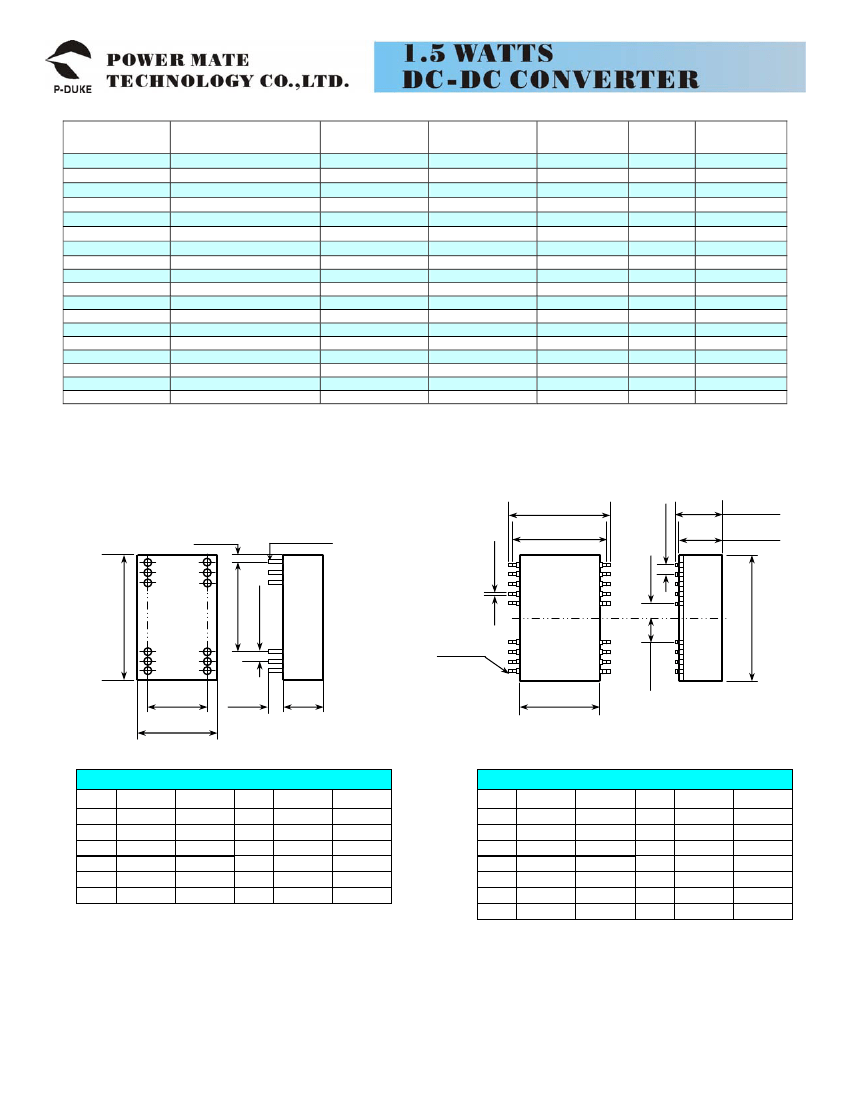

0.10 (2.54)
1.00(25.4)
0.01 x 0.02 (0.25 x 0.50)
0.08(2.0)
Rectangular Pin
0.02(0.5)
0.92(23.4)
0.15 (3.81)
0.44(11.2)
0.43(10.9)
24
23
22
1.25 (31.8)
1
2
3
0.90 (22.9)
0.10 (2.5)
24
1
20
Pin Area
0.04 x 0.02
(1.0 x 0.5)
BOTTOM
VIEW
5
13
0.15
(3.8)
0.40
(10.2)
12
0.80(20.3)
0.60(15.2)
0.80(20.3)
1. All dimensions in Inches (mm)
Tolerance x.xx±0.02(x.x±0.5)
x.xxx±0.01(x.xx±0.25)
2. Pin pitch tolerance
±0.014(0.35)
DIP PIN CONNECTION
PIN
1
2
3
10
11
12
SINGLE
+ INPUT
NC
NC
-OUTPUT
+OUTPUT
- INPUT
DUAL
+ INPUT
- OUTPUT
COMMON
COMMON
+OUTPUT
- INPUT
PIN
24
23
22
15
14
13
SINGLE
+ INPUT
NC
NC
- OUTPUT
+OUTPUT
- INPUT
DUAL
+ INPUT
- OUTPUT
COMMON
COMMON
+OUTPUT
- INPUT
PIN
SMD PIN CONNECTION
SINGLE
DUAL
PIN
SINGLE
DUAL
1
+ INPUT + INPUT
24
+ INPUT + INPUT
2
NC
- OUTPUT
23
NC
- OUTPUT
3
NC
COMMON
22
NC
COMMON
15
-OUTPUT COMMON
10
-OUTPUT COMMON
11
+OUTPUT +OUTPUT
14
+OUTPUT +OUTPUT
12
- INPUT
- INPUT
13
- INPUT
- INPUT
Others
NC
NC
Others
NC
NC
0.25 (6.35)
15
14
13
10
11
12
16
9
1.26 (32.0)
