3-583715-8

Description
40 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, SOLDER
CategoryThe connector    The connector
File Size425KB,8 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric Compare View All

3-583715-8 Online Shopping

Suppliers Part Number Price MOQ In stock
3-583715-8 - - View Buy Now

3-583715-8 Overview

40 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, SOLDER

3-583715-8 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresAMP
body width0.4 inch
subject depth0.61 inch
body length4.558 inch
Body/casing typeRECEPTACLE
Connector typeCARD EDGE CONNECTOR
Contact to complete cooperationGOLD (15) OVER NICKEL
Contact completed and terminatedTin (Sn) - with Nickel (Ni) barrier
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance10 mΩ
Contact styleLEAF
DIN complianceNO
Dielectric withstand voltage1000VAC V
Durability100 Cycles
Filter functionNO
IEC complianceNO
Insulation resistance5000000000 Ω
insulator materialGLASS FILLED POLYESTER
JESD-609 codee3
MIL complianceNO
Manufacturer's serial number583715
Plug contact pitch0.1 inch
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing5.08 mm
Plating thickness15u inch
Rated current (signal)3 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.17 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts40
UL Flammability Code94V-0
Base Number Matches1
Product
Specification

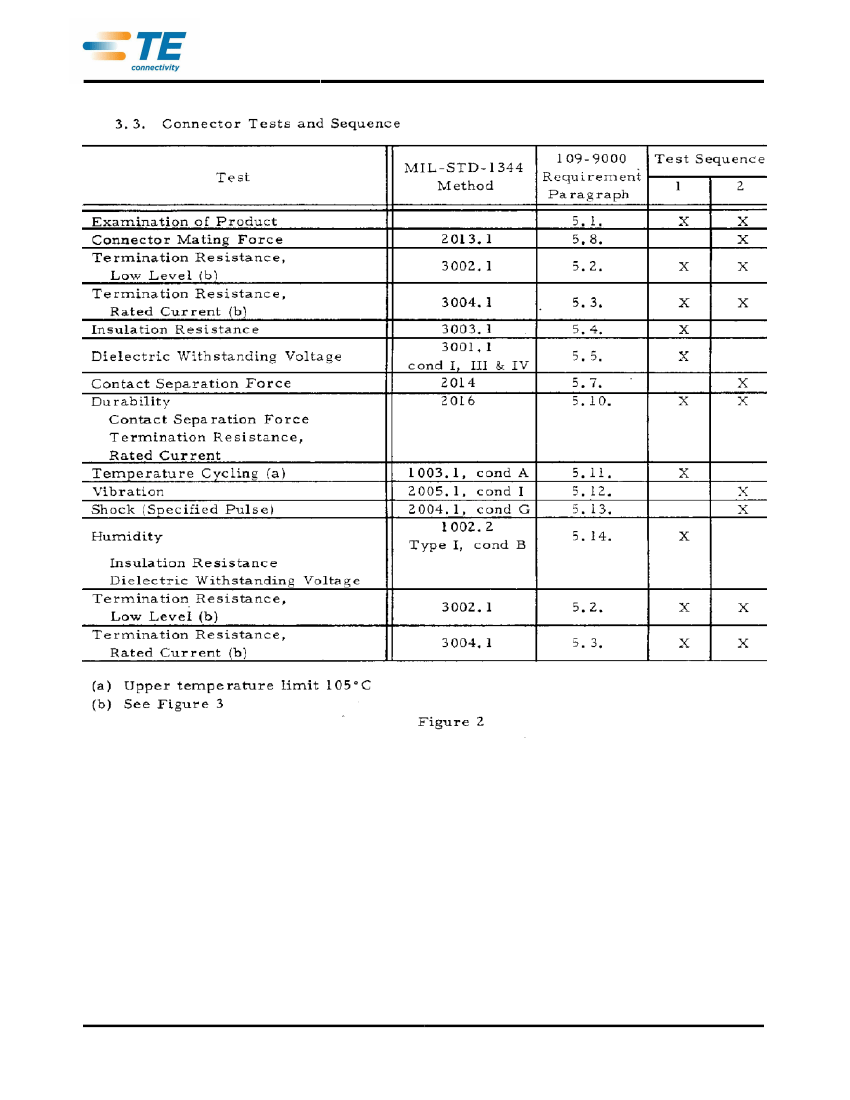

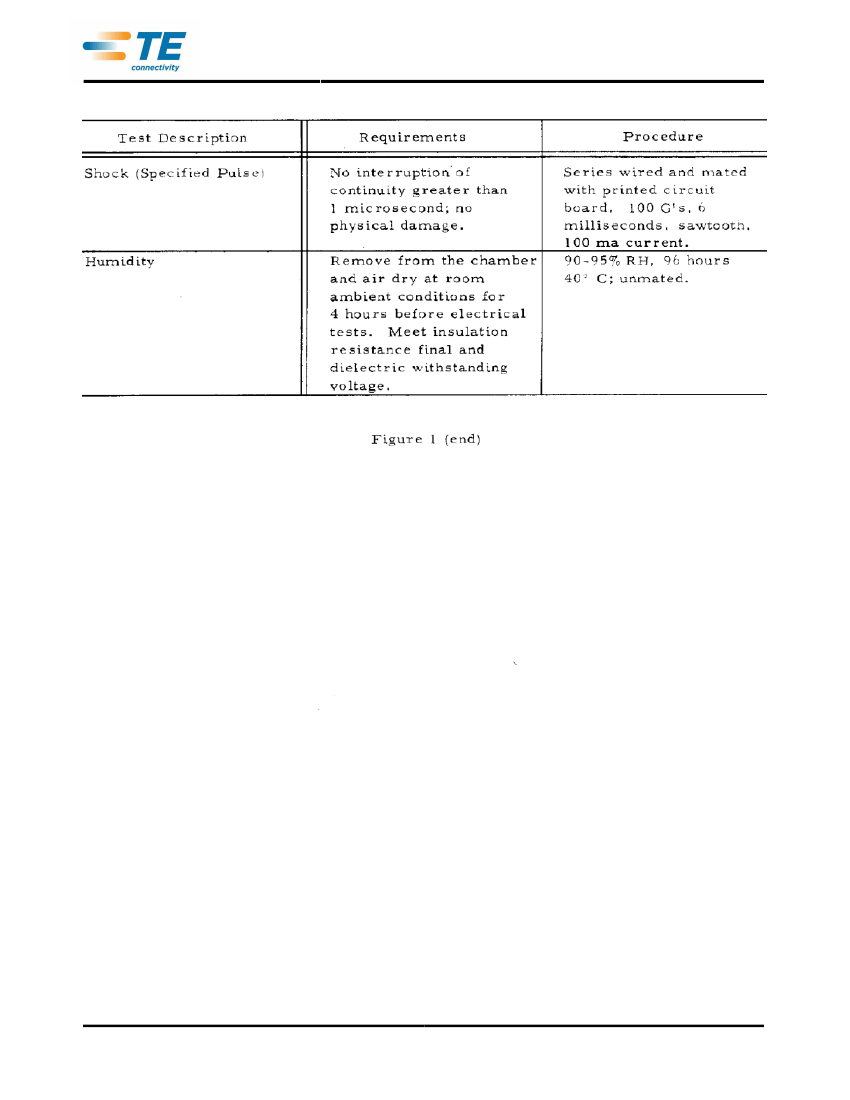

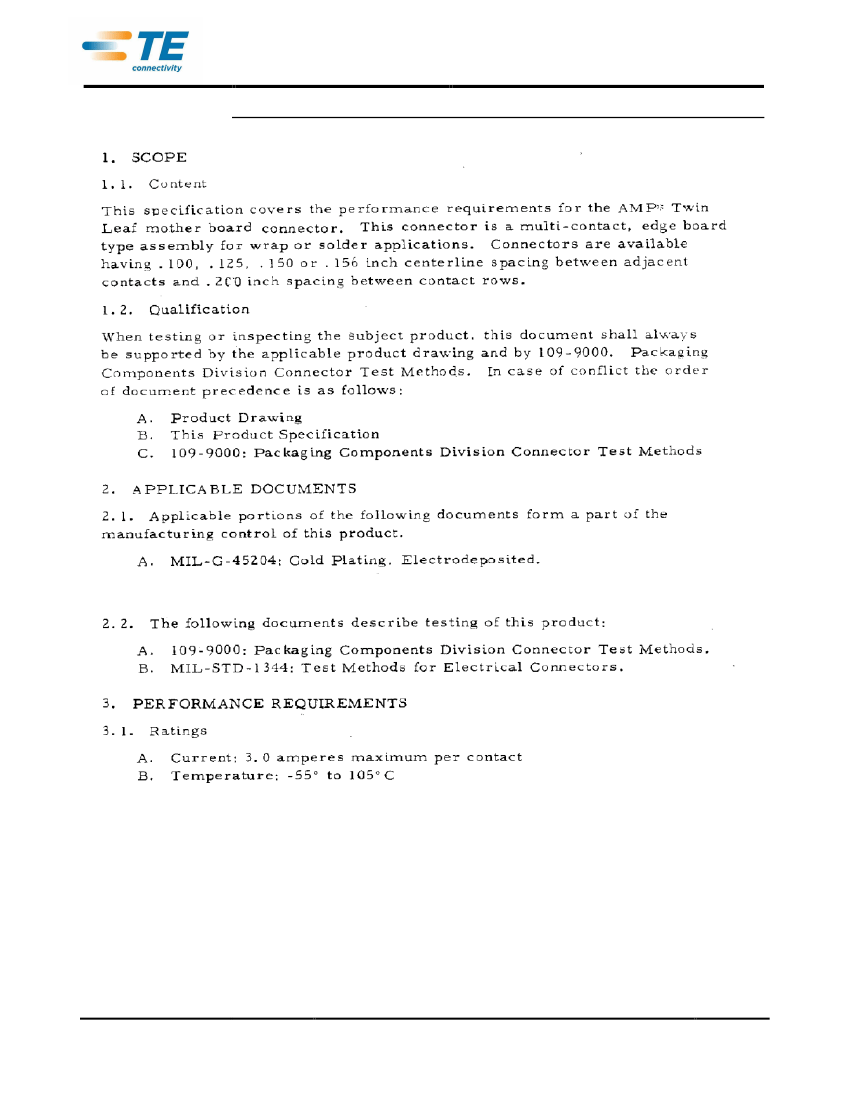

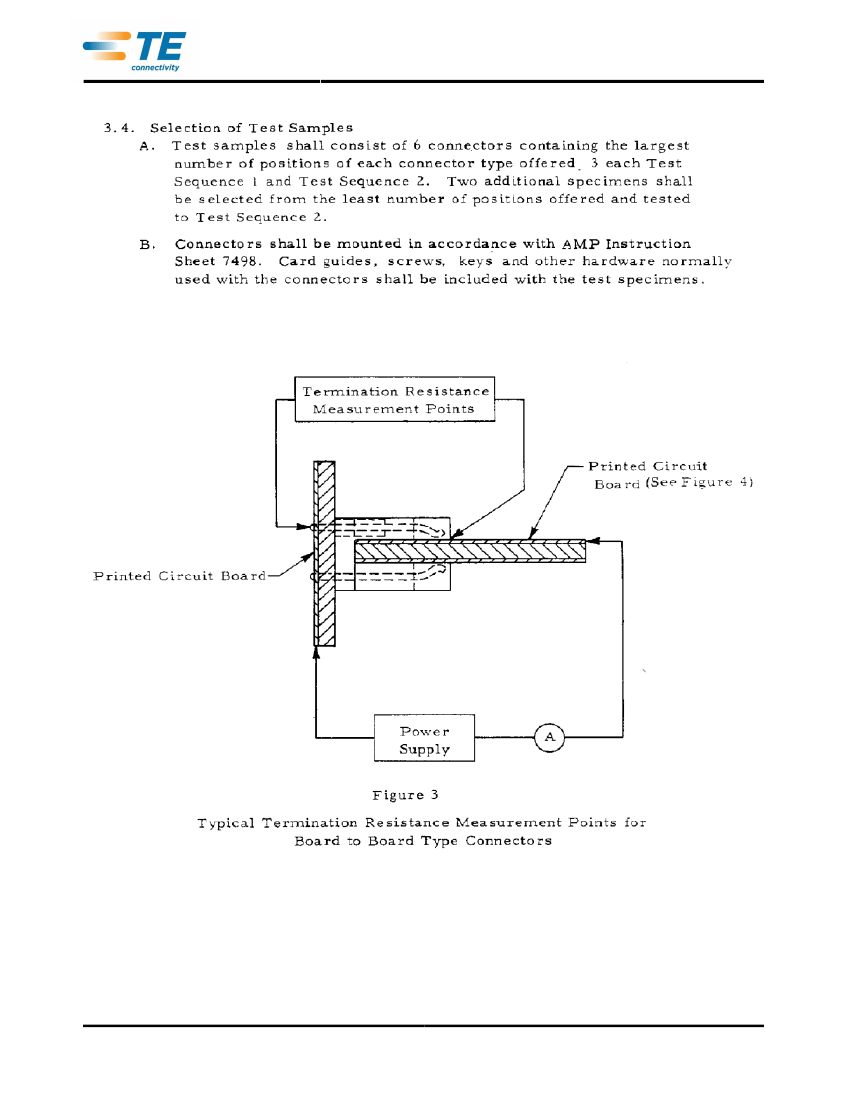

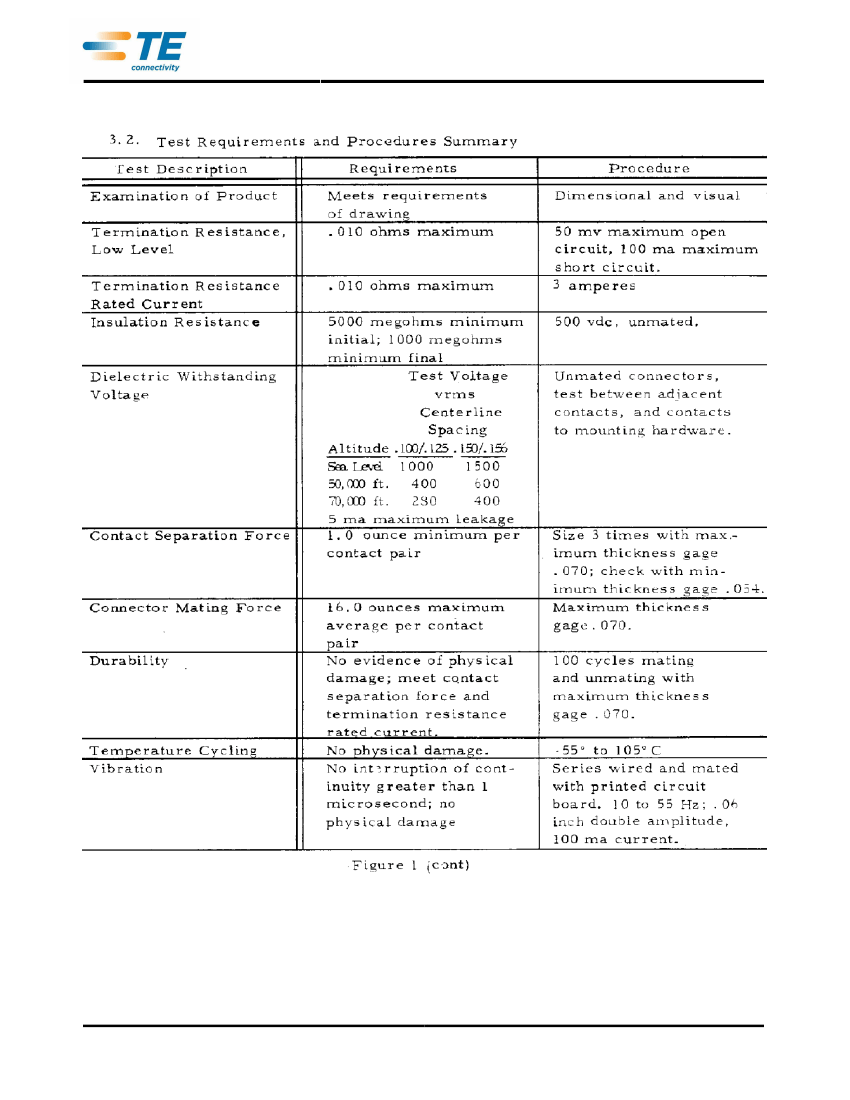

108-9027
11 Mar 11 Rev E
Twin Leaf Connector
©2011 Tyco Electronics Corporation,
a TE Connectivity Ltd. Company
All Rights Reserved
TE logo is a trademark.
| Indicates Change
*Trademark
For latest revision, visit out website at www.te.com/documents
For Regional Customer service, visit our website at www.te.com
Other products, logos, and company names might be trademarks of their respective owners.
1 of 8
LOC B

3-583715-8 Related Products

3-583715-8 3-583715-2 583407-6 4-583486-1
Description 40 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, SOLDER 34 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, SOLDER 5 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, SOLDER CONN TWIN LEAF 10 POS 156 C/L
Is it lead-free? Contains lead Contains lead Contains lead Contains lead
Is it Rohs certified? incompatible incompatible incompatible incompatible
Reach Compliance Code compliant compli compliant compliant
Connector type CARD EDGE CONNECTOR CARD EDGE CONNECTOR CARD EDGE CONNECTOR CARD EDGE CONNECTOR
Contact to complete cooperation GOLD (15) OVER NICKEL GOLD (15) OVER NICKEL NOT SPECIFIED NOT SPECIFIED
Contact point gender FEMALE FEMALE FEMALE FEMALE
Contact material PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE
DIN compliance NO NO NO NO
Filter function NO NO NO NO
IEC compliance NO NO NO NO
MIL compliance NO NO NO NO
Mixed contacts NO NO NO NO
Installation method STRAIGHT STRAIGHT STRAIGHT STRAIGHT
Installation type BOARD BOARD BOARD BOARD
Number of rows loaded 2 2 2 2
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Terminal pitch 2.54 mm 2.54 mm 3.81 mm 3.96 mm
Termination type SOLDER SOLDER SOLDER SOLDER
Total number of contacts 40 34 5 20
UL Flammability Code 94V-0 94V-0 94V-0 94V-0
Base Number Matches 1 1 1 1
Other features AMP - AMP AMP
body width 0.4 inch - 0.4 inch 0.4 inch
subject depth 0.61 inch - 0.61 inch 0.61 inch
body length 4.558 inch - 0.9 inch 1.72 inch
Body/casing type RECEPTACLE - RECEPTACLE RECEPTACLE
Contact completed and terminated Tin (Sn) - with Nickel (Ni) barrier - Tin (Sn) Tin (Sn)
contact mode RECTANGULAR - RECTANGULAR RECTANGULAR
Contact resistance 10 mΩ - 10 mΩ 10 mΩ
Contact style LEAF - LEAF LEAF
Durability 100 Cycles - 100 Cycles 100 Cycles
Insulation resistance 5000000000 Ω - 5000000000 Ω 5000000000 Ω
insulator material GLASS FILLED POLYESTER - GLASS FILLED POLYESTER GLASS FILLED POLYESTER
JESD-609 code e3 - e3 e3
Plug contact pitch 0.1 inch - 0.15 inch 0.156 inch
Number of connectors ONE - ONE ONE
PCB row number 2 - 2 2
Maximum operating temperature 105 °C - 105 °C 105 °C
Minimum operating temperature -55 °C - -55 °C -55 °C
PCB contact pattern RECTANGULAR - RECTANGULAR RECTANGULAR
PCB contact row spacing 5.08 mm - 5.08 mm 5.08 mm
Plating thickness 15u inch - 15u inch 15u inch
Rated current (signal) 3 A - 3 A 3 A
Guideline UL - UL UL
reliability COMMERCIAL - COMMERCIAL COMMERCIAL
Terminal length 0.17 inch - 0.135 inch 0.135 inch
