3212200021

Description
Dry Reed Relay, DPST, Momentary, 0.024A (Coil), 12VDC (Coil), 288mW (Coil), 0.5A (Contact), 200VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount, ROHS COMPLIANT
CategoryMechanical and electronic products    relay
File Size95KB，2 Pages
ManufacturerStandex
Download Datasheet Parametric View All

3212200021 Overview

Dry Reed Relay, DPST, Momentary, 0.024A (Coil), 12VDC (Coil), 288mW (Coil), 0.5A (Contact), 200VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount, ROHS COMPLIANT

3212200021 Parametric

Parameter NameAttribute value
package instructionROHS COMPLIANT
Reach Compliance Codeunknown
ECCN codeEAR99
body width6.9 mm
body height7.7 mm
Body length or diameter19.6 mm
Maximum coil current (DC)0.024 A
Coil operating voltage (DC)8.4 V
Coil power288 mW
Coil release voltage (DC)1.8 V
Coil resistance550 Ω
Maximum coil voltage (DC)12 V
Coil/Input Power TypeDC
Contact (AC) maximum rated R load.5A@200VAC
Maximum contact current (AC)0.5 A
Maximum contact current (DC)0.5 A
Contact (DC) maximum rated R load.5A@200VDC
Maximum contact voltage (AC)200 V
Maximum contact voltage (DC)200 V
Contact/Output Power TypeAC/DC
JESD-609 codee3
Manufacturer's serial number3212200021
Installation featuresTHROUGH HOLE-STRAIGHT MOUNT
operating hours0.5 ms
Maximum operating temperature70 °C
Minimum operating temperature-20 °C
method of packingTUBE
physical size19.6mm x 6.9mm x 7.7mm
GuidelineUL
Relay actionMOMENTARY
Relay functionDPST
Relay typeDRY REED RELAY
release time0.1 ms
sealWATER PROOF
surface mountNO
Terminal surfaceTIN
Termination typeSOLDER
Base Number Matches1

Preview

Download Datasheet
Europe: +49 / 7731 8399 0
USA:
Asia:
+1 / 508 295 0771
+852 / 2955 1682
| Email: info@meder.com
| Email: salesusa@meder.com
| Email: salesasia@meder.com

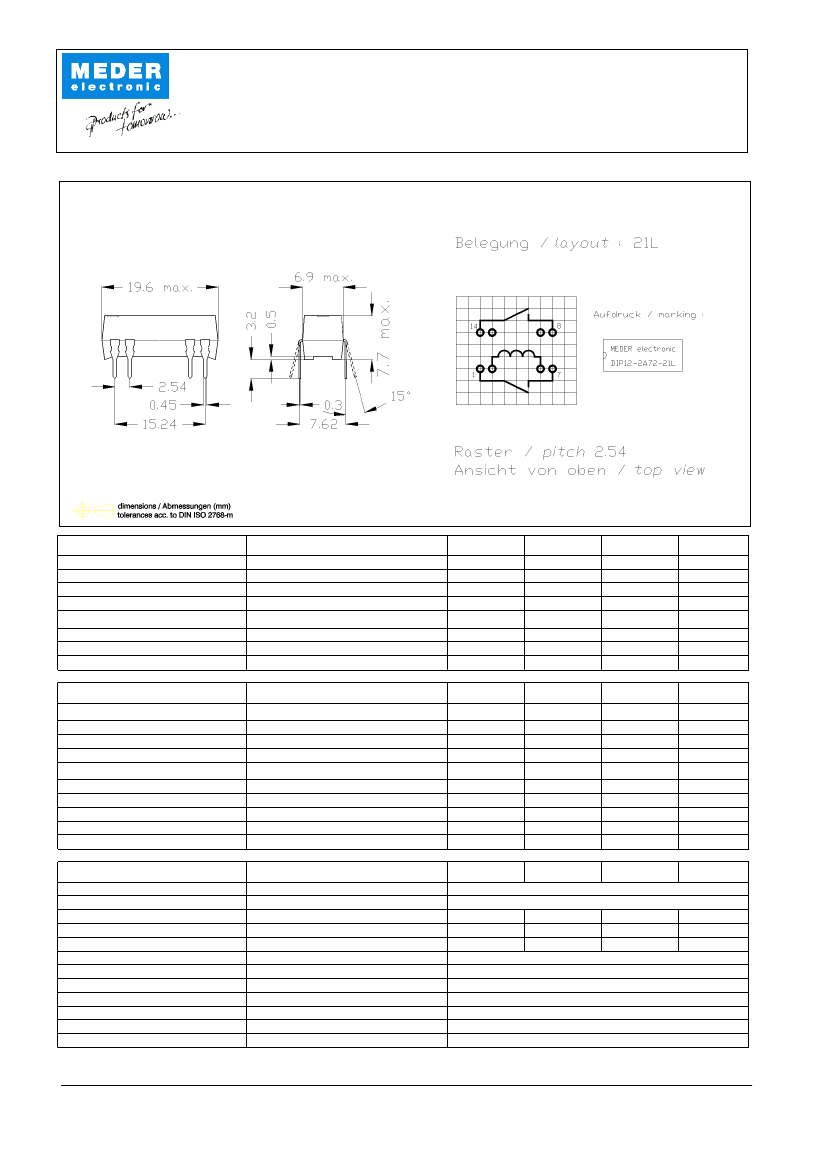

Item No.:
3212200021
Item:
DIP12-2A72-21L
Coil Data at 20 °
C
Coil resistance
Coil voltage
Rated power
Coil current
Thermal resistance
Inductance
Pull-In voltage
Drop-Out voltage
Conditions
Min
Typ
Max
Unit
=
operating temperature + self heating
Contact data 66/3
Contact rating
Switching voltage
Switching current
Carry current
Contact resistance static
Insulation resistance
Breakdown voltage ( > 20 AT )
Operate Time
Release time
Capacity
Conditions
!
"# $%! %#! #& '
not to exceed their individual max.'s
Min
Typ
Max
Unit
DC or Peak AC
DC or Peak AC
DC or Peak AC
( ) * +%
Start Value
, #- * %-
RH <45 %, 100 V test voltage
according to IEC 255-5
measured with 40% overdrive
measured with no coil excitation
@ 10 kHz across open switch
.
/
)
)
0
Special Product Data
Number of contacts
Contact - form
Dielectric Strength Coil/Contact
Insulation resistance Coil/Contact
Capacity Coil/Contact
Case colour
Housing material
Connection pins
Magnetic Shield
Reach / RoHS conformity
Approval
Approval
Conditions
according to IEC 255-5
RH <45%, 200 VDC test voltage
@ 10 kHz
Min
Typ
2
A - NO
Max
/
.
Unit
0
black
mineral filled epoxy
CuFe2P tin plated
no
yes
UL File No. NRNT2.E156887
UL File No. NRNT8.E156887
Modifications in the sense of technical progress are reserved
Designed at:
Last Change at:
22.04.04
27.10.09
Designed by:
Last Change by:
SCHELLHORN
SERVICES_EUROPE
Approval at:
Approval at:
26.08.09
05.11.09
Approval by:
Approval by:
KOLBRICH
KOLBRICH
Version:
02
