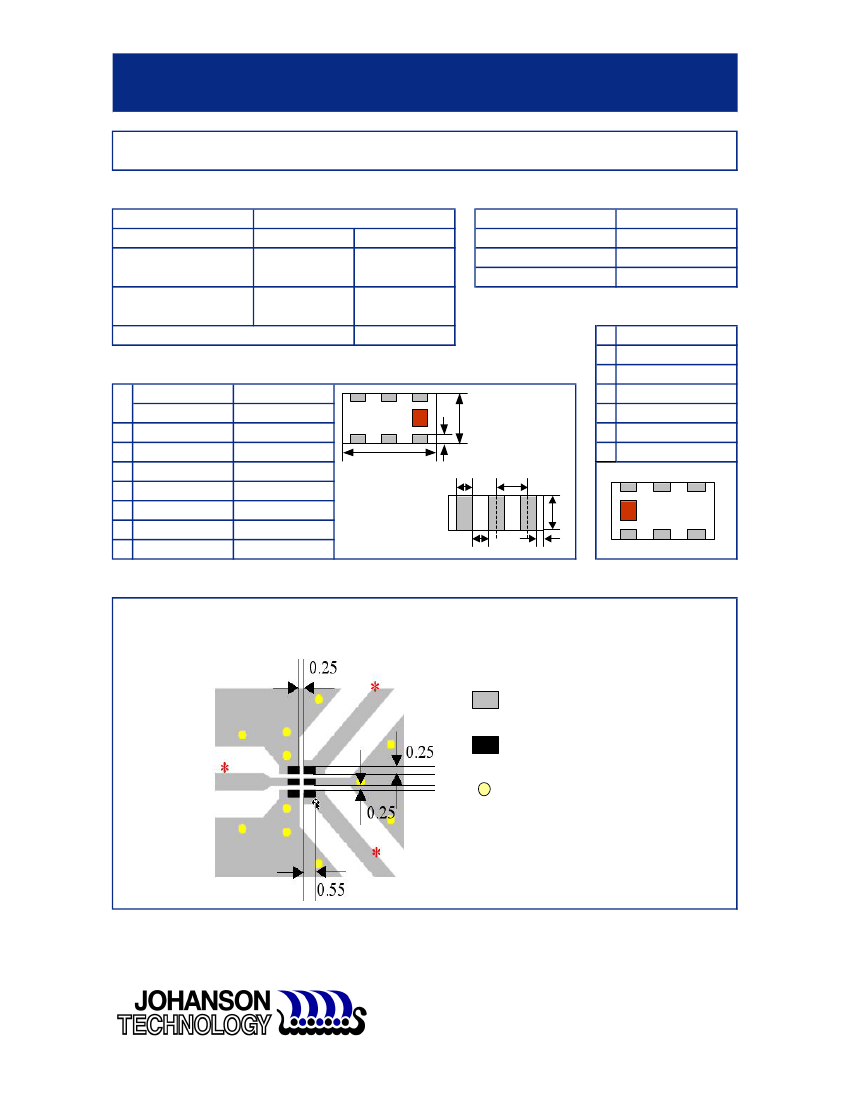

"High Frequency Ceramic Solutions"
892/1850 MHz Diplexer
Detail Specification: 11/13/03
P/N 0892DP14A1850
Page 1 of 2
General Specifications
Part Number
Frequency (MHz)
Attenuation in
Low Band Path
Attenuation in
High Band Path
Pass-band Return Loss
0892DP14A1850_
824 - 960
0.5 dB max.
25 dB min.
12 dB min.
1710 - 1990
15 dB min.
0.8 dB max.
12 dB min.
Input Power
Impedance
Operating Temperature
3 Watts max.
50
Ω
-40 to +85°C
4,000
Reel Quanity
Terminal Configuration
No.
Function
Low Band Port (P3)
GND
GND
Common. Port (P2)
GND
1
2
3
1
Mechanical Dimensions
In
L
0.063 ± 0.004
W
0.031 ± 0.004
T
0.024 ± 0.004
0.008 ± 0.004
b
0.008
+.004/-.006
c
0.006 ± 0.004
a
g
0.012 ± 0.004
p
0.020 ± 0.002
mm
1.60 ± 0.10
0.80 ± 0.10
0.60 ± 0.10
0.20 ± 0.10
0.20
+0.1/-0.15
0.15 ± 0.10
0.30 ± 0.10
0.50 ± 0.05
Units: mm
g
b
2
W
c
L
a
p
3
High Band Port (P1)
4
5
6
T
6
5
4
Mounting Considerations
Mount these devices with brown mark facing up.
Line width should be designed to provide 50Ω impedance matching characteristics.
Units: mm
Solder Resist
Land
Through-hole (φ0.35)
Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johansontechnology.com
931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
2003 Johanson Technology, Inc. All Rights Reserved
"High Frequency Ceramic Solutions"
892/1850 MHz Diplexer
Detail Specification: 11/13/03
P/N 0892DP14A1850
Page 2 of 2

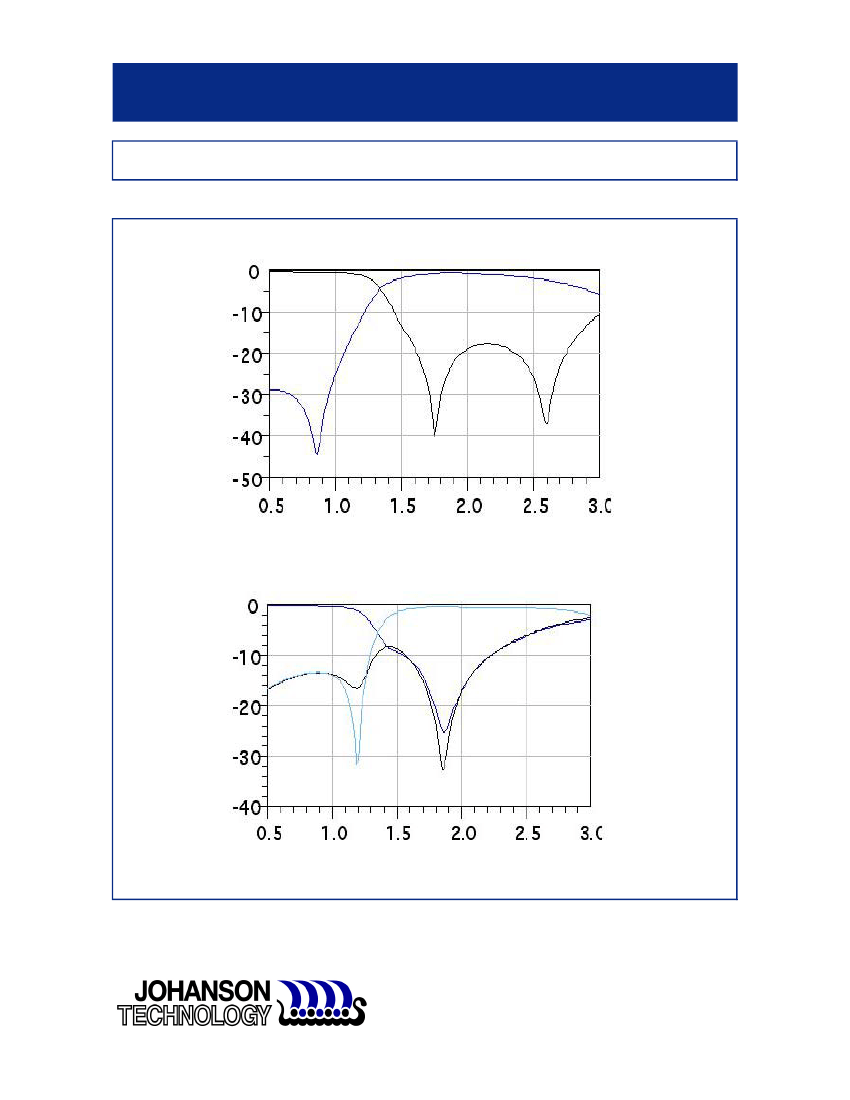

Typical Electrical Performance (T=25°C)
Attenuation
)
)
)
)
)
)
)
)
)
)
S32 (dB)
S12 (dB)
)
)
Frequency (GHz)
)
)
)
)
)
)
Return Loss
)
)
S33 (dB)
S12 (dB)
S22 (dB)
)
)
)
Frequency (GHz)
)
)
