311-034D172 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 311-034D172

311-034D172: DescriptionBoard Connector, 34 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, IDC Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size265KB，9 Pages; ManufacturerThomas & Betts Corporation; Websitehttp://www.tnb.com/

Download Datasheet Parametric View All

311-034D172 Overview

Board Connector, 34 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, IDC Terminal, Black Insulator, Receptacle

311-034D172 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	SOLDERED DIRECTLY TO THE BOARD
body width	0.357 inch
subject depth	0.553 inch
body length	1.164 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	311
Plug contact pitch	0.05 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	CABLE
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	CTR W/GUIDE SLOTS
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.175 inch
Terminal pitch	1.27 mm
Termination type	IDC
Total number of contacts	34
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

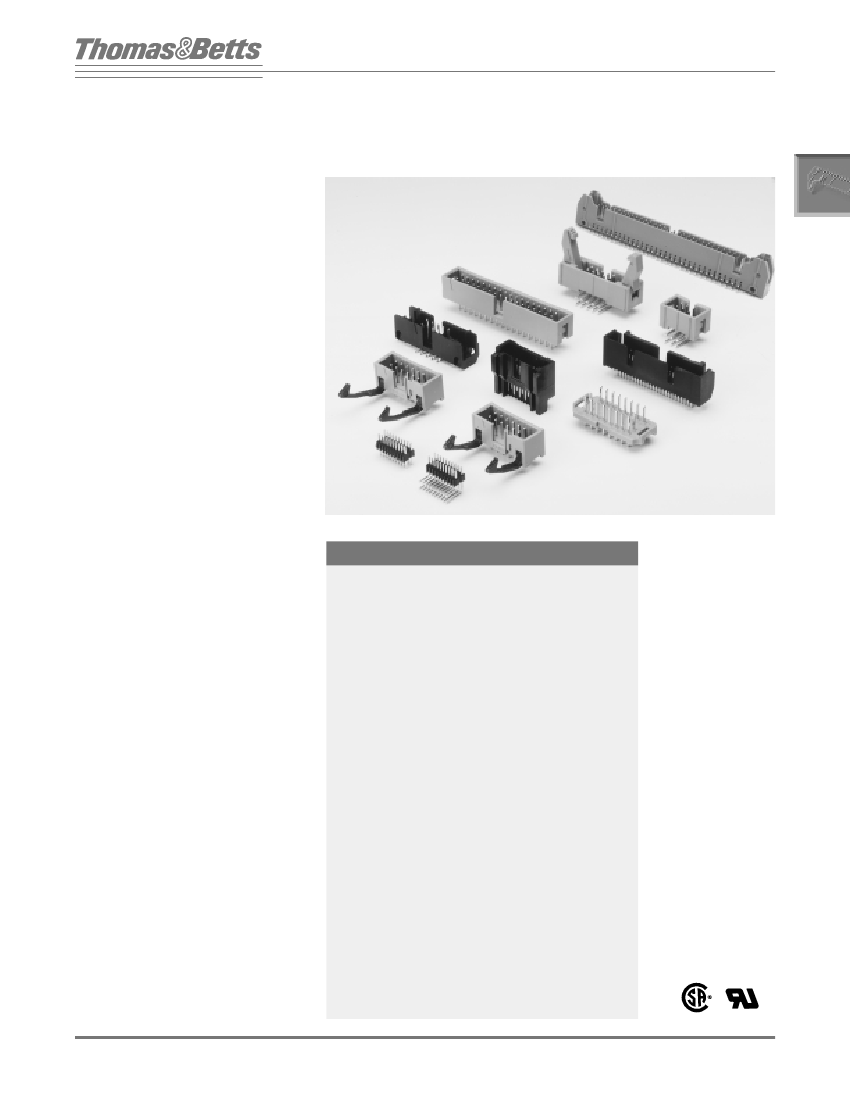

IDC Systems

Headers

RODUCT

ESCRIPTION

PCB Male Headers provide reliability,

convenience and positive polarization

when mated with Female Socket

Transition Connectors in PC board

applications which require repeated

connection and disconnection.

Optional retainer-ejector latches

easily disengage the header and

female socket, eliminating stress in

the cable termination and solder joint

areas during disconnect.

HEADERS

ESIGN

DVANTAGES

• Industry standard polarization

mates with center bump as well as

dual slot polarized female socket

connectors.

• Available in .050 x .100, .100 x

.100, .100 x .200 and .100 x .300

center spacing.

• Available in standard, low profile,

vertical eject, compliant pin and

surface mount configurations.

• Available in

materials.

high

temperature

HEADER INDEX

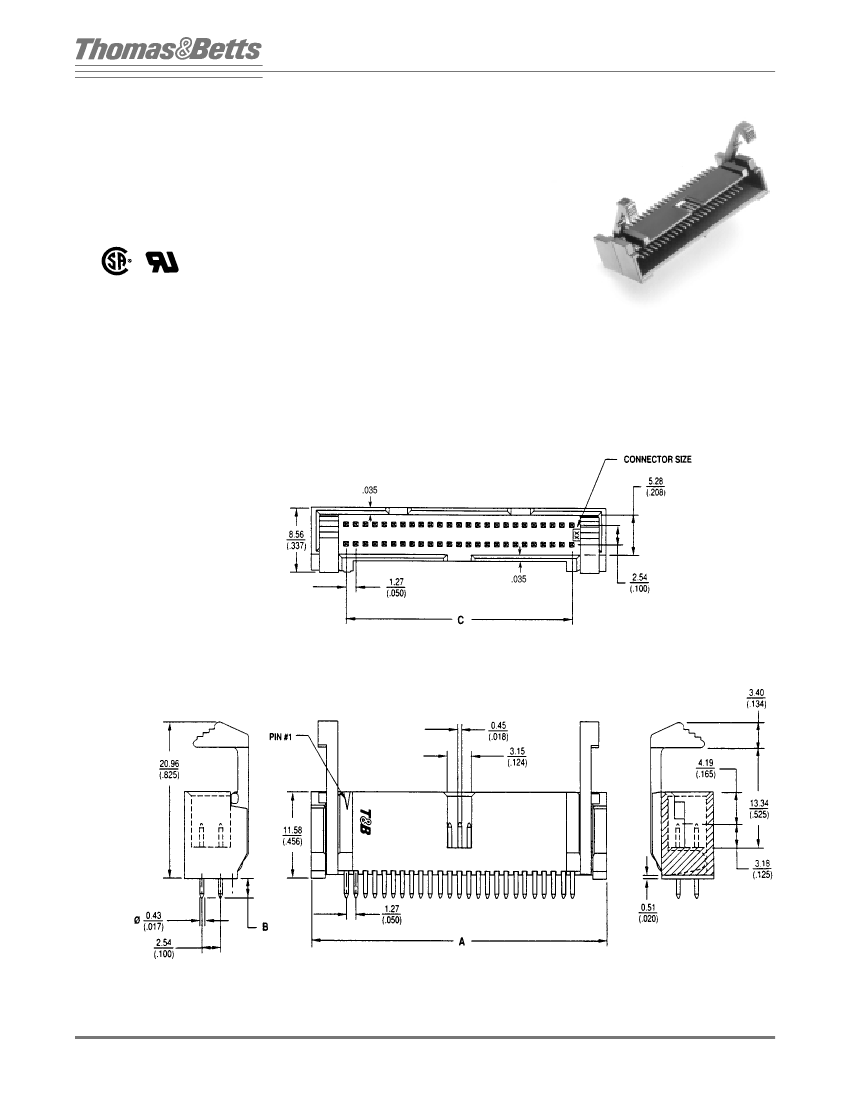

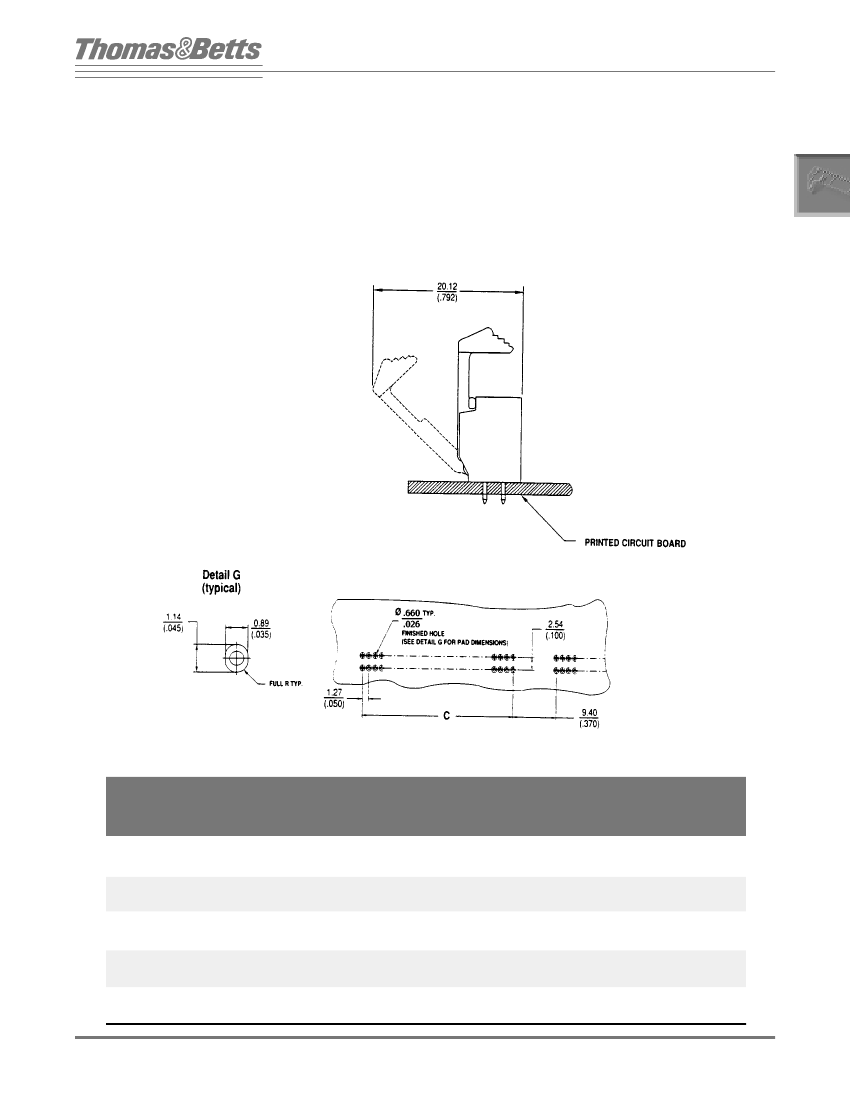

.050" x .100" 2-Row Straight Tail ............................................18

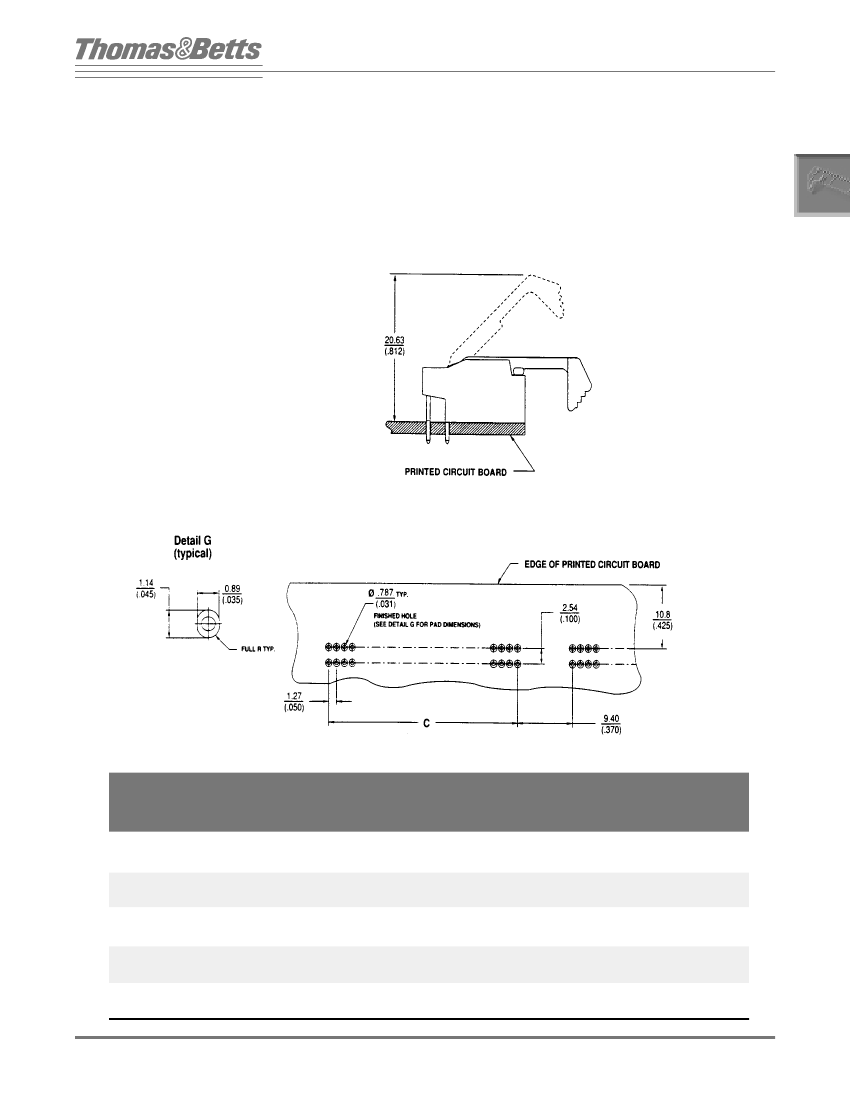

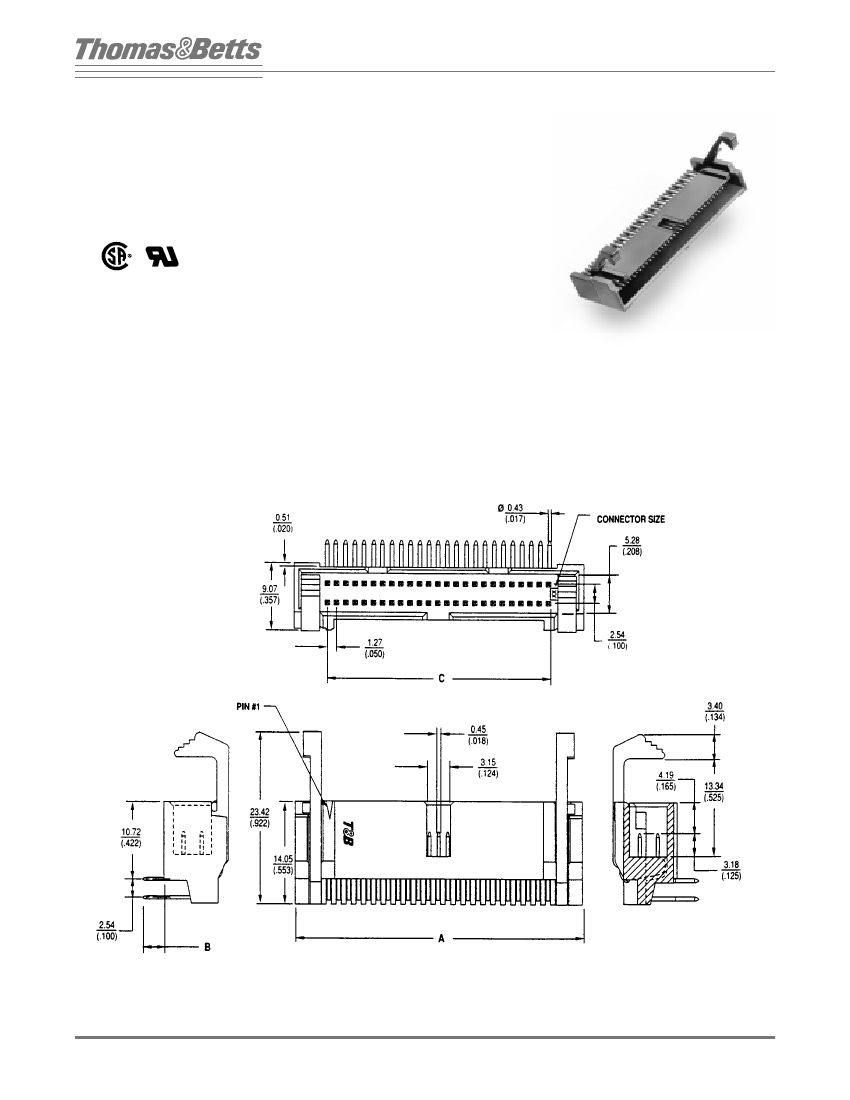

.050" x .100" 2-Row Right Angle Tails ....................................20

.050" x .100" 4-Row Right Angle Tails ....................................22

.050" x .100" 2-Row Unshrouded Header, Straight ................24

.050" x .100" 2-Row Unshrouded Header, Right Angle ..........25

.100" x .100" Straight Standard Header..................................26

.100" x .100" Right Angle Standard Header............................27

.100" x .100" High Temp. Straight Standard Header ..............28

.100" x .100" High Temp. Right Angle Standard Header ........29

.100" x .100" Low Profile Straight w/ejectors ........................30

.100" x .100" Low Profile Right Angle w/ejectors ..................31

.100" x .100" Low Profile Straight ..........................................32

.100" x .100" Low Profile Right Angle ....................................33

.100" x .100" Low Profile Straight, High Temp. ......................34

.100" x .100" Low Profile Right Angle, High Temp. ................35

.100" x .100" Low Profile Straight w/latches ..........................36

.100" x .100" Low Profile Right Angle w/latches ..................37

.100" x .100" Flex-Fit™ with Retainer/Ejector ........................38

.100" x .100" Flex-Fit™ Low Profile ......................................39

.100" x .100" Surface Mount ..................................................40

Pin Strip Headers, Single Row Straight ................................41

Pin Strip Headers, Single Row Right Angle ..........................42

Pin Strip Headers, Dual Row Straight ....................................43

Pin Strip Headers, Dual Row Right Angle ............................44

Dip Socket Headers, 14 and 16 Positions ............................45

Accessories..............................................................................46

LR92984

E60980

Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312
