Document 102-1
ChipInductors
–
1008CTSeries (2520)
The 0.055″ profile makes these parts ideal for low
clearance applications.
Inductance
2
(nH)
4.7 @ 50 MHz
8.2 @ 50 MHz
15 @ 50 MHz
20 @ 50 MHz
30 @ 50 MHz
40 @ 50 MHz
50 @ 50 MHz
60 @ 50 MHz
70 @ 50 MHz
80 @ 50 MHz
90 @ 50 MHz
100 @ 50 MHz
Percent
3
tolerance
20,10,5
20,10,5
20,10,5
20,10,5
20,10,5,2
20,10,5,2
10,5,2
10,5,2,1
10,5,2,1
10,5,2,1
10,5,2
10,5,2
Simple construction ensures high reliability and
stability. Much higher SRF than ferrite alternatives.
SRF min
5
(MHz)
7500
5000
3000
2400
2400
2000
1900
1800
1700
1400
1400
1000
DCR max
6
(Ohms)
0.15
0.22
0.22
0.33
0.38
0.43
0.48
0.52
0.55
0.56
0.61
0.63
Irms
max
7
(mA)
600
600
600
600
600
600
600
600
510
510
500
480
Part number
1
1008CT-040X _ B _
1008CT-080X _ B _
1008CT-150X _ B _
1008CT-200X _ B _
1008CT-300X _ B _
1008CT-400X _ B _
1008CT-500X _ B _
1008CT-600X _ B _
1008CT-700X _ B _
1008CT-800X _ B _
1008CT-900X _ B _
1008CT-101X _ B _
Q min
4
42 @ 500 MHz
50 @ 500 MHz
57 @ 500 MHz
72 @ 500 MHz
69 @ 500 MHz
67 @ 500 MHz
72 @ 500 MHz
75 @ 500 MHz
68 @ 500 MHz
75 @ 500 MHz
85 @ 500 MHz
60 @ 500 MHz
1. Specify
tolerance, termination,
and
packaging
codes:
1008CT-101XGBC
F
= 1%
G
= 2%
J
= 5%
K
= 10%
M
= 20%
(Table shows stock tolerances in bold.)
Termination: B
= Ag/Pd/Pt/Pb
L
= Lead free Ag/Pd/Pt
Packaging: C
= 7″ machine-ready reel. EIA-481 embossed plastic tape
(2000 per full reel).
B
= Less than full reel. On tape, but not machine-ready. To have a
leader and trailer added ($25 charge), use code letter C instead.
D
= 13″ machine-ready reel EIA RS-481 clear plastic tape.
Factory order only, not stocked (7500 per full reel).
Tolerance:
2. Inductance measured using Coilcraft SMD-A fixture in Agilent/HP 4286A
impedance analyzer with Coilcraft-provided correlation pieces. For
recommended test procedures, contact Coilcraft.
3. Tolerances in bold are stocked for immediate shipment.
4. Q measured using Agilent/HP 4291A with Agilent/HP 16193 test fixture
and on Agilent/HP 8753D with Coilcraft SMD-D test fixture.
5. SRF measured using Agilent/HP 8720D network analyzer and Coilcraft
SMD-D test fixture.
6. DCR measured on Cambridge Technology micro-ohmmeter and Coilcraft
CCF840 test fixture.
7. Average current for a 15°C rise above 25°C ambient.
8. Operating temperature range
−40°C
to +125°C.
9. Electrical specifications at 25°C.
See Qualification Standards section for environmental and test data.
For part marking data see Color Coding section.
Specifications subject to change without notice. Document 102-1 Revised 11/25/02
Document 102-2

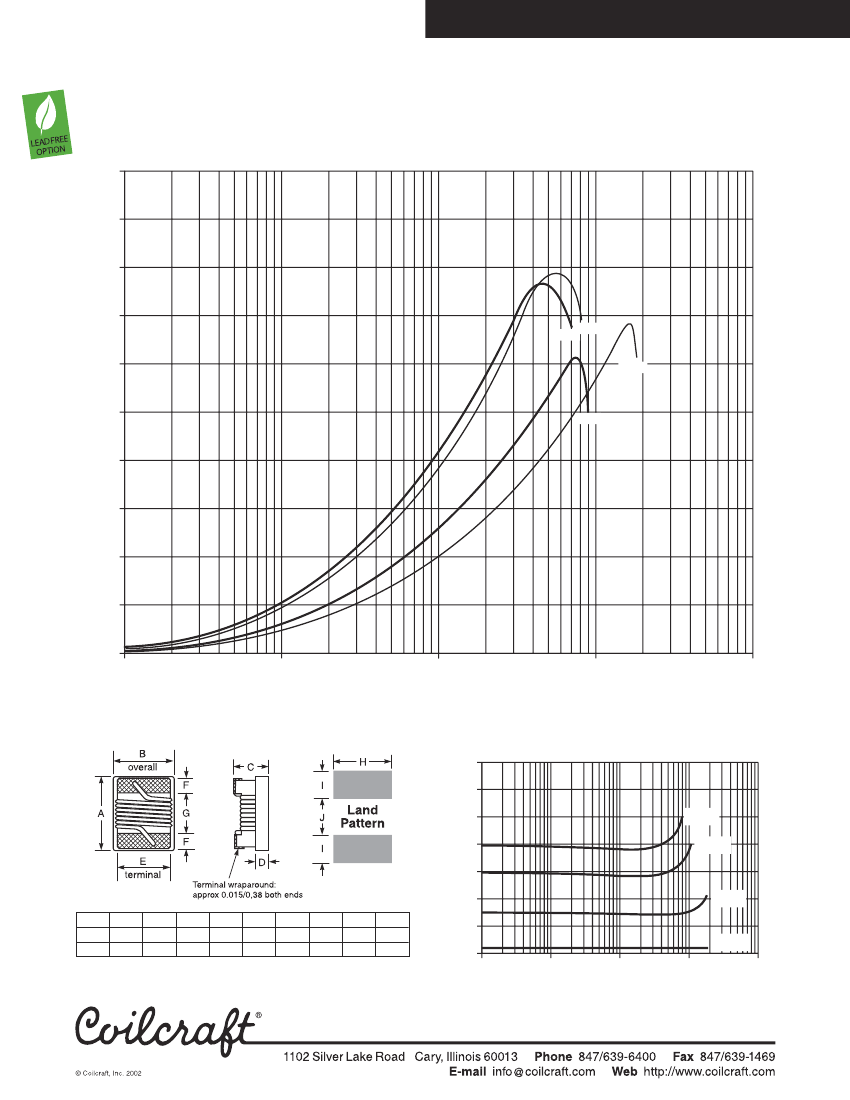

1008CT Series (2520)
Typical Q vs Frequency
100
S-Parameter files
ON OUR WEB SITE OR CD
ON OUR WEB SITE OR CD
SPICE models
90
80
70
80 nH
60 nH
60
4.7 nH
Q Factor
50
30 nH
40
30
20
10
0
1
10
100
1000
10000
Frequency (MHz)
Typical L vs Frequency
140
120
Inductance (nH)
100
80
60
40
80 nH
60 nH
30 nH
A max B max C max D ref
E
F
G
H
I
J
0.115 0.110 0.050 0.020 0.080 0.020 0.060 0.100 0.040 0.050
2,92 2,79 1,27 0,51 2,03 0,51 1,52 2,54 1,02 1,27
Parts/reel: 7″ 2,000; 13″ 7,500 Tape width: 8 mm
For packaging data see Tape and Reel Specifications section.
20
0
4.7 nH
1
10
100
1000
10000
Frequency (MHz)
Specifications subject to change without notice. Document 102-2 Revised 11/20/02
