3764-60,2,3,5,60T02TC datasheet, PDF

Datasheet> All Categories > The connector> The connector> 3764-60,2,3,5,60T02TC

3764-60,2,3,5,60T02TC: Description64 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT; CategoryThe connector The connector; File Size1MB，6 Pages; Manufacturer3M; Websitehttp://3M.com/esd

Download Datasheet Parametric View All

3764-60,2,3,5,60T02TC Overview

64 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT

3764-60,2,3,5,60T02TC Parametric

Parameter Name	Attribute value
Maker	3M
Reach Compliance Code	unknown
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN LEAD (100) OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	3000
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	64
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

™

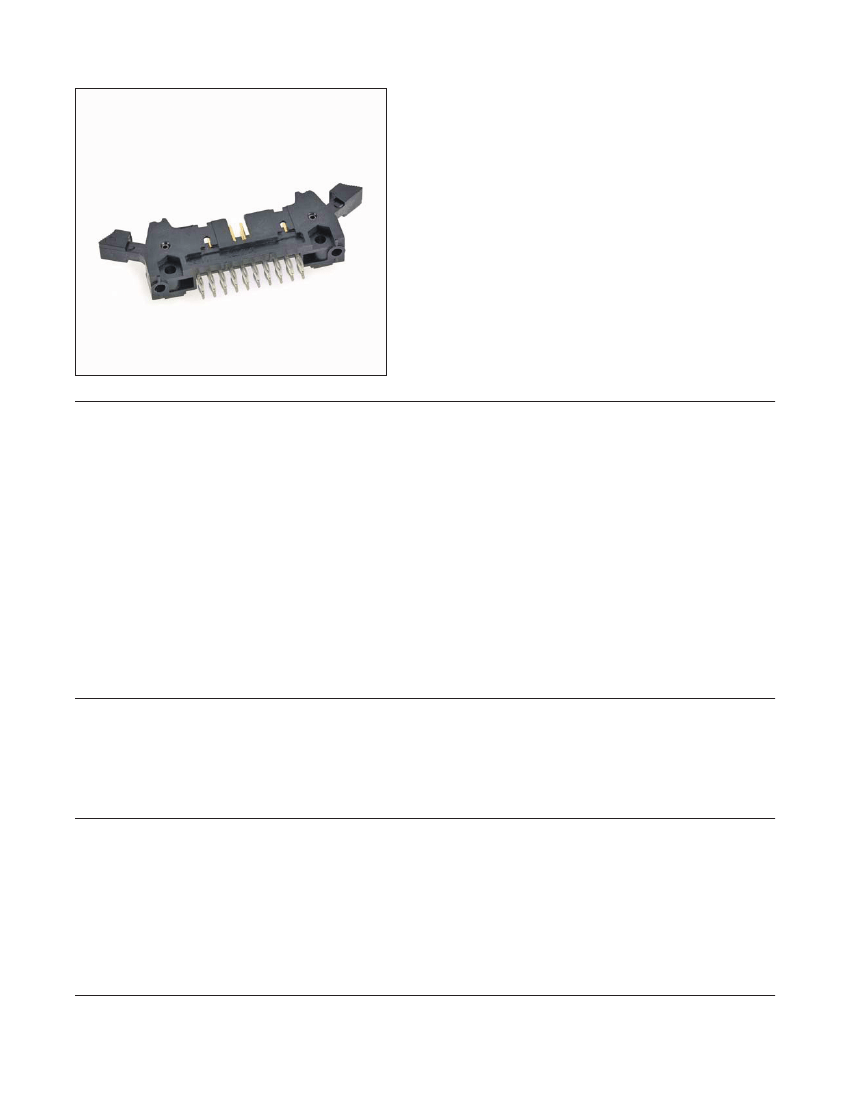

Four-Wall Header

.100” × .100” Latch/Ejector, Straight, Compliant Pin

3000 Series

•

Military (with 3M’s 3518 and N3518 polarizing key)

and centerbump polarization

•

Optional ejector latches

•

Optional polarizing posts

•

Mounting holes for securing header to board

•

Dependable eye-of-the needle pin design

•

Optional high-temperature insulator

•

See Regulatory Information Appendix (RIA) for

chemical compliance information

Date Modified: April 30, 2008

TS-0478-B

Sheet 1 of 3

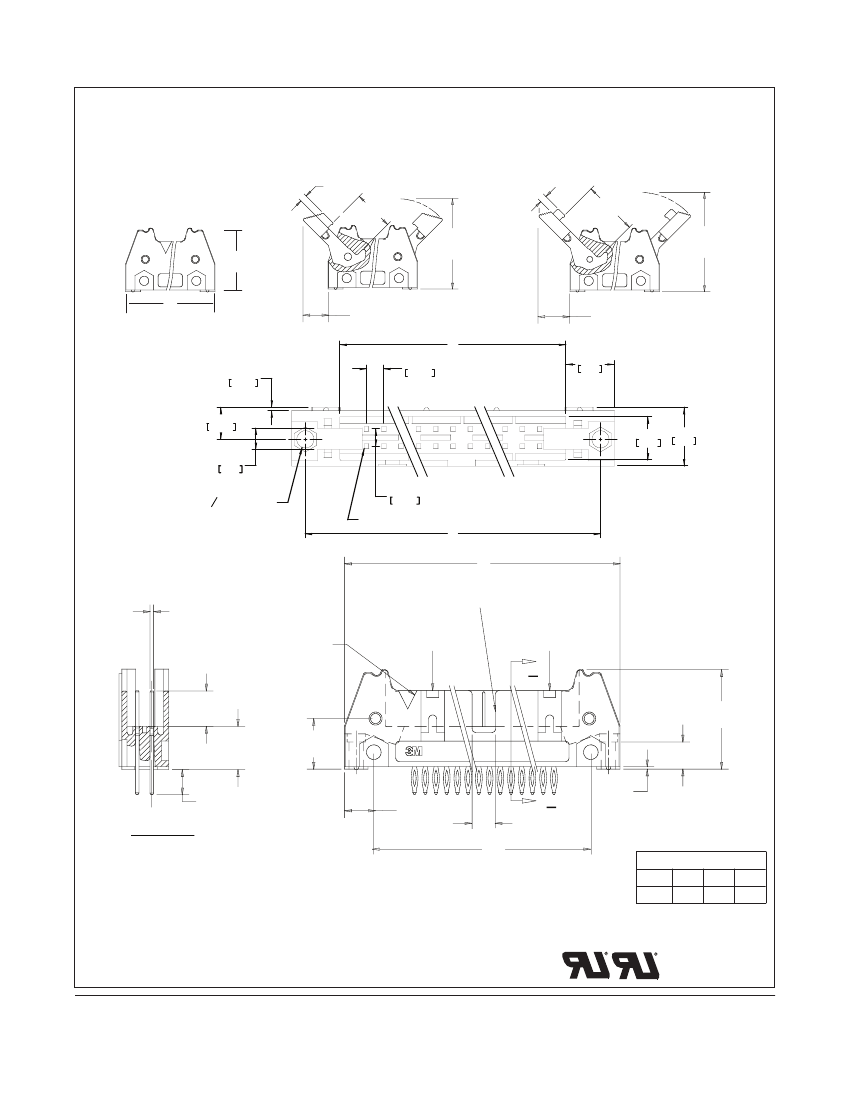

Physical

Insulation:

Material: Glass Filled Polyester (PBT) Glass Filled Polyester (PCT)

Flammability: UL 94V-0

Color: Gray (PBT), Black (PCT)

Contact:

Material: Copper Alloy

Plating:

Underplating: 100 μ” [ 2.54 μm ] Nickel

Wiping Area: 30 μ” [ 0.76 μm ] Gold

Solder Tails: 100 μ” [ 2.54 μm ] Tin Lead or 300u” [7.62 um] Matte Tin (See Ordering Information)

Marking:

3M Logo, Part Identification Number and Orientation Triangle

Electrical

Current Rating:

1 A

Insulation Resistance:

>1 × 10

at 500 V

Withstanding Voltage:

1,000 V

RMS

at Sea Level

Environmental

Temperature Rating:

-55°C to +105°C

UL File No.: E68080

Electronic Solutions Division

Interconnect Solutions

http://www.3M.com/interconnects/

3M is a trademark of 3M Company.

For technical, sales or ordering information call

800-225-5373

Regulatory Information Appendix

3M Electronic Solutions Division/Interconnect

EUROPE

Appendix E1: European Union RoHS

Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as

amended by EU Commission Decision 2005/618/EC.

This product is RoHS Compliant 2005/95/EC.

“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in excess of

the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC, unless

the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this information

represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.

In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and

Buyer’s exclusive remedy will be in accordance with the Warranty stated below.

Appendix E2: European Union RoHS

Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as

amended by EU Commission Decision 2005/618/EC.

This product contains lead in the compliant pin area in excess of the maximum concentration value allowed but is

compliant by exemption under EU Commission Decision 2005/747/EC.

“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in excess of

the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC, unless

the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this information

represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.

In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and

Buyer’s exclusive remedy will be in accordance with the Warranty stated below.

Appendix E3: European Union RoHS

Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment as

amended by Commission Decision 2005/618/EC.

This product contains lead in the solder tail area in excess of the maximum concentration value allowed.

Unless otherwise stated by 3M in writing, this information represents 3M’s best knowledge and belief based upon information

provided by third party suppliers to 3M.

In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and

Buyer’s exclusive remedy will be in accordance with the Warranty stated below.

Appendix E4: European Union RoHS

Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as

amended by EU Commission Decision 2005/618/EC.

This product contains decaBDE in the insulating material in excess of the maximum concentration value allowed but is

compliant by exemption under EU Commission Decision 2005/717/EC.

“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in excess of

the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC, unless

the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this information

represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.

In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and

Buyer’s exclusive remedy will be in accordance with the Warranty stated below.product Warranty stated below.

RIA-2217A-D

Appendix E5: European Union RoHS

Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment, as

amended by EU Commission Decision 2005/618/EC.

This product contains lead in excess of the maximum concentration value allowed but is compliant by exemption under

Item 6 of the Annex to the Directive.

“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in excess of

the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC, unless

the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this information

represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.

In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and

Buyer’s exclusive remedy will be in accordance with the Warranty stated below.

CHINA

Appendix C1: China RoHS

Electronic Industry Standard of the People’s Republic of China, SJ/T11363-2006, Requirements for Concentration Limits for

Certain Hazardous Substances in Electronic Information Products.

This symbol, per Marking for the Control of Pollution Caused by Electronic Information Products, SJ/T11364-2006, means

that the product or part

does not

contain any of the following substances in excess of the following maximum concentration

values in any homogeneous material: (a) 0.1% (by weight) for lead, mercury, hexavalent chromium, polybrominated biphenyls

or polybrominated diphenyl ethers; or (b) 0.01% (by weight) for cadmium. Unless otherwise stated by 3M in writing, this

information represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.

In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and

Buyer’s exclusive remedy will be in accordance with the Warranty stated below.

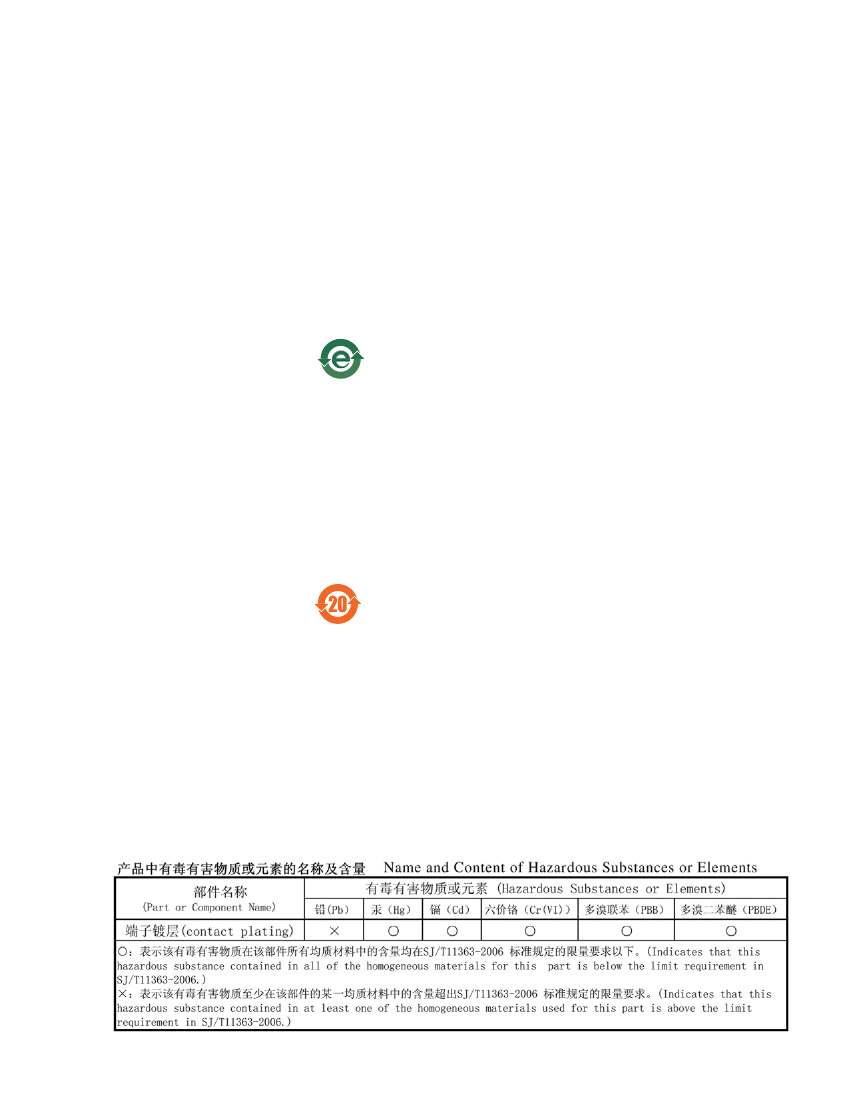

Appendix C2: China RoHS

Electronic Industry Standard of the People’s Republic of China, SJ/T11363-2006, Requirements for Concentration Limits for

Certain Hazardous Substances in Electronic Information Products.

This symbol, per Marking for the Control of Pollution Caused by Electronic Information Products, SJ/T11364-2006, means that

the product or part

does

contain a substance, as detailed in the chart below, in excess of the following maximum concentration

values in any homogeneous material: (a) 0.1% (by weight) for lead, mercury, hexavalent chromium, polybrominated biphenyls

or polybrominated diphenyl ethers; or (b) 0.01% (by weight) for cadmium. Unless otherwise stated by 3M in writing, this

information represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.

The numerical reference in the symbol above should not be construed as a representation regarding the product’s life or an

extension of a product warranty. The product warranty is stated below. In the event any product is proven not to conform with

3M’s Regulatory Information Appendix, then 3M’s entire liability and Buyer’s exclusive remedy will be in accordance with the

product Warranty stated below.

RIA-2217A-D
