85083-0020 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 85083-0020

85083-0020: DescriptionWire Terminal,; CategoryThe connector The connector; File Size3MB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

85083-0020 Overview

Wire Terminal,

85083-0020 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Body/casing type	PLUG
Connector type	COMBINATION LINE CONNECTOR
Contact point gender	MALE
empty shell	NO
Filter function	NO
maximum insertion force	200 N
Plug information	85084-0020
Mixed contacts	NO
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
Total number of contacts	20
Base Number Matches	1

Preview

Download Datasheet

View All

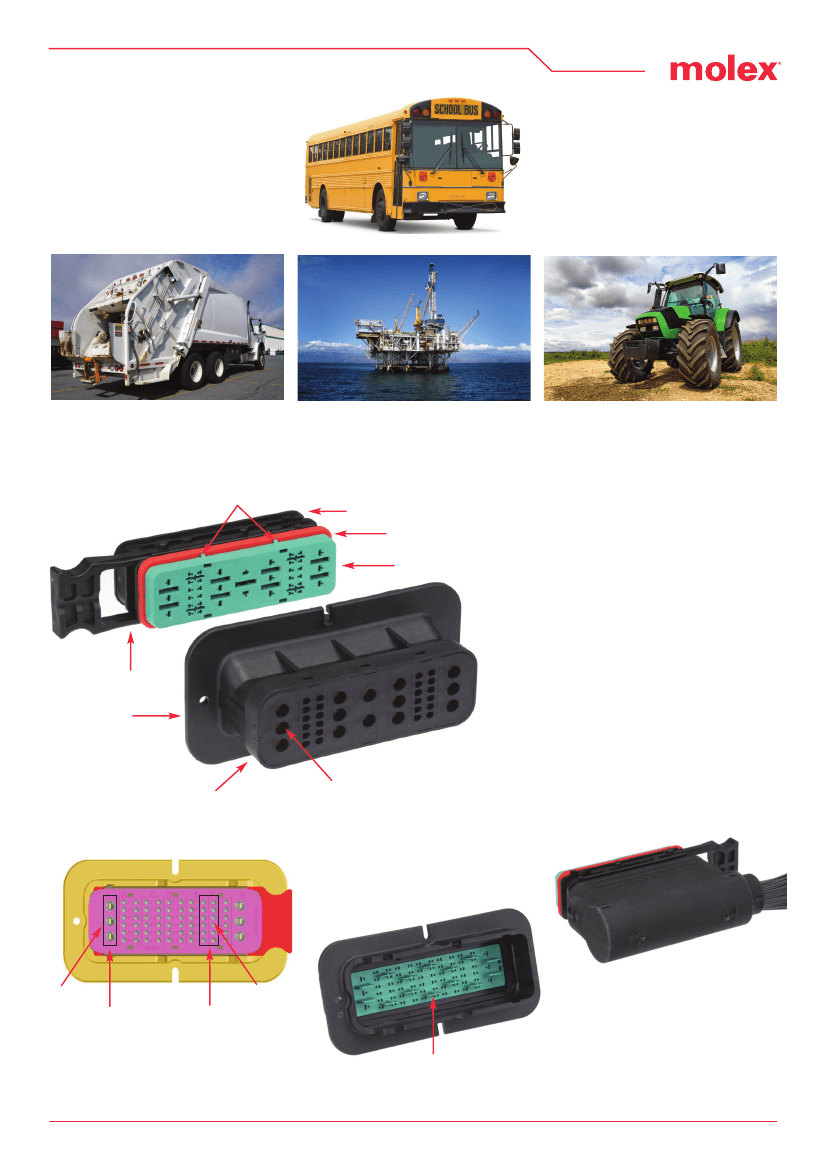

New generation 84 way Sealed Rectangular Connectors, with single-handed blind

mate functionality, use proven MX150

™

and MX150L

™

terminals to offer a hy-

brid, high power-and-signal circuit-count system for harsh

applications in commercial vehicles

Commercial vehicle applications, especially agricultural machinery, are becoming more

intelligent with increased wiring requirements and demands for hybrid technology. The new

generation SRC family offers a rugged, sealed, wire-to-panel (bulkhead) and wire-to-wire

hybrid connection system designed for high circuit-count applications in harsh environments.

The primary location for this system is as the firewall connector, situated between the cab

and the engine, but SRC can also replace existing circular connectors in various in-vehicle

applications.

The SRC system uses proven MX150

™

terminals with current ratings up to 18A and

MX150L

™

terminals with current ratings up to 40A. Flexible standard or mixed power

/signal options are available. The MX150 and MX150L terminal systems provide cost

savings by eliminating the need to purchase, handle and crimp individual wire seals. This

proven terminal technology provides flexibility to increase circuit-count and allows for simple

field repair and replacement of headers and connectors.

Optional flange seal and dust cover are available. Tooling options include fine-adjust crimp

press applicators for high-volume production and hand tools for low volume production and

field repairs. For additional information visit: www.molex.com/link/src.html

SRC – Sealed Rectangular

Connectors

93287

93288

85083

85084

84-Circuit Header

84-Circuit Connector

Power & Signal Header

Power & Signal Connector

MX150

™

Terminals

Female (Left) Male (Right)

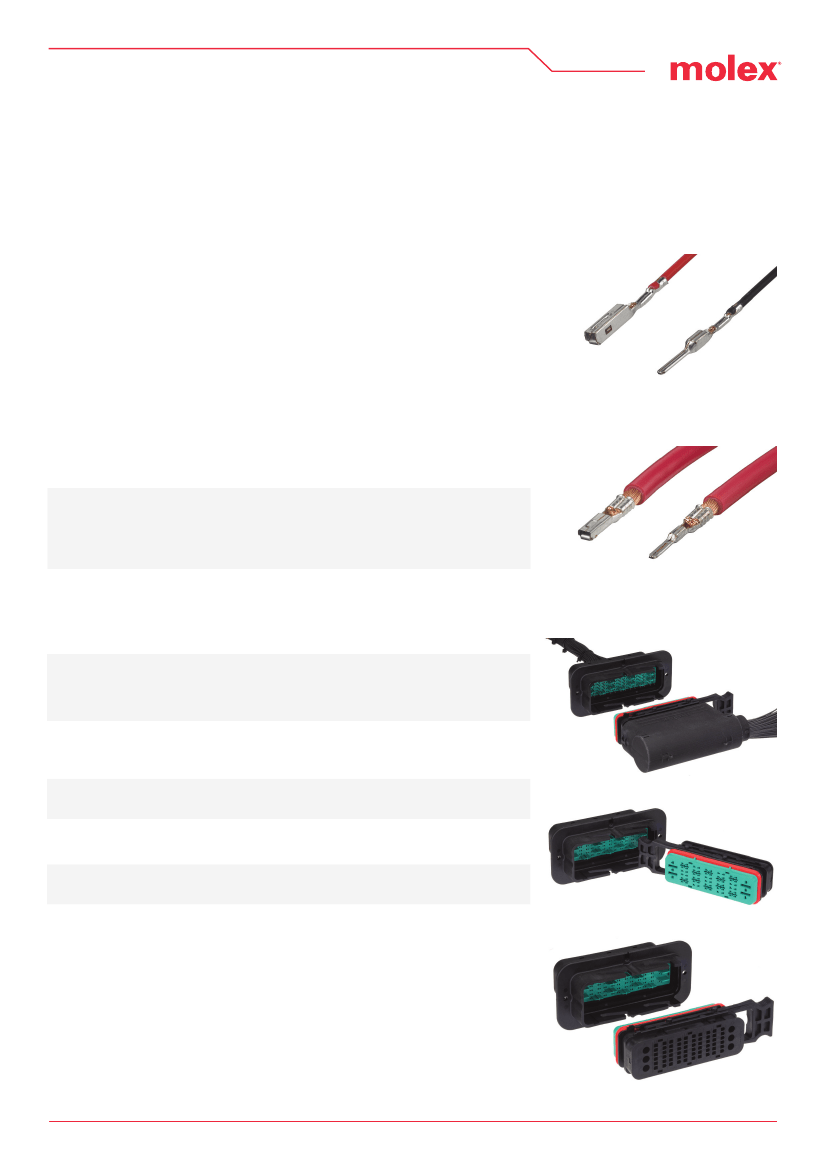

FEATURES AND BENEFITS

• Pre-assembled connector housing, seals,

rear cover and TPA ship in one-piece

• Simple crimp, poke and plug application

using standard MX150

™

and MX150L

™

terminals; no need to crimp individual wire

seals

• Sliding latch with cam action

• Easier, quicker assembly processes resulting

in applied labour and cost savings

• Flexible system; easily increase circuit count

using existing connectors

• Quick, low cost field repairs using common

screw driver, needle nose pliers and terminal

extraction tool

• Single handed mating and locking action, no

screw action or tools required for mating

assembly

• Latch does not interfere with wire

harness

• Assures that crimped terminal leads are

properly locked into connector

• Prevents terminals from being damaged

during mating operation

• Passes IP69K testing; suitable for

applications in harsh environments

• Seal is securely retained in two directions

• Protects and provides strain relief to wire-

seal interface

• Suitable for harsh applications in high-

vibration environments

• Surpasses performance of most other

competitive products in the market

• Provides flexibility; sealing unused circuits

without adding complexity to part numbers

and customer inventory

MX150L

™

Terminals

Female (Left) Male (Right)

• Integral Terminal Position Assurance (TPA)

with new anti-scooping feature

• Integral, two-way matte and interface seal

with improved retention features

• Protective rear cover

• Connector system retention greater than

200N

• Superior electrical and mechanical

performance capabilities

• Unused circuits can be blocked using plastic

seal plugs
