MIT200 Series
Digital/Analog Insulation and Continuity Testers
MIT200 Series
Digital/Analog Insulation and Continuity
Testers
I
I
Insulation testing to 1000 MΩ
Continuity testing at 200 mA down to
0.01
Ω
Live circuit warning (voltage display) and
test inhibit
Digital/Analog display
Alkaline or rechargeable batteries
–10ºC to +55ºC operating temperature
CATIII 600 V
Conforms to EN61557-1
I
I
I
I
I
I
DESCRIPTION

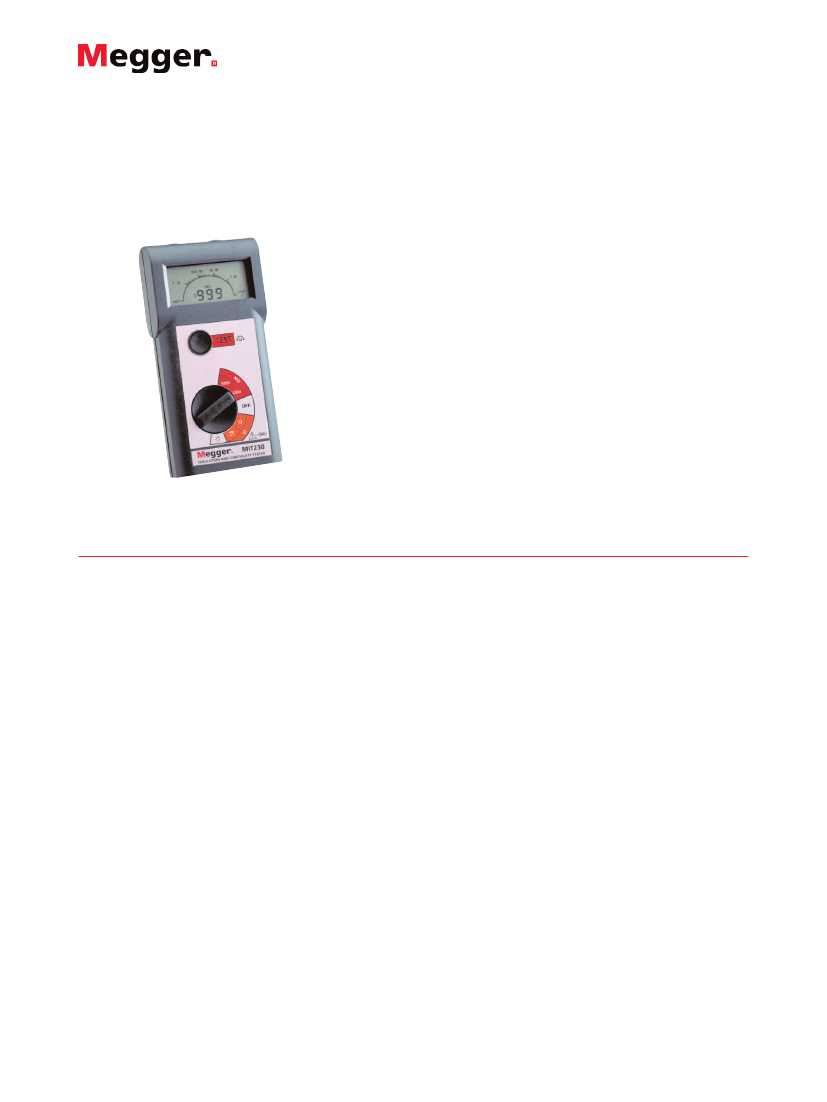

The MIT200 is one of the smallest insulation testers available
on the market today. With options of one, two and three
voltage test voltage instruments, the MIT200 instruments
offer a range of safety and operation features.
The display offers a combination of digital readout and
analog display, using Megger’s patented DART display
technology, which includes the benefits of an LCD display,
such as robust, clear and accurate measurement, with an
analog pointer response for evaluating circuit charge and
discharge characteristics.
The instrument housing is in tough ABS, designed to with-
stand the rigours of hard use, and is small enough to drop
into your pocket when not in use.
Battery requirements are 6 AA batteries of either standard
alkaline or nickel metal hydride (NiMH) rechargeable type. A
low battery warning indicator gives advanced warning of
exhausted batteries.
Lead null is possible up to 9.99
Ω
of test lead resistance,
ensuring the ability to null fused test leads as well as |
standard leads.
Continuity buzzer
A continuity buzzer provides a means of rapid cable testing
and circuit identification, with voltage protection should you
accidentally touch a live circuit.
The buzzer operates at a 2
Ω
threshold.
Insulation testing
The instruments offer four configurations as detailed on
page 2, providing an ideal solution to most low voltage
insulation testing applications.
Insulation testing is possible up to 1000 MΩ on all ranges.
Auto discharge ensures all circuits are safely discharged after
testing.
Continuity testing
Automatic continuity testing is performed at 200 mA to
ensure compliance with international requirements. There is
no need to press the test button.
All instruments will measure up to 100
Ω
on continuity, of
which 0-10
Ω
is performed at greater than 200 mA to meet
international electrical testing requirements.
1000 V insulation test ranges have a high voltage warning
prior to test voltage being applied.
MIT200 Series
Digital/Analog Insulation and Continuity Testers
FEATURES AND BENEFITS SUMMARY
I
Meets the international EN61557 requirements of the
rated test voltage into a 1 mA load.
I
MIT200 OPTIONS
MIT200
MIT210
MIT220
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
Digital display of insulation measurement up to
1000 MΩ on a logarithmic analogue arc and a digital
display.
Continuity range has 0,01
Ω
resolution and a short circuit
current in excess of 200 mA.
Automatic continuity testing leaves both hands free. No
need to press the test button.
Automatic power-off if left unattended reduced wasted
battery life.
Automatic voltage detection avoids accidental contact
with live circuits.
Test lead zero allows compensation for test lead
resistance.
Buzzer range operates at <2
Ω.
Insulation testing
250 V
500 V
1000 V
1000 MΩ range
Auto-ranging
Auto discharge
Test inhibit
Live circuit voltage display
Continuity testing
Continuity @
>200 mA
Continuity to 0.01
Ω
Test lead null (9.99
Ω)
Automatic continuity test
Continuity buzzer with 2
Ω
threshold
Default volts warning
General
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
Safety
Every Megger instrument is designed with safety as its
primary objective. All instruments meet or exceed the
requirements of safety directive IEC 61010 and EN61557 for
insulation and continuity testing..
Default fault meter
A built-in voltmeter automatically switches in when the
instrument is connected to a circuit with an AC or DC
voltage greater than 25 V
.
Insulation Test inhibit
Circuits in excess of 25 V will generate a voltage warning.
Circuits over 50 V will inhibit testing of the insulation,
protecting the operator and the instrument from injury or
damage.
600V CATIII
The MIT200 series has been designed for use on
applications up to 600 V CATIII.
I
I
I
I
Digital display + arc
Battery condition
Auto power down
Tough carry case
Test leads
CATIII 600 V
Environmental
I
I
I
I
I
I
I
I
I
I
I
I
APPLICATIONS
The MIT200 series will find applications in electrical
contracting, both on domestic and industrial systems, as
well as site maintenance and service departments.
The MIT200 series of insulation and continuity testers are
ideal for testing transformers, motors, generators
switchgear, panel building, domestic appliances, power
tools etc., as well as fixed electrical wiring systems.
Their small size and light weight make them ideal for those
engineers that need to carry them for extended periods.
All instruments meet the requirements of most
International Standards including VDE0413 Part 1 and
BS7671 (the 16th Edition of the IEE Wiring Regulations).
Operation temperature
Storage temperature
IP rating
-10ºC to +55ºC
-20ºC to +65ºC
IP40
MIT230
I
I
I
I
I
I
I
I
MIT200 Series
Digital/Analog Insulation and Continuity Testers
SPECIFICATIONS
Insulation ranges
Nominal test voltage:
1000 V 500 V 250 V (d.c.)
,
,
Measuring range
10 kΩ - 1000 MΩ on all ranges
Terminal voltage on open circuit (d.c.):
-0% +25% of rated voltage
Short circuit current:
205 mA +10 mA –5 mA
Test current on load:
>1 mA at minimum pass values of insulation as specified in
BS7671, HD384, IEC364 and VDE0413 part 1
Accuracy (at 20° C)
MIT200, 210, 220, 230:
±3% of reading ±2 digits up to 10 MΩ
±5% of reading ±2 digits up to 100 MΩ
±30% of reading up to 1000 MΩ
Terminal characteristics
Default voltmeter
MIT200, 210, 220,230:
>25 V ac or dc. is applied display will operate as a voltmeter.
Test inhibit
If more than 50 volts is detected, testing will be inhibited.
Range:
25 V to 600 V @ 50/60 Hz & dc
Accuracy:
25 V to 450 V ac/dc ±1% ±1 digit
450 V to 600 V ac ±2% ±1 digit
Auto power down
Auto power down operates after 10 minutes if left in standby mode.
Temperature and humidity
Operating range:
-10°C to +55°C (14°F to 130°F)
Operating humidity:
93% R.H. at +40°C max. (93% R.H. at 104°F)
Storage range:
-25°C to +65°C (-13°F to 150°F)
Environmental protection:
IP40
Fuses
Terminals:
500 mA (F) 600 V 32 x 6 mm Ceramic HBC 50 kA minimum.
,
Continuity ranges
Measuring range:
0,01Ω - 100,0
Ω
(0 -50
Ω
on analogue scale)
Open circuit voltage:
5V±1V
Short circuit current:
205 mA, ± 5 mA (0-10
Ω)
>20 mA (0 - 100
Ω) Ω
Accuracy (at 20° C)
MIT200, 210, 220, 230:
±0,01
Ω
to 9,99
Ω
±3% ±2 digits
10,0
Ω
to 99,9
Ω
±5% ±2 digits
Zero offset adjust:
MIT200, 210, 220, 230:
0 to 9,99
Ω
Continuity buzzer
MIT200, 210, 220, 230:
Operates at <2
Ω
Display shows if fuse is ruptured.
Safety
Meets the requirements of EN61010-1 Cat III 600V phase to earth.
Automatic discharge
After an insulation test the item under test will be discharged
automatically. Any voltage present will be indicated on the display
so that the discharge can be monitored.
Power supply
Battery 6 x 1,5 V cells IEC LR6 type(AA alkaline).
Rechargeable NiMH cells may be used.
Battery condition is constantly shown on the display as a four-
section bar-graph.
Battery life
3000 consecutive tests (5 seconds per test) on any test using 2Ah
batteries.
Weight
All units:
Dimensions
All units:
550gms approx. (1.2lbs)
195 x 98 x 40mm (7.7 x 3.9 x 1.6 inches)
E.M.C
In accordance with IEC61326-1
MIT200 Series
Digital/Analog Insulation and Continuity Testers
ORDERING INFORMATION
Item (Qty)
Order No.
250 V/500 V Insulation and continuity tester
MIT220-EN
250 V/500 V/1000 V Insulation and continuity tester
MIT230-EN
Non UK instruments
500 V Insulation and continuity tester
1000 V Insulation and continuity tester

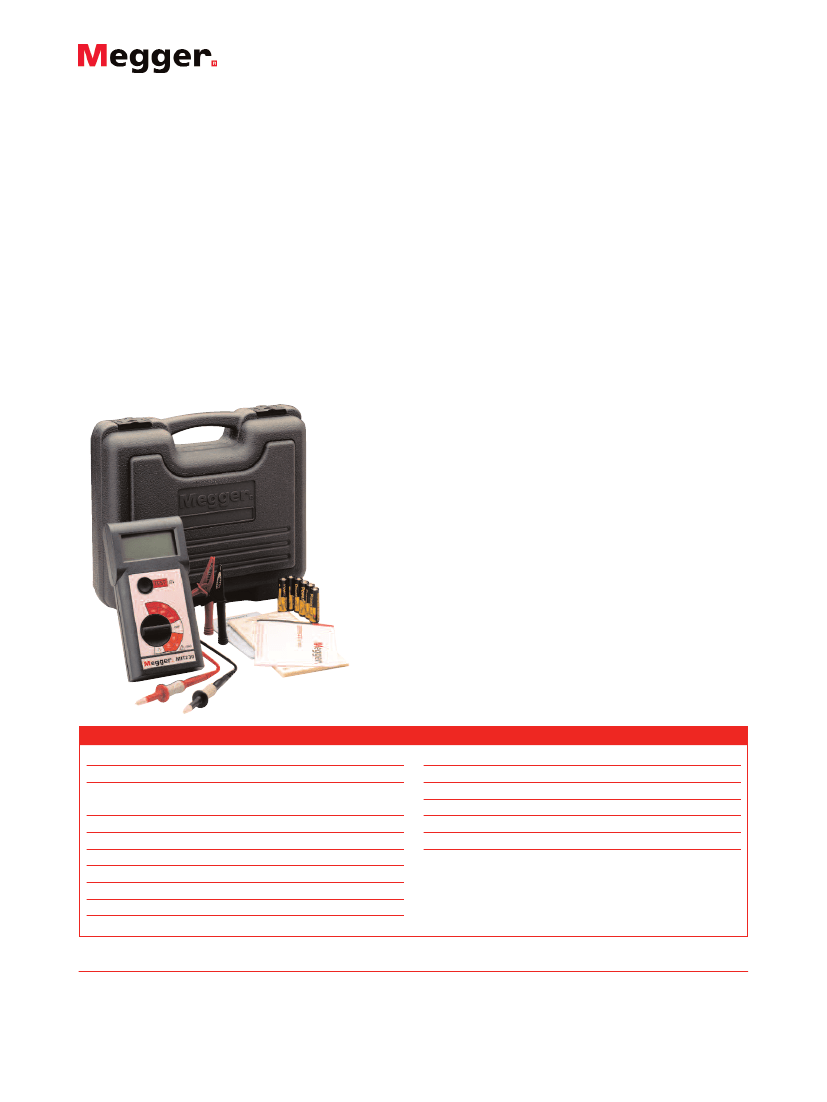

Included accessories
Lead set with prods and clips
Carry case
6220-779
5410-419
MIT200-EN
MIT210-EN
Item (Qty)
Optional accessories
Replacement lead set
Fused lead set
Removable protective holster
Carry pouch
Order No.
6220-779
6220-789
5410-346
6220-773
UK
Archcliffe Road Dover
CT17 9EN England
T +44 (0) 1304 502101
F +44 (0) 1304 207342
UNITED STATES
4271 Bronze Way
Dallas TX 75237-1088 USA
T 800 723 2861 (USA only)
T +1 214 333 3201
F +1 214 331 7399
OTHER TECHNICAL SALES OFFICES
Norristown USA, Sydney AUSTRALIA,
Toronto CANADA, Trappes FRANCE,
Kingdom of BAHRAIN, Mumbai INDIA,
Johannesburg SOUTH AFRICA and
Conjure THAILAND.
Registered to ISO 9001:2000 Cert. no. Q 09290
Registered to ISO 14001-1996 Cert. no. EMS 61597
MIT200_DS_us_V06
www.megger.com
Megger is a registered trademark
