552-0500 RED datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Topical application> Test and measurement> 552-0500 RED

Preview

552-0500 RED: Descriptiontest plugs & test jacks insulated red; CategoryTopical application Test and measurement; File Size200KB，1 Pages; ManufacturerDeltron; Environmental Compliance

Download Datasheet Compare View All

552-0500 RED Overview

test plugs & test jacks insulated red

Preview

Download Datasheet

View All

1

2

3

4

5

6

7

A

B

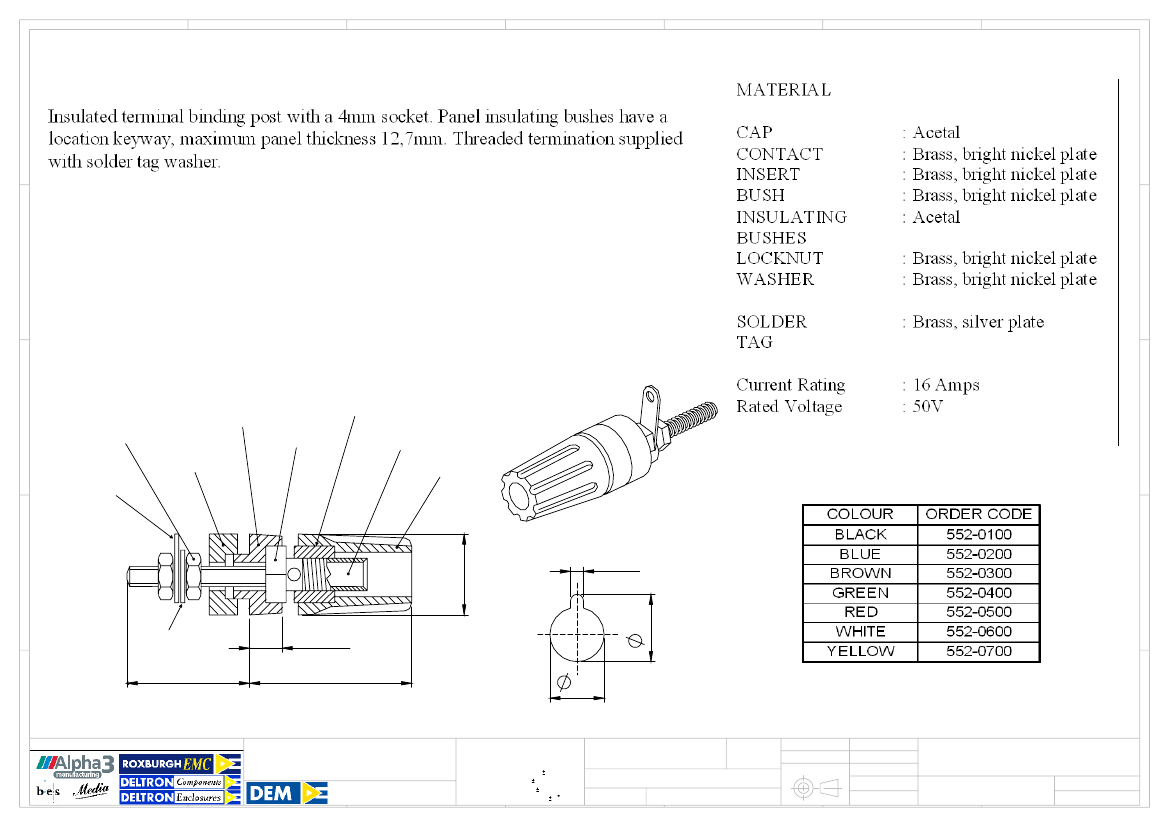

Dimensions

C

INSULATING

LOCKNUT

BUSH

4 BA

BUSH

INSULATING

BUSH

SOLDER

TAG

INSERT

CONTACT

CAP

C

D

12.7

1.6

8.3

D

WASHER

5.08

24.5min/30.9 max

6.7

22

E

Tel No. +44(0)1724 273200 Website www.dem-uk.com

PANEL CUT-OUT

PROPRIETARY AND CONFIDENTIAL

THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF

ALPHA 3 MANUFACTURING.

ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF

ALPHA 3 MANUFACTURING

IS PROHIBITED.

DEM Manufacturing, Deltron Emcon House

Hargreaves Way, Sawcliffe Ind. Park,

Scunthorpe, North Lincolnshire, DN15 8RF, UK

E

DEBURR AND BREAK

SHARP EDGES

UNLESS OTHERWISE SPECIFIED:

DIMENSIONS ARE IN MILLIMETRES

LINEAR TOLERANCE:

NO DECIMAL PLACES 0.5mm

1 DECIMAL PLACE 0.25mm

2 DECIMAL PLACES 0.125mm

ANGULAR TOLERANCE: 1

FINISH

INSULATED TERMINAL

-

IF IN DOUBT ASK

DO NOT SCALE DRAWING

DRAWN BY

APPROVED BY

THIRD ANGLE PROJECTION

SPB

WC

SHEET 1 OF 1

SCALE 1:1

TITLE

DRAWING NO.

GENERAL SPECIFICATION

FOR

552 SERIES

ISSUE

MATERIAL

SEE NOTE

A4

552 SERIES

Release

05

552-0500 RED Related Products

	552-0500 RED	552-0100 BLK	552-0600 WHT	552-0200 BLU	552-0700 YEL
Description	test plugs & test jacks insulated red	test plugs & test jacks insulated black	test plugs & test jacks insulated white	test plugs & test jacks insulated blue	test plugs & test jacks insulated yellow
Manufacture	-	Del	Del	Del	Del
Product Category	-	Test Plugs & Test Jacks	Test Plugs & Test Jacks	Test Plugs & Test Jacks	Test Plugs & Test Jacks
RoHS	-	Yes	Yes	Yes	Yes
Equipment Type	-	Binding Posts	Binding Posts	Binding Posts	Binding Posts
Type	-	Terminals	Terminals	Terminals	Terminals
Col	-	Black	White	Blue	Yellow
Current Rating	-	16 A	16 A	16 A	16 A
Contact Plating	-	Nickel	Nickel	Nickel	Nickel
Contact Material	-	Brass	Brass	Brass	Brass
Insulati	-	Insulated	Insulated	Insulated	Insulated
Insulation Material	-	Acetal	Acetal	Acetal	Acetal
Length	-	52.99 mm	52.99 mm	52.99 mm	52.99 mm
Factory Pack Quantity	-	100	100	100	100
Voltage Rating	-	50 V	50 V	50 V	50 V
