IRF9641 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> IRF9641

IRF9641: Description11A, 150V, 0.5ohm, P-CHANNEL, Si, POWER, MOSFET, TO-220AB; CategoryDiscrete semiconductor The transistor; File Size162KB，7 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

IRF9641 Overview

11A, 150V, 0.5ohm, P-CHANNEL, Si, POWER, MOSFET, TO-220AB

IRF9641 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation
Reach Compliance Code	not_compliant
ECCN code	EAR99
Avalanche Energy Efficiency Rating (Eas)	790 mJ
Shell connection	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	150 V
Maximum drain current (Abs) (ID)	11 A
Maximum drain current (ID)	11 A
Maximum drain-source on-resistance	0.5 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	P-CHANNEL
Maximum power consumption environment	125 W
Maximum power dissipation(Abs)	125 W
Maximum pulsed drain current (IDM)	44 A
Certification status	Not Qualified
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON
Maximum off time (toff)	134 ns
Maximum opening time (tons)	90 ns
Base Number Matches	1

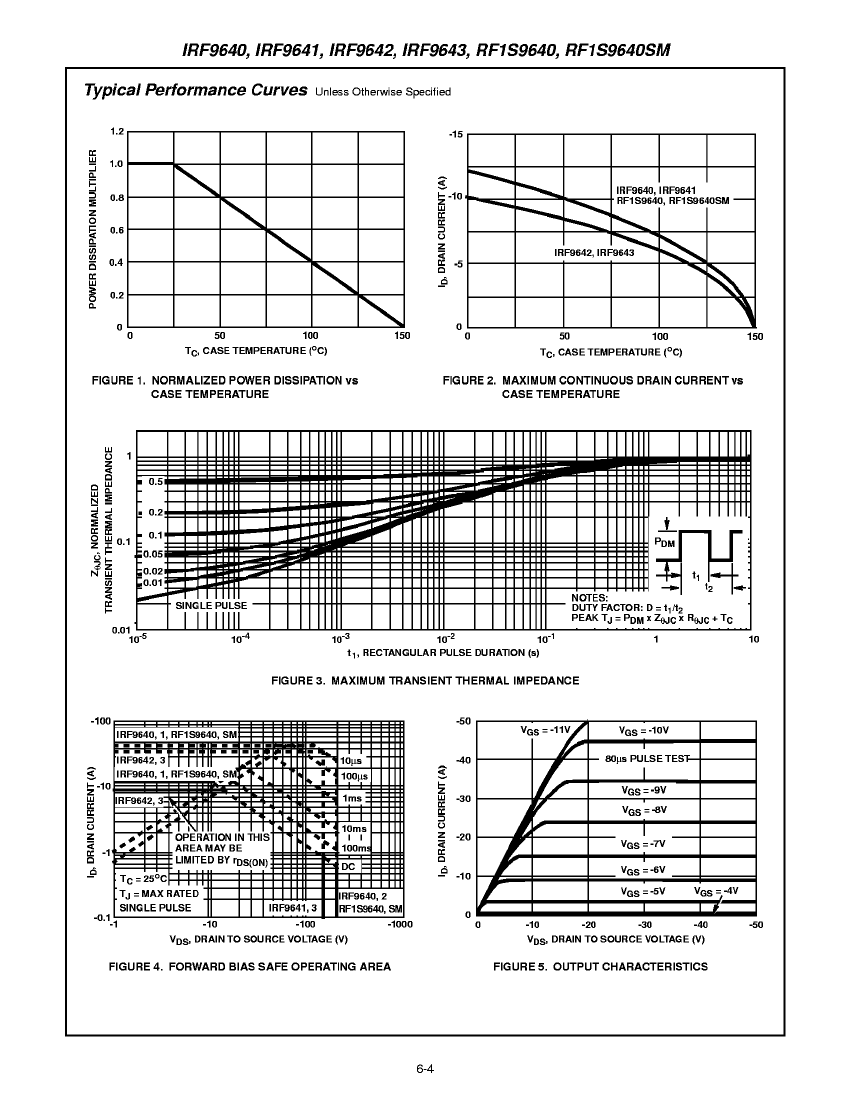

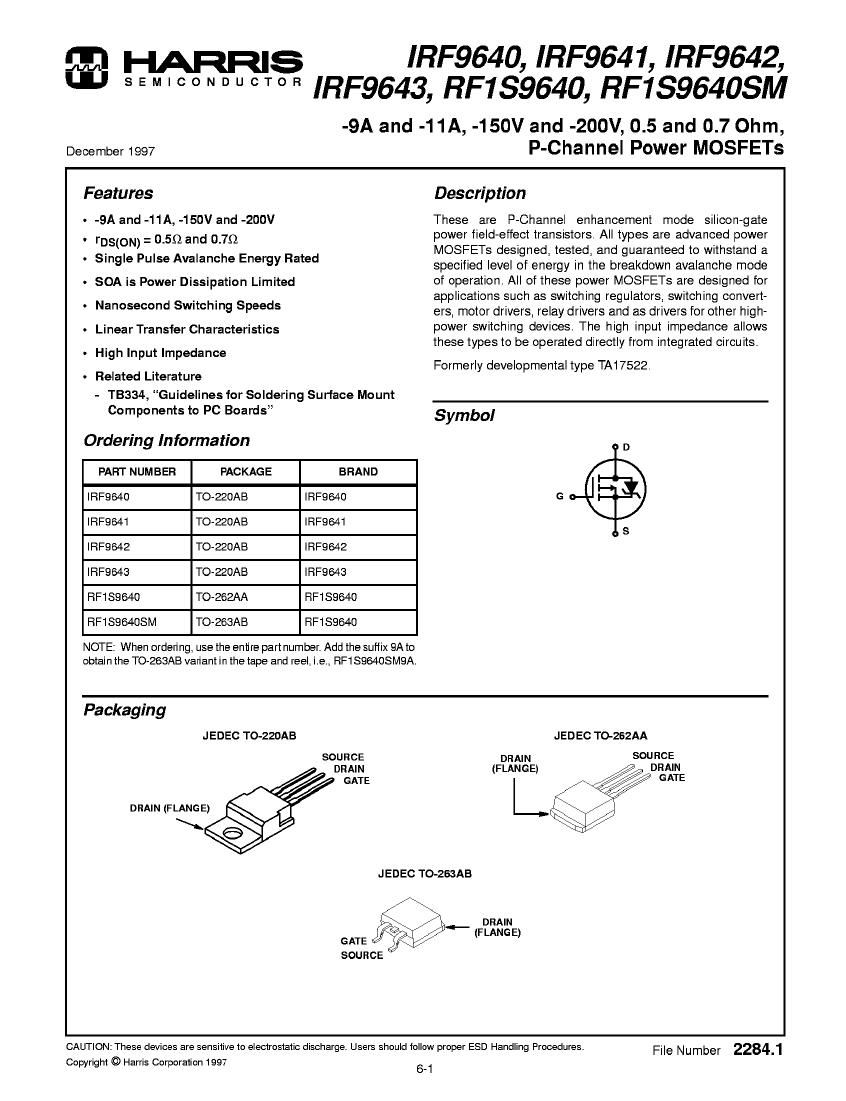

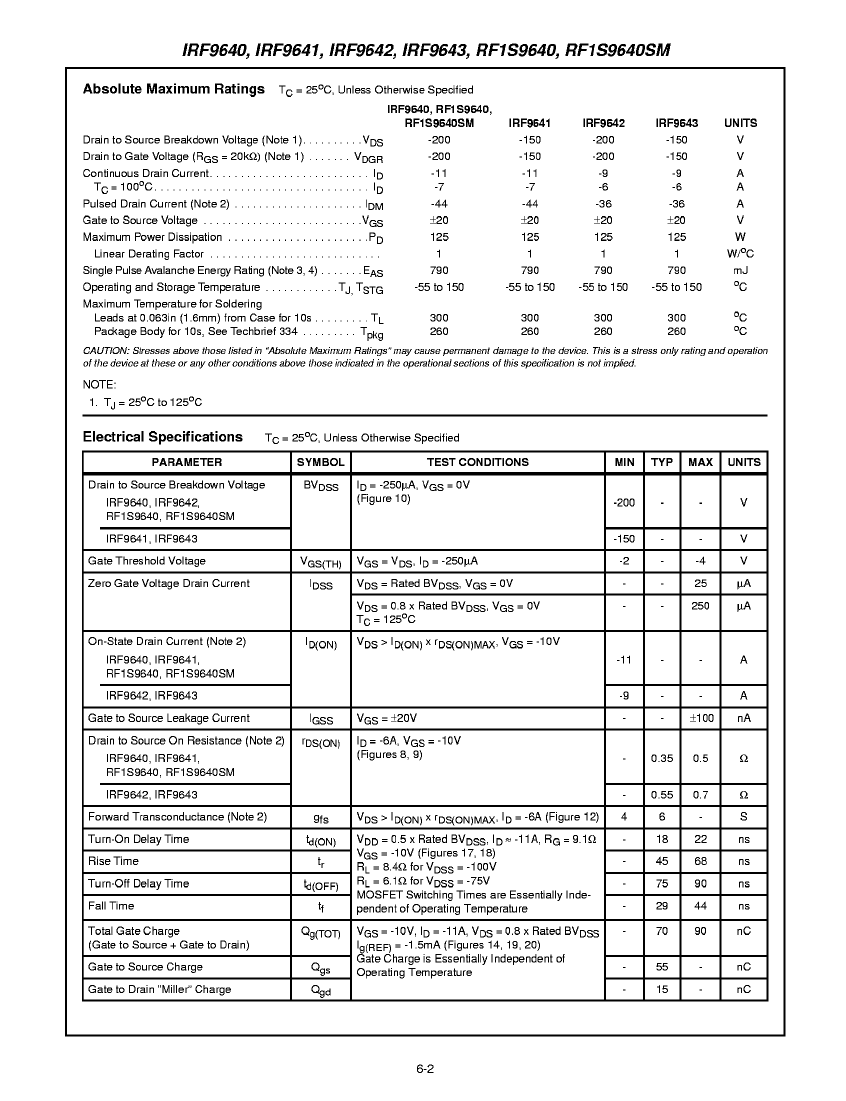

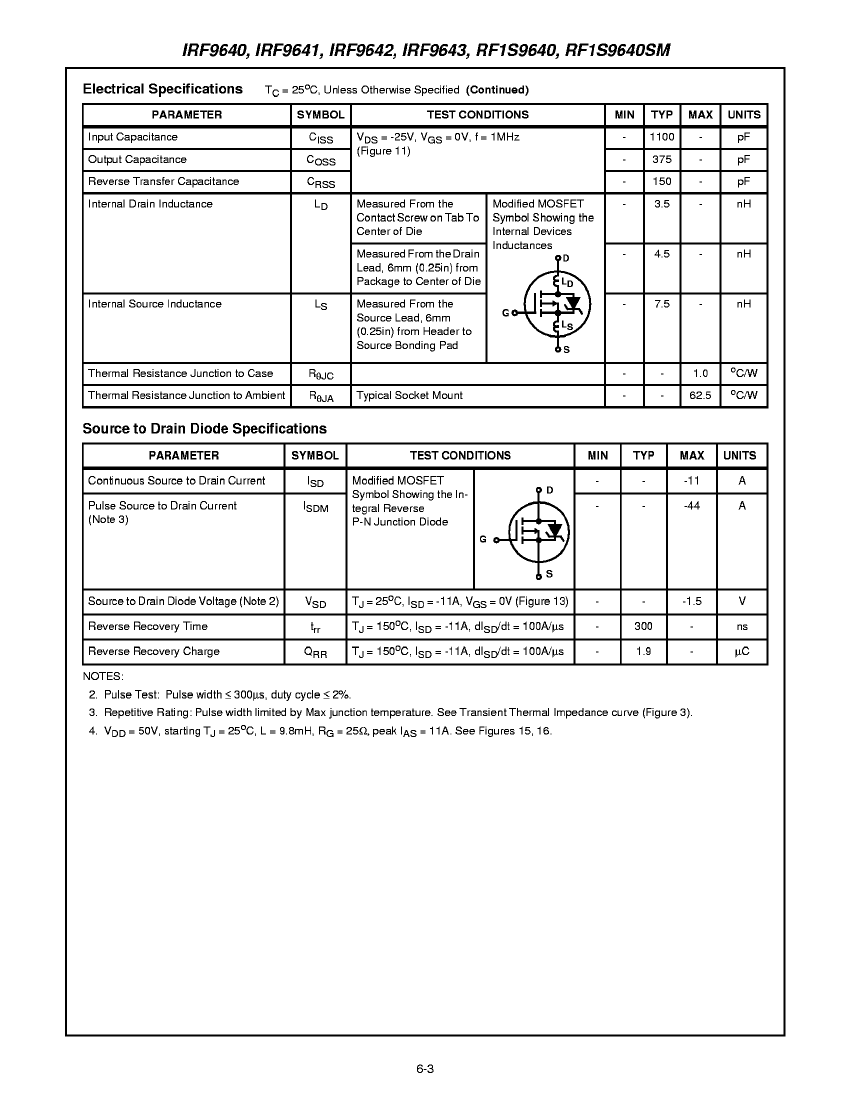

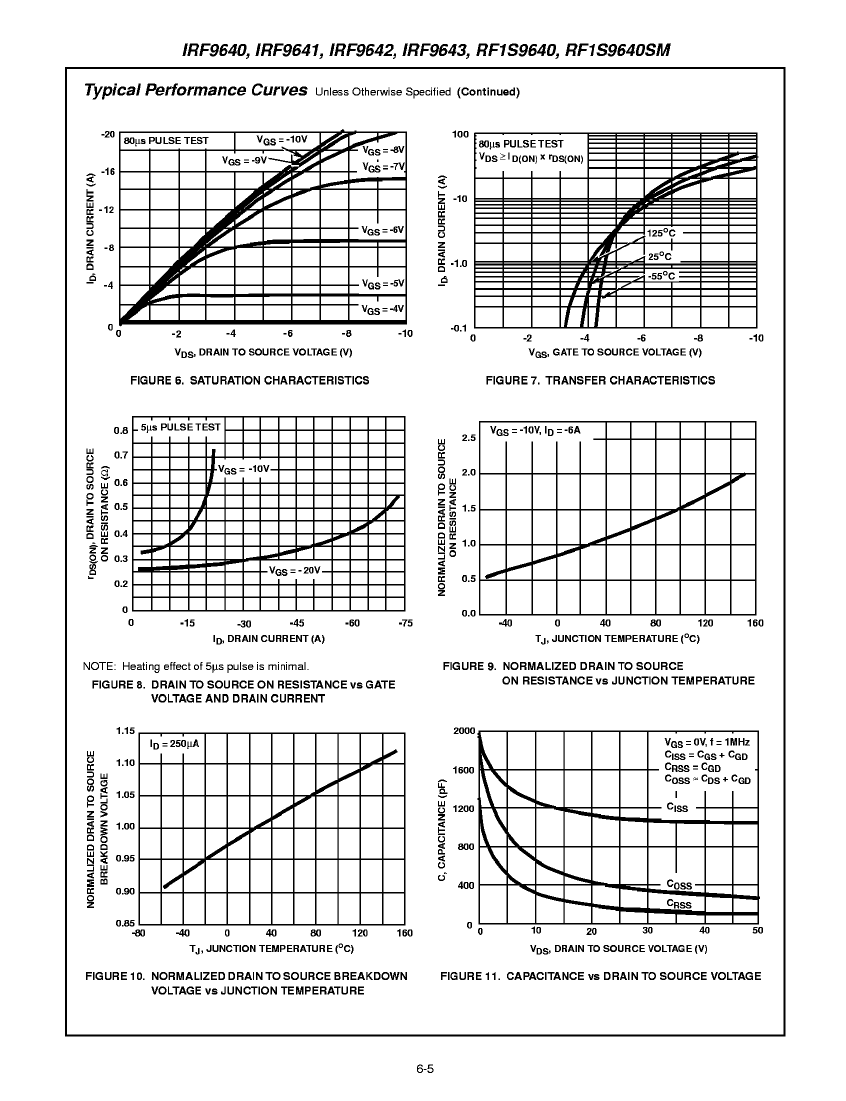

Preview

Download Datasheet

View All

IRF9641 Related Products

	IRF9641	IRF9642	IRF9643	RF1S9640
Description	11A, 150V, 0.5ohm, P-CHANNEL, Si, POWER, MOSFET, TO-220AB	9A, 200V, 0.7ohm, P-CHANNEL, Si, POWER, MOSFET, TO-220AB	9A, 150V, 0.7ohm, P-CHANNEL, Si, POWER, MOSFET, TO-220AB	11A, 200V, 0.5ohm, P-CHANNEL, Si, POWER, MOSFET, TO-262AA, TO-262AA, 3 PIN
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
Reach Compliance Code	not_compliant	not_compliant	not_compliant	_compli
ECCN code	EAR99	EAR99	EAR99	EAR99
Avalanche Energy Efficiency Rating (Eas)	790 mJ	790 mJ	790 mJ	790 mJ
Shell connection	DRAIN	DRAIN	DRAIN	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	150 V	200 V	150 V	200 V
Maximum drain current (Abs) (ID)	11 A	9 A	9 A	11 A
Maximum drain current (ID)	11 A	9 A	9 A	11 A
Maximum drain-source on-resistance	0.5 Ω	0.7 Ω	0.7 Ω	0.5 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	TO-220AB	TO-220AB	TO-220AB	TO-262AA
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSIP-T3
JESD-609 code	e0	e0	e0	e0
Number of components	1	1	1	1
Number of terminals	3	3	3	3
Operating mode	ENHANCEMENT MODE	ENHANCEMENT MODE	ENHANCEMENT MODE	ENHANCEMENT MODE
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	IN-LINE
Polarity/channel type	P-CHANNEL	P-CHANNEL	P-CHANNEL	P-CHANNEL
Maximum power dissipation(Abs)	125 W	125 W	125 W	125 W
Maximum pulsed drain current (IDM)	44 A	36 A	36 A	44 A
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
Maximum power consumption environment	125 W	125 W	125 W	-
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
Maximum off time (toff)	134 ns	134 ns	134 ns	-
Maximum opening time (tons)	90 ns	90 ns	90 ns	-
