5962-9562901QCX datasheet, PDF

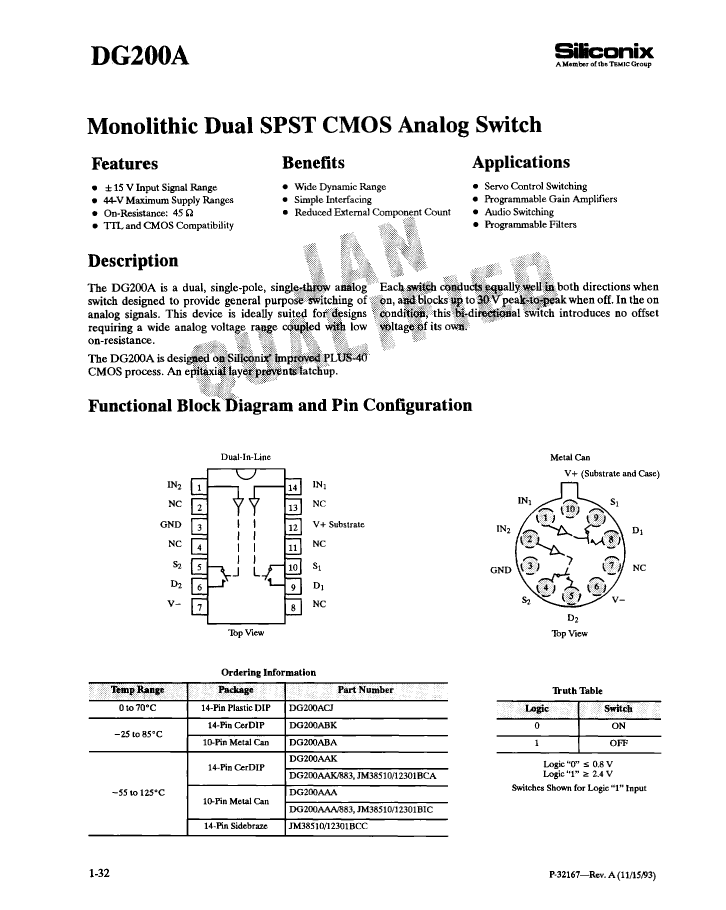

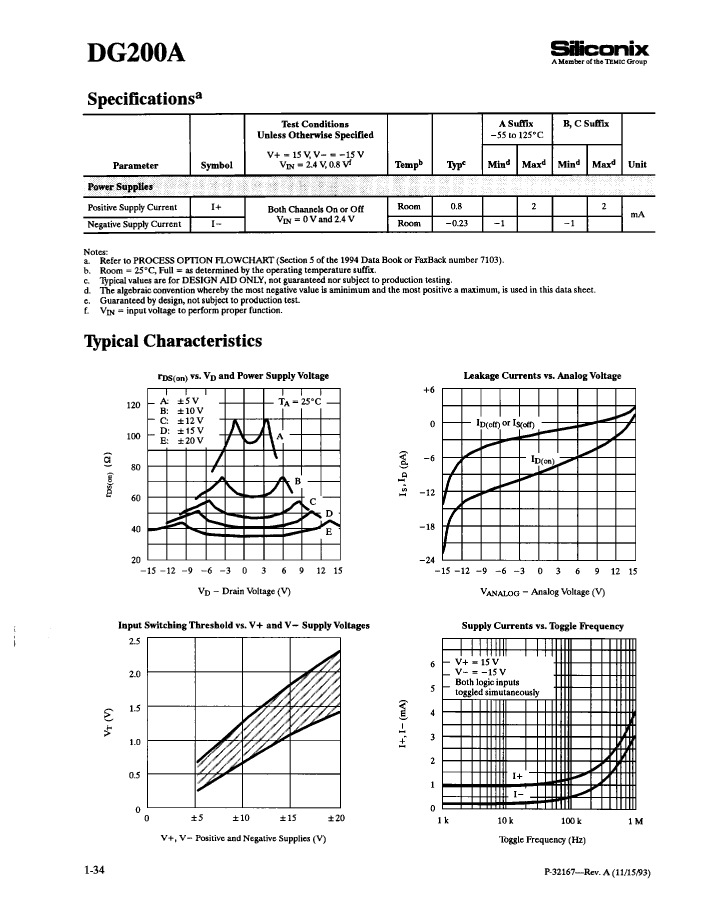

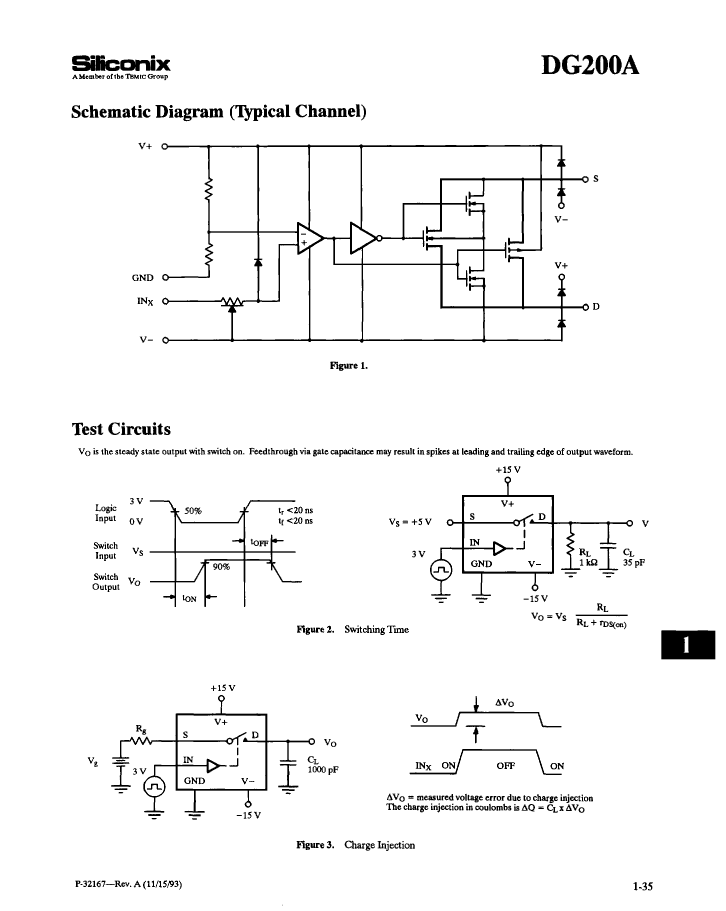

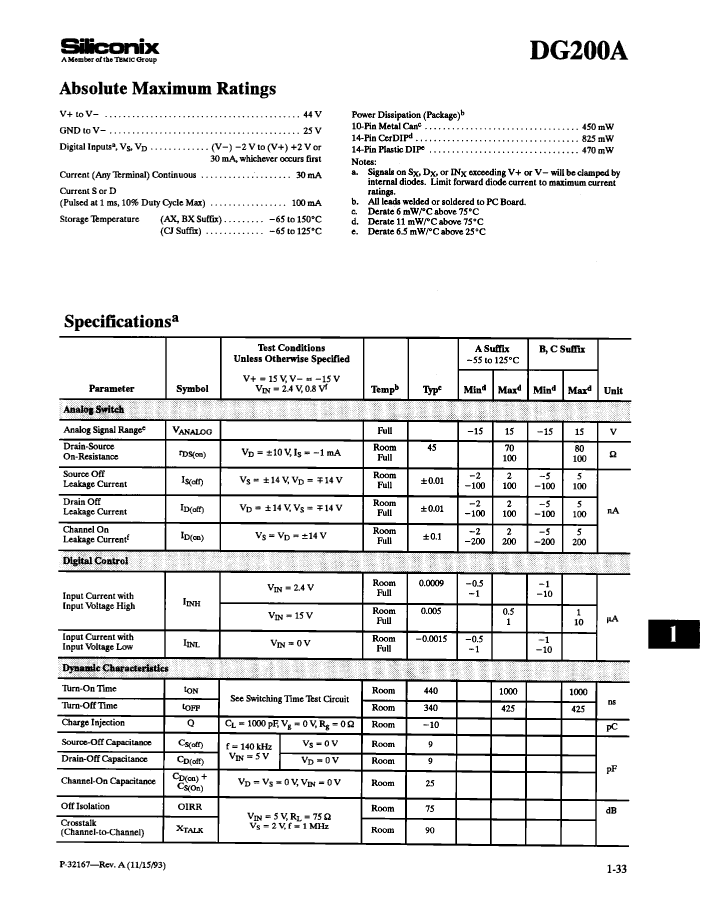

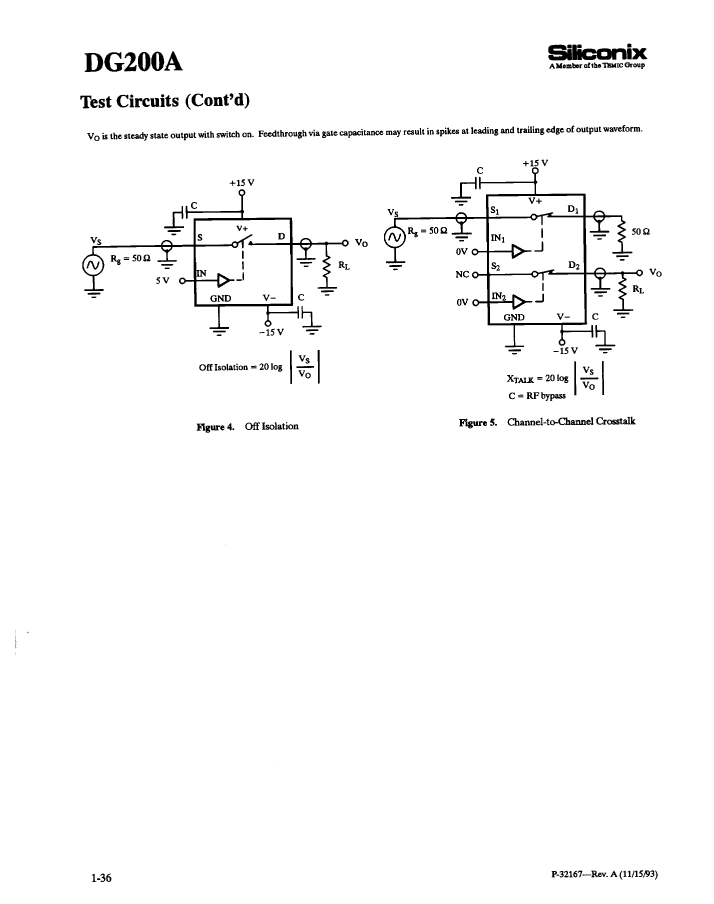

5962-9562901QCX: DescriptionSPST, 2 Func, 1 Channel, CMOS, CDIP14, CERAMIC,DIP-14; CategoryAnalog mixed-signal IC The signal circuit; File Size173KB，5 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

5962-9562901QCX Overview

SPST, 2 Func, 1 Channel, CMOS, CDIP14, CERAMIC,DIP-14

Parameter Name	Attribute value
Maker	Vishay
Parts packaging code	DIP
package instruction	DIP,
Contacts	14
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SPST
JESD-30 code	R-GDIP-T14
length	19.305 mm
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	1
Number of functions	2
Number of terminals	14
Nominal off-state isolation	75 dB
Maximum on-state resistance (Ron)	70 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	5.08 mm
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Maximum disconnect time	425 ns
Maximum connection time	1000 ns
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1

	5962-9562901QCX	DG200AAP/883
Description	SPST, 2 Func, 1 Channel, CMOS, CDIP14, CERAMIC,DIP-14	IC DUAL 1-CHANNEL, SGL POLE SGL THROW SWITCH, CDIP14, SIDEBRAZED, CERAMIC, DIP-14, Multiplexer or Switch
Maker	Vishay	Vishay
Parts packaging code	DIP	DIP
package instruction	DIP,	DIP,
Contacts	14	14
Reach Compliance Code	unknown	unknown
Analog Integrated Circuits - Other Types	SPST	SPST
JESD-30 code	R-GDIP-T14	R-CDIP-T14
length	19.305 mm	18.54 mm
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V
Number of channels	1	1
Number of functions	2	2
Number of terminals	14	14
Nominal off-state isolation	75 dB	75 dB
Maximum on-state resistance (Ron)	70 Ω	70 Ω
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	4.44 mm
Nominal supply voltage (Vsup)	15 V	15 V
surface mount	NO	NO
Maximum disconnect time	425 ns	425 ns
Maximum connection time	1000 ns	1000 ns
technology	CMOS	CMOS
Temperature level	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
width	7.62 mm	7.62 mm
