Multilayer Varistor
ESD Suppressor
MLVA Series
Applications
•
•
•
•
•
•
•
•
•
•
•
Computers and peripherals
Digital still cameras
Cell phones
Medical equipment
Printers/copiers/scanners
DVD Players
MP3/Multimedia players
LCD TV / Monitor
External storage
Cable/DSL Modems
Set top boxes
HF
FREE
HALOGEN
Surface Mount Device

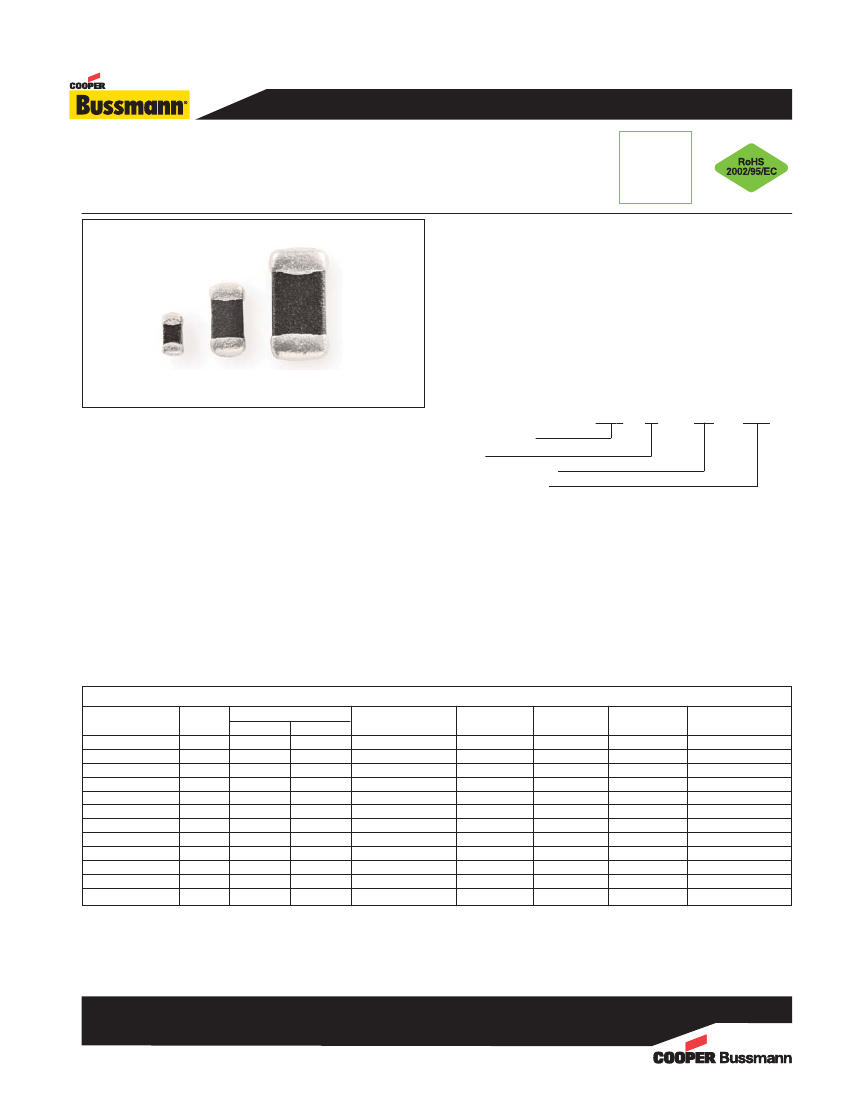

Description
Cooper Bussmann
®
MLVA Series of multilayer varistors are designed to pro-
tect electronic circuits from ESD damage. With its small, standardized 0201,
0402 and 0603 sizes, it’s easy to implement them into any circuit board
design. The MLVA is suitable for push button, power line and low frequency
overvoltage protection.
Part Numbering System:
Product Family
Size
Working DC Voltage
Capacitance in pF
MLVA
04
V05
C270
Packaging
• Size 0201: 15,000 pieces per reel - EIA (EIAJ)
• Size 0402: 10,000 pieces per reel - EIA (EIAJ)
• Size 0603: 4000 pieces per reel - EIA (EIAJ)
Features
• Zinc oxide based ceramic chip
• Provides ESD protection with fast response time (<1ns) allowing
equipment to pass IEC 61000-4-2 Level 4 Test
• 0402 and 0603 meet IEC 61000-4-4 and 61000-4-5
• Low profile designs for board space savings
• Low and stable leakage current reduces power consumption
• Low clamping voltage
• Wide 5.5 to 26Vdc operating voltage range
• Halogen free and RoHS compliant for global applications
Specifications
Part
Number
MLVA02V05C033
MLVA02V05C047
MLVA02V05C064
MLVA04V05C270
MLVA04V09C130
MLVA04V14C090
MLVA04V18C085
MLVA06V05C270
MLVA06V09C210
MLVA06V14C150
MLVA06V18C130
MLVA06V26C100
Size
0201
0201
0201
0402
0402
0402
0402
0603
0603
0603
0603
0603
Working Voltage
Vrms
Vdc
4
5.5
4
5.5
4
5.5
4
5.5
7
9
11
14
14
18
4
5.5
7
9
11
14
14
18
20
26
Varistor Voltage
@ 1mAdc
8-14
8-14
8-14
6.4-9.6
10-15
14.4-21.6
17.6-26.4
6.4-9.6
10-15
14.4-21.6
17.6-26.4
24.8-37.2
Clamping
Voltage
30
26
26
20
32
38
45
22
27
35
40
58
Capacitance
pF
33
47
64
270
130
90
85
270
210
150
130
100
Peak
Current (amps)
-
-
-
20
20
20
20
30
30
30
30
30
Transient
Energy (Joules)
-
-
-
0.05
0.05
0.05
0.05
0.1
0.1
0.1
0.1
0.1
Working Voltage Vrms - Maximum AC operating voltage the varistor can maintain and not exceed 10μA leakage current for 0402, 0603.
Working Voltage Vdc - Maximum DC operating voltage the varistor can maintain and not exceed 10μA leakage current for 0402, 0603.
Varistor Voltage - Voltage across the device measured at 1mA DC current. Equivalent to VB, “breakdown voltage.”
Clamping Voltage - Maximum peak voltage across the varistor with 8/20μs waveform and 1A pulse current.
Capacitance - Device capacitance measured with zero volt bias 1Vrms at 1MHz.
Peak Current - Maximum peak current which may be applied with 8/20μs waveform without device failure.
Transient Energy - Maximum energy which may be dissipated with the 10/1000μs waveform without device failure.
0310
BU-SB10346
Page 1 of 2
Data Sheet 4070

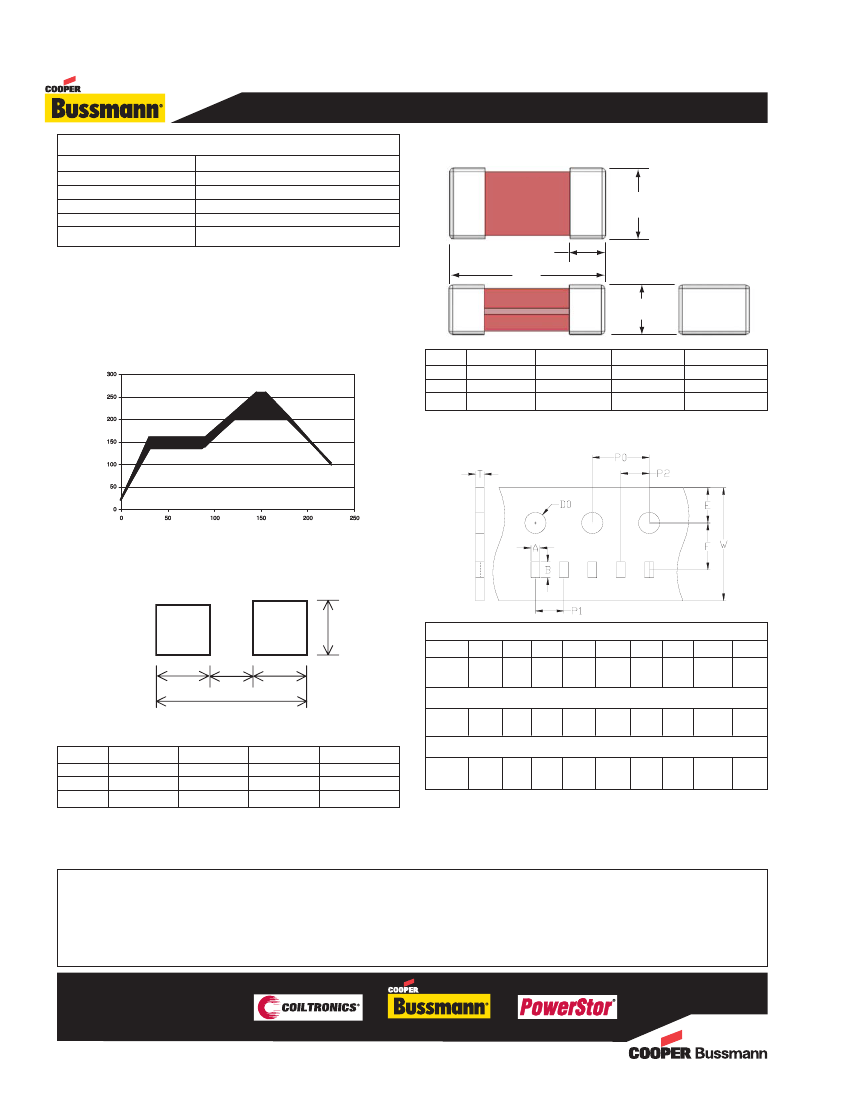

Environmental Specifications
Characteristic
Bias Humidity:
Thermal Shock:
Operating Temperature Range:
Storage Temperature Range:
Full Load Voltage:
Value
+40°C, 90% RH for 1000 hours
-40°C to +85°C, 30 minute cycle, 5 cycles
-40°C to +85°C
-40°C to +85°C
Working Voltage, 85°C, 1000 hours
Dimensions - mm
W
C
Soldering Recommendations
• Compatible with lead and lead-free solder reflow processes
• Peak reflow temperatures and durations:
- IR Reflow = 260°C max for 30 sec. max.
- Wave Solder = 260°C max. for 10 sec. max.
• Recommended IR Reflow Profile:
Size
0201
0402
0603
L
0.60±0.05
1.00±0.15
1.60±0.15
L
H
Temperature (°C)
W
0.30±0.05
0.50±0.10
0.80±0.10
H
0.30±0.05
0.50±0.10
0.80±0.10
C
0.20±0.10
0.25±0.15
0.30±0.20
Tape Packaging Specifications - mm
Time (seconds)
Recommended Pad Layout - mm (in)
c
A
B
W
0201 Carrier Dimensions
E
F
P0
P1
3.5
±0.05
4.0
±0.1
2.0
±0.05
P2
2.0
±0.05
D0
T
b
a
d
b
0.37
0.69
±0.03 ±0.03
8.0
1.75
±0.1 ±0.05
1.55
0.42
±0.05 ±0.03
0402 Carrier Dimensions
0.58
1.2
±0.03 ±0.03
8.0
1.75
±0.1 ±0.05
3.5
±0.05
4.0
±0.1
2.0
±0.05
2.0
±0.05
1.55
0.60
±0.05 ±0.03
Size
0201
0402
0603
a
b
0.23 (0.009) 0.30 (0.012)
0.51 (0.020) 0.61 (0.024)
0.50 (0.020) 1.02 (0.040)
c
0.45 (0.018)
0.51 (0.020)
0.76 (0.030)
d
0.83 (0.033)
1.70 (0.067)
2.54 (0.100)
0603 Carrier Dimensions
1.05
1.90
±0.15 ±0.15
8.0
1.75
±0.30 ±0.10
3.50
±0.05
4.00
±0.10
-
-
2.00
±0.05
1.50
±0.10
-
-
The only controlled copy of this Data Sheet is the electronic read-only version located on the Cooper Bussmann Network Drive. All other copies of this document are by definition uncontrolled. This bulletin is
intended to clearly present comprehensive product data and provide technical information that will help the end user with design applications. Cooper Bussmann reserves the right, without notice, to change
design or construction of any products and to discontinue or limit distribution of any products. Cooper Bussmann also reserves the right to change or update, without notice, any technical information con-
tained in this bulletin. Once a product has been selected, it should be tested by the user in all possible applications.
Life Support Policy: Cooper Bussmann does not authorize the use of any of its products for use in life support devices or systems without the express written approval of an officer of the Company. Life sup-
port systems are devices which support or sustain life, and whose failure to perform, when properly used in accordance with instructions for use provided in the labeling, can be reasonably expected to result
in significant injury to the user.
© 2010 Cooper Bussmann
St. Louis, MO 63178
www.cooperbussmann.com
0310
BU-SB10346
Page 2 of 2
Data Sheet 4070
