KRPA-11DY-24 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> KRPA-11DY-24

KRPA-11DY-24: DescriptionKRPA-11DY-24=KRPA; CategoryMechanical and electronic products relay; File Size318KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

KRPA-11DY-24 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	KRPA-11DY-24	-	-	View	Buy Now

KRPA-11DY-24 Overview

KRPA-11DY-24=KRPA

KRPA-11DY-24 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
body width	37.3 mm
body height	34.9 mm
Body length or diameter	48.8 mm
Maximum coil current (DC)	0.05 A
Coil operating voltage (DC)	18 V
Coil power	1200 mW
Coil resistance	472 Ω
Maximum coil voltage (DC)	24 V
Nominal coil voltage	24 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	5A@120VAC
Maximum contact current (AC)	5 A
Maximum contact current (DC)	5 A
Maximum contact voltage (AC)	120 V
Contact/Output Power Type	AC
Dielectric strength between coil and contacts	1000 Vrms
Dielectric strength between breaking contacts	1000 Vrms
Electrical life	10000000 Cycle(s)
End contact material	Silver
Input switching control type	Random
Insulation resistance	1000000000 Ω
Installation features	SOCKET MOUNT
operating hours	15 ms
Maximum operating temperature	70 °C
Minimum operating temperature	-45 °C
physical size	48.8mm x 37.3mm x 34.9mm
Guideline	CSA; UL
Relay action	MOMENTARY
Relay style	2 FORM C
Relay function	DPDT
Relay type	POWER/SIGNAL RELAY
release time	10 ms
surface mount	NO
Termination type	SNAP-ON
weight	85 g
Base Number Matches	1

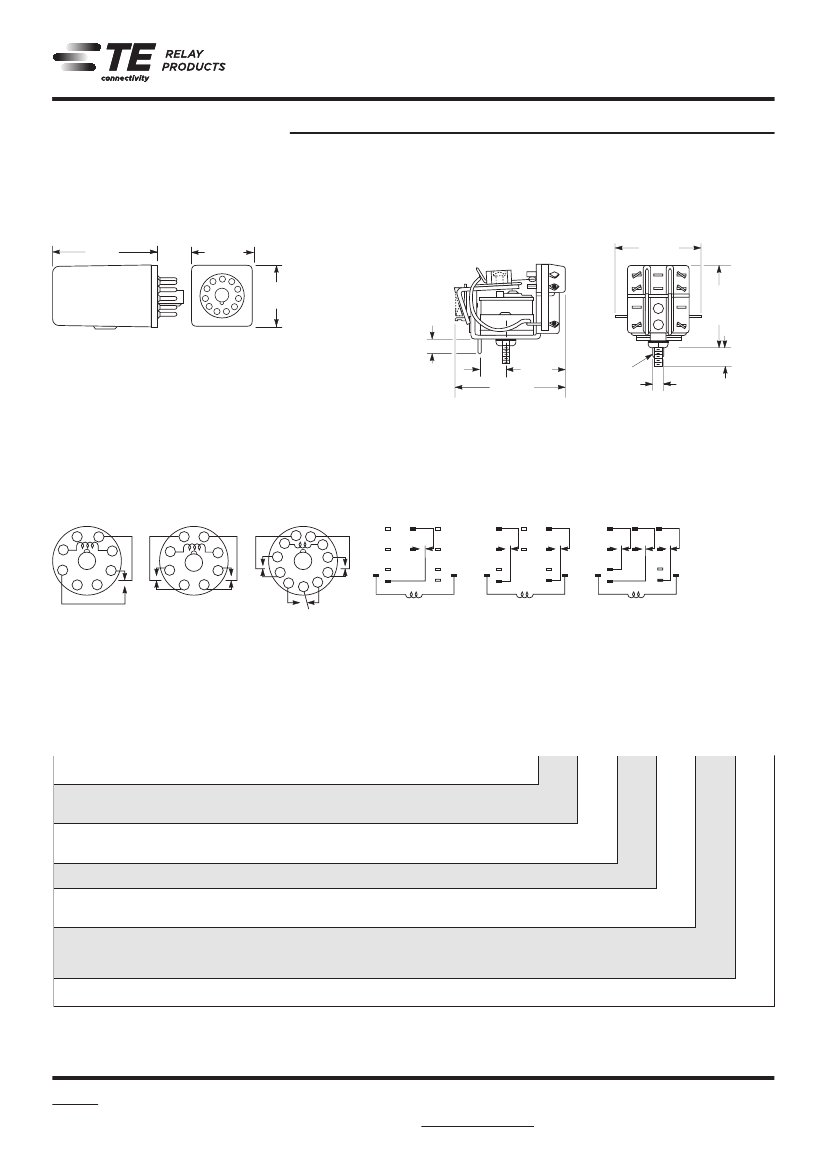

Preview

Download Datasheet

View All

General Purpose

Panel/Plug-in Relays

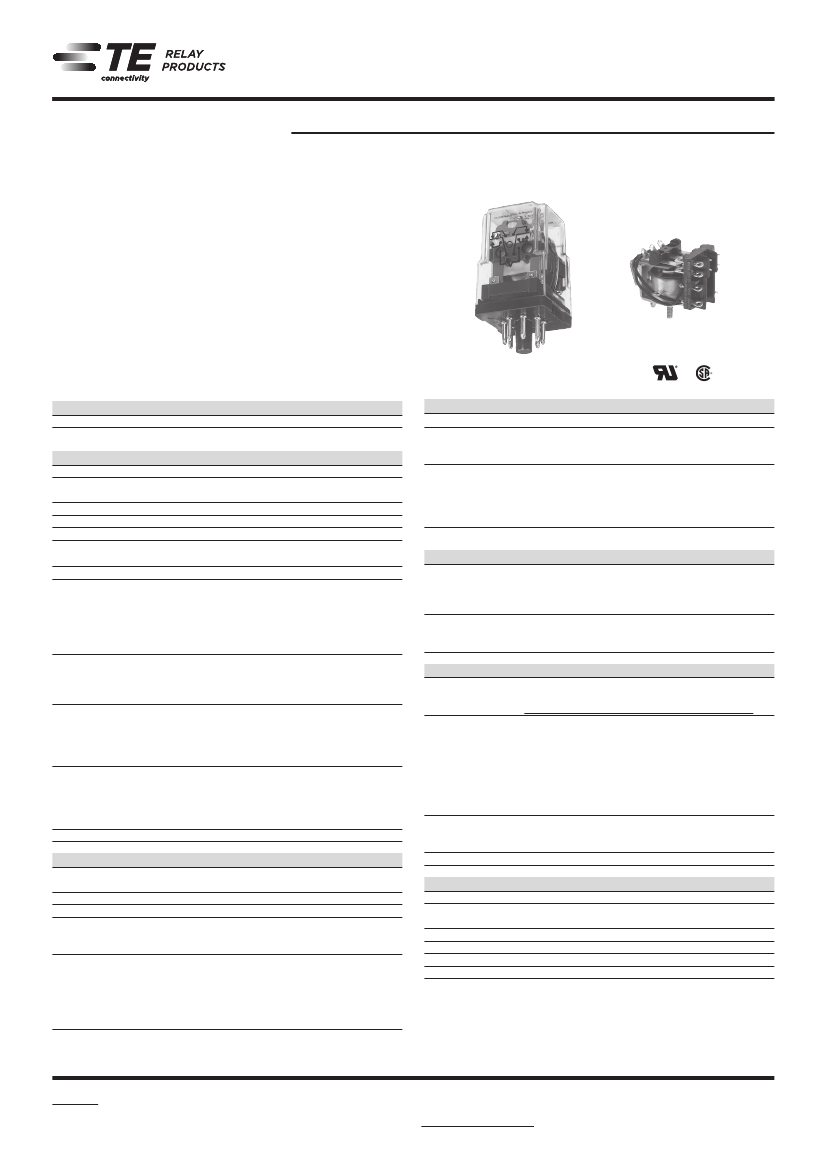

KRPA Series Panel Plug-in Relay

Potter & Brumfield

5 to 10A current capability

Contact arrangements of 1, 2 and 3 form C (CO)

Octal type termination for quick installation

Indicator lamp available on certain models

Typical applications

Baggage handling, lighting, inspection equipment, marine.

Approvals

Coil Data (continued)

Coil versions, AC coil

Coil

Rated

code

voltage

VAC

120

240

Operate

voltage

VAC

5.1

10.2

20.4

102.0

204.0

Coil

resistance

Ω±15%

2250

9110

Rated coil

power

2.01

2.02

2.1

UL E22575; CSA LR15734

Technical data of approved types on request.

Contact arrangement

Rated voltage

Rated current

Contact material

Min. recommended contact load

Frequency of operation

Contact ratings

Type

Load

UL 508

KRPA, Ag

5A, 120VAC

3A, 240VAC

1/10HP, 120VAC

1/6HP, 240VAC

KRPA, AgCdO

10A, 240VAC

1/3HP, 120VAC

1/2HP, 240VAC

KA, Ag

5A, 120VAC

3A, 240VAC

1/10HP, 120VAC

1/6HP, 240VAC

KA, AgCdO

10A, 120VAC

6A, 240VAC

1/6HP, 120VAC

1/3HP, 240VAC

Mechanical endurance

Contact Data

1 form C (CO), 2 form C (CO), 3 form C (CO)

240VAC

10A

AgCdO

100mA, 12VDC 300mA, 12VDC

360 ops./hour

Cycles

100x10

1x10

100x10

1x10

All figures are given for coil without preenergization, at ambient temperature +23°C.

Insulation Data

Initial dielectric strength

between open contacts

between contact and coil

between adjacent contacts

Initial insulation resistance

between insulated elements

1000V

rms

1000V

rms

1000V

rms

KRPA: 1000MΩ

KA: 100MΩ

Other Data

10x10

ops.

6 to 220VDC

6 to 240VAC

Class B

Coil Data

Material compliance: EU RoHS/ELV, China RoHS, REACH, Halogen content

refer to the Product Compliance Support Center at

www.te.com/customersupport/rohssupportcenter

Ambient temperature

DC coil

KRPA: -45ºC to 70ºC

KA: -45ºC to 85ºC

AC coil

KRPA: -45ºC to 55ºC

KA: -45ºC to 70ºC

Category of environmental protection

IEC 61810

RTI - dust protected KRPA and

RT0 - open style KA

Terminal type

KRPA: 8- or 11-pin octal-type plug

KA: solder terminals

Weight

85g

Packaging/unit

tray/25 pcs., box/150pcs.

Coil voltage range

Accessories

Product Code

27E891

27E892

27E122

27E123

Coil insulation system according UL

Coil versions, DC coil

Coil

Rated

Operate

Coil

Rated coil

code

voltage

resistance

power

VDC

Ω±10%

4.5

1.15

9.0

120

1.2

18.0

472

1.25

36.0

1800

1.3

110

82.5

10000

1.2

–

220

Use 110V relay with 10KΩ, 5W resistor in series

All figures are given for coil without preenergization, at ambient temperature +23°C.

For details see datasheet

Sockets and Accessories, KRPA Relays

Description

Two pole DIN socket (use 20C318 clip)

Three pole DIN socket (use 20C318 clip)

Two pole track mount socket (use 20C318 clip)

Three pole track mount socket (use 20C318 clip)

11-2012, Rev. 1112

www.te.com

a TE Connectivity Ltd. company.

Catalog and product specification according

to IEC 61810-1 and to be used only together

with the ‘Definitions’ section.

Catalog and product data is subject to the

terms of the disclaimer and all chapters of

the ‘Definitions’ section, available at

http://relays.te.com/definitions

Catalog product data, ‘Definitions’ section,

application notes and all specifications are

subject to change.
