8-1415047-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> 8-1415047-1

8-1415047-1: DescriptionRTHH4012; CategoryMechanical and electronic products relay; File Size379KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

8-1415047-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8-1415047-1	-	-	View	Buy Now

8-1415047-1 Overview

RTHH4012

8-1415047-1 Parametric

Parameter Name	Attribute value
Brand Name	Schrack
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
body width	12.7 mm
body height	15.7 mm
Body length or diameter	29 mm
Maximum coil current (DC)	0.033 A
Coil operating voltage (DC)	8.4 V
Coil power	400 mW
Coil release voltage (DC)	1.2 V
Coil resistance	360 Ω
Maximum coil voltage (DC)	12 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	16A@400VAC
Maximum contact current (AC)	16 A
Maximum contact current (DC)	16 A
Maximum contact voltage (AC)	400 V
Contact/Output Power Type	AC/DC
Electrical life	250000 Cycle(s)
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	14 ms
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
method of packing	BULK
physical size	29mm x 12.7mm x 15.7mm
Guideline	CSA; IEC; UL; VDE
Relay action	MOMENTARY
Relay function	SPST
Relay type	POWER/SIGNAL RELAY
release time	12 ms
seal	RT2
surface mount	NO
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

General Purpose Relays

PCB Relays

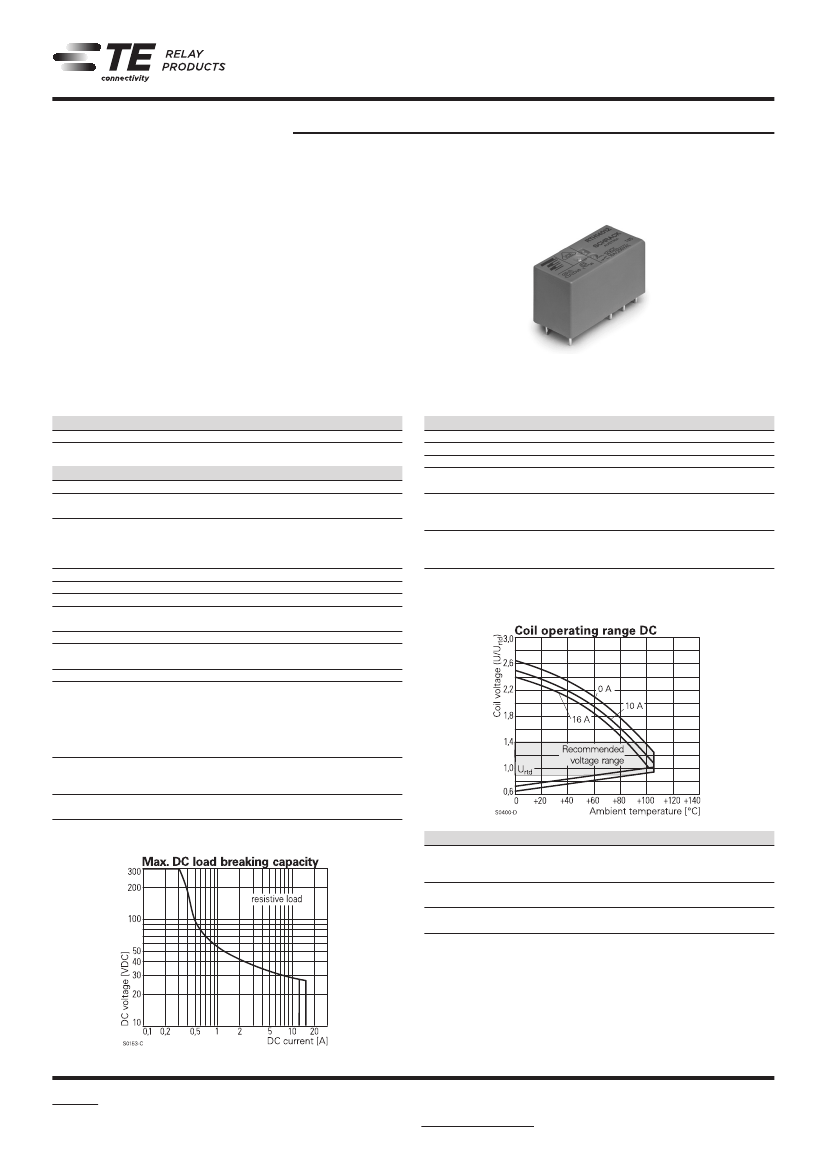

Power PCB Relay RTH 105°C 16A

SCHRACK

1 pole 16A, 1 form C (CO) or 1 form A (NO) contact

Ambient temperature 105°C

Sensitive coil 400mW

5kV/10mm coil-contact

Reinforced insulation

WG version: Product in accordance to IEC 60335-1

Typical applications

Oven control, cooking plate control

VZb

Approvals

VDE REG.-Nr. 6106, UL E214025, cCSAus 14385

Technical data of approved types on request

F0220-D

Coil Data

Contact Data

Coil voltage range

Operative range, IEC 61810

Coil insulation system according UL1446

Coil versions, DC coil

Coil

Rated

Operate

code

voltage

VDC

009

6.3

012

8.4

024

16.8

5 to 60VDC

90...110% U

RTD

class F

Coil

resistance

Ω±10%

203

360

1440

Rated coil

power

399

400

Contact arrangement

1 form C (CO) or 1 form A (NO)

Rated voltage

250VAC

Max. switching voltage

400VAC

Rated current

16A

Limiting continuous current, form A/form B

16 / 26A

Limiting making current (form A contact)

max. 4 s, duty factor 10 %

30A

Breaking capacity max.

4000VA

Contact material

AgNi 90/10

Frequency of operation, with/without load

360/72000h

-1

Operate/release time max.

8/6ms

Bounce time max., form A/form B

4/6ms

Contact ratings

Type

Contact

IEC 61810

RTH14

A (NO)

RTH14

C (CO)

RTH14

B (NC)

RTH34

A (NO)

RTHH4

A (NO)

UL 508

RTH14

A/B (NO/NC)

RTH34

A (NO)

Mechanical endurance

Release

voltage

VDC

0.9

1.2

2.4

1) Continuous thermal load > 10 A at 105°C requires reduction of coil power to 64% of

rated power after 100ms.

All figures are given for coil without pre-energization, at ambient temperature +23°C.

Other coil voltages on request.

Load

10A, 250VAC resistive,105°C

16A, 250VAC resistive, 105°C

26A, 250VAC resistive, 85°C

10A, 400VAC resistive, 105°C

10A, 250VAC resistive, 105°C

16A, 250VAC, resistive, 105°C

20A, 250VAC, general purpose, 105°C

>30x10

operations

Cycles

150x10

10x10

500

150x10

250x10

30x10

6x10

1) Continuous thermal load >10A at 105°C requires reduction of coil power to 64% of

rated power after 100ms

Initial dielectric strength

between open contacts

between contact and coil

Clearance/creepage

between contact and coil

Material group of insulation parts

Tracking index of relay base

Insulation Data

1000V

rms

5000V

rms

≥10/10mm

IIIa

PTI250V

04-2011, Rev. 0411

www.te.com

a TE Connectivity Ltd. company

Datasheets and product specification

according to IEC 61810-1 and to be used

only together with the ‘Definitions’ section.

Datasheets and product data is subject to the

terms of the disclaimer and all chapters of

the ‘Definitions’ section, available at

http://relays.te.com/definitions

Datasheets, product data, ‘Definitions’ sec-

tion, application notes and all specifications

are subject to change.
