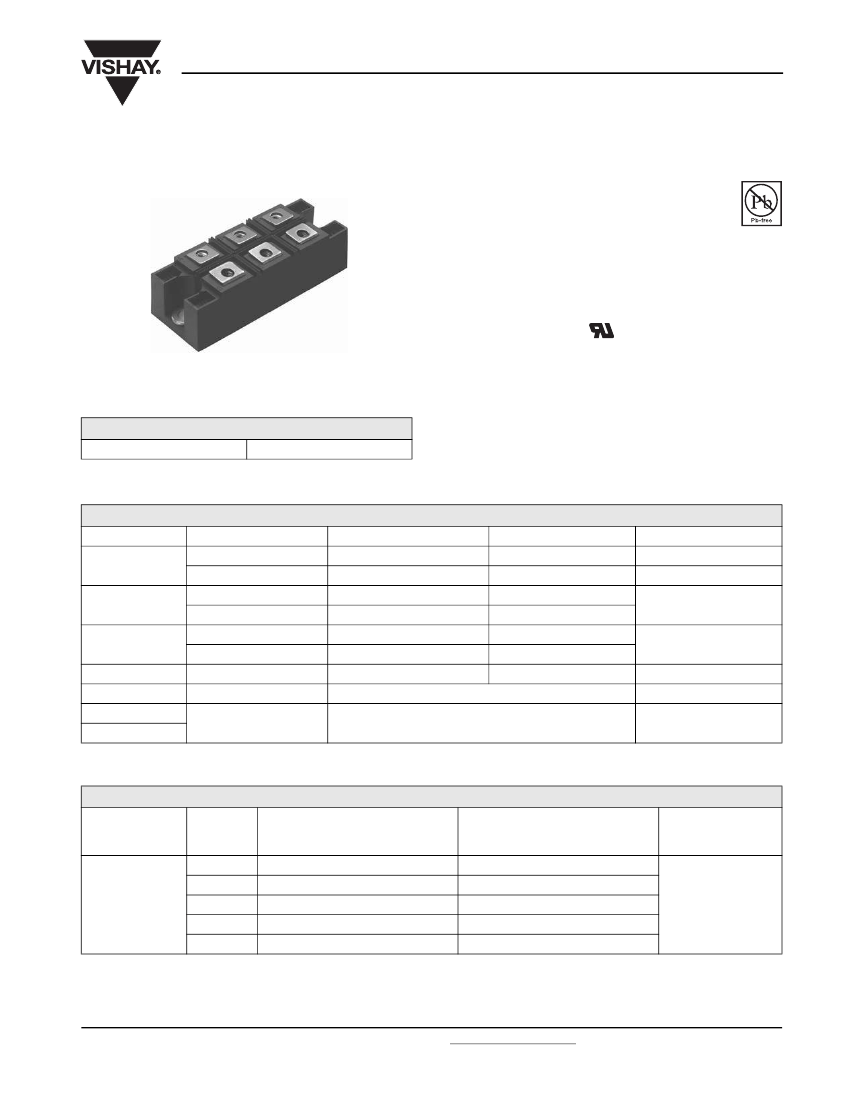

130-160MT..KPbF Series
Vishay High Power Products
Three Phase Bridge, 130/160 A
(Power Modules)
FEATURES
• Package fully compatible with the industry
standard INT-A-PAK power modules series
• High thermal conductivity package, electrically
insulated case
• Excellent power volume ratio
• 4000 V
RMS
isolating voltage
• UL E78996 approved
• Totally lead (Pb)-free
MTK
RoHS
COMPLIANT
• Designed and qualified for industrial level
DESCRIPTION
PRODUCT SUMMARY
I
O
130/160 A
A range of extremely compact, encapsulated three phase
bridge rectifiers offering efficient and reliable operation.
They are intended for use in general purpose and heavy duty
applications.
MAJOR RATINGS AND CHARACTERISTICS
SYMBOL
I
O
I
FSM
I
2
t
I
2
√t
V
RRM
T
Stg
T
J
Range
Range
CHARACTERISTICS
130MT.K
130 (160)
T
C
50 Hz
60 Hz
50 Hz
60 Hz
85 (62)
1130
1180
6400
5800
64 000
800 to 1600
- 40 to 150
160MT.K
160 (200)
85 (60)
1430
1500
10 200
9300
102 000
UNITS
A
°C
A
A
2
s
A
2
√s
V
°C
ELECTRICAL SPECIFICATIONS
VOLTAGE RATINGS
TYPE NUMBER
VOLTAGE
CODE
80
100
130-160MT..K
120
140
160
V
RRM
, MAXIMUM REPETITIVE
PEAK REVERSE VOLTAGE
V
800
1000
1200
1400
1600
V
RSM
, MAXIMUM NON-REPETITIVE
PEAK REVERSE VOLTAGE
V
900
1100
1300
1500
1700
10
I
RRM
MAXIMUM
AT T
J
= MAXIMUM
mA
Document Number: 94354
Revision: 29-Apr-08
For technical questions, contact: ind-modules@vishay.com
www.vishay.com
1
130-160MT..KPbF Series
Vishay High Power Products
Three Phase Bridge, 130/160 A
(Power Modules)
FORWARD CONDUCTION
PARAMETER
Maximum DC output current
at case temperature
Maximum peak, one-cycle
forward, non-repetitive surge
current
SYMBOL
I
O
TEST CONDITIONS
120° rect. conduction angle
t = 10 ms
I
TSM
t = 8.3 ms
t = 10 ms
t = 8.3 ms
t = 10 ms
Maximum I
2
t for fusing
I
2
t
t = 8.3 ms
t = 10 ms
t = 8.3 ms
Maximum I
2
√t
for fusing
Low level value of
threshold voltage
High level value of
threshold voltage
Low level value of forward slope
resistance
High level of forward slope
resistance
Maximum forward
voltage drop
RMS isolation voltage
I
2
√t
V
T(TO)1
V
T(TO)2
r
f1
r
f2
V
FM
V
ISOL
No voltage
reapplied
100 % V
RRM
reapplied
No voltage
reapplied
100 % V
RRM
reapplied
Initial
T
J
= T
J
maximum
130MT.K
130 (160)
85 (62)
1130
1180
950
1000
64 000
5800
4500
4100
64 000
0.78
0.99
4.59
4.17
1.63
4000
160MT.K
160 (200)
85 (60)
1430
1500
1200
1260
102 000
9300
7200
6600
102 000
0.81
V
1.04
3.52
mΩ
3.13
1.49
V
A
2
√s
A
2
s
A
UNITS
A
°C
t = 0.1 to 10 ms, no voltage reapplied
(16.7 % x
π
x I
T(AV)
< I <
π
x I
T(AV)
),
T
J
maximum
(I >
π
x I
T(AV)
), T
J
maximum
16.7 % x
π
x I
T(AV)
< I <
π
x I
T(AV)
),
T
J
maximum
(I >
π
x I
T(AV)
), T
J
maximum
I
pk
= 200 A, T
J
= 25 °C,
t
p
= 400 µs single junction
T
J
= 25 °C, all terminal shorted
f = 50 Hz, t = 1 s
THERMAL AND MECHANICAL SPECIFICATIONS
PARAMETER
Maximum junction operating
and storage temperature range
SYMBOL
T
J
, T
Stg
DC operation per module
Maximum thermal resistance,
junction to case
R
thJC
DC operation per junction
120° rect. condunction angle per module
120° rect. condunction angle per junction
Maximum thermal resistance,
case to heatsink
Mounting
torque ± 10 %
Approximate weight
to heatsink
to terminal
R
thCS
Per module
Mounting surface smooth, flat and greased
A mounting compound is recommended
and the torque should be rechecked after
a period of 3 hours to allow for the
spread of the compound.
Lubricated threads.
0.16
0.93
0.18
1.08
0.03
4 to 6
3 to 4
176
Nm
TEST CONDITIONS
130MT.K
160MT.K
UNITS
°C
0.12
0.73
0.15
0.88
K/W
- 40 to 150
g
www.vishay.com
2
For technical questions, contact: ind-modules@vishay.com
Document Number: 94354
Revision: 29-Apr-08
130-160MT..KPbF Series
Three Phase Bridge, 130/160 A
Vishay High Power Products
(Power Modules)

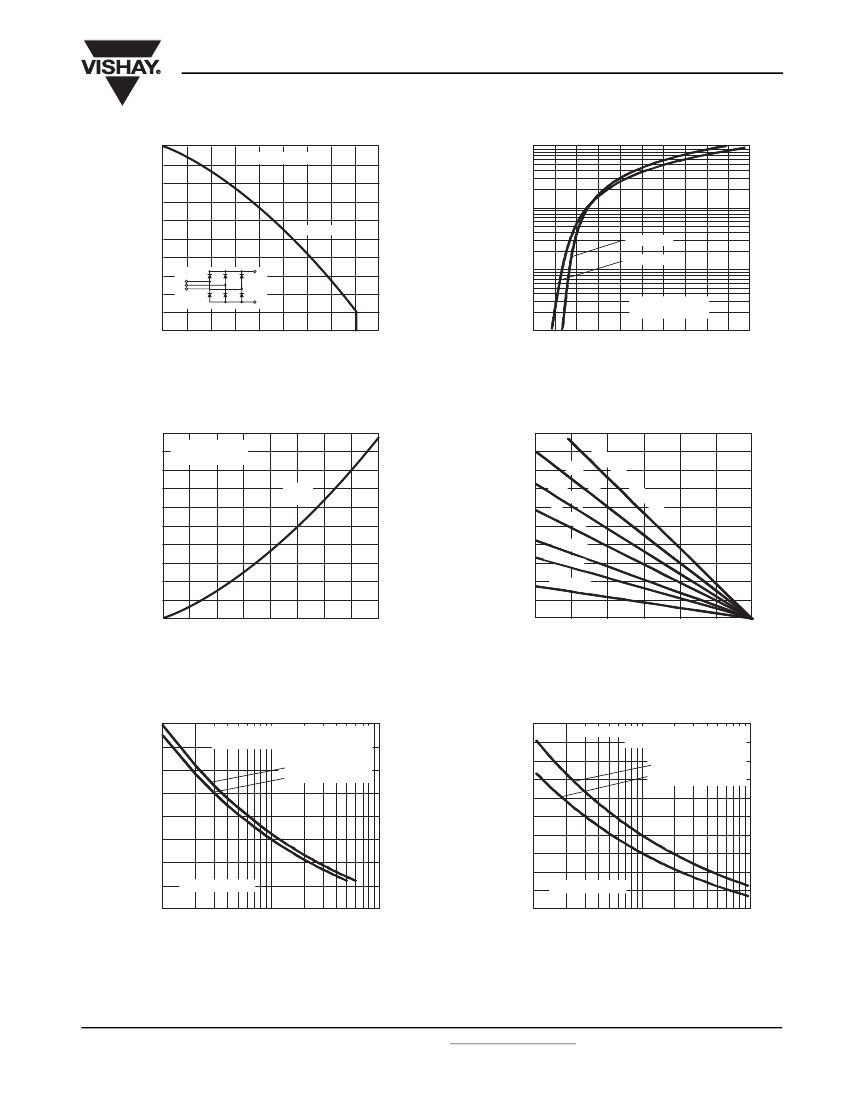

130MT..K Series
140
130
120
110
100
90
80
70
60
50
Instantaneous Forward Current (A)
150
1000
Maximum Allowable
Case Temperature (°C)
100
120° (Rect)
T
J
= 25 °C
10
+
~
-
T
J
= 150 °C
130MT..K Series
Per junction
1
0
20
40
60
80
100 120 140 160 180
0
1.0
2.0
3.0
4.0
5.0
Instantaneous Forward Voltage (V)
Fig. 1 - Current Ratings Characteristic
Instantaneous Forward Voltage (V)
Fig. 2 - Forward Voltage Drop Characteristics
500
500
Maximum Total Power Loss (W)
450
400
350
300
250
200
150
100
50
0
130MT..K Series
T
J
= 150 °C
120°
(Rect)
Maximum Total Power Loss (W)
450
400
350
300
250
200
150
100
50
0
R
th
SA
0.
0.2
12
=
K/
0.
05
K/
W
K/
W
W
R
-
Δ
0.3
K/W
0.5
K/W
0.7
K/W
1.5 K
/W
0
20
40
60
80
100
120
140
160
0
25
50
75
100
125
150
Total Output Current (A)
Maximum Allowable Ambient Temperature (°C)
Fig. 3 - Total Power Loss Characteristics
1000
900
Peak Half Sine Wave
Forward Current (A)
800
700
600
500
400
300
200
1
Peak Half Sine Wave
Forward Current (A)
At any rated load condition and with
rated V
RRM
applied following surge.
Initial T
J
= 150°C
at 60 Hz 0.0083 s
at 50 Hz 0.0100 s
1200
1100
1000
900
800
700
600
500
400
300
200
Maximum non-repetitive surge current
versus pulse train duration.
Initial T
J
= 150 °C
No voltage reapplied
Rated V
RRM
reapplied
130MT..K Series
130MT..K Series
10
100
0.01
0.1
1.0
Number of Equal Amplitude
Half Cycle Current Pulses (N)
Fig. 4 - Maximum Non-Repetitive Surge Current
Pulse Train Duration (s)
Fig. 5 - Maximum Non-Repetitive Surge Current
Document Number: 94354
Revision: 29-Apr-08
For technical questions, contact: ind-modules@vishay.com
www.vishay.com
3
130-160MT..KPbF Series
Vishay High Power Products
Three Phase Bridge, 130/160 A
(Power Modules)

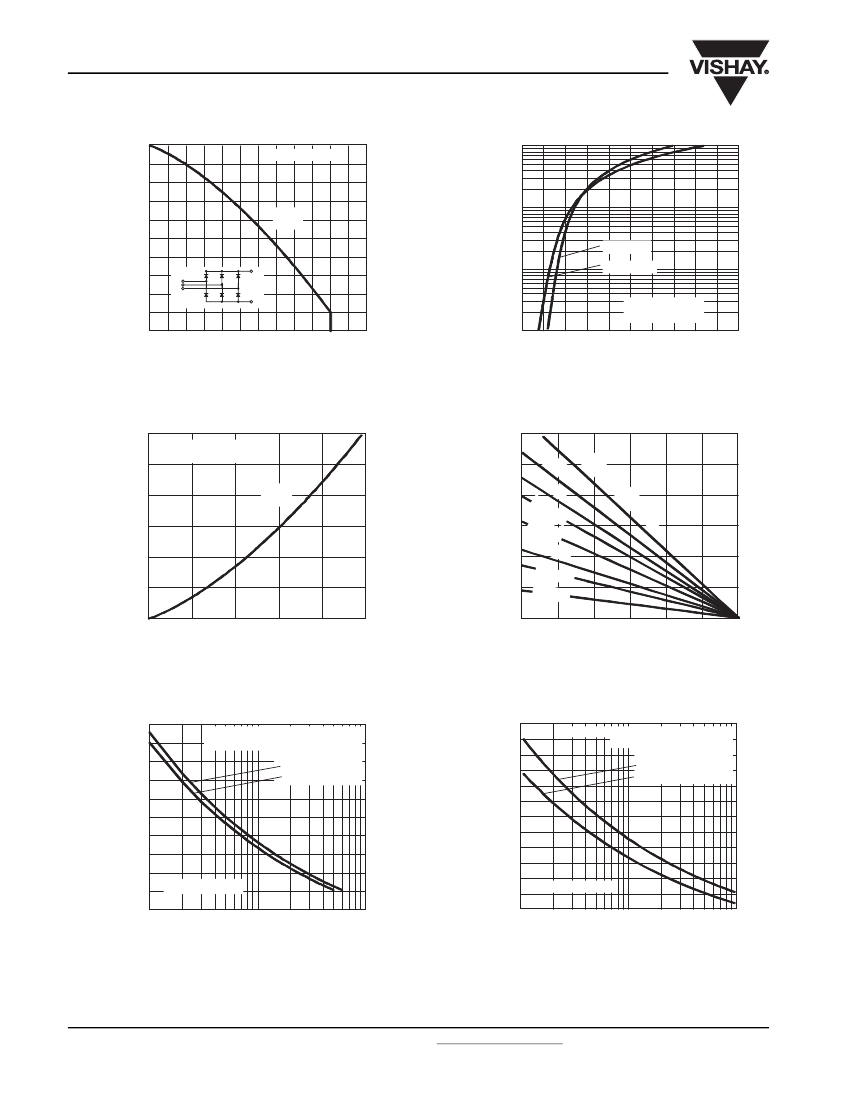

160MT..K Series
140
130
120
110
100
90
80
70
60
50
Instantaneous Forward Current (A)
150
1000
Maximum Allowable
Case Temperature (°C)
120°
(Rect)
100
T
J
= 25 °C
10
+
~
-
T
J
= 150 °C
160MT..K Series
Per junction
1
0
40
80
120
160
200
240
0
1
2
3
4
5
Total Output Current (A)
Fig. 6 - Current Ratings Characteristic
Instantaneous Forward Voltage (V)
Fig. 7 - Forward Voltage Drop Characteristics
600
600
Maximum Total Power Loss (W)
Maximum Total Power Loss (W)
500
400
300
200
100
0
160MT..K Series
T
J
= 150 °C
120°
(Rect)
R
500
400
300
200
100
0
K/
0.1
W
5K
/W
0.2
K/W
0.3
K/W
0.5
K/W
0.7
K/
W
0.
1
th
SA
=
0.
05
K/
W
-
Δ
R
1.5 K/
W
0
40
80
120
160
200
0
25
50
75
100
125
150
Total Output Current (A)
Maximum Allowable Ambient Temperature (°C)
Fig. 8 - Total Power Loss Characteristics
1300
1200
Peak Half Sine Wave
Forward Current (A)
Peak Half Sine Wave
Forward Current (A)
1100
1000
900
800
700
600
500
400
300
At any rated load condition and with
rated V
RRM
applied following surge.
Initial T
J
= 150 °C
at 60 Hz 0.0083 s
at 50 Hz 0.0100 s
1500
1400
1300
1200
1100
1000
900
800
700
600
500
400
300
0.01
Maximum non-repetitive surge current
versus pulse train duration.
Initial T
J
= 150 °C
No voltage reapplied
Rated V
RRM
reapplied
160MT..K Series
160MT..K Series
1
10
100
0.1
1.0
Number of Equal Amplitude
Half Cycle Current Pulses (N)
Fig. 9 - Maximum Non-Repetitive Surge Current
Pulse Train Duration (s)
Fig. 10 - Maximum Non-Repetitive Surge Current
www.vishay.com
4
For technical questions, contact: ind-modules@vishay.com
Document Number: 94354
Revision: 29-Apr-08
130-160MT..KPbF Series
Three Phase Bridge, 130/160 A
Vishay High Power Products
(Power Modules)
Z
thJC
- Transient Thermal Impedance (K/W)
10
Steady state value
R
thJC
= 0.93 K/W
R
thJC
= 0.73 K/W
1
(DC operation)
130MT..K Series
160MT..K Series
0.1
Per junction
0.01
0.001
0.01
0.1
1
10
Square Wave Pulse Duration (s)
Fig. 11 - Thermal Impedance Z
thJC
Characteristics
ORDERING INFORMATION TABLE
Device code
16
1
1
2
3
4
5
-
-
-
-
-
0
2
MT
3
160
4
K
PbF
5
Current rating code: 13 = 130 A (average)
16 = 160 A (average)
Three phase diodes bridge
Essential part number
Voltage code x 10 = V
RRM
(see Voltage Ratings table)
PbF = Lead (Pb)-free
Note
• To order the optional hardware go to www.vishay.com/doc?95172
CIRCUIT CONFIGURATION
+
D
A
B
~
C
-
E
F
LINKS TO RELATED DOCUMENTS
Dimensions
http://www.vishay.com/doc?95004
Document Number: 94354
Revision: 29-Apr-08
For technical questions, contact: ind-modules@vishay.com
www.vishay.com
5
