SMTDRH0530L-330M: DescriptionGeneral Purpose Inductor, 33uH, 20%, 1 Element, Ferrite-Core, SMD, 2020, CHIP, 2020; CategoryPassive components inductor; File Size91KB，3 Pages; Manufacturer3L Electronic Corporation

Download Datasheet Parametric View All

SMTDRH0530L-330M Overview

General Purpose Inductor, 33uH, 20%, 1 Element, Ferrite-Core, SMD, 2020, CHIP, 2020

SMTDRH0530L-330M Parametric

Parameter Name	Attribute value
Maker	3L Electronic Corporation
package instruction	2020
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	2020
structure	Magnetically Shielded
core material	Ferrite
DC Resistance	0.207 Ω
Nominal inductance(L)	33 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	SMTDRH0530L
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Package height	3 mm
Package length	5.2 mm
Package form	SMT
Package width	5.2 mm
method of packing	TR
Maximum rated current	0.88 A
series	SMTDRH0530L
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

SMTDRH0520 ~0635 SERIES

SHIELDED SMT POWER INDUCTORS.

Applications :

．Power

supply for VTRs.

．LCD

televisions.

．Portable

communication equipment.

．DC

to DC converters,etc.

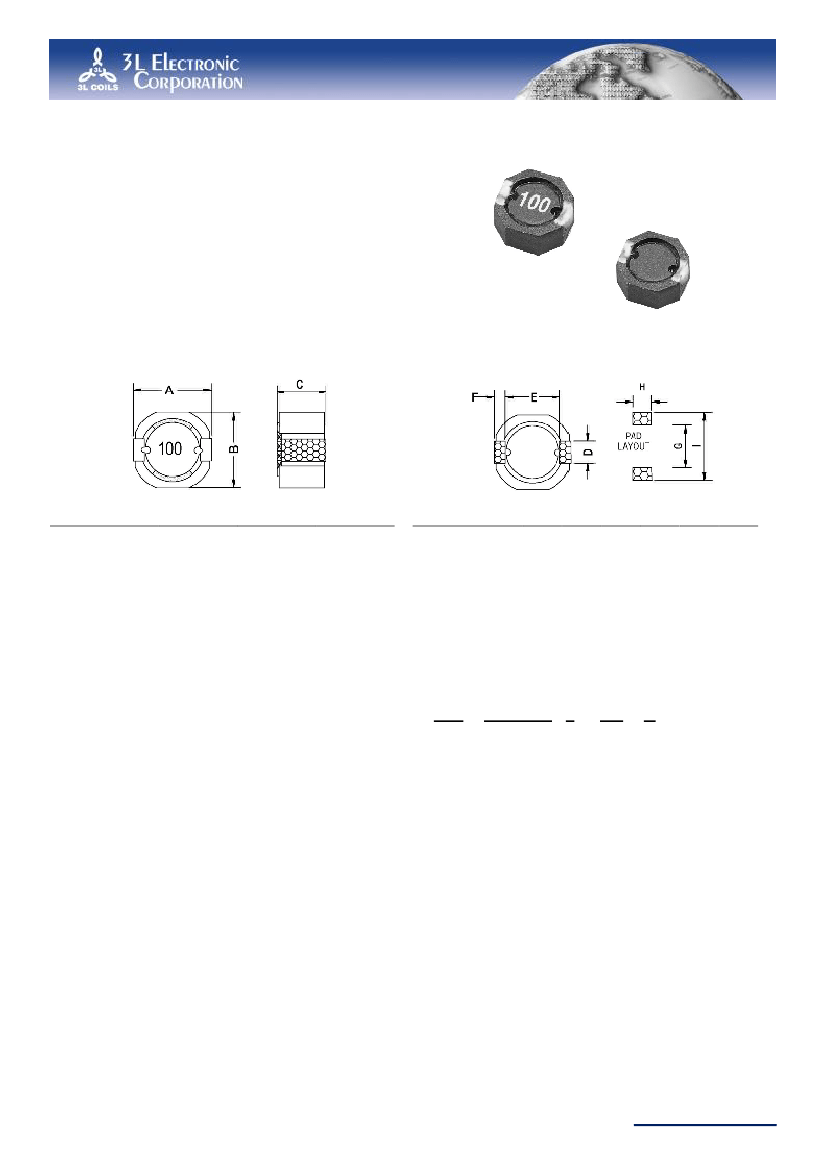

Shape and Dimensions：(Dimensions are in mm)

Item

SMTDRH0520

SMTDRH0530

SMTDRH0530L

SMTDRH0630

SMTDRH0635

A Max.

5.2

6.3

B Max.

5.2

6.2

C Max.

2.0

3.0

3.5

Item

SMTDRH0520

SMTDRH0530

SMTDRH0530L

SMTDRH0630

SMTDRH0635

D

1.4

2.0

E

4.2

4.8

F

0.6

G

4.0

4.6

H

2.0

2.6

I

6.0

6.6

Features :

．Low

profile, SMTDRH0520

SMTDRH0530

SMTDRH0630

SMTDRH0635

2.0mm max. height.

3.0mm max. height.

3.0mm max height

3.5mm max height

Product identification :

SMT

(1)

DRH0530

(2)

L-

(3)

470

(4)

M

(5)

(1) Type:

Surface Mountable Type.

(2) Style:

DR

Core with

RI

Shield,

0530

is size.

(3) No

L:

general type ;

L:

low DCR type.

(4) Inductance:

470

for

47.0

uH.

(5) Inductance tolerance:

M:

±

20%.

．Magnetically

shielded and low DC resistance.

．Suitable

for large currents.

．Ideal

for a variety of DC-DC converter inductor

applications.

Characteristics :

．Saturation

Rated Current (Isat): The current when the

inductance becomes 30% lower than its initial value

(Ta=20℃).

．Temperature

Rise Current (Irms): The current when

temperature of coil increases up to Max

△T=40℃

(Ta=20℃).

Test equipments :

．L

tested by Agilent 4284A LCR meter @ 100KHz 0.1V.

．DCR

tested by Milli-ohm meter.

．Used

frequency rang : 0.1~1MHz.

．Electrical

specifications at 25℃.

．Operating

temperature : -20℃ to 85℃.

Lasting. Leaning. Leading

3L Electronic Corp.

14.1

Web : http://www.3lcoil.com
