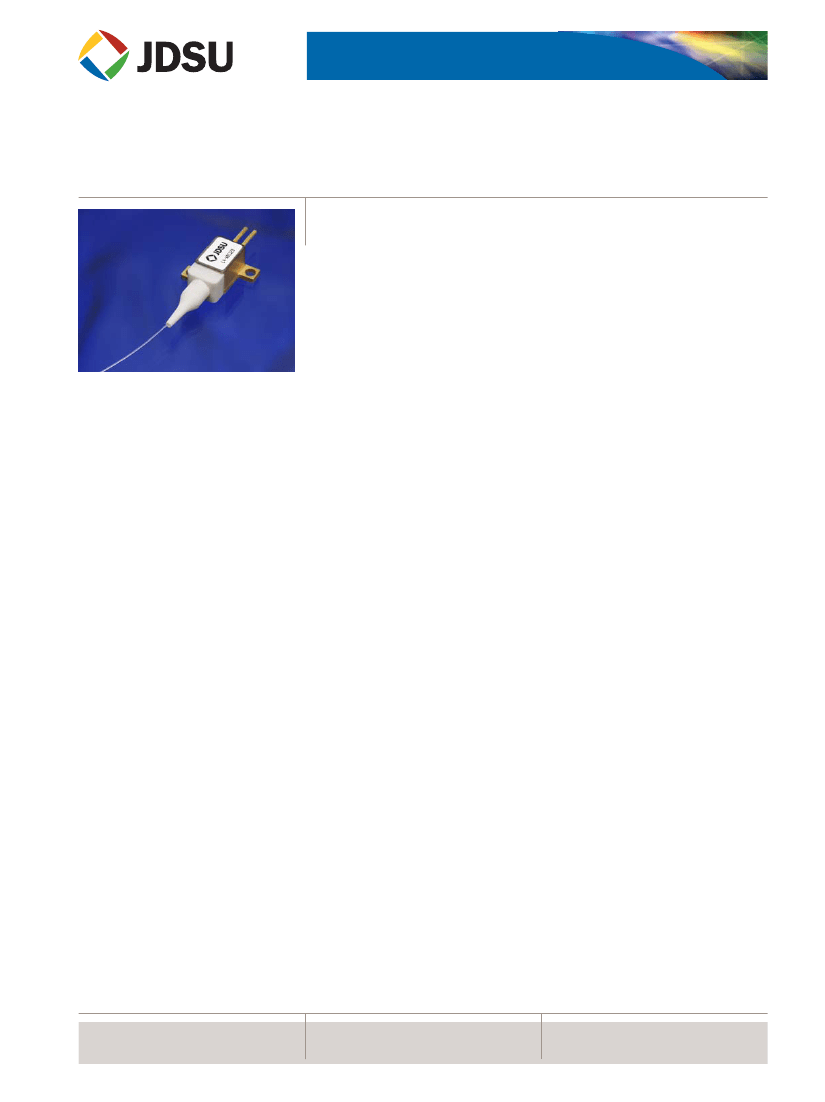

JDSU 6398-L4 series diode lasers offer 10 W of power from a 105 µm fiber. The L4 is
a revolutionary platform based on a long history of existing fiber-coupled L2 and L3
packages, incorporating a highly reliable design into a scalable commercial product.
L4 multimode pump modules offer high brightness, a small footprint and simplified
thermal management by distributing the diodes (heat sources), allowing the use of
either air- or water-cooled architectures with predictable high reliability.
By leveraging existing manufacturing facilities around the world, JDSU is able to
offer all necessary attributes in a cost-effective solution that is ideal for the laser
pumping market.
NORTH AMERICA
:
800 498-JDSU (5378)
WORLDWIDE
:
+800 5378-JDSU
WEBSITE
:
www.jdsu.com
6398-L4 SERIES
2
Dimensions Diagram
(Specifications in mm unless otherwise noted.)
2x 4.3
2X Ø 2.5
11.9
A
2x Ø 1
13
17
7.5
B
Strain relief boot
Metal case
31
10
8.5
(3.9 )
1.5
3.9
2.54
7.7
Pinout
Pin
A
B
Description
Laser cathode (-)
Laser anode (+)
6398-L4 SERIES
3
Specifications for 0.22NA
1
Parameter
Laser Characteristics
CW output power
Mean wavelength
2
Symbol
Minimum
Typical
Maximum
Spectral width (FWHM)
Slope efficiency
Conversion efficiency
Threshold current
Operating current
Forward voltage
Series resistance
Recommended case temperature
Wavelength tuning vs. temperature
3
Wavelength tuning vs. output power
Fiber Characteristics
Fiber core diameter
Fiber numerical aperture
Fiber cladding
Fiber buffer
Fiber length
Absolute Maximum Ratings
Operating current
Reverse voltage
Case operating temperature
4
Storage temperature
5
Lead soldering temperature, 10 s max
Relative humidity, non-condensing, ambient <45°C
Electrostatic discharge (ESD)
6
Fiber bend radius (long-term deployment)
7
Fiber axial pull force, 15 seconds
Fiber side pull force, 15 seconds
P
o
λ
p 915 nm
λ
p 940 nm
λ
p 975 nm
Δλ
η
D 915 nm
η
D 940 nm
η
D 975 nm
η
I
th
I
op 915 nm
I
op 940 nm
I
op 975 nm
V
f
R
s
T
c
Δλ/ΔT
Δλ/ΔP
d
c
NA
d
cl
d
b
l
f
I
op
V
rvs
T
op
T
stg
T
ls
RH
V
esd
-
905 nm
928 nm
963 nm
-
-
-
-
-
-
-
-
-
20°C
-
-
-
0.20
-
-
0.9 m
-
-
15°C
-30°C
-
-
-
30 mm
-
-
-
917 nm
939 nm
974 nm
3 nm
0.93 W/A
0.92 W/A
0.90 W/A
48%
600 mA
11.4 A
11.7 A
11.8 A
1.81 V
0.04
Ω
25°C
0.35 nm/°C
1.0 nm/W
105 µm
0.22
125 µm
250 µm
1m
-
-
-
-
-
-
-
-
-
-
10 W
928 nm
950 nm
985 nm
6 nm
-
-
-
-
850 mA
12.5 A
12.8 A
13.0 A
2.0 V
-
40°C
-
-
-
0.24
-
-
-
14 A
2.0 V
50°C
70°C
300°C
85%
500 V
-
5N
2.5 N
1. All performance data measured at 10 W, 25 °C, Beginning of Life (BOL).
2. Weighted average "center of mass" spectral point at 25°C at P
O
3. Change in
Δλ
mean with case temperature over T
op
4. Non-condensing, maximum
5. Non-condensing, 2000 hours
6. C = 100 pF, R = 1.5 kΩ, human body model, shown to be not damaging to its LI characteristics or its reliability; I-V curves may change in this ESD environment
7. Minimum bend radius of 30 mm is for long-term mechanical fiber reliability; however for 0.15 NA some optical loss may occur and a minimum bend radius of 45 mm is recommended for layouts with
multiple fiber coils.
6398-L4 SERIES
4
Specification for 0.15 NA
1
Parameter
Laser Characteristics
CW output power
Mean wavelength
2
Symbol
Minimum
Typical
Maximum
Spectral width (FWHM)
Slope efficiency
Conversion efficiency
Threshold current
Operating current
Forward voltage
Series resistance
Recommended case temperature
Wavelength tuning vs. temperature
3
Wavelength tuning vs. output power
Fiber Characteristics
Fiber core diameter
Fiber numerical aperture
Fiber cladding
Fiber buffer
Fiber length
Absolute Maximum Ratings
Operating current
Reverse voltage
Case operating temperature
4
Storage temperature
5
Lead soldering temperature, 10 s max
Relative humidity, non-condensing, ambient <45°C
Electrostatic discharge (ESD)
6
Fiber bend radius (long-term deployment)
7
Fiber axial pull force, 15 seconds
Fiber side pull force, 15 seconds
P
o
λ
p 915 nm
λ
p 940 nm
λ
p 975 nm
Δλ
η
D 915 nm
η
D 940 nm
η
D 975 nm
η
I
th
I
op 915 nm
I
op 940 nm
I
op 975 nm
V
f
R
s
T
c
Δλ/ΔT
Δλ/ΔP
d
c
NA
d
cl
d
b
l
f
I
op
V
rvs
T
op
T
stg
T
ls
RH
V
esd
-
905 nm
928 nm
963 nm
-
-
-
-
-
-
-
-
-
20°C
-
-
-
0.135
-
-
0.9 m
-
-
15°C
-30°C
-
-
-
30 mm
-
-
-
917 nm
939 nm
974 nm
3 nm
0.91 W/A
0.90 W/A
0.90 W/A
46%
600 mA
12.0 A
12.2 A
12.3 A
1.82 V
0.04
Ω
25°C
0.35 nm/°C
1.0 nm/W
105 µm
0.15
125 µm
250 µm
1m
-
-
-
-
-
-
-
-
-
-
10 W
928 nm
950 nm
985 nm
6 nm
-
-
-
-
850 mA
13.0 A
13.5 A
13.5 A
2.0 V
-
40°C
-
-
-
0.165
-
-
-
14 A
2.0 V
50°C
70°C
300°C
85%
500 V
-
5N
2.5 N
1. All performance data measured at 10 W, 25°C, Beginning of Life (BOL).
2. Weighted average "center of mass" spectral point at 25°C at P
O
3. Change in
Δλ
mean with case temperature over T
op
4. Non-condensing, maximum
5. Non-condensing, 2000 hours
6. C = 100 pF, R = 1.5 kΩ, human body model, shown to be not damaging to its LI characteristics or its reliability; I-V curves may change in this ESD environment
7. Minimum bend radius of 30 mm is for long-term mechanical fiber reliability; however for 0.15 NA some optical loss may occur and a minimum bend radius of 45 mm is recommended for layouts with
multiple fiber coils.
6398-L4 SERIES
5
Configurations
Product Code
L4-9891510-100B
L4-9891510-100C
L4-9891510-100M
L4-9894010-100B
L4-9894010-100C
L4-9894010-100M
L4-9897510-100B
L4-9897510-100C
L4-9897510-100M
Wavelength Range
905-928 nm
905-928 nm
905-928 nm
928-950 nm
928-950 nm
928-950 nm
963-985 nm
963-985 nm
963-985 nm
Connector
1
No
No
SMA
No
No
SMA
No
No
SMA
Fiber NA
0.22
0.15
0.22
0.22
0.15
0.22
0.22
0.15
0.22
1. If a connector option is selected, it is always connectorized. All performance data measured at 10 W, 25°C, Beginning of Life.
