LFVCXO054112BULK: DescriptionHCMOS/LSTTL Output Clock Oscillator, 19.44MHz Nom; CategoryPassive components oscillator; File Size137KB，2 Pages; ManufacturerIQD Frequency Products; Environmental Compliance

Download Datasheet Parametric View All

LFVCXO054112BULK Overview

HCMOS/LSTTL Output Clock Oscillator, 19.44MHz Nom

LFVCXO054112BULK Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	IQD Frequency Products
Reach Compliance Code	compliant
Other features	BULK
Maximum control voltage	4.5 V
Minimum control voltage	0.5 V
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	100 ppm
frequency stability	25%
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	19.44 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	HCMOS/LSTTL
Output load	10 LS TTL, 15 pF
physical size	21.0mm x 13.08mm x 5.9mm
longest rise time	10 ns
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
maximum symmetry	40/60 %
Base Number Matches	1

Preview

Download Datasheet

View All

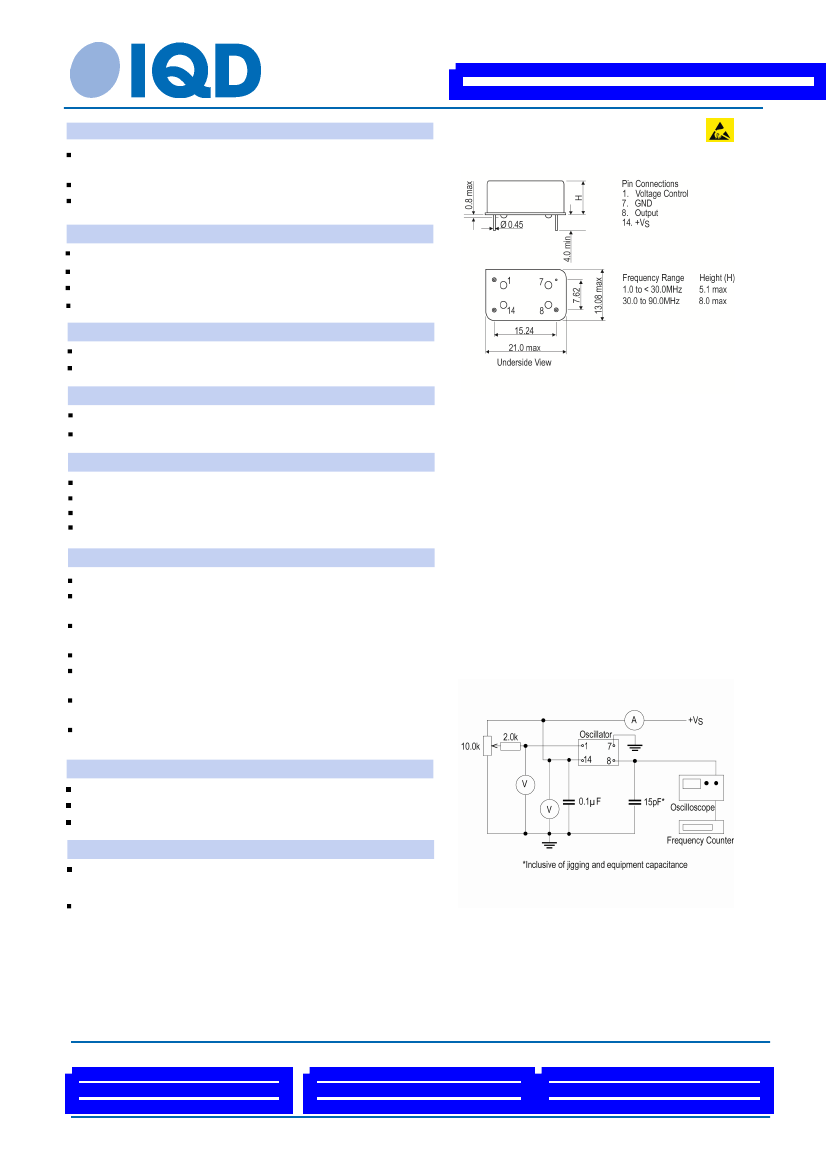

VCXO Specification

Part No. + Packaging:

LFVCXO054112Bulk

Description

Voltage Controlled Crystal Oscillator (VCXO) in a 14-pin DIL

hermetically sealed package

Model

IQVCXO-161

Model Issue number

10

Frequency Parameters

Outline (mm)

Frequency

Frequency Stability

Operating Temperature Range

Modulation Bandwidth: >15kHz

Electrical Parameters

19.440MHz

±25.00ppm

-20.00 to 70.00°C

Supply Voltage

Current Draw

Frequency Adjustment

5.0V ±0.25V

15.00mA

Pulling

Control Voltage

Output Details

±100ppm min

2.5V ±2.0V

Output Compatability

Drive Capability

Rise and Fall Time

Duty Cycle

Environmental Parameters

HCMOS/LSTTL

15pF/10LSTTL

10.0ns max

40/60%

Storage Temperature Range: –40 to 85°C

Shock: 981m/s², 6ms, 3 times in each of 3 mutually

perpendicular planes

Vibration: 0.76mm amplitude, 10Hz-55Hz, sweep 1min in 3

mutually perpendicular planes, duration 2hrs each plane

Solderability: MIL-STD-202E, Method 208C

Rapid Change of Temperature over Operating Temperature

Range: 10 cycles

Terminal Strength: 0.91kg max. force perpendicular to top and

bottom

Hermetic Seal: Not to exceed 1x10-8mBar litres of Helium

leakage

Compliance

Test Circuit

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Bulk

Pack Size: 25

Loose in bulk pack

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 2
